Products Description

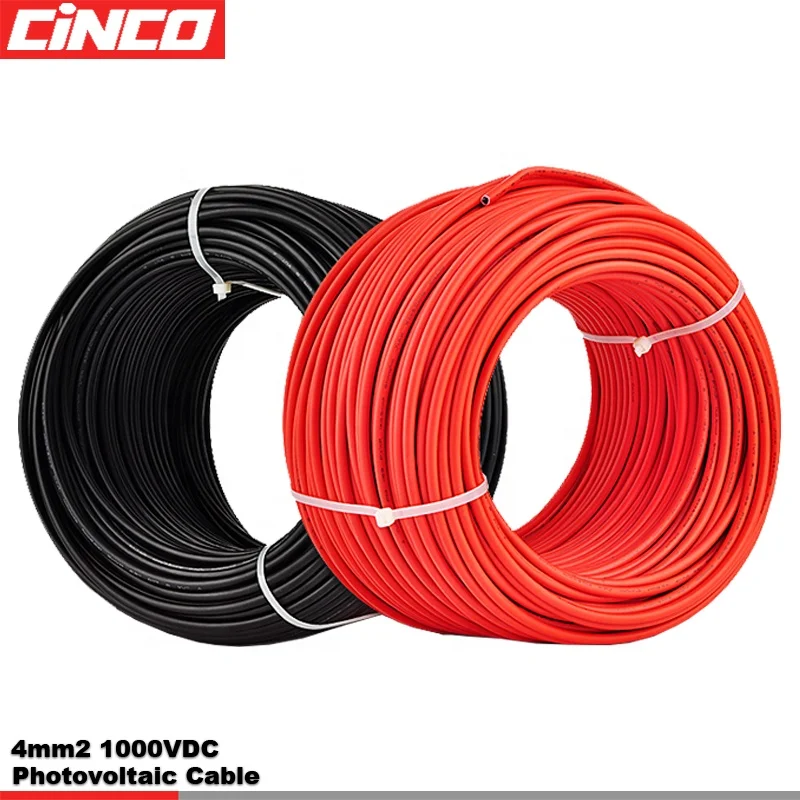

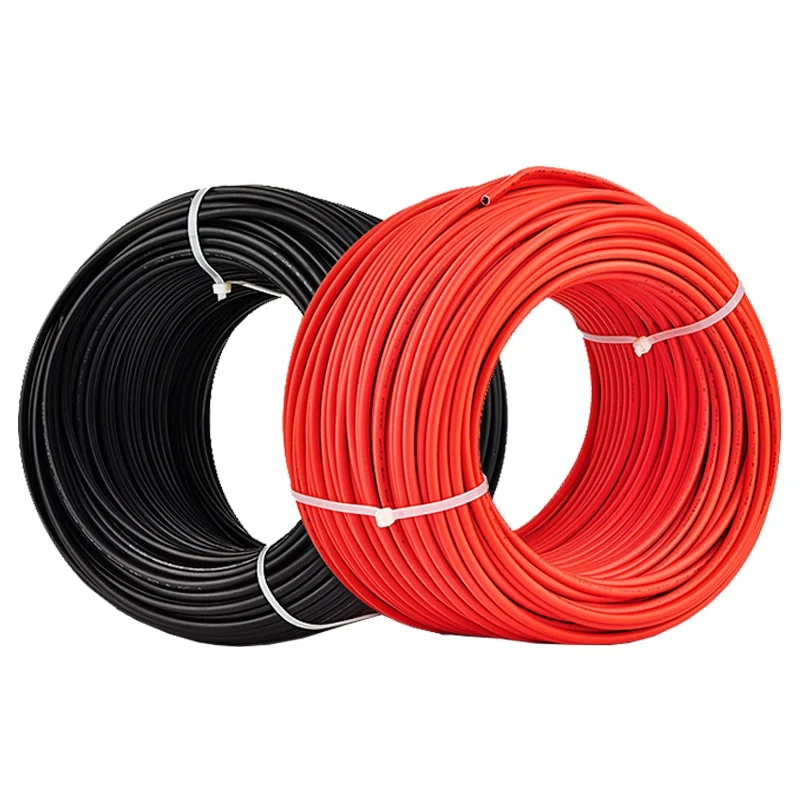

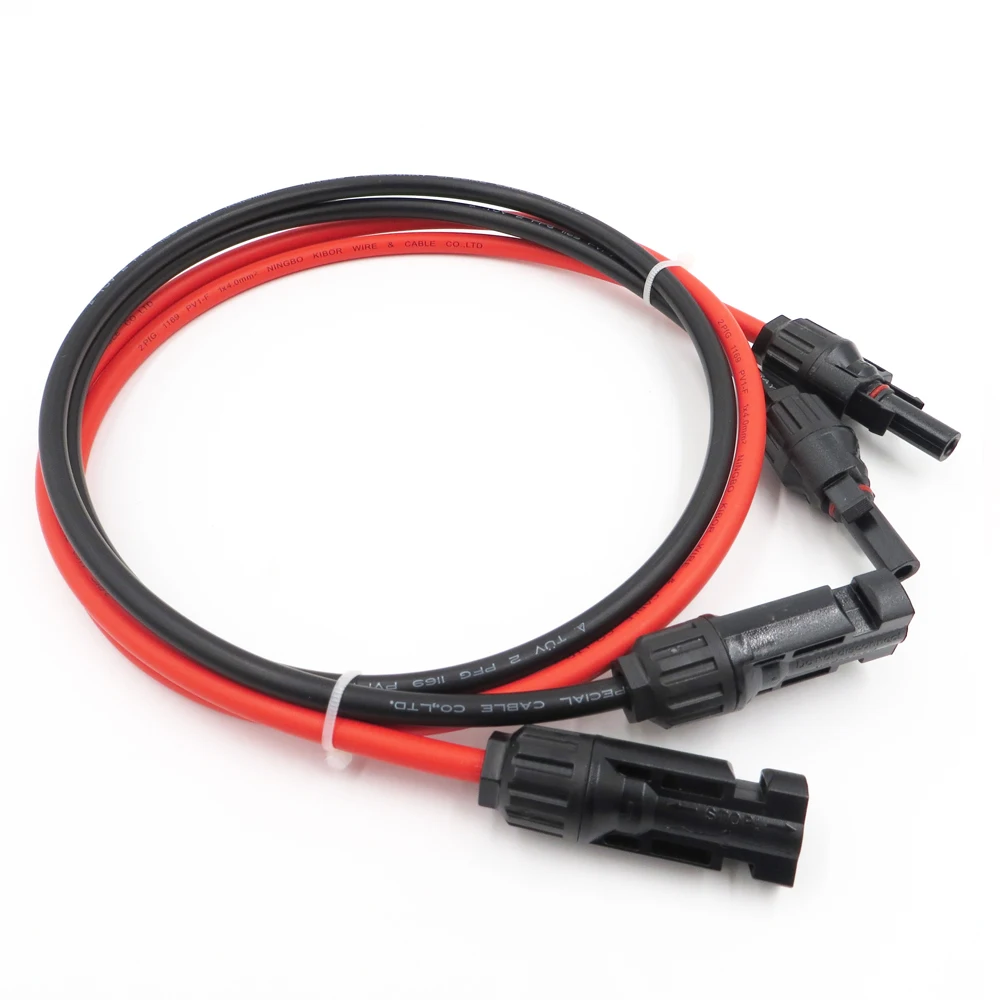

Photovoltaic cable
2.5/4/6/10mm2 1000V/1500V
2.5/4/6/10mm2 1000V/1500V
1. Conductor: Tinned annealed copper 2. Insulation:120°C XLPE , black 3. Jacket:120°C XLPE , black or red Conductor: stranded bare
copper or tinned copper 4. Application: Specifically designed for connecting photovoltaic system components inside and outside of
building and equipment with high mechanical requirements and extreme weather conditions .For permanent installations. 5. General
characteristics: Cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil,
abrasion, ozone, UV and weather; with improved reaction in case of fire . low smoke, halogen free , flame free , flame retardant.
Product Paramenters
Model | 2.5mm2 | 4mm2 | 6mm2 | 10mm2 | ||||
Cable Construction | ||||||||
Conductor | Stranded tinned copper | |||||||
Stranding | 45/0.25±0.01mm | 56/0.285±0.01mm | 78/0.295±0.01mm | 132/0.295±0.01mm | ||||
Diameter | 2.4mm | 2.4mm | 3.0mm | 4.1mm | ||||
PrimaryInsulation | XLPE | |||||||
Minimum Average Thickness | 0.7mm | 0.7mm | 0.7mm | 0.7mm | ||||
PrimaryInsulation Color | Black | |||||||
Secondary Insulation | XLPE | |||||||
Minimum Average Thickness | 0.8mm | 0.8mm | 0.8mm | 0.8mm | ||||
Secondary Insulation Color | Red/Black | |||||||
Outer Diameter | 5±0.15mm | 6.1±0.15mm | 6.1±0.15mm | 7.4±0.15mm | ||||
Electrical Characteristics | ||||||||
Voltage Rating | 1000V/1500V | |||||||
Ambient Temperature | -40°C up to 90°C | |||||||
Insulation Resistance At 20℃ | ≥ 640 MΩ.km | ≥ 580 MΩ.km | ≥ 500 MΩ.km | ≥ 420 MΩ.km | ||||
Current carrying capacity AT 60℃ | 41A | 55A | 70A | 98A | ||||
Spark test | 10000 VAC | |||||||
Voltage Withstand | 6500 VAC | |||||||
ConductorResistanceAT 20℃ | ≤ 8.21 Ω/km | ≤ 5.09 Ω/km | ≤ 3.39 Ω/km | ≤ 1.95 Ω/km | ||||
Other Characteristics | ||||||||
Bending Radius Dynamic | ≥ 5 X O.D. | |||||||
Bending Radius Static | ≥ 4 X O.D. | |||||||
Ozone resistant | EN60811-403 Method A;EN 50396 8.1.3 Method B | |||||||
Low smoke emission | EN61034-2,light transmittance ≥ 60% | |||||||
Weathering/UL resistance | EN50289-4-17 | |||||||
Halogen free | IEC 60754-1 | |||||||
Flame retardant | IEC 60332-1-2 | |||||||
Package type | 300m/roll | 250m/roll | 200m/roll | 100m/roll | ||||
Weight | 13KG | 17KG | 16KG | 13KG | ||||
Customer Photos
Norway--Solar Tracking System
Saudi Arabia-Wind Solar Hybrid System
Hungary-Off Grid Solar System
Panama-Off Grid Solar System
South Africa-Energy Storage System
China-On Grid Solar System
USA-Grid Tied Solar System
Indonesia-Rooftop Solar Power Station
Ukraine-On Grid Solar System
UK-Ground Solar Power Station
