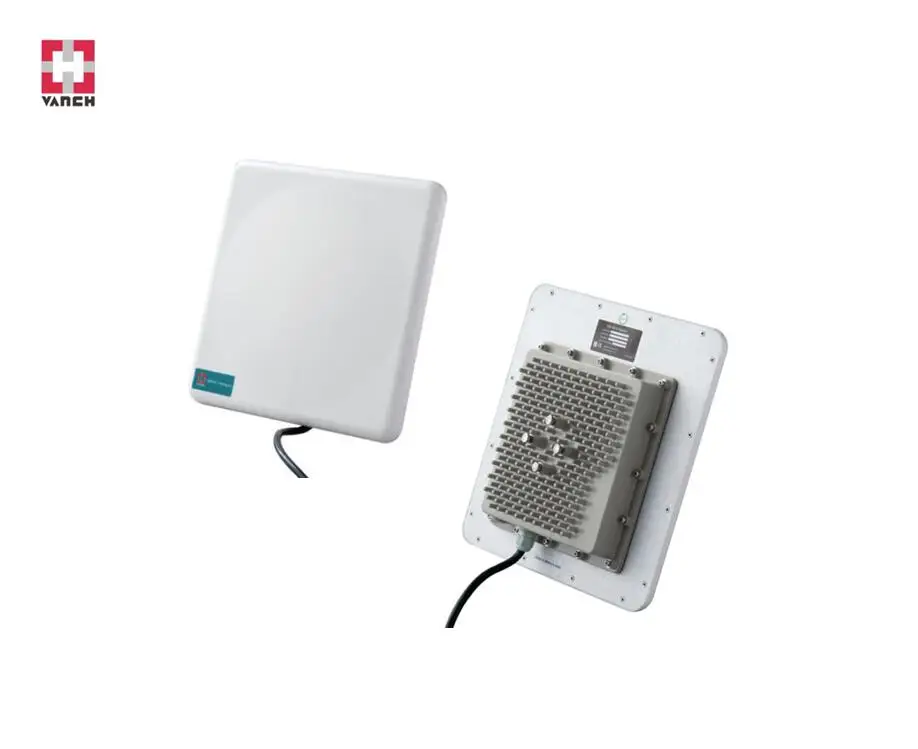

Impinj R2000 Integrated Long Range UHF RFID Parking Reader
Product Description
Introduction:
UHF RFID reader, hands free access rfid reader, access control reader,long range read distance, integrated reader, usually use in many kinds of projects, especially in vehicle identification or car parking.
This is a popular integrated reader, Compatible with ISO18000-6C (EPC C1GEN2) and ISO18000-6B.
It is an industry grade product for harsh environment, IP-65 protection case for water-proof, easy to install.
Application:

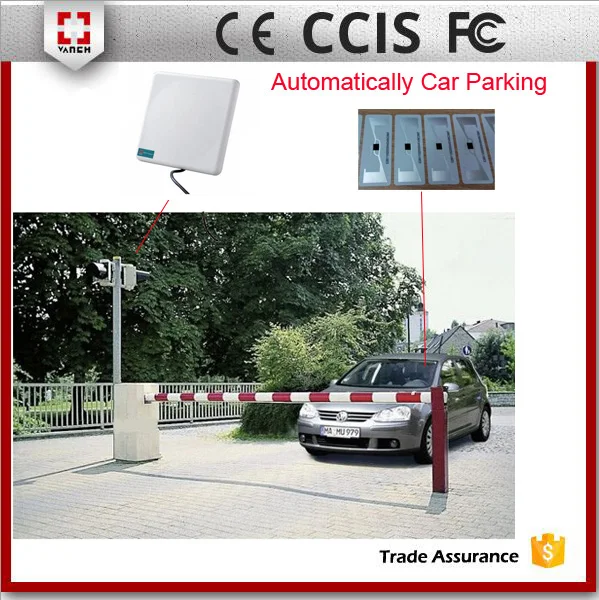

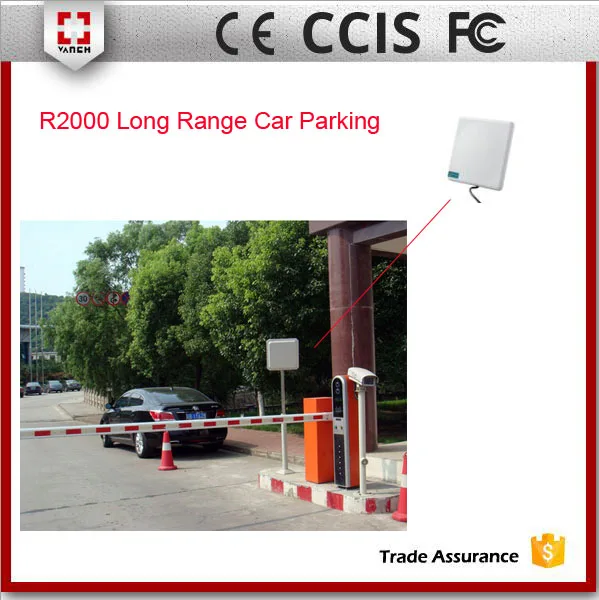

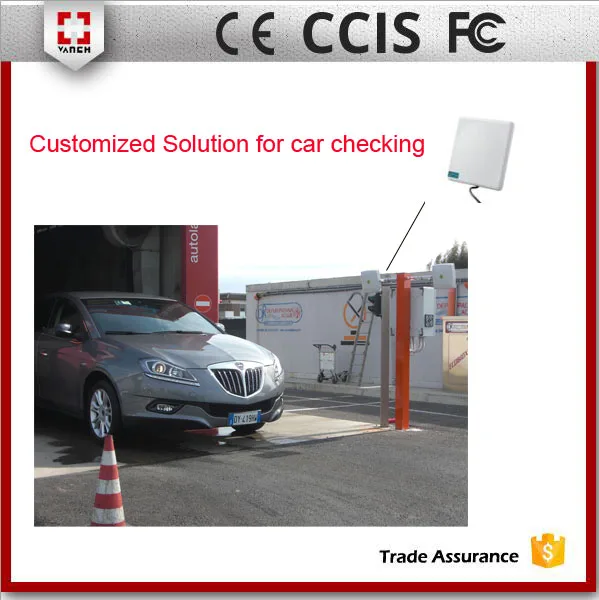

1. Parking management: Long range intelligent parking management and automatic charge without stop the car
2. Production line management: Goods identification for production flow

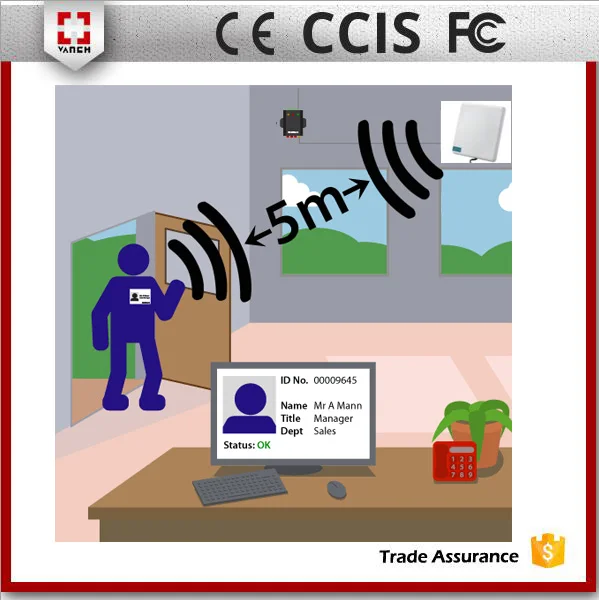

3. Auto Access control: Long range access control management for custom, sea port
4. Logistics and warehouse management
5. People auto registry for important meeting or exhibition
6. Automatic weighing and data capture.
Frequency range | 902-928MHZ(or customized) |
FM mode | FHSS or fixed frequency, set by the software |
RF output | 30dBm adjustable;50Ω load |
Communication interface | LAN,RS232,RS485,Wiegand26/34,IEEE 802.11 |
Communication rate | Serial port 9600~115200bps,RJ45 10Mbps |
GP I/O interface | 12 pin + 4 pin |
Power dissipation | average<10W |
Application software | Provide with API SDK and VC, VB, Java application routines |
Tag Operation Performance | |
Reading distance | 10m equipped with 9dbi antenna(tag dependent) |
Air interface | EPC global UHF ISO-18000-6C(EPC G2), ISO-18000-6B |
Mechanical and Electrical Performance | |
Dimension | 306(L)*306(W)*25(H)mm(excluding mounting bracket and external wiring) |
Power supply | Equipped with power convertor 220V AC input, +9V/3A DC output |
Weight | 2.6Kg |
Installation | Embrace rod mounting |
Diameter of support rod | 40-50mm |
Humidity | 5% to 95%, non-condensing |
Protection grade | IEC IP65 |
Operation temperature | -20 ºC to +60 ºC |

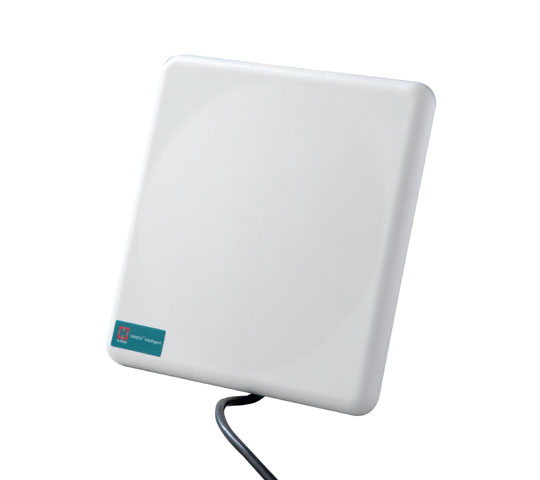

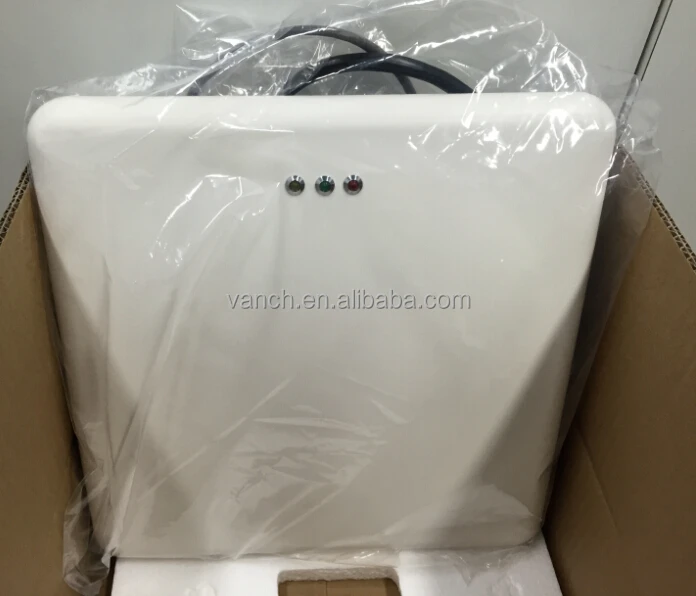

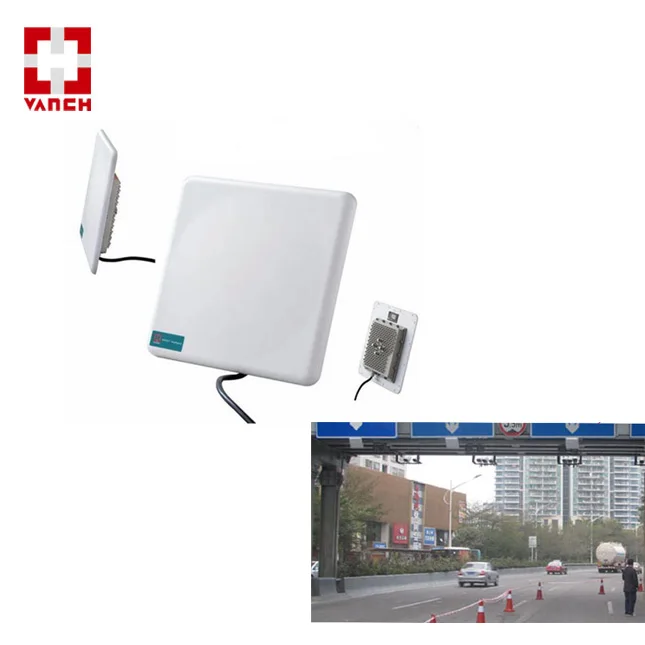

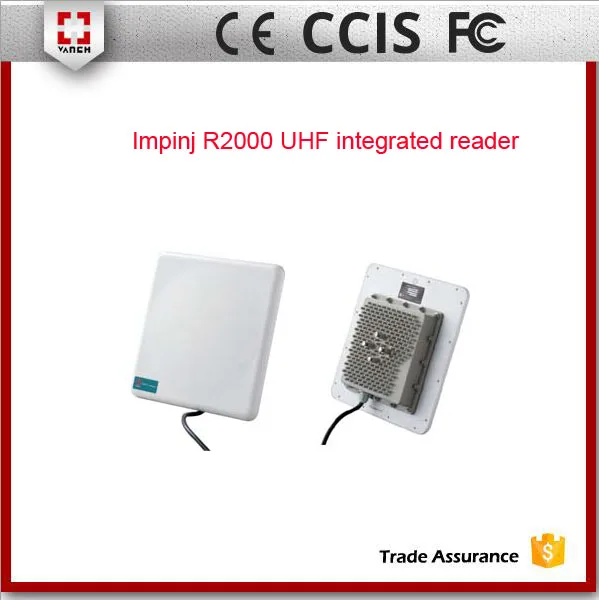

Product Picture:
Our Services
1, Supply different kinds of UHF RFID reades,antennas, tags(protocol of EPC C1G2 and ISO-18000/6C 902-928MHZ 865-868MHZ and 2.45GHZ active RFID Products
2, Have our own R&D Department to customize RFID Products for you.
3.Assist you to design different kinds of industry RFID solution

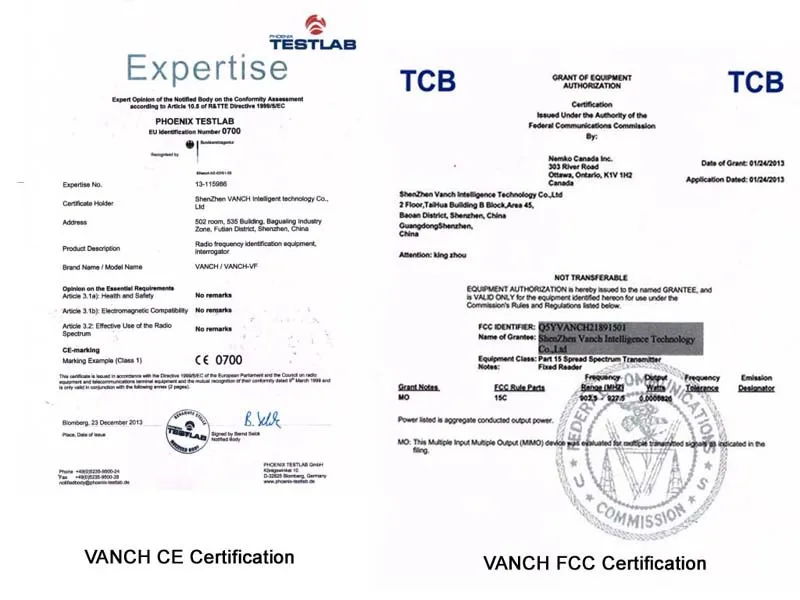

4.Products are CE and FCC certified
