Details:
-Use of efficient, environmental protection switching power supply circuit frame
-Optimization of the shape and structure to facilitate the construction systems
-Small ripple & noise -- video output signal more stable, clearly images
-Splitter output -- by-pass failure to protect other equipment to work
-Power protection -- Output over-voltage protection, over-current protection, short circuit protection
Specification:

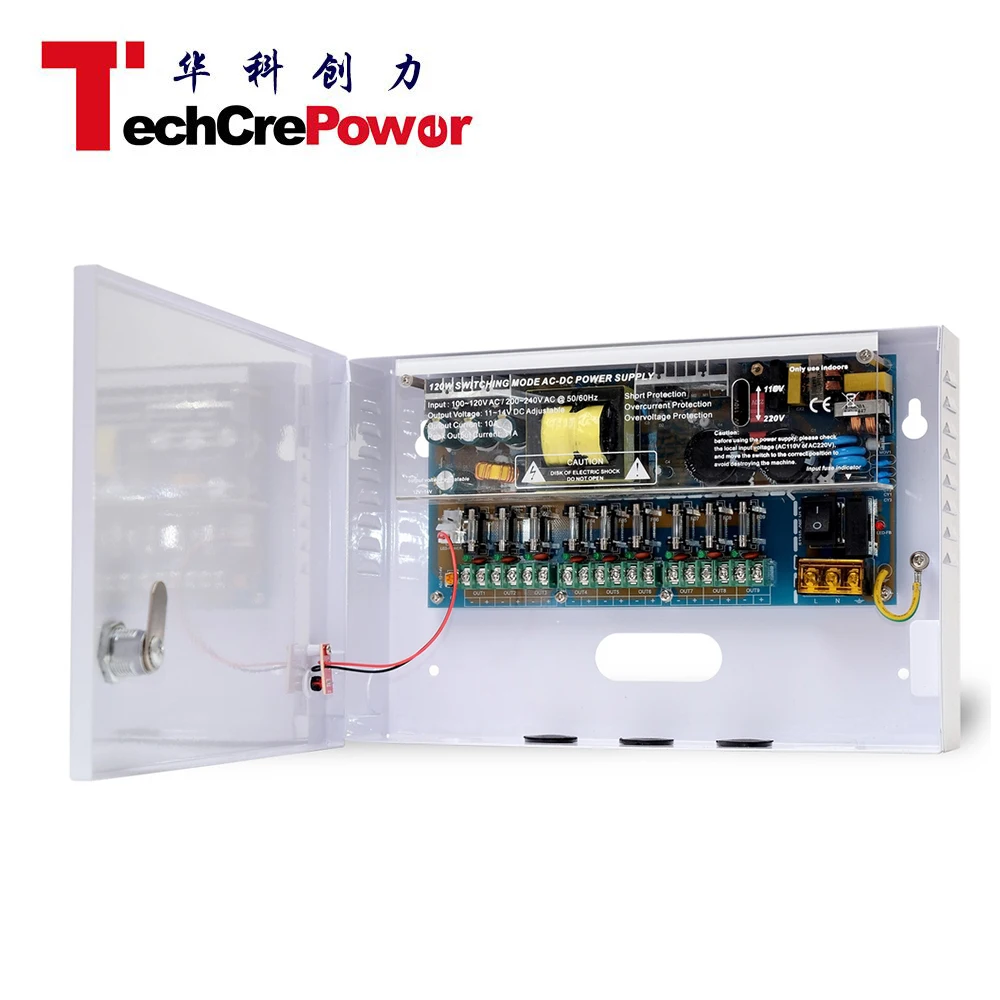

Item: | CCTV Power Supply |
| Input Voltage: | AC 100-240V |
| Frequency range: | 50/60Hz |
| Output Voltage: | DC 12V 10A |
| Product Dimension: | 200*202*50mm |
| Conversion efficiency: | ≥ 85% |
| Overcurrent Protection: | 11A±5% |
| Line Regulation: | ± 0.5% max |
| Load Regulation: | ± 1% max |
| Temperature coefficient: | ± 0.03% (0 ~ 50°C) |
| Start time: | ≤ 3s (240VAC input, io=100%) |
| Guard time: | ≥ 20ms (240VAC input, io=100%) |
| Working temperature: | -20°C ~ 60°C |
| Storage temperature: | -30°C ~ 85°C |
| Humidity: | 0% ~ 95% RH |
| Setup, rise, hold up time: | 800ms, 50ms, 10ms/150V 300ms, 50ms, 80ms/230v |
| Vibration: | 10 ~ 500Hz, 2G 10min,/1 cycle. Period for 60min, Each axes |
| Withstand voltage: | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
| Isolation resistance: | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
| Overload Protection: | 105 ~ 150% rated output power, Auto recovery |
| Over Voltage Protection: | >115% ~ 135% rated output voltage |
| Warranty: | One Year |
1.What is your minimum order quantity? |
Actually, we don't have strict rules on MOQ and welcome you to get samples for testing.
| 2.What is your payment term? |
Bank T/T, Paypal, L/C, Western Union and MoneyGram.
| 3.What about the shipping way? |
Generally, the package is delivered by Express DHL/Fedex/TNT/UPS. For big order, we recommend to ship by air or sea to save cost, but it might take longer time. Of course we could ship goods to your forwarder in China according to different customers requirements.
| 4.How long does it take? |
Usually we need 2-8 days differently for preparing and another 3-7 days for delivery. If special products, may need more time.
| 5.What about the warranty? |
We provide 1-2 years warranty from the date of delivery but lifetime technical support.
