Машина для прокатки листового металла
US $10000
Мульти-стиль бесшовные желоба Профилегибочная машина по изготовлению бетонных блоков для продажи
- Категория товара: Машины для производства плитки >>>
- Поставщик (Оптовый магазин): Horsea,Precision,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

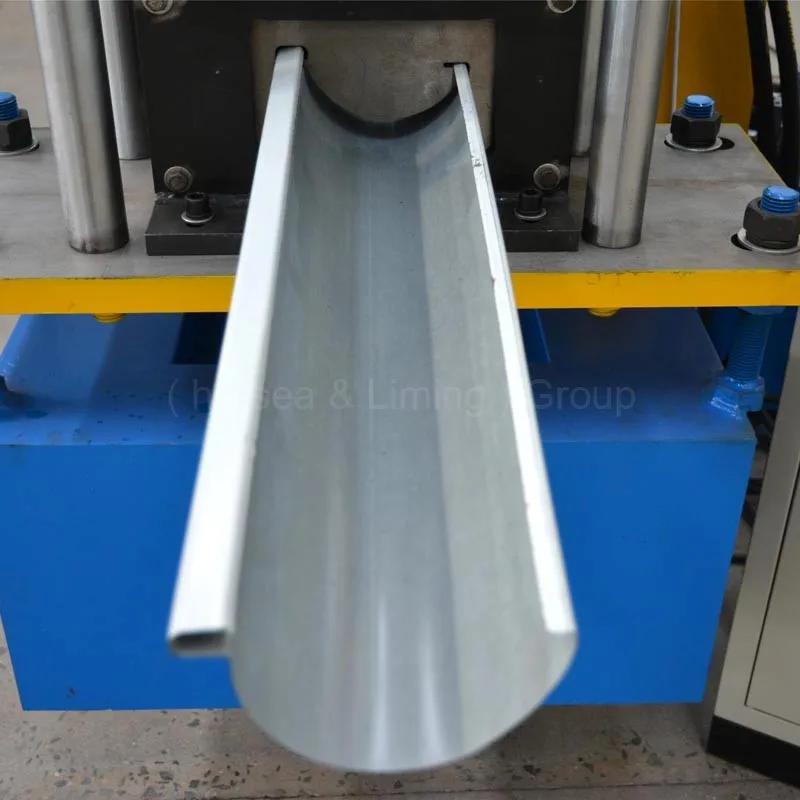

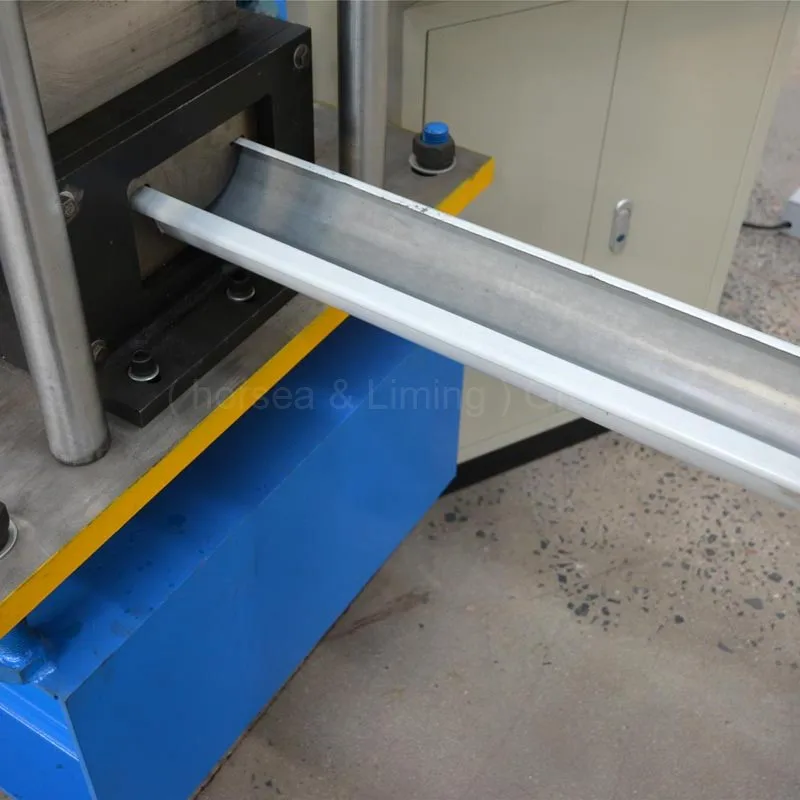

various styles seamless gutter roll former making machine
Product Description
Product Application

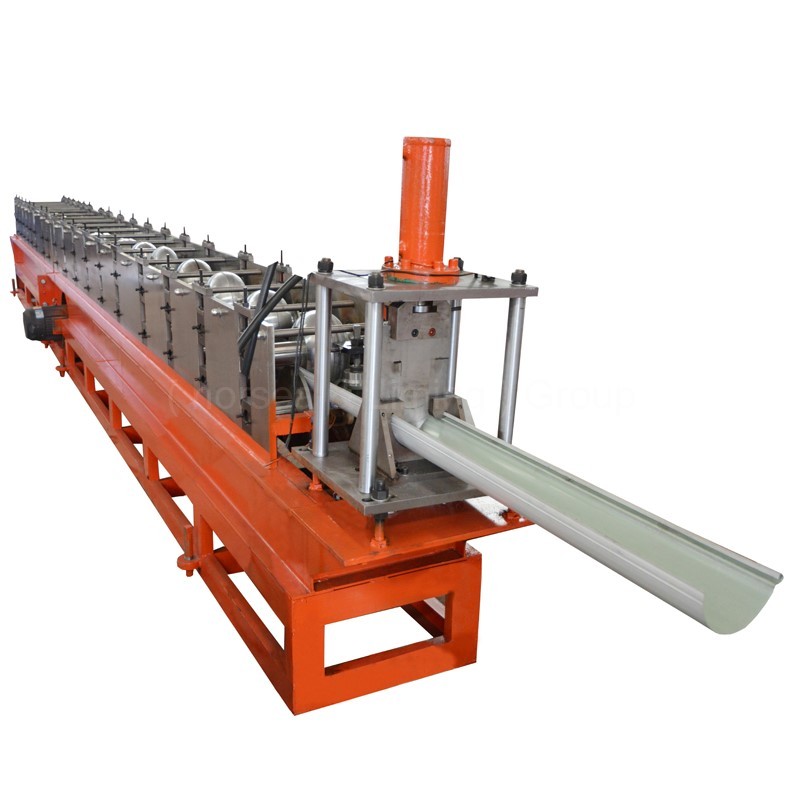

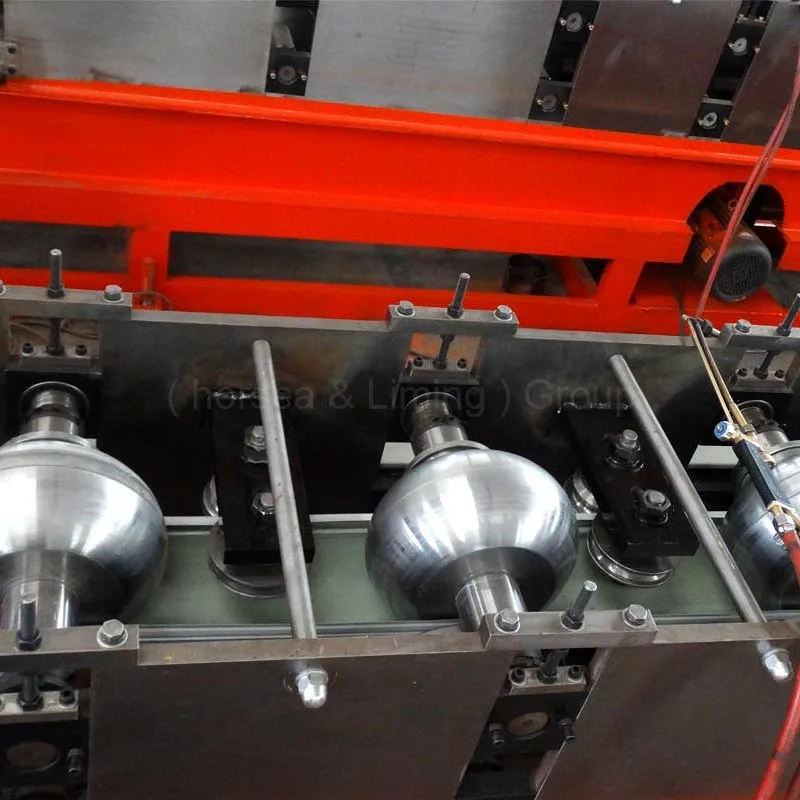

Downspout roll forming machine Newly strong type gear box drive gutter roll forming machine, this is our new machine for Libanon customer, the material thickness 1.8-2.0mm, and the product very popular in Europe, South Africa, Zambia, Brazil, America, Iraq, Uruguay, chile etc.The machine totol need 22 roller station , can use color steel plate, galvinazed steel plate, aluminum zinc plate, thickness range is up to 2.0mm.

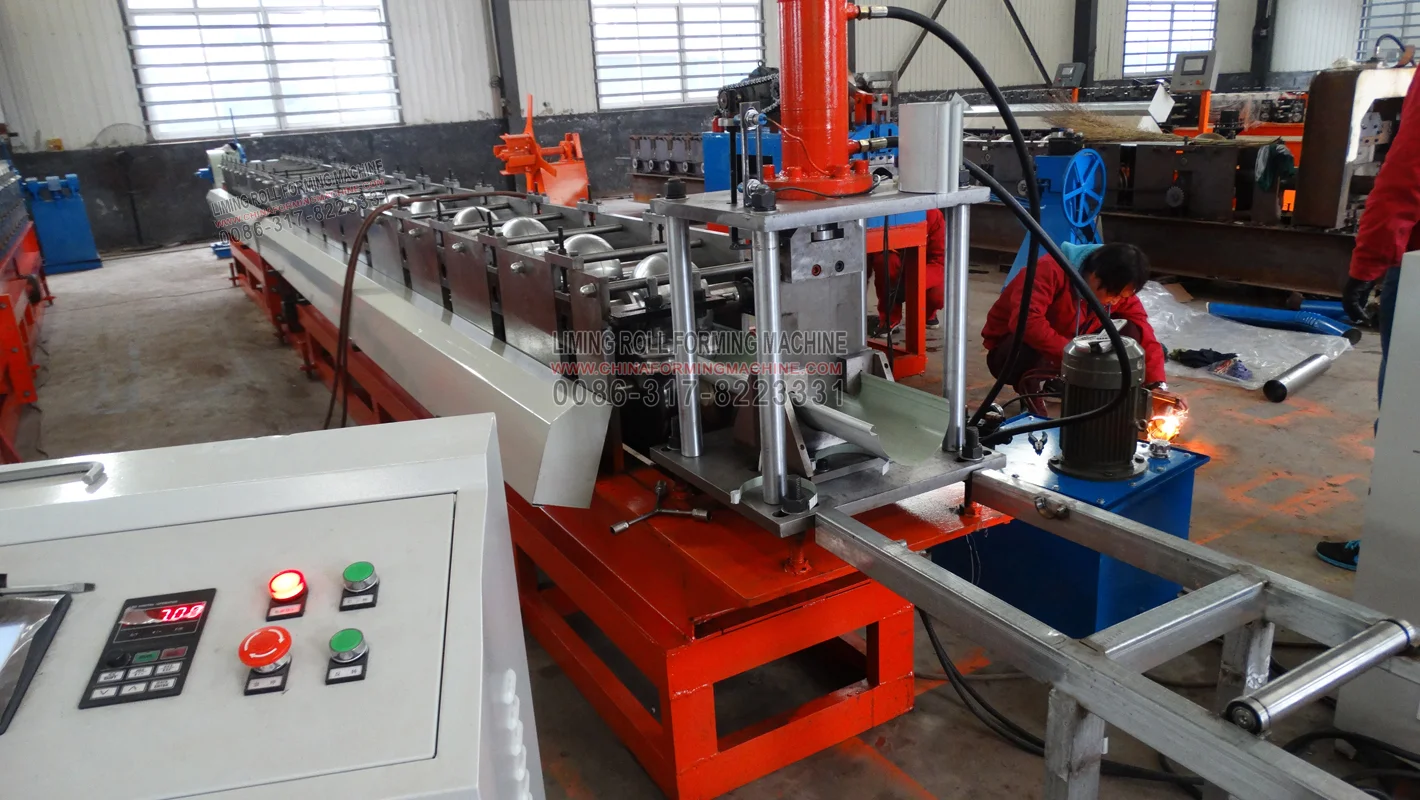

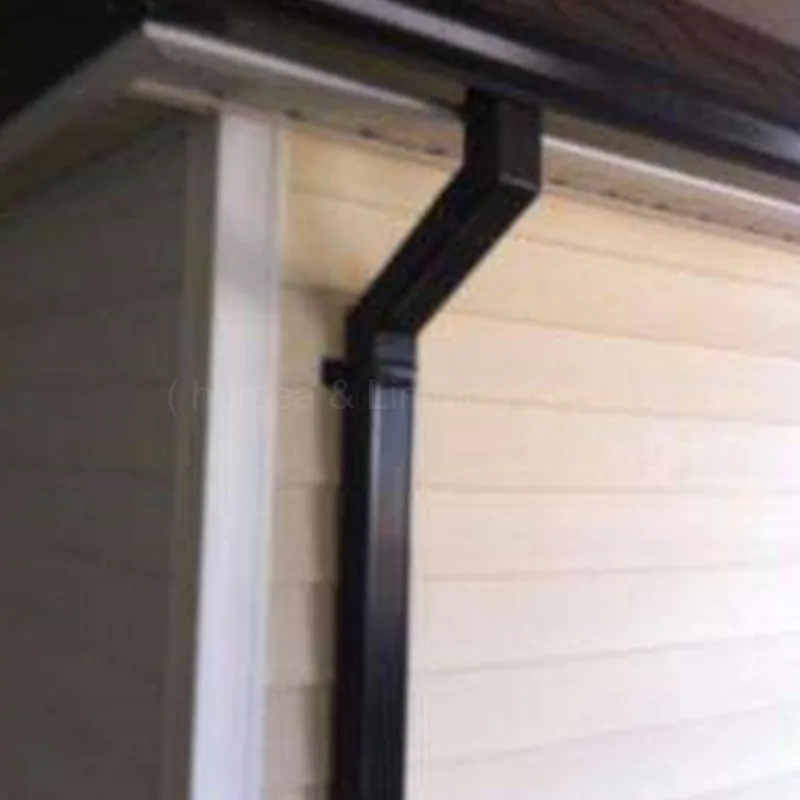

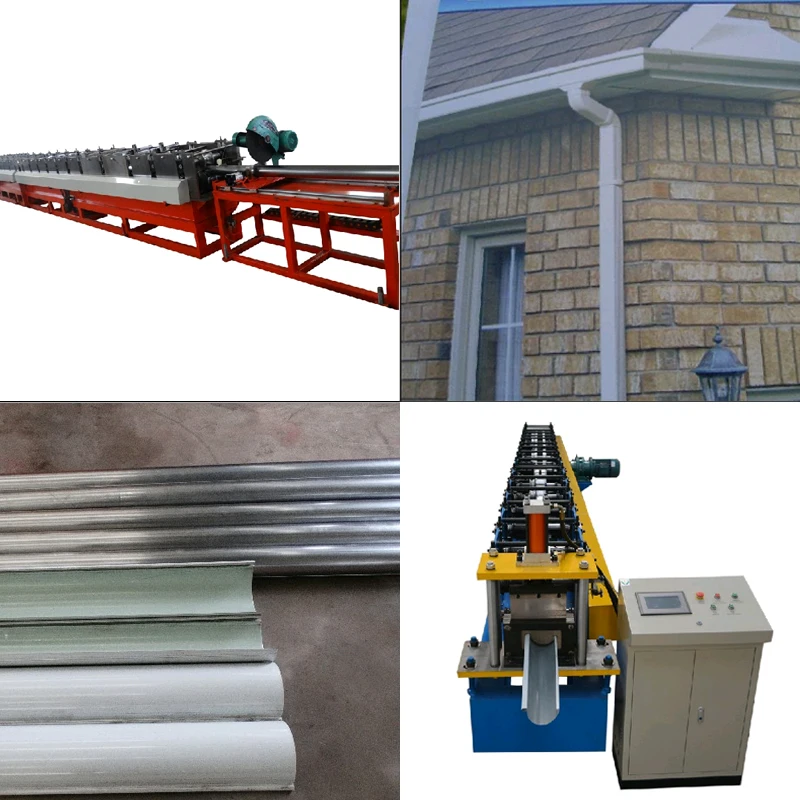

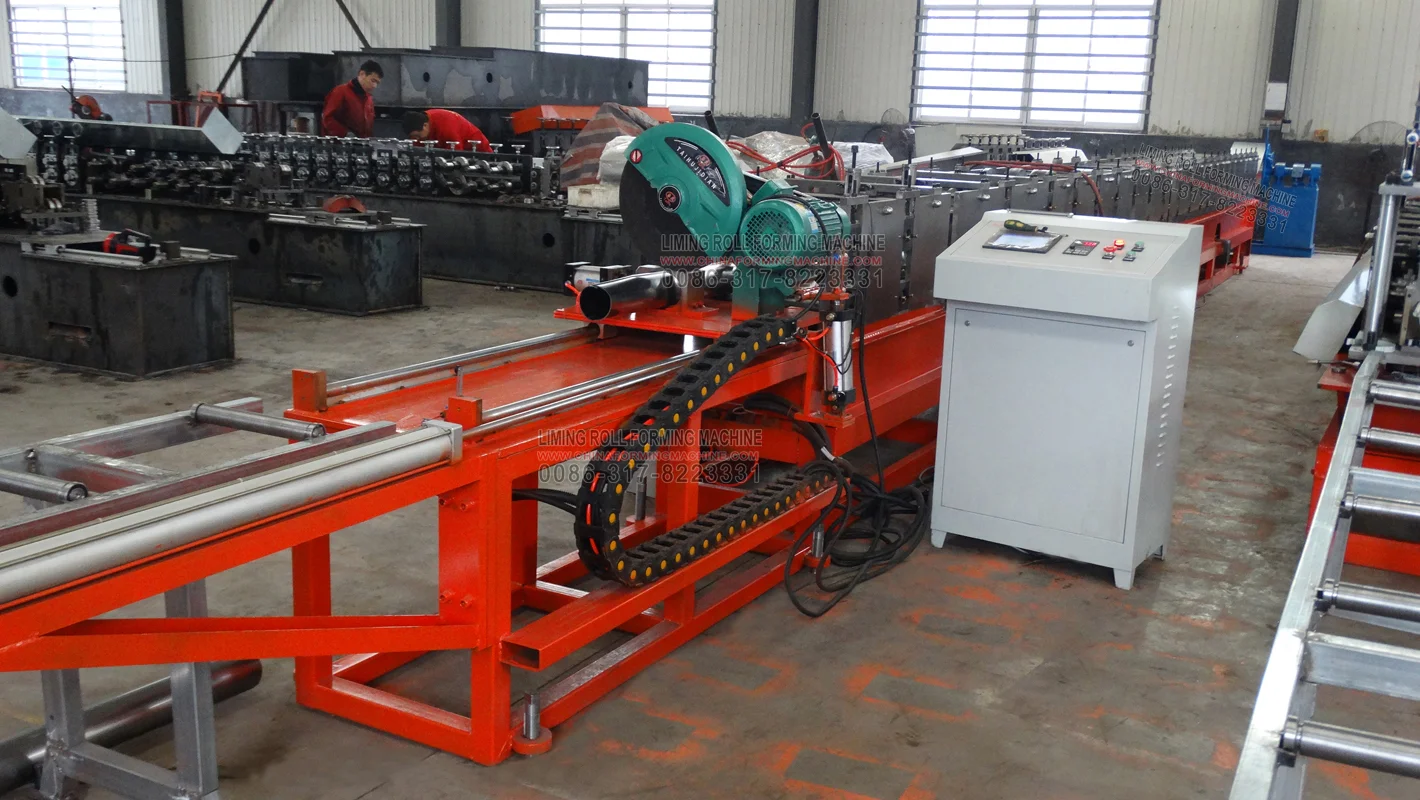

This is automatic downpipe roll forming machine, also called downspout roll forming machine, the whole production line include one set 3 ton manual decoiler, feeding table, roll forming machine , fly saw cutting and 3 meters air-operated product runout table.
Advantage:
- This is grape trellis frame roll forming line,
- whole production line include one set 3 ton electric decoiler, flattening machine, punch machine,
- roll forming machine and 3 meters product runout table.
Technical Parameters:
No. | Item | Specification |
1 | Can Formed Material | GI,AI |
2 | Equipment operation | Automatic |
3 | Voltage | 380V 60Hz 3Phase or as your requirement |
4 | Thickness of sheet (mm) | 1.0-2.0mm |
5 | Material width(mm) | As your requirement |
6 | Cover Width of the sheet after formed | as your drawing |
7 | The size of the roll forming machine | 8000mmx1000mmx1400mm |
8 | Speed | 8-15m/min |
9 | Diameter of shaft | 55mm |
10 | Weight of the Machine | 4000-4500KGS |

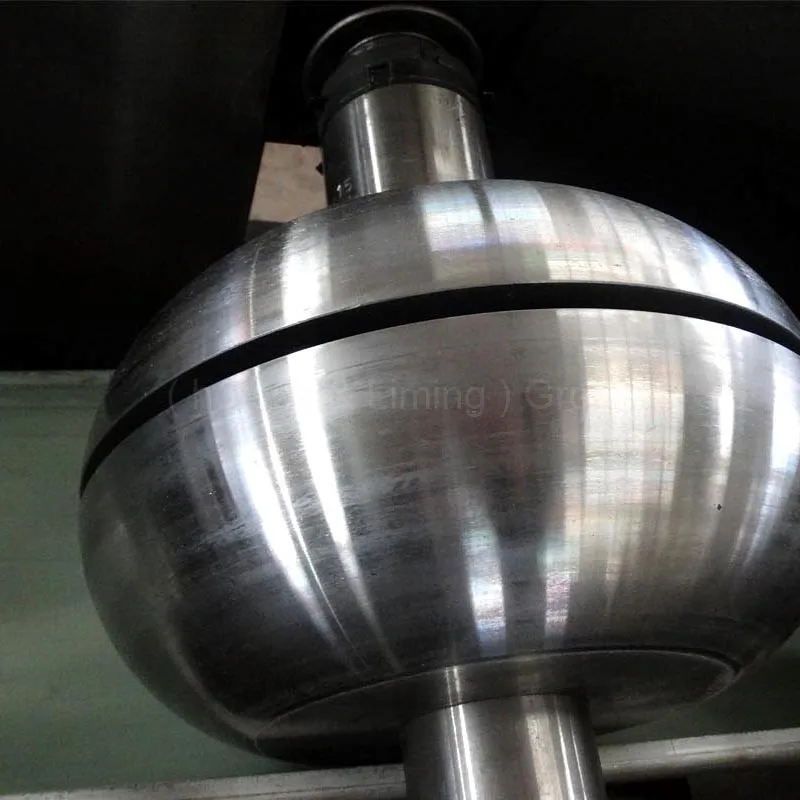

11 | Material of rollers | C45 steel quenched and chromed |
12 | Motor brand | Siemens or Guomao |
13 | PLC | Siemens or Delta or Mitsubushi |
14 | Total power (kw) | 15w |
15 | Power of hydraulic system | 7.5kw |
16 | Power of main molding core | 7.5kw |
- 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.
- 2.This producing line is maintained free of charge for 18 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.
- 3.All the parts in the roll forming machine is free to maintain all the life,if in 18 months our company bear the cost for exchanged the broken part like the new parts cost and express cost,if more than 18 month,we also free to maintain the broken parts but for send the new parts,the buyer need bear the express cost.
- 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.
