Вращающаяся/для сжигания мусоросжигательного в энергию электростанции
- Категория товара: Cement Making Machinery >>>
- Поставщик (Оптовый магазин): Henan,Zhengzhou,Mining,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Description
Rotary incinerator is a widely used incineration equipment in the field of international industrial waste treatment, its market share in the field of industrial waste incineration is really high, As a specific area for burning hazardous wastes , the rotary incinerator has wide adaptability to complex industrial waste and medical waste, and it’s stable and convenient to operate, of course, the equipment maintenance is simple, and so on. Therefore, it is the most widely used in the field of international hazardous waste incineration. It is a reliable and effective means to realize the harmless, reduction and recycling of wastes.
[Applicable material]
Hazardous waste, sludge waste, oily sludge, industrial waste, PVC material, medical waste, municipal waste, and so on.
Advantage
Low cost: High temperature material contact refractory material. Replacing lining is convenient
The driving mechanism is simple: The drive mechanism is in the kiln housing. the equipment maintenance is easy.
Ensure that harmful gases do not leak: Good sealing measures and furnace negative pressure.
Easy to operate and maintain: Equipment running rate is high. The annual operation rate is generally 90%
Adaptability to incineration: Solid waste ,liquid, colloid, and gas can be incinerated simultaneously
High heat utilization rate: The material was churned forward. The three heat transfer modes coexist in one furnace
Combining patented technology: The traditional two combustion chamber is evolved into a two combustion furnace. The burnout rate of ash is improved. The combustion efficiency of rotary kiln is improved. At the same time, it has the functions of slag discharging at normal temperature, crushing slag and sealing, locking air, etc.
Working Principle
Working Principle
Rotary kiln for waste incineration can deal with solid and liquid waste simultaneously, solid waste is sent into rotary kiln by special conveying equipment, liquid waste is sprayed into the feed end of the kiln body by means of an efficient atomizing device, the waste in the rotary kiln should experience the process of water evaporation, volatilization analysis, ignition and combustion process, The ash portion is discharged from the bottom of the second combustion chamber, the generated flue gas enters the second combustion chamber, blended with two combustion air in the second compartment, complete combustion of flue gas, achieve exhaust safety standards discharge.
Technical Parameter
Technical Parameter

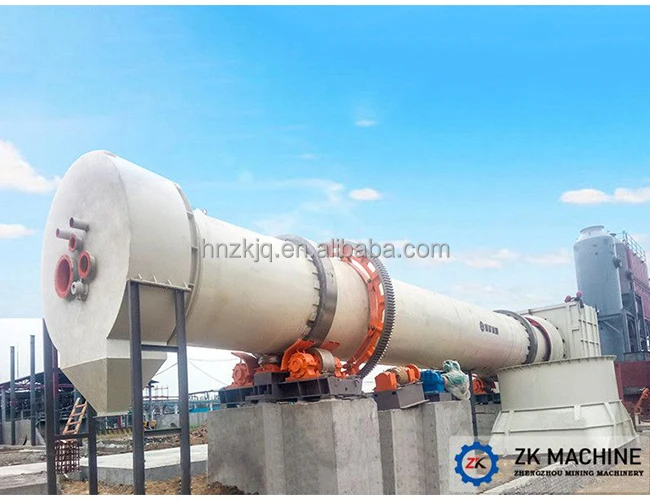

Hazardous waste rotary kiln for waste incinerationφ2.6m*13.2 technical parameter.
Inner diameter of shell 2600mm Shell length 13200mm
Downstream arrangement, that is, the direction of material flow is consistent with the direction of smoke flow, the angle of the kiln body is 1.5 degrees.
Variable frequency speed control of rotary kiln:0.1-2.2r/min.
Drive mode: Single side gear drive
Main Motor:30Kw
Kiln temperature:850-1200 degree Surface temperature of kiln shell: 180 degree
Expansion mode: Linear free expansion at both ends.
Total equipment weight: approx. 54.5t
Customized waste incineration rotary kiln can be provided according to the customers' different industries
Our Service
Our Service
1. Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2. Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3. After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Company Information
Company Information
Henan Zhengzhou Mining Machinery Co., Ltd. established in 1956 and located in Xingyang of Zhengzhou City of Henan Province, specially produces metallurgical machinery. It covers an area of more than 60000 m² and various building area of 35000 m². In the plant, there are workshops of cast iron, cast steel, forging, heavy machine tool processing, rivet welding and heat treatment etc. Its perfect and complete equipment, advanced detection means, strong technical force establish good foundation for the reliable production.
The main products of company include: ball mill, rotary kiln, vertical preheater, cooler, crusher, metallurgical oven, magnetic separator, flotation machine, classifier, feeder, bucket elevator, preheater, dust collector, elevator, drier, and other equipments relate to metallurgy, cement, lime, mineral processing, refractory, chemical industry. The products of Henan Zhengzhou Mining Machinery Co., Ltd have been sold to every province of China and exported to Russia, Korea, Vietnam, Malaysia, Nepal, Bangladesh, Mexico, Armenia, Africa, South America and other countries and regions.
