500m 1000m sm pon fiber testing used otdr ftth launch cable box otdr tester fiber optics exfo mini otdr
VR
Neofibo : Your Reliable Supplier
① Can provide you with reliable polishing solution；
② 13-year Manufacturing Experience for OEM/ODM polishing program；
③ Independent research and development patent - Neoholder®；
④ Products have CE, ROHS certification；
⑤ Support online video synchronization inspection machine；
⑥ Equipment test report and operation guide can be provided；
⑦ SGS certified factory, delivery speed and secure,50 units in stock；
⑧ 30 days quality problems can be returned；
⑨ Free polishing film sample;
Products Description
Description:

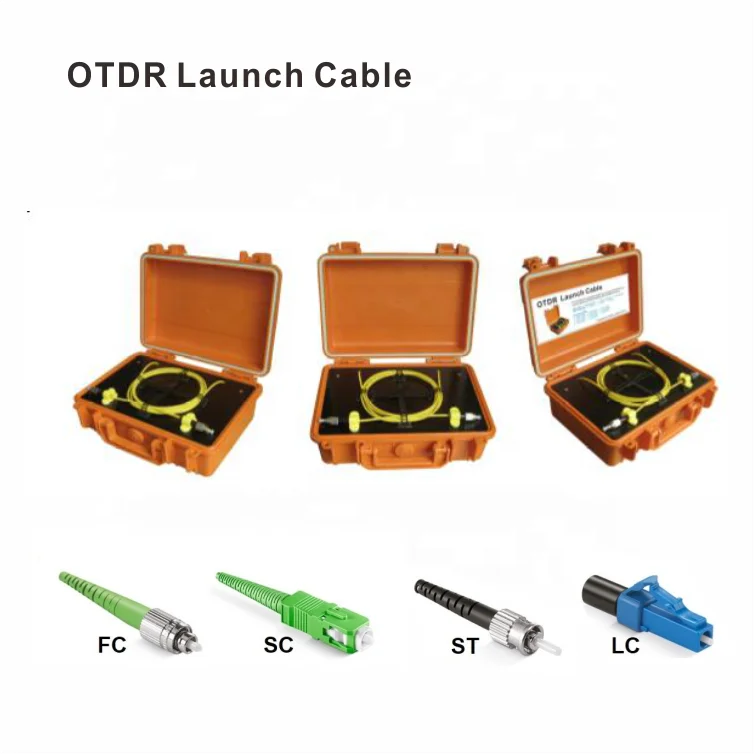

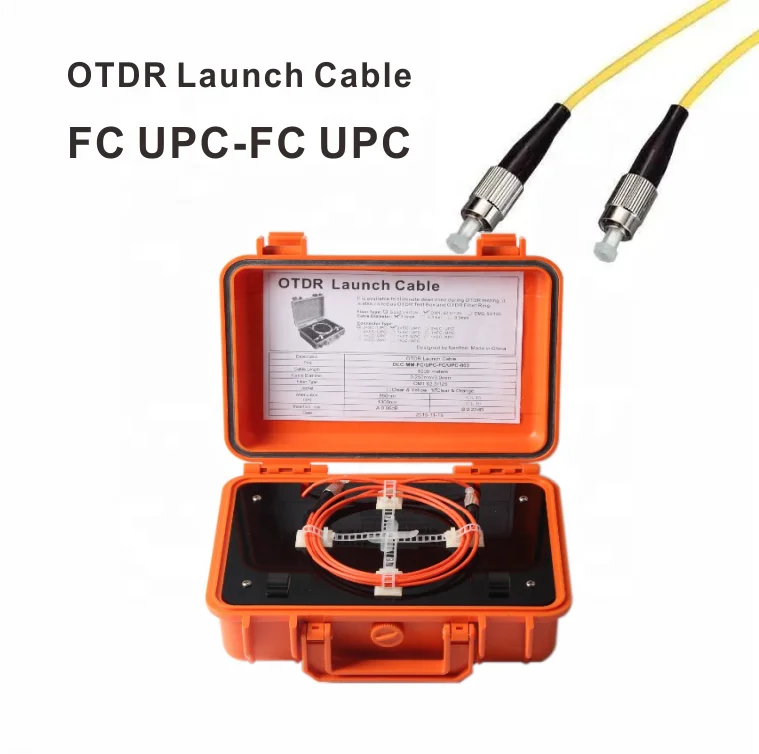

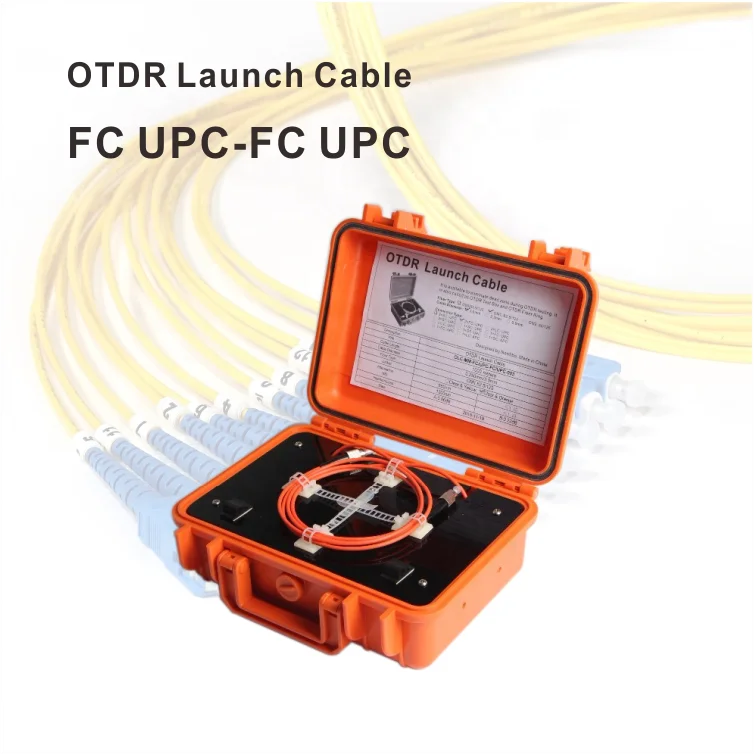

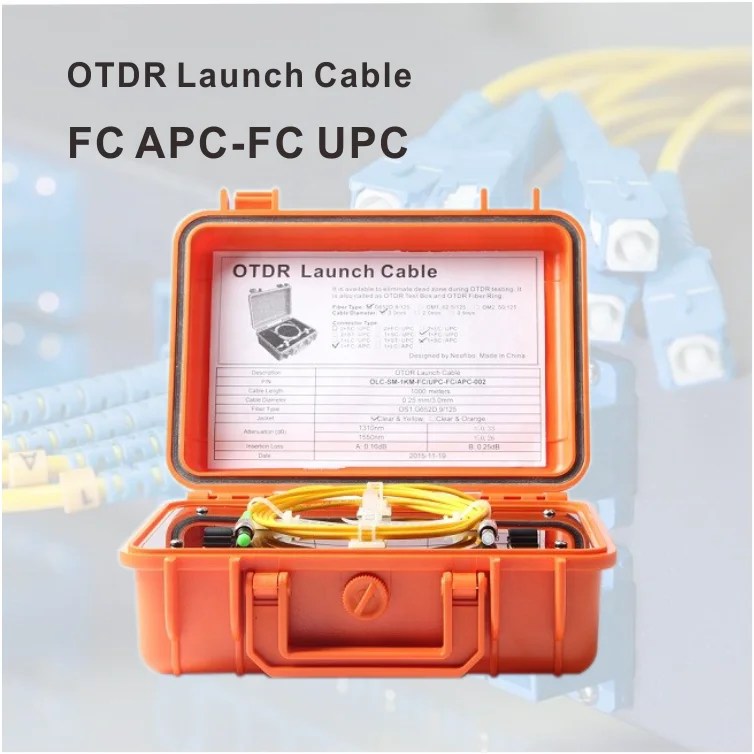

Measuring an insertion loss of the near-end and / or far-end connection of a fiber optic link with an OTDR requires a
launch and / or receive test cable. A launch cable, which connects the OTDR to the link under test, reveals the insertion loss and reflectance of the near-end connection. A receive cable, which connects to the far-end of the link, reveals the insertion loss and reflectance of the far-end connection. Launch and receive test cables can range from 1 km to 2 km (or longer) in length. Because very long test cables are impractical to transport and use, Neofibo offers coiled lengths of 50 um multimode, 62.5 um multimode, or single-mode fiber packaged in compact rings. Fiber Rings of 1000 m of fiber are ideal for premises fiber network test applications. Fiber Rings of 1 km and 2 km of single-mode fiber are designed for broadband, long-haul fiber network test applications.
launch and / or receive test cable. A launch cable, which connects the OTDR to the link under test, reveals the insertion loss and reflectance of the near-end connection. A receive cable, which connects to the far-end of the link, reveals the insertion loss and reflectance of the far-end connection. Launch and receive test cables can range from 1 km to 2 km (or longer) in length. Because very long test cables are impractical to transport and use, Neofibo offers coiled lengths of 50 um multimode, 62.5 um multimode, or single-mode fiber packaged in compact rings. Fiber Rings of 1000 m of fiber are ideal for premises fiber network test applications. Fiber Rings of 1 km and 2 km of single-mode fiber are designed for broadband, long-haul fiber network test applications.
Application
Specification
Type # | Length(km) | Fiber Type |
FR1-SM-1KM-y1-y2 | 1 km | Single-Mode, 9/125 um |
FR1-M5-1KM-x1-x2 | 1 km | Multi-Mode, 50/125 um |
FR1-M6-1KM-x1-x2 | 1 km | Multi-Mode, 62.5/125 um |
FR1-SM-2KM-y1-y2 | 2 km | Single-Mode, 9/125 um |
FR1-M5-2KM-x1-x2 | 2 km | Multi-Mode, 50/125 um |
FR1-M6-2KM-x1-x2 | 2 km | Multi-Mode, 62.5/125 um |
FR1-SM-3KM-y1-y2 | 3 km | Single-Mode, 9/125 um |
FR1-M5-3KM-x1-x2 | 3 km | Multi-Mode, 50/125 um |
FR1-M6-3KM-x1-x2 | 3 km | Multi-Mode, 62.5/125 um |
*x1, x2 — connectors for multimode cables, specify type [ST, SC, FC, LC, E2000, Angled SC, Angled FC, Angled LC, Angled E2000].
*y1, y2 — connectors for single-mode cables, specify type [ST, SC, Angled SC, FC, Angled FC, LC, Angled LC, E2000 or Angled
E2000].
*y1, y2 — connectors for single-mode cables, specify type [ST, SC, Angled SC, FC, Angled FC, LC, Angled LC, E2000 or Angled
E2000].
Recommend Products
About Us
Shenzhen Neofibo Technology Limited
We has 13 years experience.could provide optic fiber production line and service for you. you can count on us to offer you the best solution.Neofibo is focusing on the field of fiber optic polishing solutions.We specialize in manufacturing fiber optic polishing machine, design various optical fiber connectors polishing fixtures, provide completed polishing process and materials for all kinds of fiber optic connectors.Neofibo can provide not only products, but also technical services and R & D support.
FAQ
1.About the fixture of NEOPL-2000A, does it works perfect with the Seikoh Giken 550 polishing machine ?
Yes, we confirm that it works perfect with the Seikoh Giken 550.
2.Polisher can’t work?
(1)Confirm power, and examine speed adjusting knob.
(2)Whether the timer stop at ZERO.
(3)Whether fuse is OK or not.
3.Polished ferrules could not reach required shape or quality.
(1)Film is used over 40 times.
(2)Water doesn’t be used.
(3)Films are not cleaned completely.
(4)Ferrules and jig are not fixed correctly.
(5)The distance adjustment between screw top and Plane A is not correct.
4.Bad quality for the polished surface.
(1)Film is used over 40 times.
(2)Polishing liquid is not used.
(3)Film is dirty.
(4)Ferrules are not cleaned completely.
(5)Scraped by film when pulling out the ferrules.
5.How can we guarantee quality?
(1)Always a pre-production sample before mass production;
(2)Always final Inspection before shipment;
6.what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
2.Polisher can’t work?
(1)Confirm power, and examine speed adjusting knob.
(2)Whether the timer stop at ZERO.
(3)Whether fuse is OK or not.
3.Polished ferrules could not reach required shape or quality.
(1)Film is used over 40 times.
(2)Water doesn’t be used.
(3)Films are not cleaned completely.
(4)Ferrules and jig are not fixed correctly.
(5)The distance adjustment between screw top and Plane A is not correct.
4.Bad quality for the polished surface.
(1)Film is used over 40 times.
(2)Polishing liquid is not used.
(3)Film is dirty.
(4)Ferrules are not cleaned completely.
(5)Scraped by film when pulling out the ferrules.
5.How can we guarantee quality?
(1)Always a pre-production sample before mass production;
(2)Always final Inspection before shipment;
6.what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
