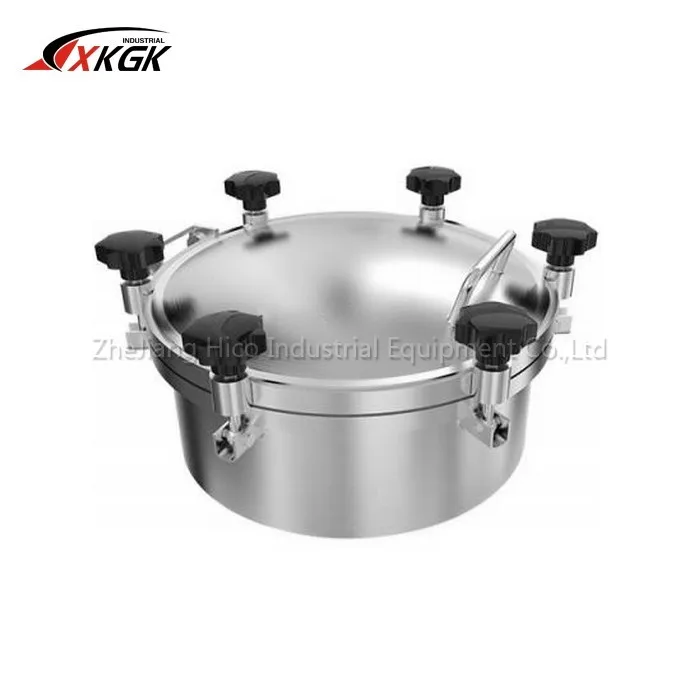

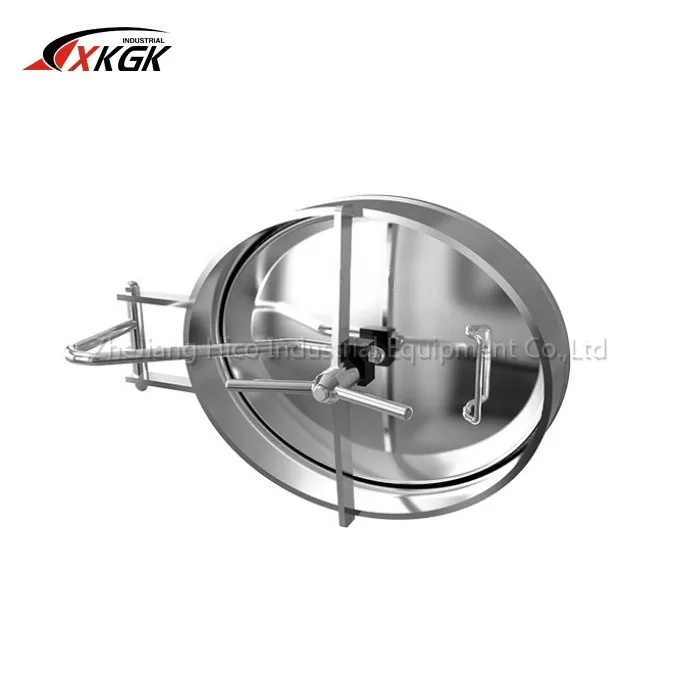

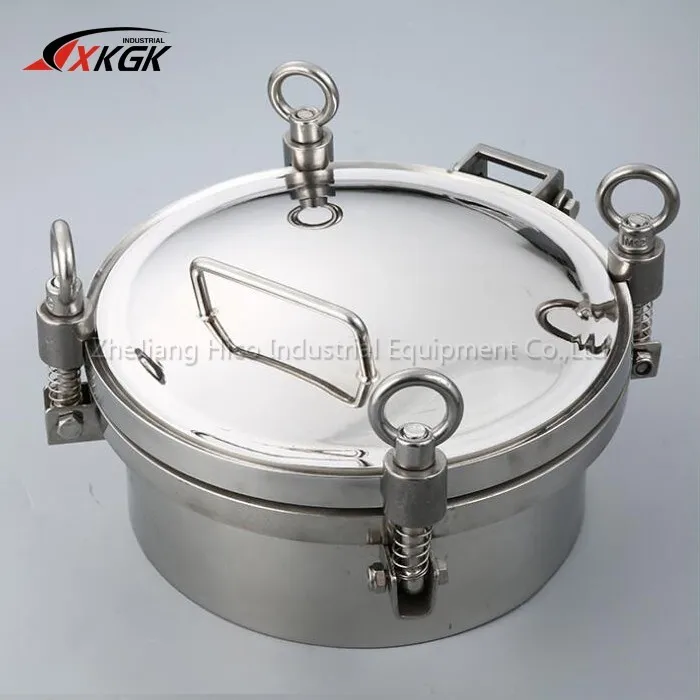

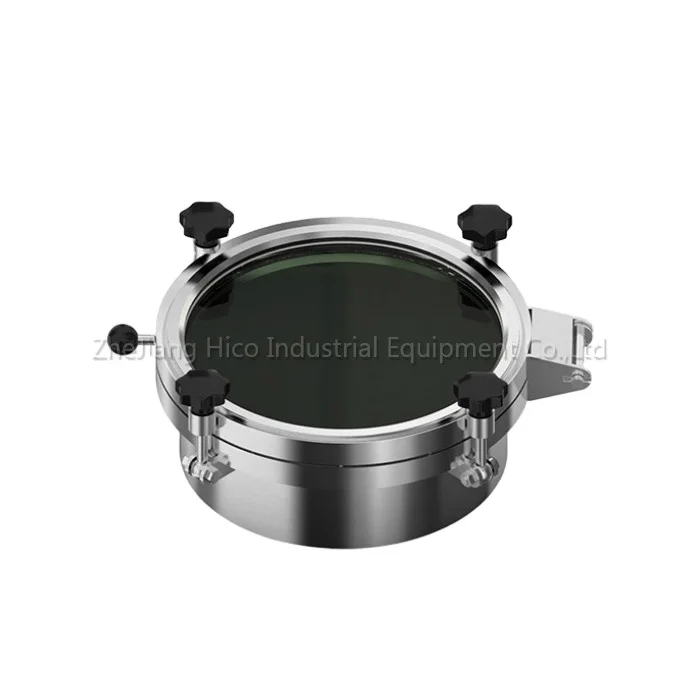

Горячие продажи гигиеническая нержавеющая steel304/316 стекло давление круговой крышки люка лесенка для бака

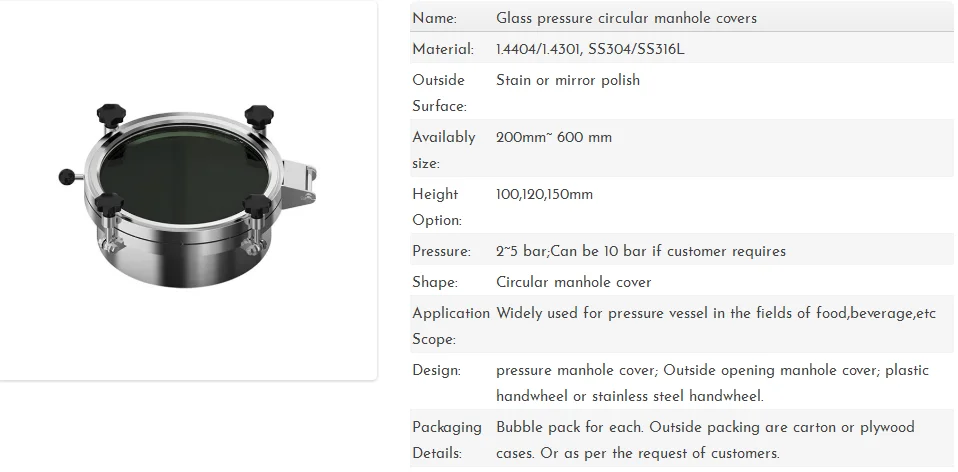

Standard Design

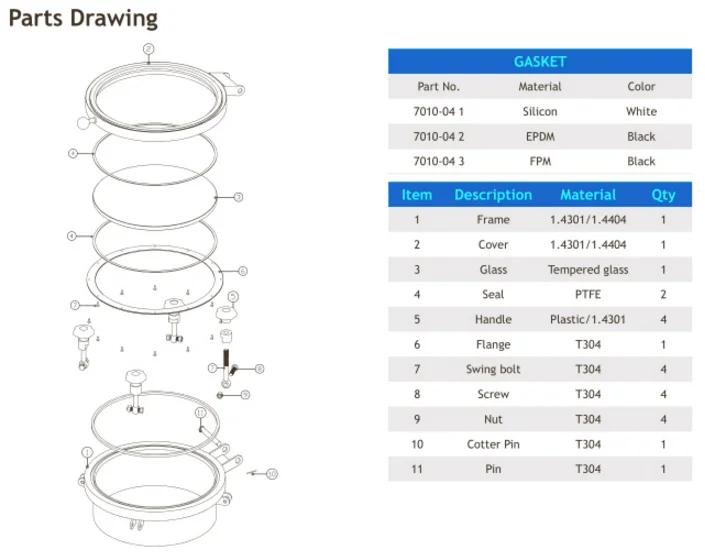

Wetted material 1.4301/1.4404
Cover material 1.4301/1.4404
Silicone-gasket
4 Plastic handle
Tempered glass
With flange
Outward-open
Surface matte-finish
OD 600mm
Full welding technology

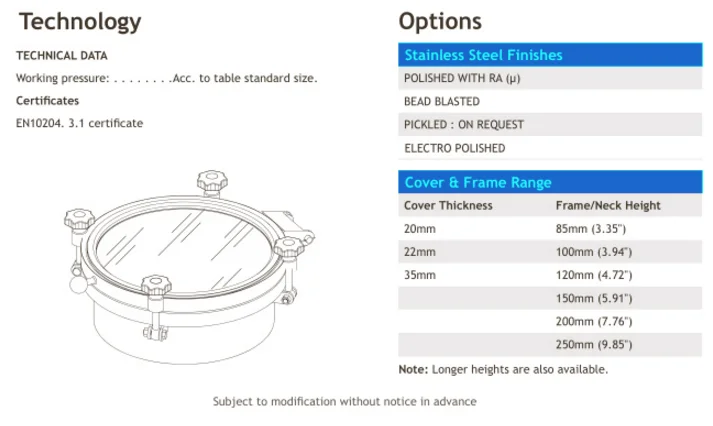

Options
Optional wetted materials 304,316,316L
Various surface qualities 0.4μm-0.8μm
Various surface finish: Mirror Polish, Sandblasted, etc.
Various handles: Stainless steel, etc.
Various gasket qualities
Neck thickness can be modified
Height can be modified

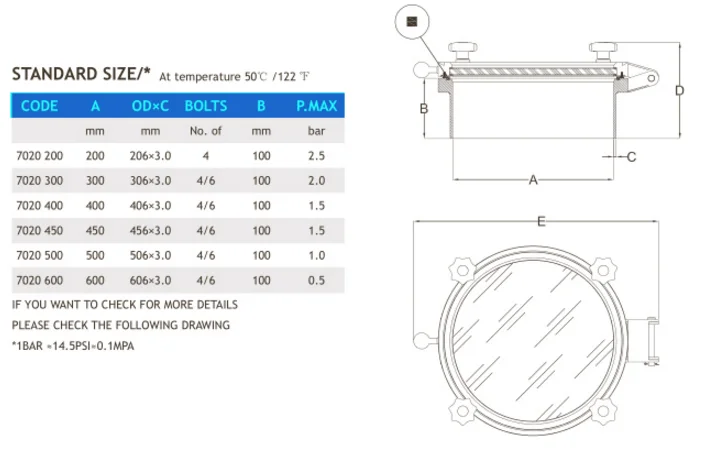

OD optional for 200/300/400/450/500
Gasket material optional for EPDM, FPM

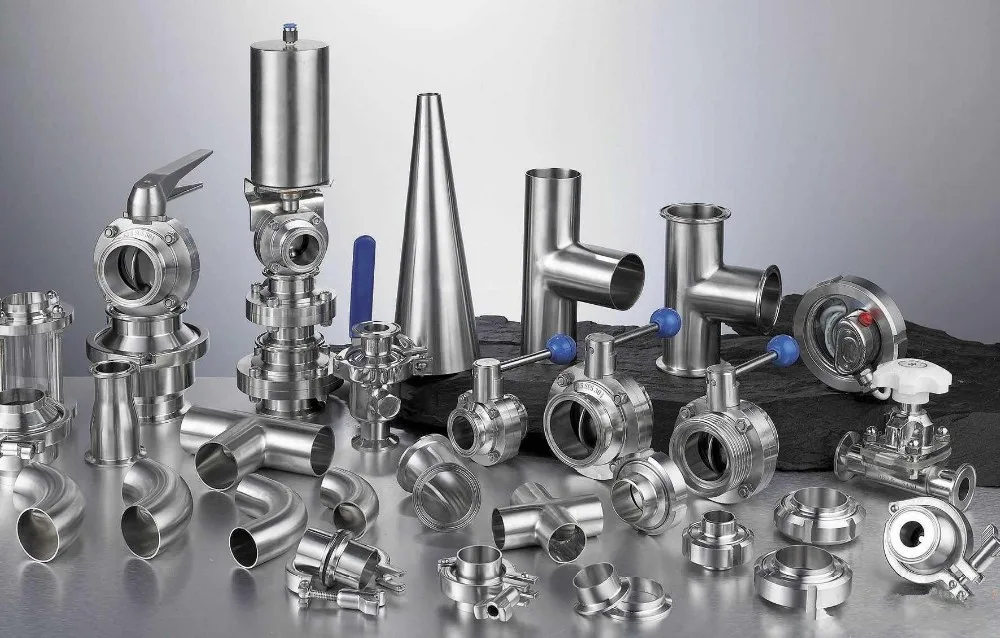

Sanitary Pipe Fittings

Sanitary pipe fittings are generally used in the pharmaceutical industry and in the food industry because such industries are demanding high hygiene requirements for the product in the production process, Into the pipe parts, usually stainless steel material. There are many ways in which the pipe is used in the production and connection, and we can divide it into welded, clamp, and threaded.

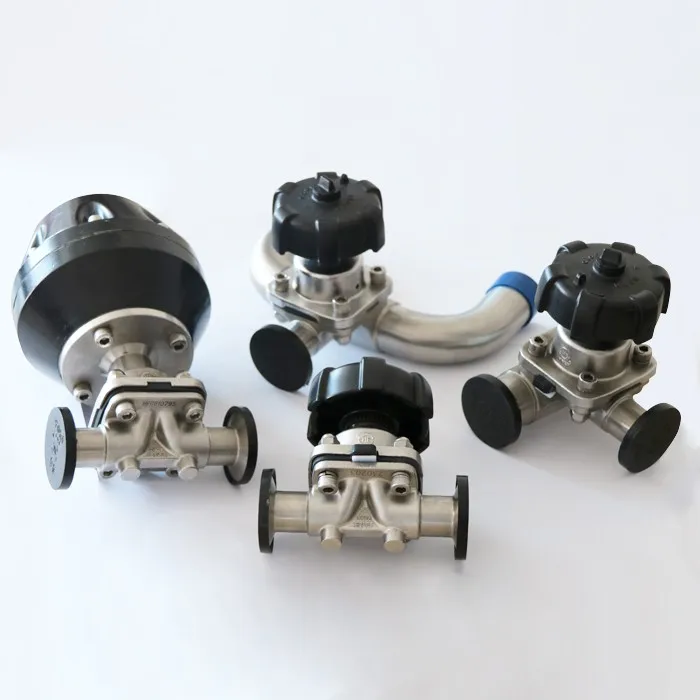

Sanitary Diaphragm Valve

Diaphragm valve is a series of sanitary diaphragm valve,it is widely used on wine,dairy products,beverage, foodstuff
industry,pharmacy etc. achieving the requirement of control and open/close for the pipeline system.

The connection of the diaphragm as follows: clamp, weld, T-type tee,U type tee etc.

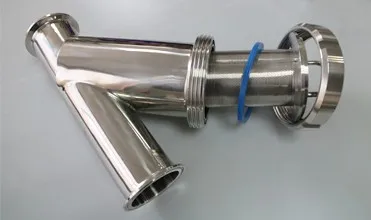

Sanitary Filter

Filter series is a kind of sanitary filter, mainly used for filtering liquid with solid particles, protect the pump, instruments and other devices to work properly.

Because of its reasonable structured, filtration and seal ability strong, pressure loss of small and easy
maintenance and other characteristics, widely used in wine, beverage, pharmaceutical, etc.
