Выходной модуль Omron PLC CJ1W-OC201 OC211 OA201 OD201 OD211 OD213 OD231 OD233 OD234 OD261 OD263 OD202 OD204 OD212 OD232 и т. д.
- Категория товара: PLC >>>
- Поставщик (Оптовый магазин): Teckon,Electric,(Shanghai),Co.,Ltd.,[Shanghai,China]Teckon
Поделиться:
Описание и отзывы
Характеристики
New & Original Omron CJ1W PLC Output module CJ1W-OC201 OC211 OA201 OD201 OD203 OD211 OD213 OD231 OD233 OD234 OD261 OD263 OD202 OD204 OD212 OD232 D262
| Product name | Inputs | Outputs | Output type | External connection | Model |
|
DC Input units Omron CJ1W |
8 | -- | -- | Removable terminal block | CJ1W-ID201 |
| 16 | -- | -- | Removable terminal block | CJ1W-ID211 | |
|
16 (high speed) |
-- | -- | Removable terminal block | CJ1W-ID212 | |
|
32 |
-- | -- | Fujitsu connector | CJ1W-ID231 | |
|
32 |
-- | -- | MIL connector | CJ1W-ID232 | |
| 32 (high speed) | -- | -- | MIL connector | CJ1W-ID233 | |
| 64 | -- | -- | Fujitsu connector | CJ1W-ID261 | |
| 64 | -- | -- | MIL connector | CJ1W-ID262 | |
|
AC Input units Omron CJ1W |
8 | -- | -- | Removable terminal block | CJ1W-IA201 |
| 16 | -- | -- | Removable terminal block | CJ1W-IA111 |
| Product name | Inputs | Outputs | Output type | External connection | Model |
|
Relay Contact output Units Omron CJ1W |
-- | 8 | -- | Removable terminal block | CJ1W-OC201 |
| -- | 16 | -- | Removable terminal block | CJ1W-OC211 | |
|
Triac Output Unit Omron CJ1W |
-- | 8 | -- | Removable terminal block | CJ1W-OA201 |
|
Transistor Output Units Omron CJ1W |
-- | 8 | Sinking | Removable terminal block | CJ1W-OD201 |
| -- | 8 | Sinking | Removable terminal block | CJ1W-OD203 | |
| -- | 16 | Sinking | Removable terminal block | CJ1W-OD211 | |
| -- | 16 | Sinking | Removable terminal block | CJ1W-OD213 | |
| -- | 32 | Sinking | Fujitsu connector | CJ1W-OD231 | |

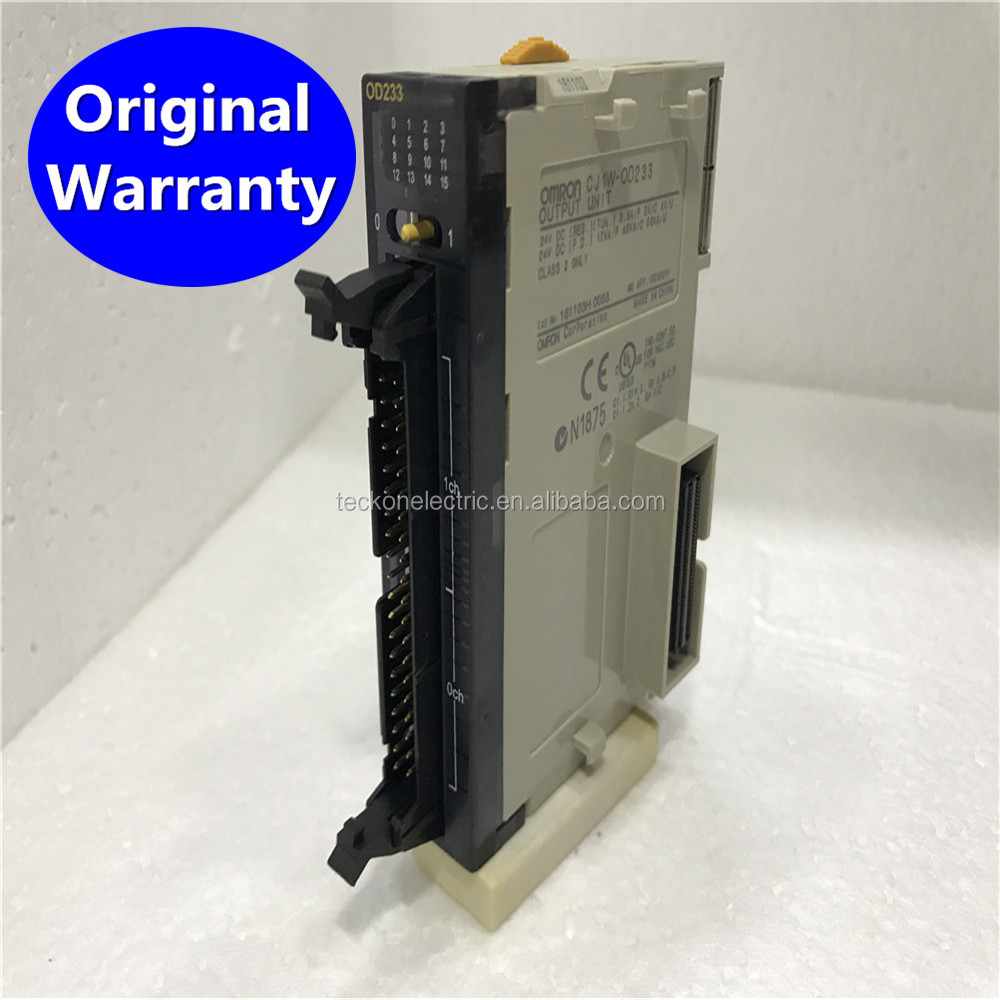

| -- | 32 | Sinking | MIL connector | CJ1W-OD233 | |
| -- | 32 | Sinking | MIL connector | CJ1W-OD234 | |
| -- | 64 | Sinking | Fujitsu connector | CJ1W-OD261 | |
| -- | 64 | Sinking | MIL connector | CJ1W-OD263 | |
| -- | 8 | Sourcing | Removable terminal block | CJ1W-OD202 | |
| -- | 8 | Sourcing | Removable terminal block | CJ1W-OD204 | |
| -- | 16 | Sourcing | Removable terminal block | CJ1W-OD212 | |
| -- | 32 | Sourcing | MIL connector | CJ1W-OD232 | |

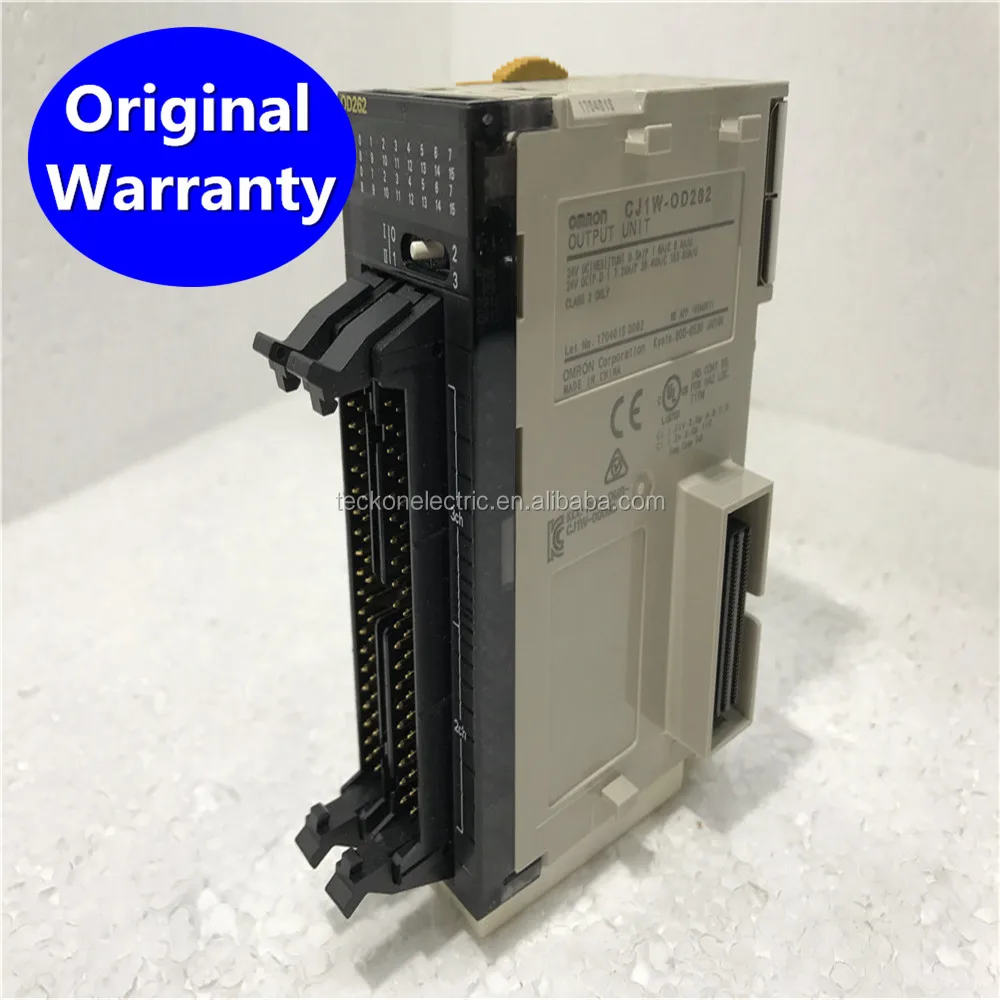

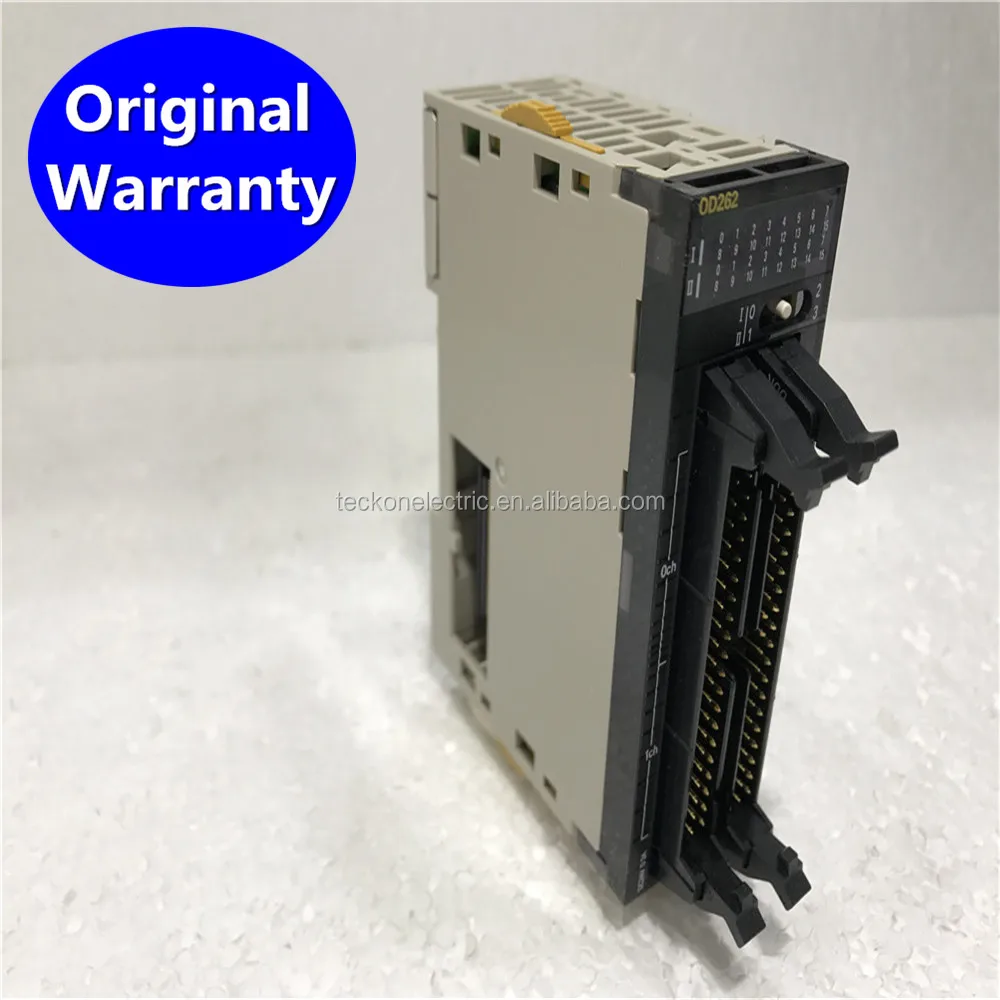

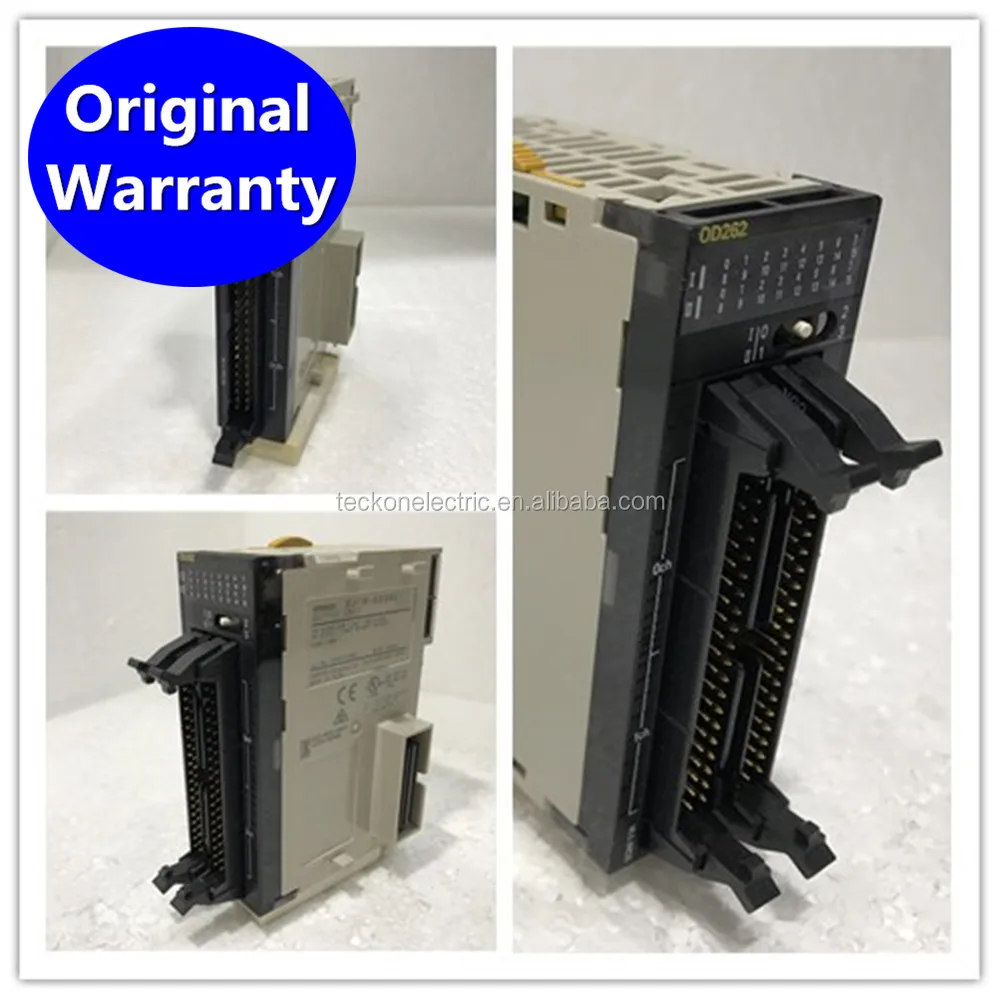

| -- | 64 | Sourcing | MIL connector | CJ1W-OD262 |
| Product name | Inputs | Outputs | Output type | External connection | Model |
|
DC Input/Transistor Output Units Omron CJ1W |
16 | 16 | Sinking | Fujitsu connector | CJ1W-MD231 |
| 16 | 16 | Sinking | MIL connector | CJ1W-MD233 | |
| 32 | 32 | Sinking | Fujitsu connector | CJ1W-MD261 | |
| 32 | 32 | Sinking | MIL connector | CJ1W-MD263 | |
| 16 | 16 | Sourcing | MIL connector | CJ1W-MD232 | |
|
TTL I/O Units Omron CJ1W |
32 | 32 | -- | MIL connector | CJ1W-MD563 |
| Product name | Inputs | Outputs | Output type | External connection | Model |
|
Interrupt Input Unit Omron CJ1W |
16 | -- | -- | Removable terminal block | CJ1W-INT01 |
|
Quick response Input Unit Omron CJ1W |
16 | -- | -- | Removable terminal block | CJ1W-IDP01 |
|
B7A Interface Units Omron CJ1W |
64 | -- | -- | Removable terminal block | CJ1W-B7A14 |
| -- | 64 | -- | Removable terminal block | CJ1W-B7A04 | |
| 32 | 32 | -- | Removable terminal block | CJ1W-B7A22 |
