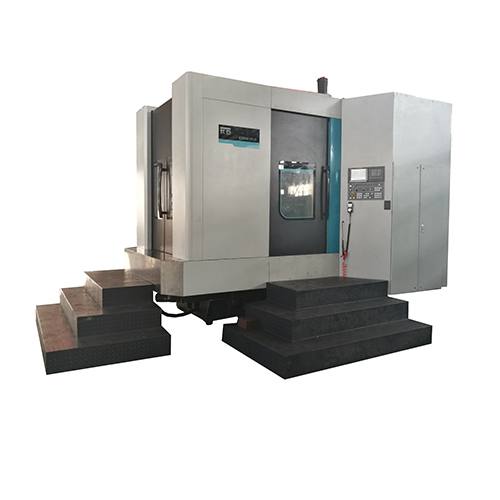

Горизонтальный обрабатывающий центр, HMC

Категория товара: Machine Centre & Parts >>>
Поставщик (Оптовый магазин): Zhejiang,Kaida,Machine,Tool,Co.,Ltd.

Цена:

Стоимость в USD:Узнать цену

Количество:

Купить

В избранное

Описание и отзывы

Характеристики

FEATURES AT A GLANCE

Product Features

1. This product has features of high efficiency, high precision, high rigidity and excellent cutting performance.

2. With a big torqure gear box, the main motor power is transmitted through two pairs of gear which bring about automatic changes of two steps of speed. Within each step, the speed is infinitely variable. This greatly increases the machine power at low spindle speed.

3.Optical rulers are adopted for X, Y and Z axes's position inspection to realized full loop control.

Right elevation

Left elevation

Back elevation

PRODUCT SPECIFICATIONS

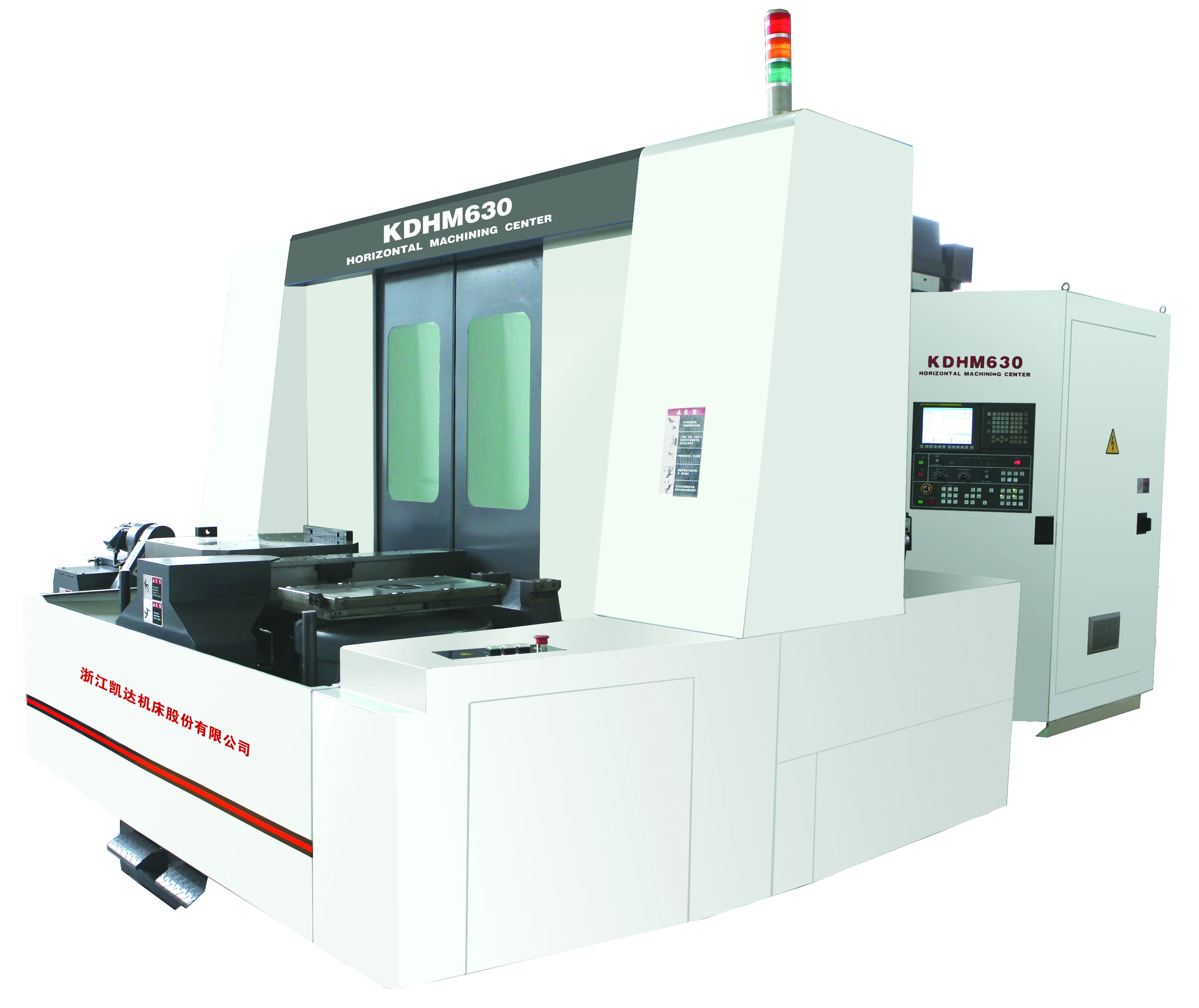

MODELS	KDHM630
TRAVEL
X axis	950mm
Y axis	820mm
Z axis	750mm
Spindle end to table	200-950mm
Spindle center to table	30-850mm
TABLE
Tablesize	630x630mm
Max.table loading	1200kg
Min.Increment	1º(optional 0.001º)
Table surface configuration	24-M16 screw thread
Number of table	2
APC change time	16s
SPINDLE
Spindle speed	50-5000rpm
Number of spindle speed change ranges	2 ranges
Spindle inner taper	7/24; BT50
Spindle bearing inner diameter	Ф100mm
Spindle motor	18.5/22kw
FEED
X/Y/Z fast feed	24/ 24/ 24m/min
Cutting feed rate	1-12m/min
X/Y/Z motor torque	30/ 40/ 30Nm
Positioning accuracy	± 5μm
Repeatability position accuracy	± 2.5μm
ATC
Type of tool shank	BT50
Tool number	60
Max. tool diameter (Without adjacent tool)	Ф270mm
Max. tool diameter (With adjacent tool)	Ф115mm
Max tool length	410mm
Max tool weight	25kg
Tool change time (cut to cut)	6s
OTHERS
Cooling motor power	0.37kw x 2
Hydraulic pump motor	2.2kw
Compressed air supplier pressure	0.6~0.8Mpa
Coolant tank capacity	400L
Floor space required	3300x4800mm
Net weight	18500kg
