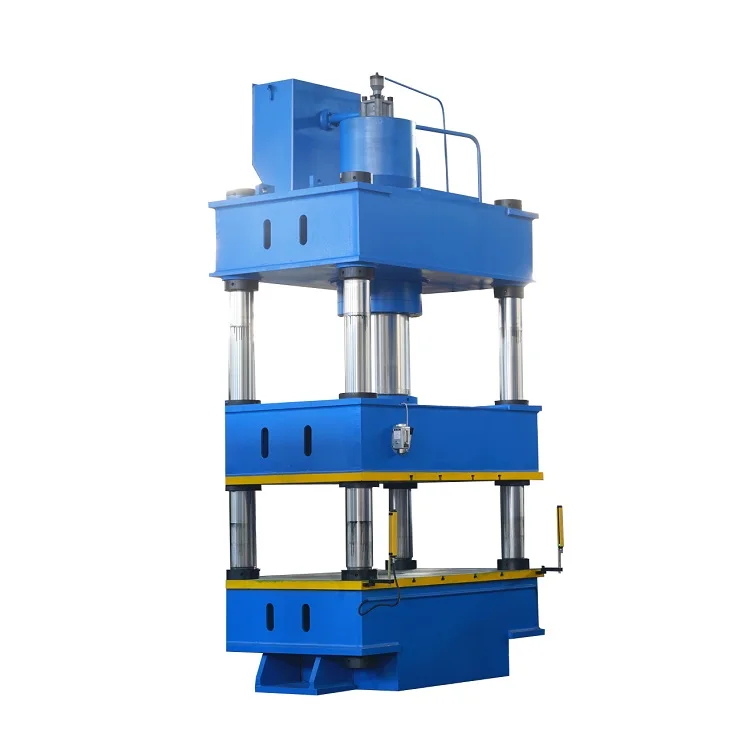

YTD32 500Ton Четыре Столбца гидравлический пресс машина/ytd32 500ton двойного действия глубокой вытяжки/край фланец
- Категория товара: Гидравлический пресс >>>
- Поставщик (Оптовый магазин): Anhui,Zhongrui,Machine,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Feature
YTD32 500Ton Four Columns Hydraulic Press Machine
2. Catridge valve intergral unit equipped for hydraulic control system, reliable, durable and less hydraulic shock, with shorter connection pipeline and fewer releases points.
3. Independent electrical control, reliable, audio-visual and convenient for maintenance.
4. Centralized button control system, with adjustment, hand semi auto operation modes at operator's choice.
5. Fixed stroke forming process or fixed pressure forming process selected through control panel, with pressure hold and time delay functions.
6. The machine has a rail automatic lubrication device.
7. The operating force, no load traveling and low speed movement and travel range can be adjusted to technological requirements.
8. The stroke and pressure can be adjusted within specific range.
Characteristics:
Four/4 Column Hydraulic Presses/Double Action Deep Drawing Hydraulic Press Used in Processing Metal Products has the black-white control and PLC controls two kinds of electrical control system. The the adjustment, manual and the semiautomatic three operation mode may realize the constant pressure and decide the regulation two sreft ways.
When constant pressure formation, after suppression has guaranteed when the rolling and automatic return trip movement. In the worktable is loaded with goes against the installment, besides goes against the product. Still permissible uses in as fluid pressure pad instead stretching workpiece's formation craft, its working pressure and the traveling schedule, may according to the craft need, adjust in the stipulation scope.
Functions
Four Column Hydraulic Presses/Double Action Deep Drawing Hydraulic Press Used in Processing Metal Products with a wide range of versatility, suitable for a variety of metal tensile, bending, flanging, cold extrusion, blanking process. Also applies to the correction, press-fit, powder products, abrasive products, grinding wheel, bakelite, resin thermosetting products forming and press-formed in the insulating material of the plastic products.
Four/4 Column Hydraulic Presses/Double Action Deep Drawing Hydraulic Press Used in Processing Metal Products has the black-white control and PLC controls two kinds of electrical control system. The the adjustment, manual and the semiautomatic three operation mode may realize the constant pressure and decide the regulation two sreft ways.
When constant pressure formation, after suppression has guaranteed when the rolling and automatic return trip movement. In the worktable is loaded with goes against the installment, besides goes against the product. Still permissible uses in as fluid pressure pad instead stretching workpiece's formation craft, its working pressure and the traveling schedule, may according to the craft need, adjust in the stipulation scope.
Functions
Four Column Hydraulic Presses/Double Action Deep Drawing Hydraulic Press Used in Processing Metal Products with a wide range of versatility, suitable for a variety of metal tensile, bending, flanging, cold extrusion, blanking process. Also applies to the correction, press-fit, powder products, abrasive products, grinding wheel, bakelite, resin thermosetting products forming and press-formed in the insulating material of the plastic products.
Products Description
1. Hydraulic press is applicable for metal sheet stretching and pulling, stretching, punching, bending. It is also used for pulling, stretching and pressing large-scale products. Presses offer fast, easy, and safe setup and operation as well as years of trouble-free service. | |||
2. High rigidity and less deformation Compact,wide body frame eliminating vibration for improved ide life and machine. | |||
3. Fully enclosed drive, easily accessible for maintenance, eliminates, exposed over hanging parts,slide and bolster tables with T-slots. | |||
4. Highly advanced, rigidly supported gears, operate in oil bath without any noise saves space, reduces, shaft deflection, increases gear life. |
Details Images
The making way of workbench is finish mill hind burnish first.It welded by full steel plate CO2. the body is tempered and vibrated to ensure that the fuselage never deforms.
Man-machine interface, through the intelligent system to control the parameter adjustment of the whole machine, the machine parts are running, and the parameter adjustment is convenient.
Product Paramenters
Model YTD32 | Nominal pressure(KN) | slider stroke(mm) | Opening height(mm) | worktable size | Motor(kw) | Weight(KGS) |
63T | 630 | 500 | 750 | 520x500 | 7.5 | 3200 |
100T | 1000 | 600 | 880 | 720x580 | 7.5 | 4000 |
160T | 1600 | 700 | 1000 | 1000x800 | 11 | 7500 |
200T | 2000 | 700 | 1100 | 1000x900 | 15 | 9000 |
315T | 3150 | 800 | 1250 | 1250x1120 | 22 | 10500 |
500T | 5000 | 900 | 1500 | 1400x1400 | 2x22 | 23000 |
630T | 6300 | 900 | 1500 | 1500x1500 | 2x22 | 29000 |
800T | 8000 | 900 | 1500 | 1500x1500 | 2x22 | 35000 |
1000T | 10000 | 900 | 1500 | 1500x1500 | 2x22 | 40000 |
Application
This series of hydraulic presses are suitable for various stamping processes such as secondary stretch forming, bending, forming, blanking, and flanging of thin metal sheets, to meet the pressing of multi-planar complex structures, and are especially suitable for the following fields:
Auto parts: body cover, brake pads, fuel tank, chassis, axle housing, bumper;
Household appliances: washing machine parts, rice cooker parts: TV parts, refrigerator parts, etc.;
Kitchen appliances: sinks, pots, stainless steel appliances, other containers;
Others: tractors, motorcycles, aerospace, aviation.
Auto parts: body cover, brake pads, fuel tank, chassis, axle housing, bumper;
Household appliances: washing machine parts, rice cooker parts: TV parts, refrigerator parts, etc.;
Kitchen appliances: sinks, pots, stainless steel appliances, other containers;
Others: tractors, motorcycles, aerospace, aviation.
