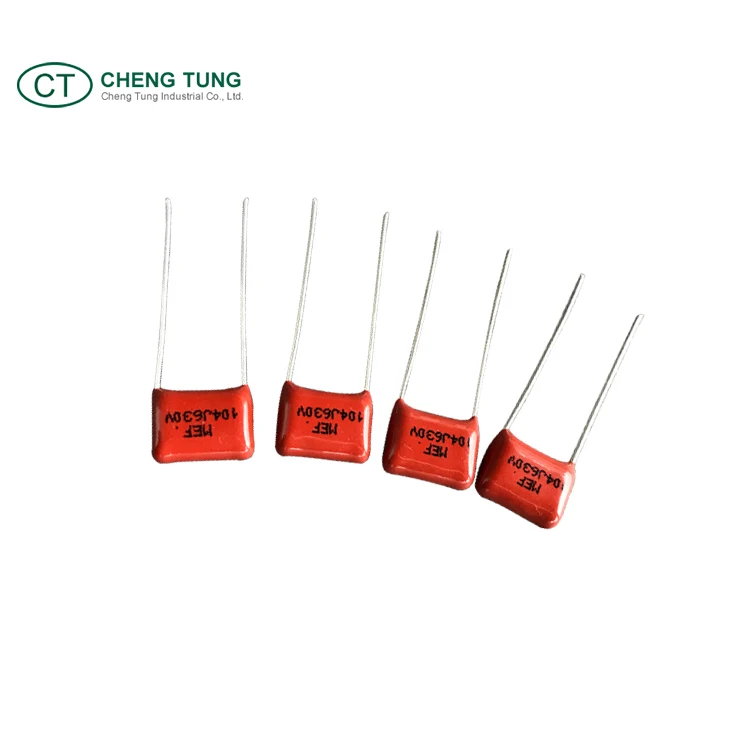

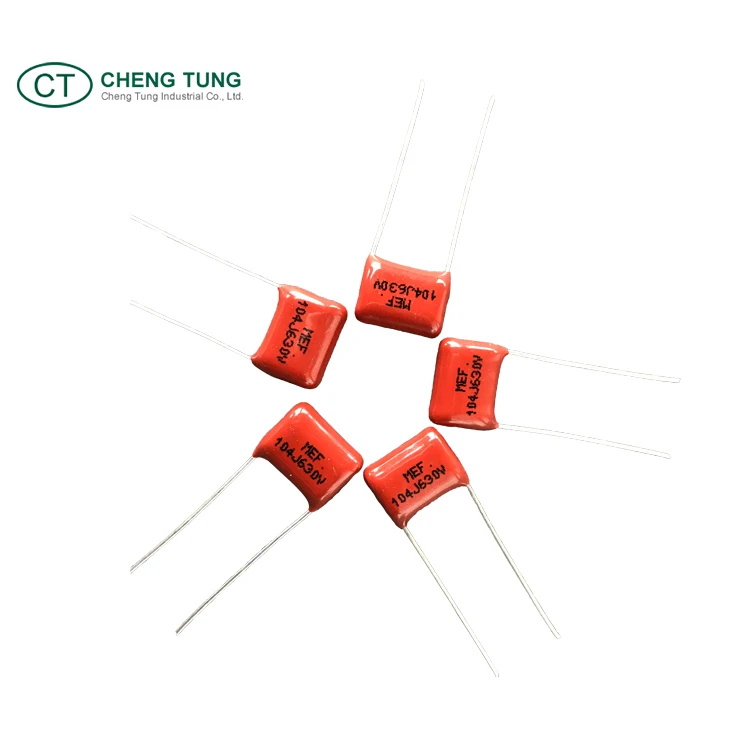

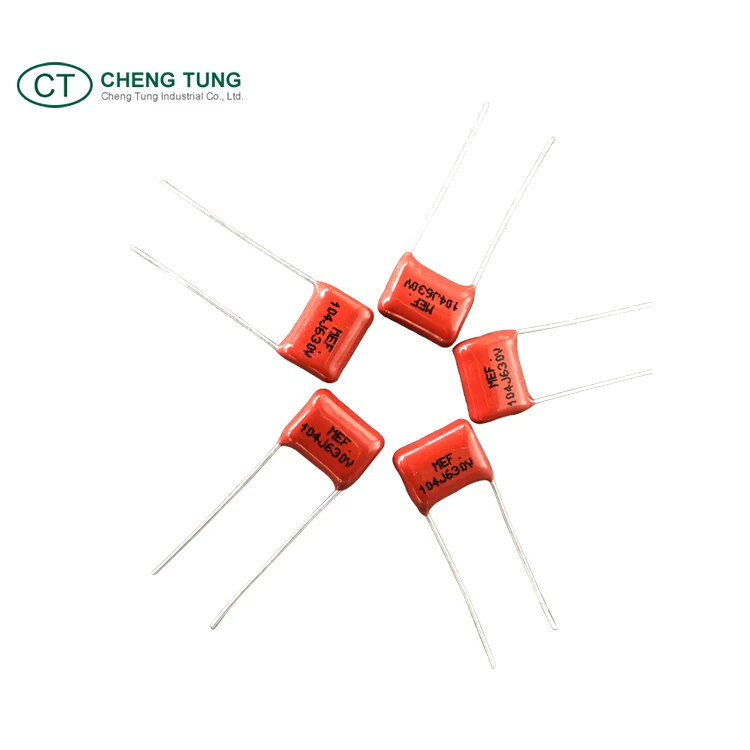

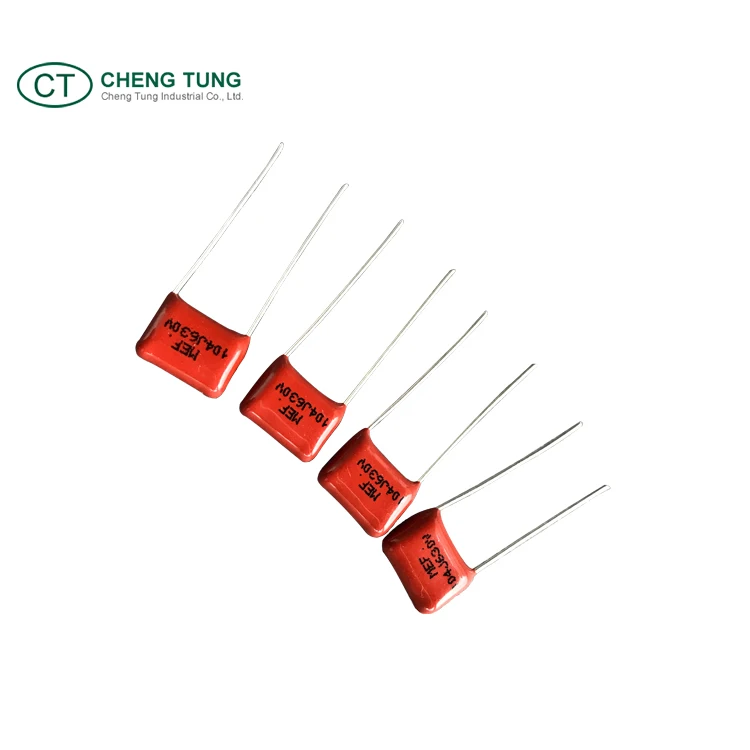

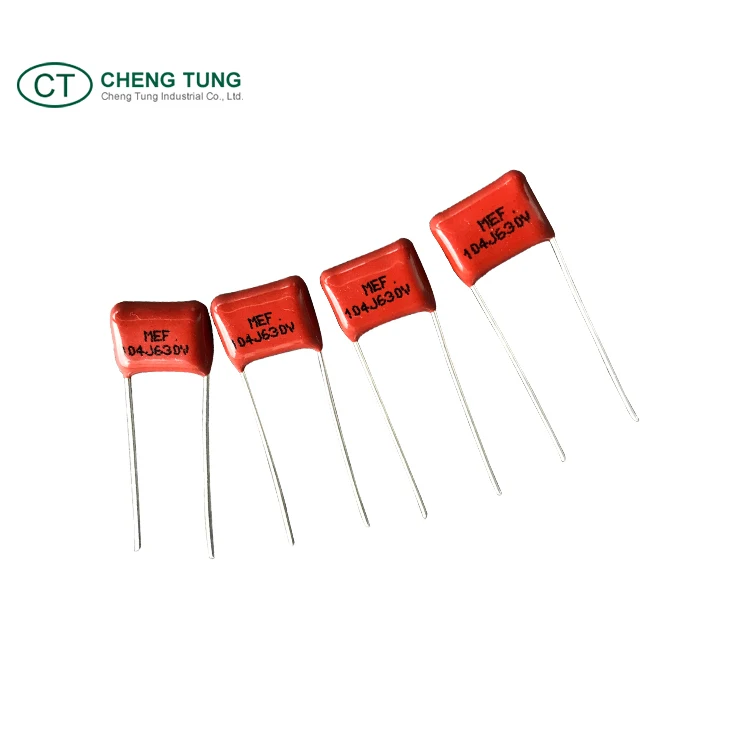

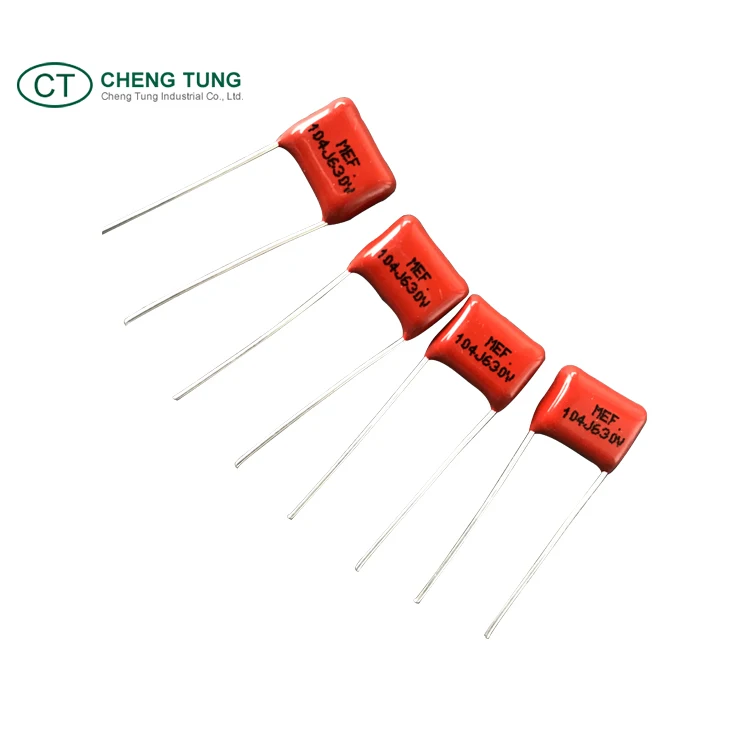

CL21 Metallized Polyester Film Capacitor for DC

TYPE: MEF

FEATURES

 APPLICATIONS

• Non – inductive construction

• Self – healing

• High reliable and superior performance in

• high frequency application

• Filter and noise suppression circuit

• Pulse logic and timing circuit

• DC – blocking, by-passing and signal coupling

  in general communication equipment

SPECIFICATIONS

  Dielectric

  Polyester film

  Electrodes

  Vacuum evaporated metal

  Coating

  Epoxy resin coating

  Leads

  Radial leads of tinned wire

  Climatic Catalogue

  40 / 85 / 21

  Capacitance versus Rated Voltage  (U_R)

100VDC  0.01 uF ~ 10uF;  250VDC  0.01uF ~ 6.8uF

400VDC  0.01uF ~ 1.8uF;  630VDC  0.01uF ~ 1.0uF

  Capacitance Tolerance

   J = ± 5%  K = ±10%  M = ± 20%

 Dissipation Factor (Tangent of Loss)

C<=1.0uF  DF<=0.80%

C>1.0uF  DF<=1.0%   (at20℃, 1KHZ)

  Voltage Proof

   1.6×U_R  (1minute at20℃)

  Insulation Resistance

C<=0.33uF  IR>=15,000MΩ

C>0.33uF  IR×C>=5,000MΩ / uF

   (1minute  at20℃ and  RH<=65%)
