Product Description

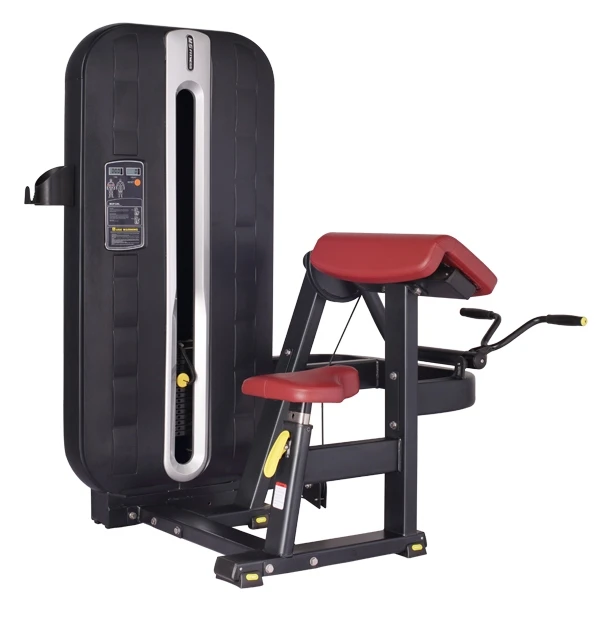

MCF-006


Bicep Curl








































































































































































Features
Frame1. Main frame: Rectangular tube with big round corners (50*100*2.0T*R8)
2. Press arm: Round tube (60/50*3.0T)
                     Flat oval tube (40*80*3.0T)
3. Connecting assembly: Rectangular tube with big round corners (50*100*2.0T*R8)
4. Tower: Two-sided drum-shaped tube (60*120*2.0T)


Streamline design makes the unit simplified and fashionable.
Upholstery

The upholstery  is made of PU with once forming technology. The hardness is designed


according to the principles of ergonomics and controlled to be around HA-65±5, it assures


that it's suitable for almost all users. The leather which wraps it does not


peel off or fade after getting rubbed 8000 times with a 500g weight.


Seat Adjustment System5-level adjustment system (adjustment range: 0~100mm)
Cam

Quality hot rolled steel plate (8.0T) processed with laser cutting technology and guide


groove are well welded to prevent distortional deformation and bring excellent durability;


rust-removing process and secondary spraying bring good corrosion-resistance.


Counter WeightMaterial: quality steel
Process: lathing, rust-removing and secondary spraying
FootrestPVC/rubber is firmly fixed to steel kneel, bringing a high degree of comfort.
Guide Rail, User Frame

It's made of alloy steel (45#, d=30mm) with high temperature treatment, grinding, and hard


chrome plating processes. It has excellent wear-ability, corrosion-resistance and ductility; it does not bend or break.


ShroudThe shroud is made of ABS with one step injection molding technology.
Trim, Weight CageYes (silver)
PulleyMaterial: engineering plastic
Process: one-step injection molding
GripMaterial: PVC
BearingTop level Chinese bearing
Weight PlateAll steel; flat and smooth surface, without pits; thin but heavy.
Guide RodMaterial: stainless steel hollow tube
Process: grinding and polish
The lustre lasts for long time.
It does not get rusty after 48h of salt atmosphere test!
Selector PinHandle:
Material: aluminum alloy;  Process: color plating
Pin:
Material: stainless steel (304#); Process:  finish machining

It reveals that each small part is made of fine material.
Steel CableMax load: 1000kg
It has passed a 100,000 round endurance test.
Exercise Instruction StickerPVC sticker; 3M tape with high viscosity, dampproof and corrosion-resistant.
SlipperMaterial: PVC
 Process: once forming technology
GraduationMaterial: Stainless steel (2mm)
Process: Laser engraving
Rep CounterYes
ReadoutsDuration; Frequency
Power SupplyBattery
Water Bottle HolderYes
Towel RackYes
Bearing CapMaterial: ABS
Process: injection molding
ScrewMaterial: stainless steel screw (A2-70); class 12.9 alloy steel (for key parts).
Transport WheelNo
Configuration
Powdercoat ColorShiny Black/Matt Black/Sliver Grey/White/Amber orange
Shroud ColorGrey
Weight Plates ColorBlack (default)
Upholstery ColorCarmine (default)/Chinese red (optional)/Graphite Black  (optional)
Logo Material: PVC with high viscosity
Dimensions&Weight
Maximum User Weight150 KG
PackingCarton
EN-957-2 approved.













Technology

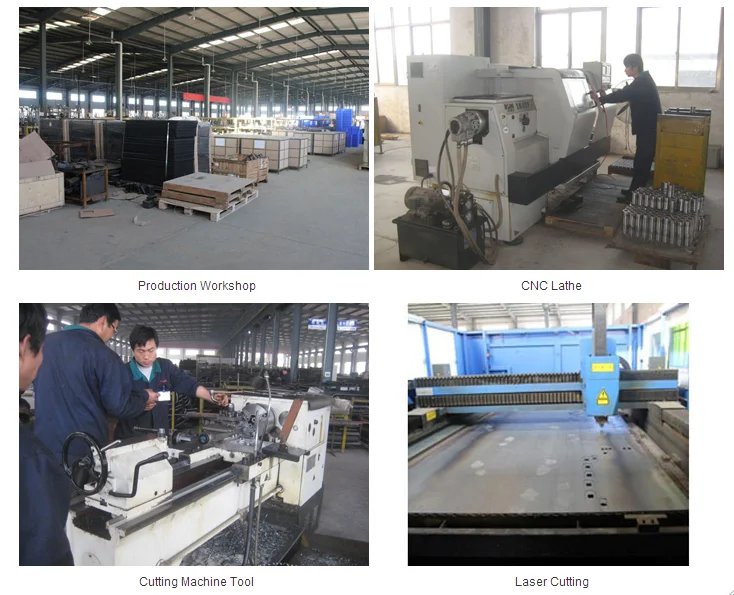

 technology 1.png

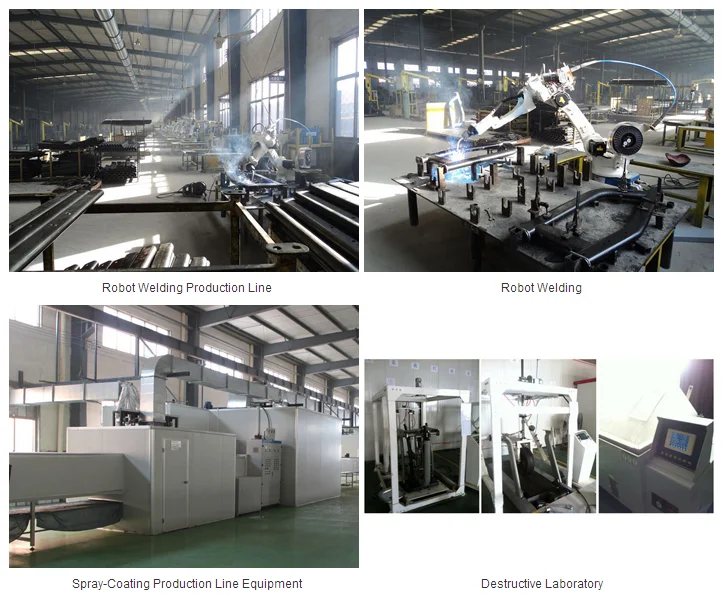

technology 2.png

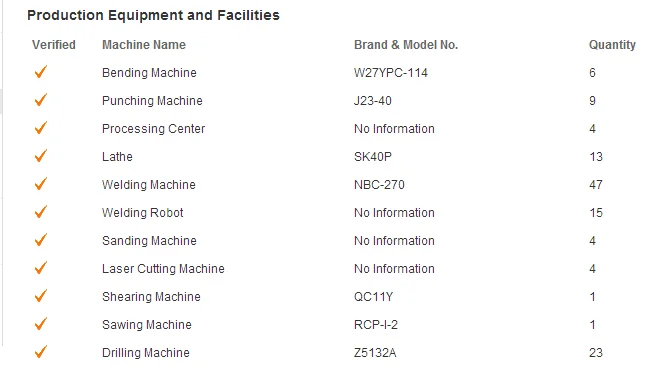

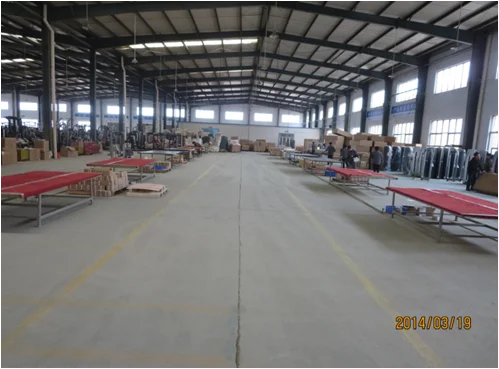

production equipments and facilities.png

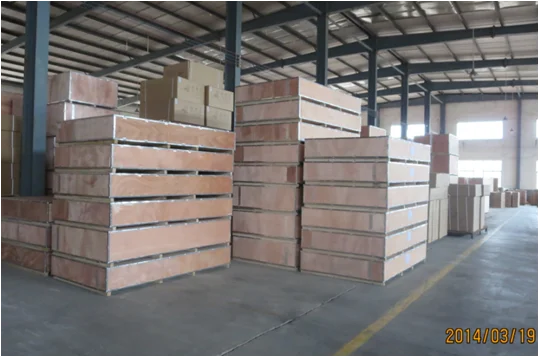

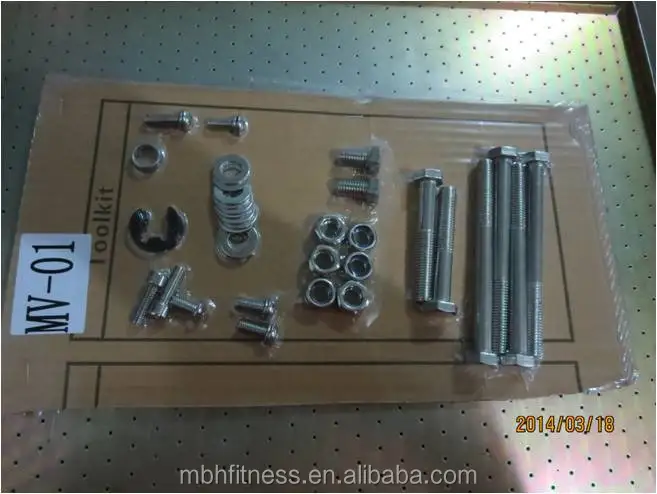

Packaging & Shipping







Certifications
