Product Description

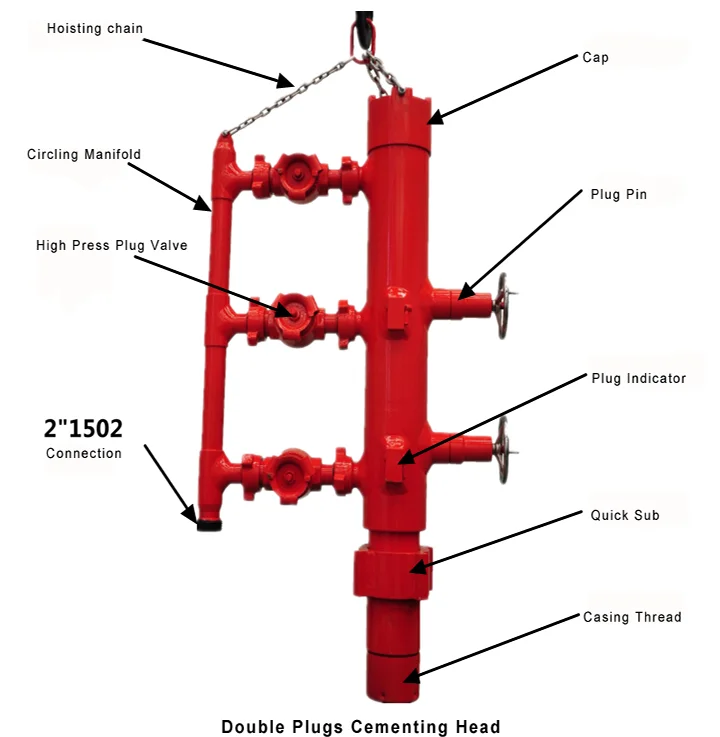

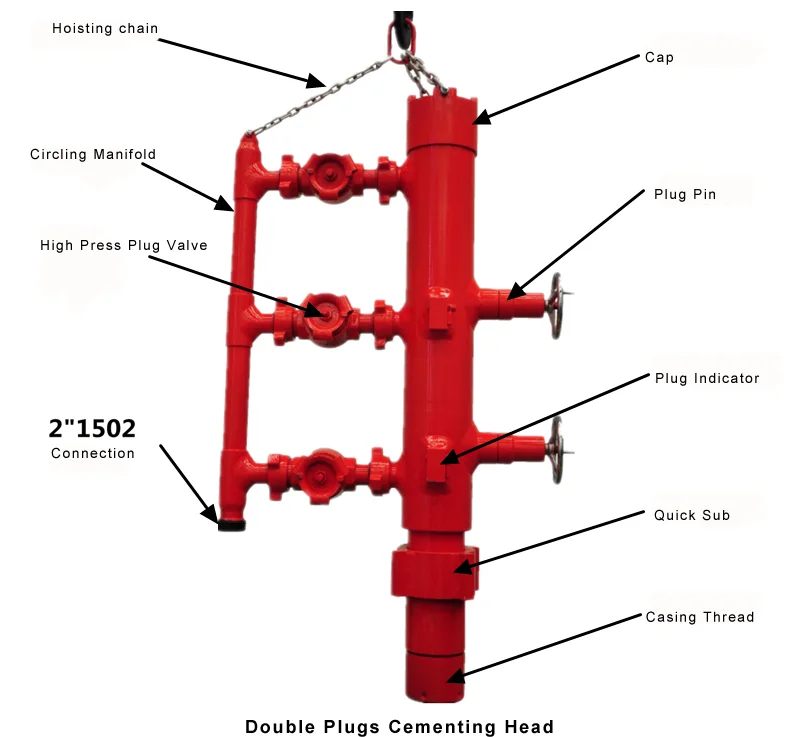

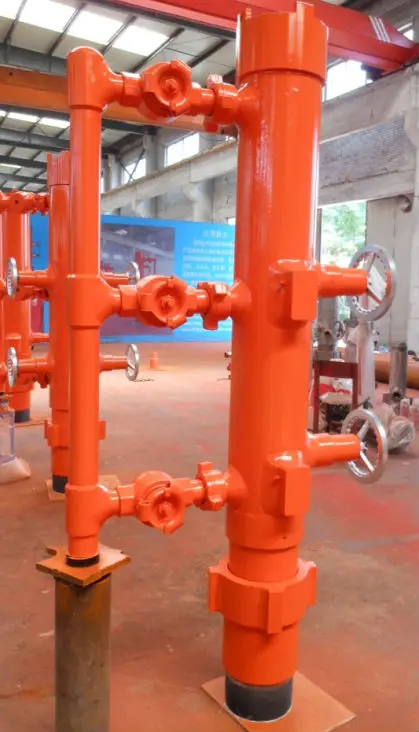

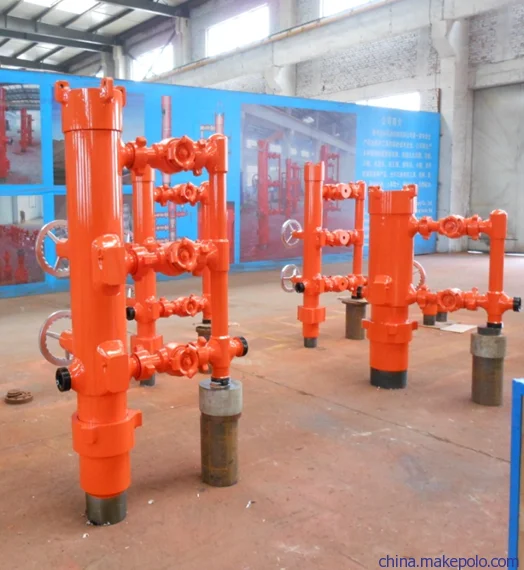

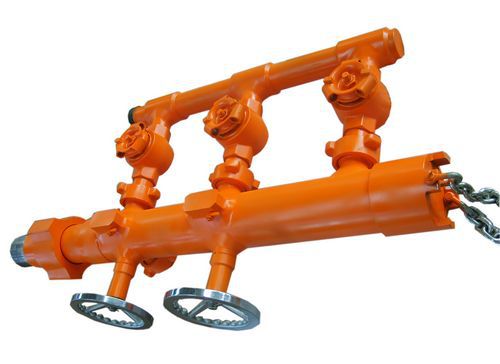

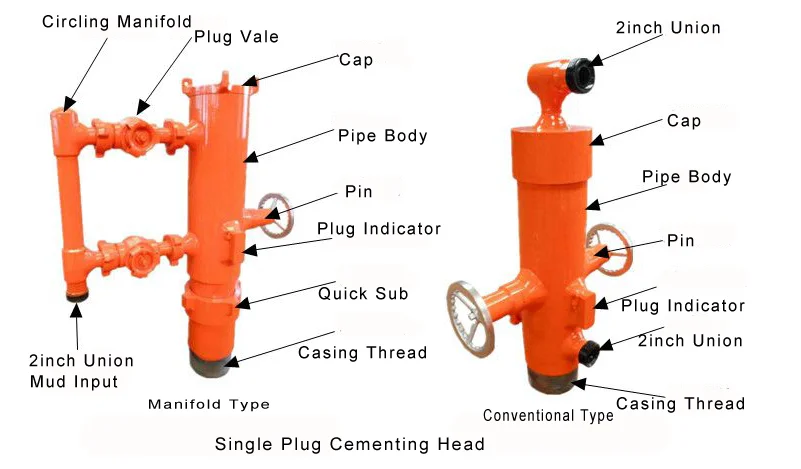

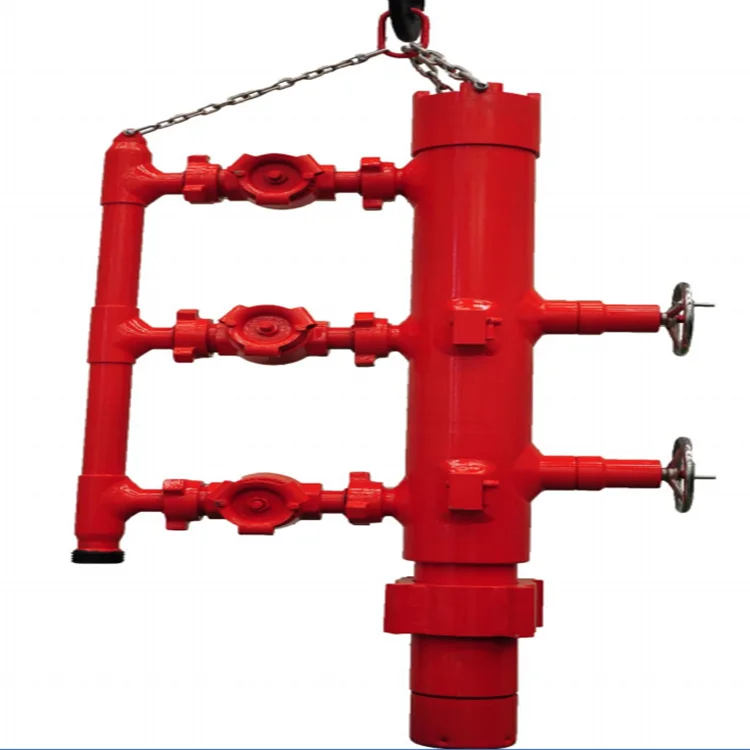

cementing head
Main parts are made from AISI4145H alloy steel.
Quick-latch adapter is designed to offer easier, faster and safer makeup for two-stage cementing.
It is manufactured utilizing API grade steels with API threads.
Positive lever indicates plug releasing.
Balance pipe is developed.Cementing Head Single Plug Type-Puyang Zhongshi Group Co.,Ltd
Technical Parameters
Size, mm Specifications, (in) | Φ139.7 (5 1/2") | Φ168 (6 5/6") | Φ177.8 (7") | Φ194 (7 5/6") | Φ244.5 (9 5/8") | Φ273 (10 3/4") | Φ339.7 (13 3/8") |
Overall Length, mm | 1460 | 1500 | 1500 | 1550 | 1750 | 1750 | 1780 |
Manifold | 2"Union | ||||||
I.D. of Plug Container, mm | Φ125 | Φ150 | Φ160 | Φ175 | Φ225 | Φ250 | Φ320 |
Length of Plug Container, mm | 400 | 450 | 450 | 450 | 550 | 550 | 600 |
Working Pressure, MPa | 35,50 | 35,50 | 35,50 | 35,50 | 35,50 | 35 | 35
|
our company
Puyang Zhongshi Group Co., Ltd. is a member of Sinopec Corporation. As a national high-tech enterprise and scientific enterprise, we launch business in areas of science & technology, industry, and trade.Our products have attained ISO9000 quality system certification. Some petroleum product machinery have passed the evaluation of API certification in the United States.
