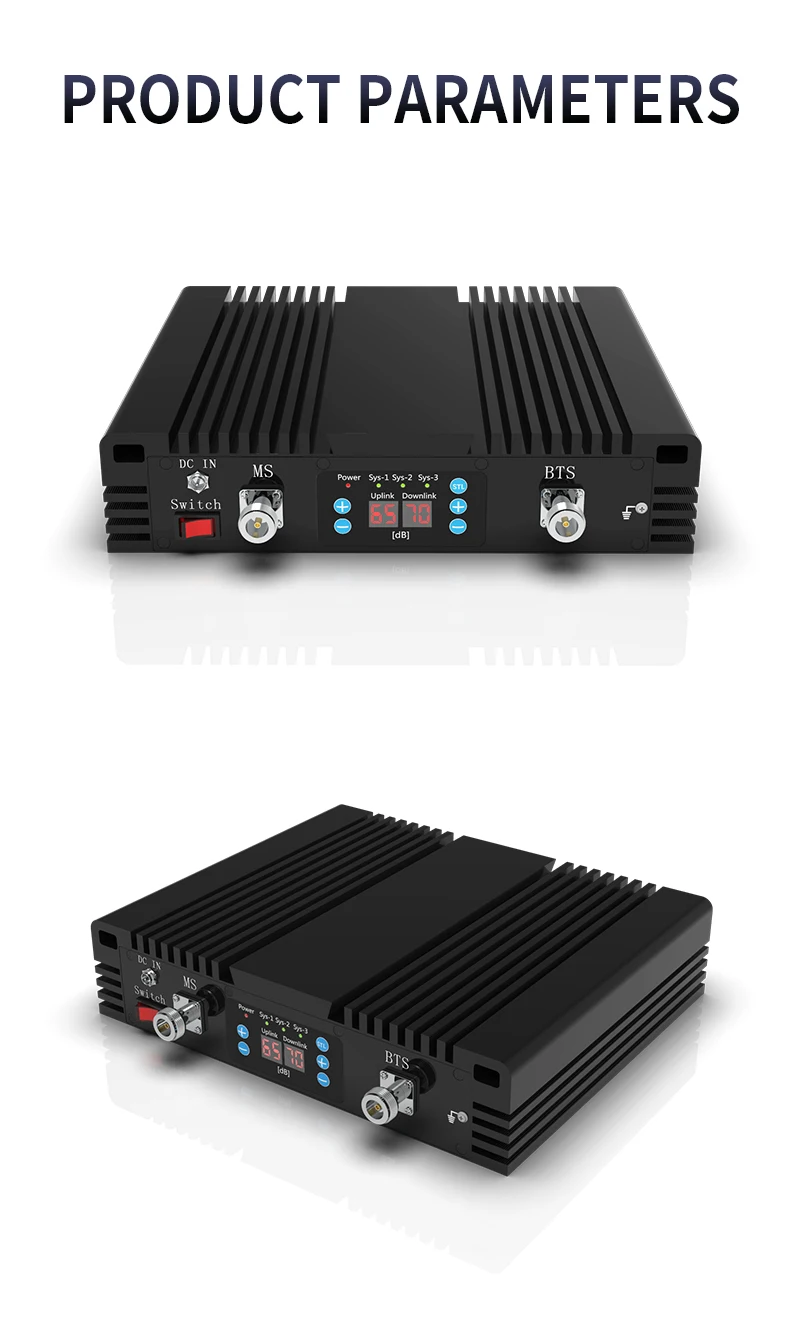

Lintratek Engineering high gain 27 dbm signal repeater CDMA 850MHz Indoor home hotel office use Cellular Phone Signal Booster
- Категория товара: Repeaters >>>
- Поставщик (Оптовый магазин): Foshan,Lintratek,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
A regular cell phone repeater consists of (full kit)
1 -Outdoor antenna log periodic antenna(or wall mounted, yagi antenna)
2 - Indoor Omni ceiling antenna( panel antenna)
3 – Power adapter
4 - User manual
5 - Cell phone repeater
6. 10~100 meters outdoor cable and 5 meter indoor cable
Install Stept (very easy and simple):
Step1: Use your mobile phone to test signal strength outside house or on roof, -70dbm is the basic requirement (full bar).
Step2 Install outdoor antenna in that location and keep adjusting, point it to signal tower station, try to get best signal.
Step3: Run outdoor coaxial cable into building convenient location to connect with signal repeater.
Step4: Mount your indoor antenna with signal repeater
Step5: Power up signal repeater device to check the signal inside, moving outdoor antenna until youget satisfied signal.
Note: Connect outdoor (BTS) port with outdoor antenna, connect indoor ANT(MS) port with indoor antenna, outdoor antenna is mounted at a higher position. Both antennas should be 10 meters far away from each other at least
Indoor and outdoor antenna must be separated by wall.
Product Description
0.5W CDMA 850MHz Indoor CDMA Repeater/Amplifier Widely Cover 75dB Cellular Phone Signal Magnifier

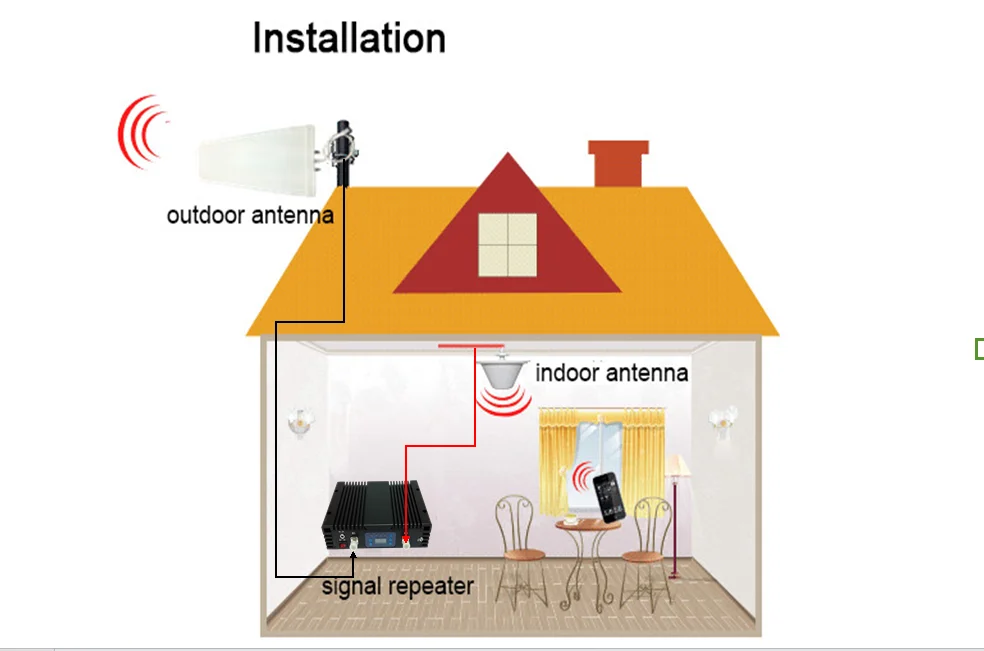

Installation:
Specification should care about :
Model No | KW27F-CDMA mobile phone booster | ||
Parameter data | Uplink | Downlink | |
Frequency Range | 824-849mhz | 869-894mhz | |
Output Power | 25 ±2dBm | 27 ±2dBm | |
Gain | 70 dB | 75 dB | |
Bandwidth | Wide Band | ||
Automatic Gain Control | >20dB | ||
Ripple in Band | ≤4dB | ||
Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | |
1GHz~12.75GHz | ≤ -30 dBm | ||
Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | |
1GHz~12.75GHz | ≤ -30 dBm | ||
Noise Figure @ max. gain | ≤ 6 dB | ||
VSWR | ≤2 | ||
MTBF | >50000 hours | ||
Power Supply | AC:90~265V, 50/ 60Hz;DC:9V 5A | ||
Power Consumption | < 20W | ||
Impedance | 50 ohm | ||
Mechanical Specification | |||
RF Connector | N-Female | ||
Cooling | Heatsink Convection cooling | ||
Dimensions (D x W xH ) | 270*170*60mm | ||
Weight | <3.5Kg | ||
Installation Type | Wall Installation | ||
Environment Conditions | IP40 | ||
Humidity | < 90% | ||
Operating Temperature | -10°C ~ 55°C | ||

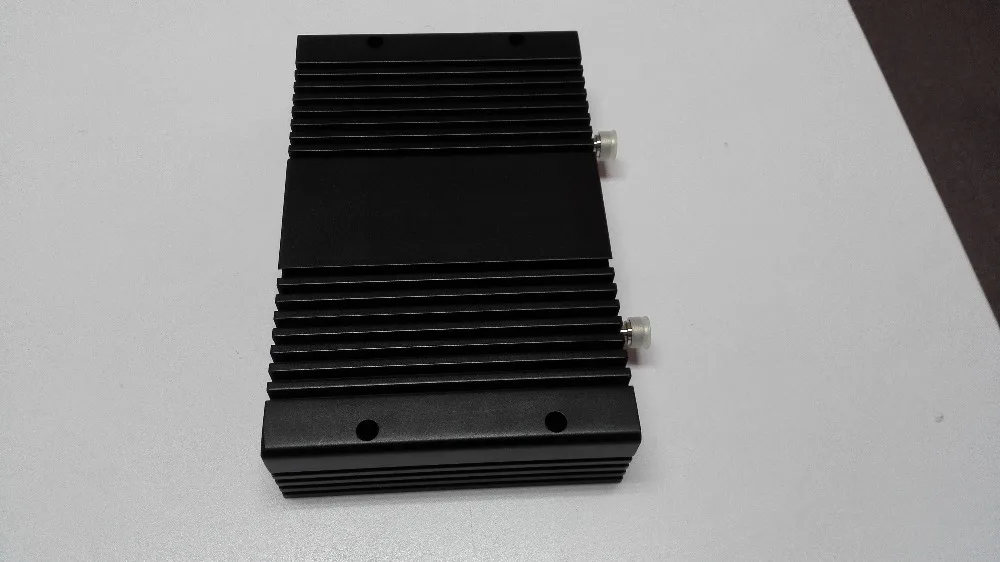

100% real shots:
