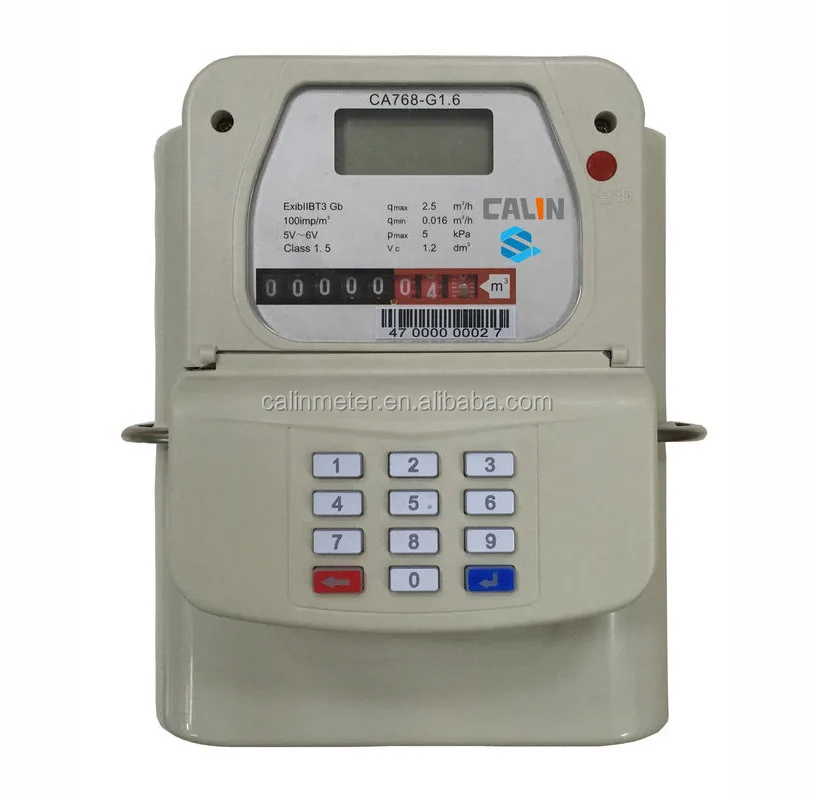

The CA768 gas meter is the new standard for residential compact metering, delivering high performance measurement at an
economical price. It operates with the latest STS standard and takes the topping up tokens generated from Calinpay vending
software. Calinmeter is the first meter company in China succesfully integrate STS algorithm with gas metering. We help protect
your revenue and generate more added value to your business.
Main Features
* Die-cast aluminum case
* Molded, convoluted diaphragms for smooth operation and long life
* Graphite-filled phenolic valves to mininize wear
* Four chamber measurement module, 2 liters per revolution
* Magnetically coupled index drive
* Anti-reverse device deters tampering
* Single coat polyester finish
* Security seals that indicate tampering
Parameters
economical price. It operates with the latest STS standard and takes the topping up tokens generated from Calinpay vending
software. Calinmeter is the first meter company in China succesfully integrate STS algorithm with gas metering. We help protect
your revenue and generate more added value to your business.
Main Features
* Die-cast aluminum case
* Molded, convoluted diaphragms for smooth operation and long life
* Graphite-filled phenolic valves to mininize wear
* Four chamber measurement module, 2 liters per revolution
* Magnetically coupled index drive
* Anti-reverse device deters tampering
* Single coat polyester finish
* Security seals that indicate tampering
Parameters
Type | G1.6 | G2.5 | G4 | ||
Nominal Flow Rate m³/h | 1.6 | 2.5 | 4 | ||
Maximum Flow Rate m³/h | 2.5 | 4 | 6 | ||
Minimum Flow Rate m³/h | 0.016 | 0.025 | 0.040 | ||
Working Pressure KPa | 0.5-50KPa | ||||
Maximum permissible error % | Qmin | ||||
Standard compliance | OIML R137(2012)/EN1359:1998/A1:2006 | ||||
Pressure Loss kPa | <200 | ||||
Maximum Reading m³ | 99999.9 | ||||
Cyclic Volume dm³ | 1.2 | ||||
Weight(kg) | 2.4kg | ||||

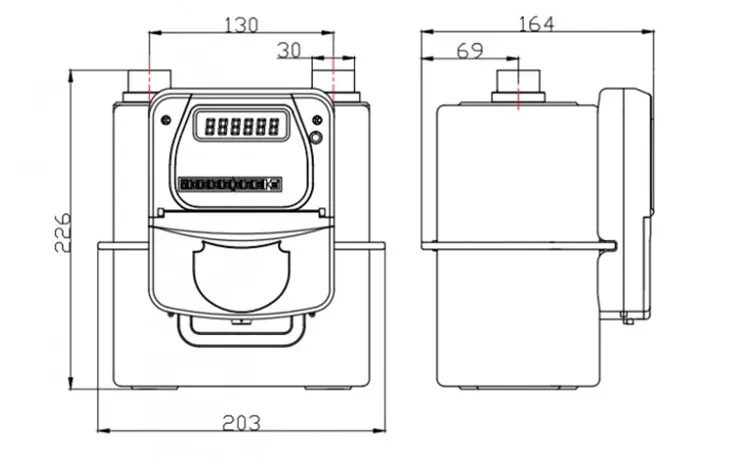

Dimensions and Diagram
Q: Are you a trade company or a manufacturer?
A: We are a original meter manufacturer and solution provide, we can provide more support for you.
Q: Do you provide samples for testing, free or extra?
A: We can provide samples, but we will charge reasonable cost.
Q: What's paypment terms you accept?
A: Paypal/West Union/ T/T / L/C is available. payment ≤USD2000, 100% In advance. payment>USD2000, 30% in advance by T/T, balance payment before shippment.
Q; How long is your delivery time?
A: Generaly it is 5-10 days if the goods is stock, or it is 15-30 days based on your order quantity.
A: We are a original meter manufacturer and solution provide, we can provide more support for you.
Q: Do you provide samples for testing, free or extra?
A: We can provide samples, but we will charge reasonable cost.
Q: What's paypment terms you accept?
A: Paypal/West Union/ T/T / L/C is available. payment ≤USD2000, 100% In advance. payment>USD2000, 30% in advance by T/T, balance payment before shippment.
Q; How long is your delivery time?
A: Generaly it is 5-10 days if the goods is stock, or it is 15-30 days based on your order quantity.
