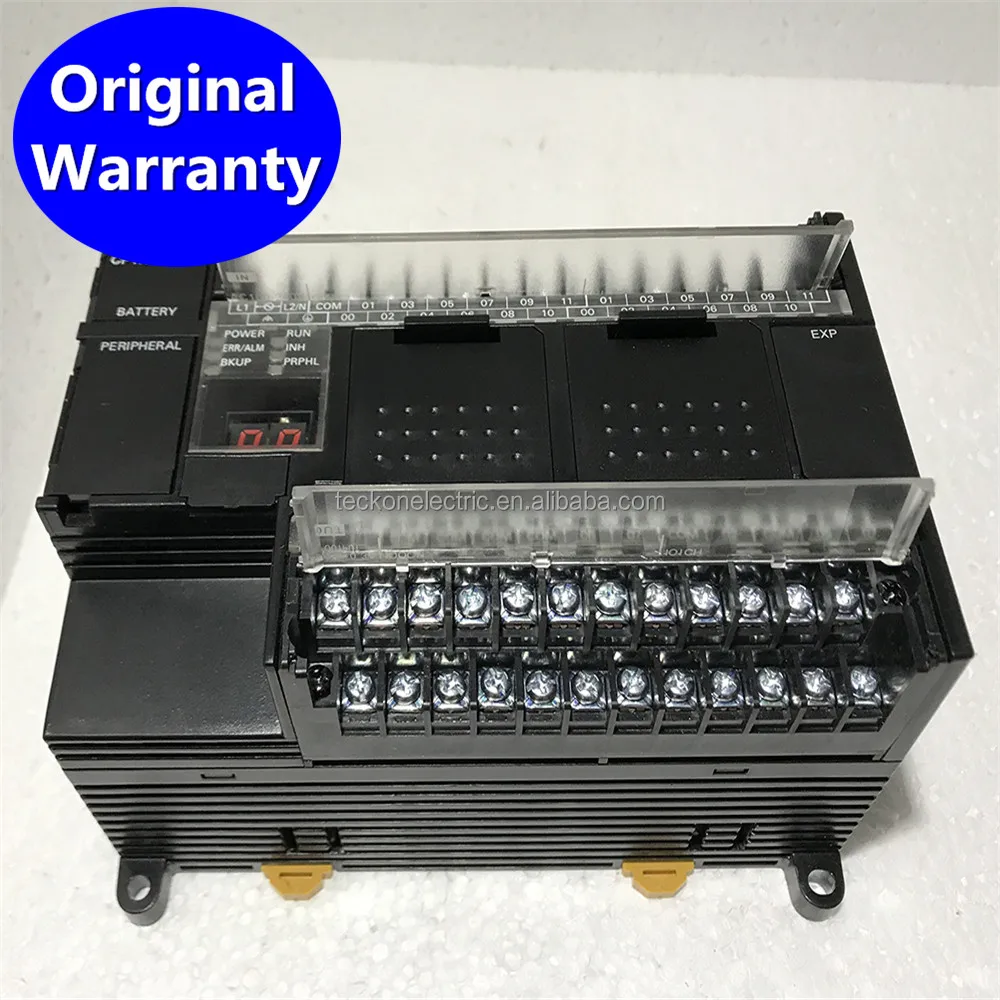

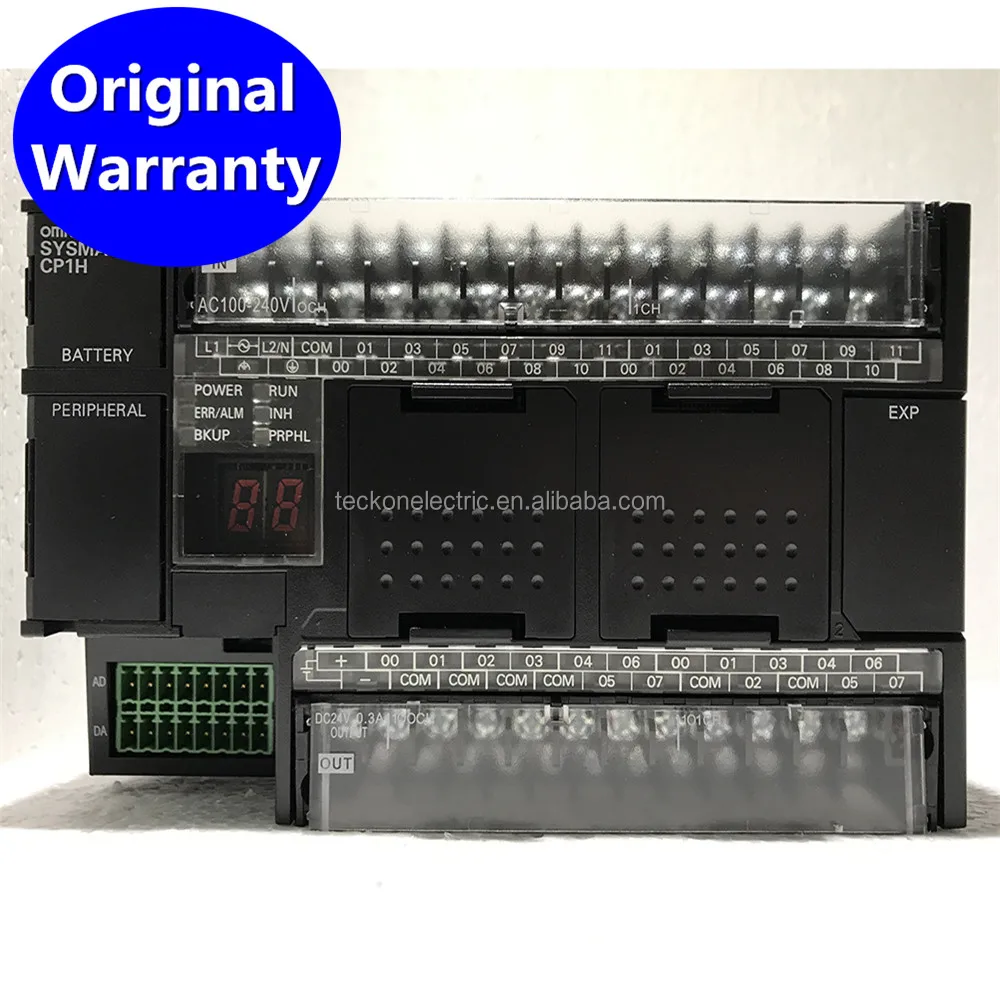

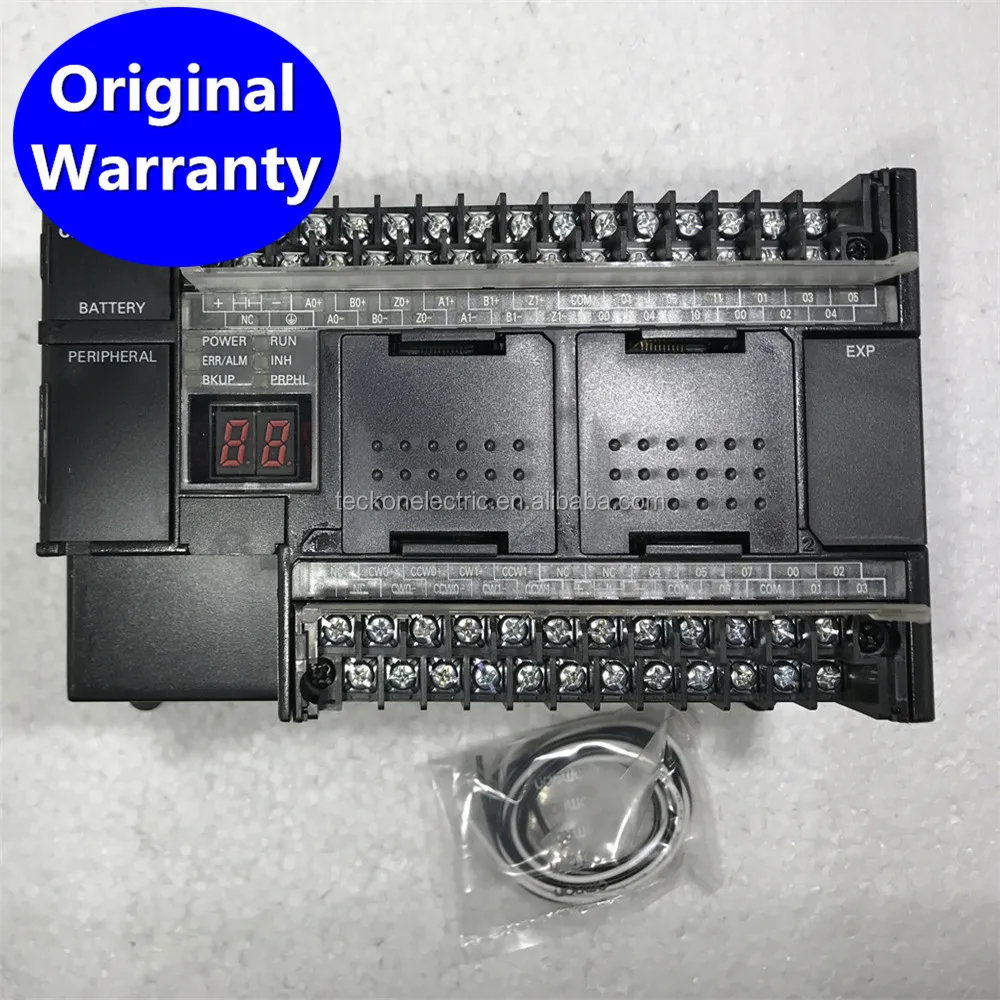

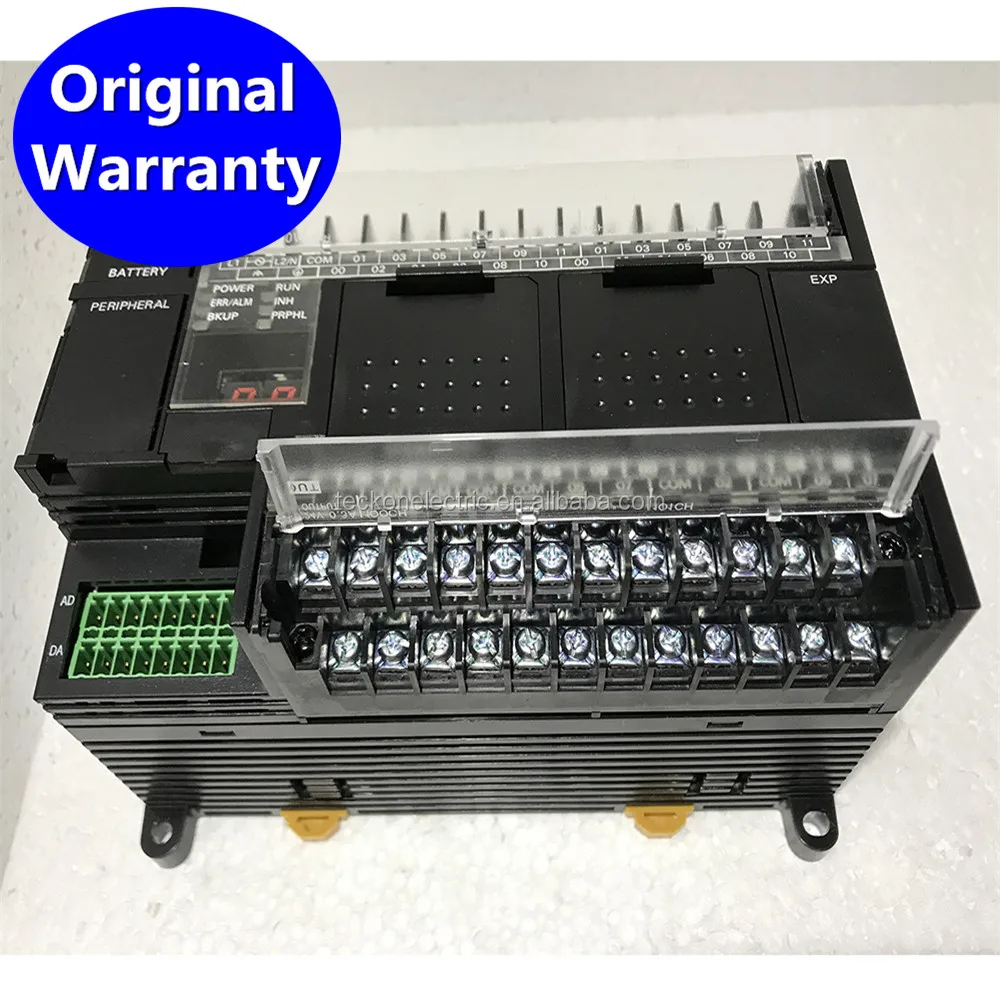

Omron CP1H PLC контроллер CP1H-X40DR-A CP1H-X40DT-D CP1H-X40DT1-D CP1H-XA40DR-A CP1H-XA40DT-D CP1H-XA40DT1-D CP1H-EX40DT-D CP1H-

Описание и отзывы

Характеристики

New & Original Omron CP1H PLC controller CP1H-X40DR-A CP1H-X40DT-D CP1H-X40DT1-D CP1H-XA40DR-A CP1H-XA40DT-D CP1H-XA40DT1-D CP1H-EX40DT-D CP1H-Y20DT-D





• Pulse output for 4 axes. Advanced power for high-precision positioning control.

• High-speed counters. Differential phases for 4 axes. Easily handles multi-axis control with a single unit.

• Eight interrupt inputs are built in. Faster processing of approximately 500 instructions speeds up the entire system.

• Serial communications. Two ports. Select Option Boards for either RS-232C or RS-485 communications.

• Ethernet Communications. Enabled by using an Option Board. Two ports can be used as an Ethernet port to perform. Ethernet communications between the CP1H and a host computer.

• Built-in Analog I/O. XA CPU Units provide 4 input words and 2 output words.

• USB Peripheral Port. Another standard feature.

• The structured text (ST) language. Makes math operations even easier.

• Can be used for the CP1W series and CJ series Unit. The extendibility of it is preeminently good.

• LCD displays and settings. Enabled using Option Board.



Omron PLC CP1H Units

CPU Unit	Specification				Model	Standards
	Power Supply	Output Method	Inputs	Outputs		UC1, N, L, CE, KC
CP1H-X CPU Units	AC power supply	Relay output	24	16	CP1H-X40DR-A
	DC power supply	Transistor output (sinking, NPN)			CP1H-X40DT-D
		Transistor output (sourcing, PNP)			CP1H-X40DT1-D
CP1H-XA CPU Units (w/ Built-in Analog I/O)	AC power supply	Relay output	24	16	CP1H-XA40DR-A
	DC power supply	Transistor output (sinking, NPN)			CP1H-XA40DT-D
	DC power supply	Transistor output (sourcing, PNP)			CP1H-XA40DT1-D
CP1H-Y CPU Units	DC power supply	Transistor output (sinking, NPN)	12	8	CP1H-Y20DT-D
CP1H-EX CPU Units (w/ Built-in Ethernet port)	DC power supply	Transistor output (sourcing, PNP)	24	16	CP1H-EX40DT-D







Options for Omron PLC CP1H Units



Name	Specifications	Model	Standards
RS-232C Option Board	Can be mounted in either CPU Unit Option Board slot 1 or 2.	CP1W-CIF01	UC1, N, L, CE, KC
RS-422A/485 Option Board		CP1W-CIF11	UC1, N, L, CE, KC
RS-422A/485 (Isolated-type) Option Board		CP1W-CIF12	UC1, N, L, CE, KC
Ethernet Option Board	Can be mounted in either CPU Unit Option Board slot 1 or 2.	CP1W-CIF41	UC1, N, L, CE, KC
LCD Option Board	Can be mounted only in the CPU Unit Option Board slot 1.	CP1W-DAM01	UC1, N, L, CE, KC
Memory Cassette	Can be used for backing up programs or auto-booting.	CP1W-ME05M	UC1, N, L, CE

https://teckonelectric.en.alibaba.com/search/product?fsb=y&IndexArea=&CatId=&SearchText=cp1w





 Expansion Units





Product Name	Inputs	Outputs	Output type		Model	Standards
Input Unit	8	--	24VDC Input		CP1W-8ED	U, C, N, L, CE, KC
Output Units	--	8	Relay		CP1W-8ER
			Transistor (sinking)		CP1W-8ET
			Transistor (sourcing)		CP1W-8ET1
	--	16	Relay		CP1W-16ER	N, L, CE, KC
			Transistor (sinking)		CP1W-16ET
			Transistor (sourcing)		CP1W-16ET1
	--	32	Relay		CP1W-32ER	N, L, CE, KC
			Transistor (sinking)		CP1W-32ET
			Transistor (sourcing)Transistor (sourcing)		CP1W-32ET1
I/O Units	12	8	Relay		CP1W-20EDR1	U, C, N, L, CE, KC
			Transistor (sinking)		CP1W-20EDT
			Transistor (sourcing)Transistor (sourcing)		CP1W-20EDT1
	24	16	Relay		CP1W-40EDR	N, L, CE, KC
			Transistor (sourcing)		CP1W-40EDT
			Transistor (sourcing)Transistor (sourcing)		CP1W-40EDT1



Analog Input Unit	4CH	--	Input range: 0 to 5V, 1 to 5V, 0 to 10V, +/-10V, 0 to 20mA, or 4 to 20mA	Resolution: 1/6000	CP1W-AD041	UC1, N, L, CE, KC
				Resolution: 1/12000	CP1W-AD042	UC1, N, CE, KC
Analog Output Unit	--	2CH	Output range: 1 to 5V, 0 to 10V, +/-10V, 0 to 20mA, or 4 to 20mA	Resolution: 1/6000	CP1W-DA021	UC1, N, L, CE, KC
	--	4CH		Resolution: 1/6000	CP1W-DA041
				Resolution: 1/12000	CP1W-DA042	UC1, N, CE, KC
Analog I/O Unit	4CH	4CH	Input range: 0 to 5V, 1 to 5V, 0 to 10V, +/-10V, 0 to 20mA, or 4 to 20mA Output range: 1 to 5V, 0 to 10V, +/-10V, 0 to 20mA, or 4 to 20mA	Resolution: 1/12000	CP1W-MAD44	UC1, N,  CE, KC
	4CH	2CH		Resolution: 1/12000	CP1W-MAD42
	2CH	1CH		Resolution: 1/6000	CP1W-MAD11	UC1, N, L, CE, KC



Temperature Sensor Unit	2CH	--	Sensor type: Thermo couple (J or K)		CP1W-TS001	UC1, N, L, CE, KC
	4CH	--	Sensor type: Thermo couple (J or K)		CP1W-TS002
	2CH	--	Sensor type: Platinum resistance thermometer (Pt100 or JPt100)		CP1W-TS101
	4CH	--	Sensor type: Platinum resistance thermometer (Pt100 or JPt100)		CP1W-TS102
	4CH	--	Sensor type: Thermo couple (J or K) 2 channels can be used as analog input. Input range: 1 to 5V, 0 to 10V, 4-20mA		CP1W-TS003	UC1, N,  CE, KC
	12CH	--	Sensor type: Thermo couple (J or K)		CP1W-TS004
CompoBus/S I/O Link Unit	8	8	CompoBus/S slave		CP1W-SRT21	UC1, N, L, CE, KC
