240 вольт однофазный двигатель мощный кузнечный молоток пневматический 16
- Категория товара: Metal Forging Machinery >>>
- Поставщик (Оптовый магазин): Henan,Wadley,CNC,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

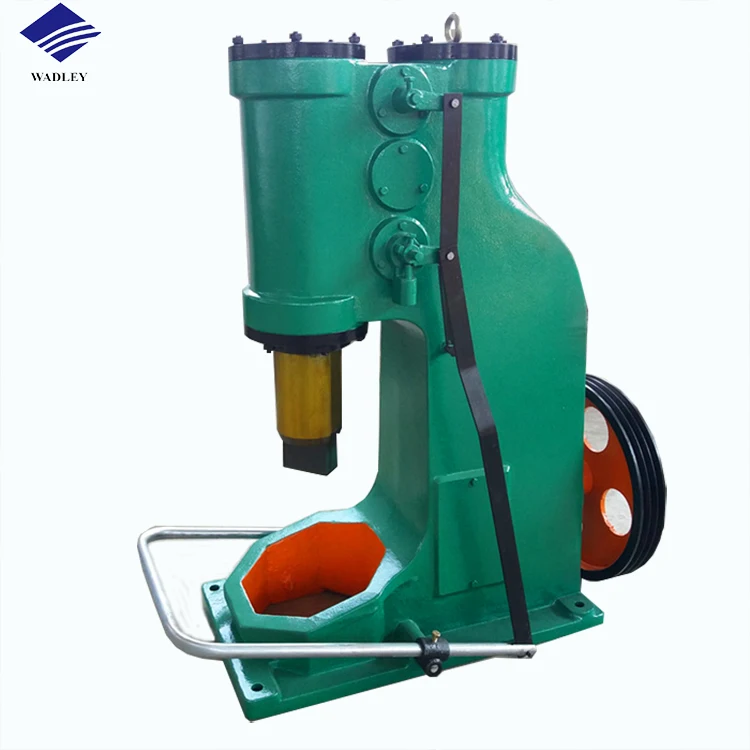

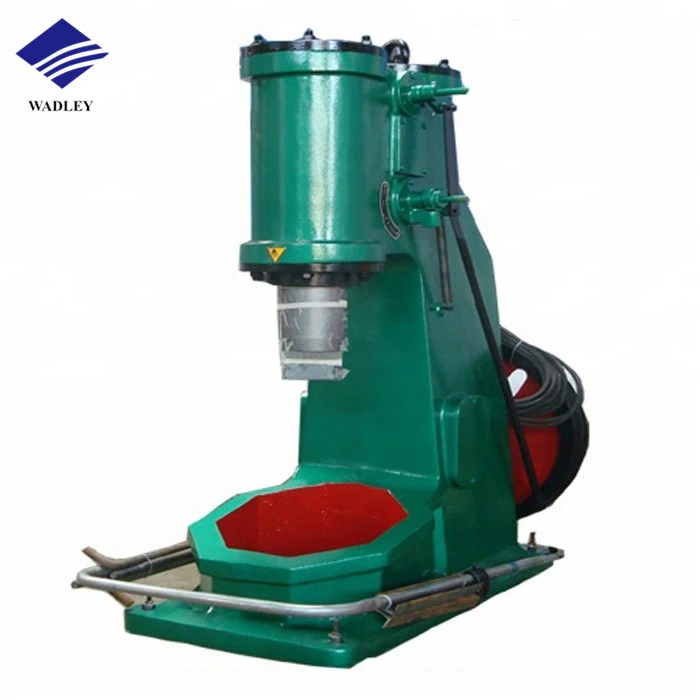

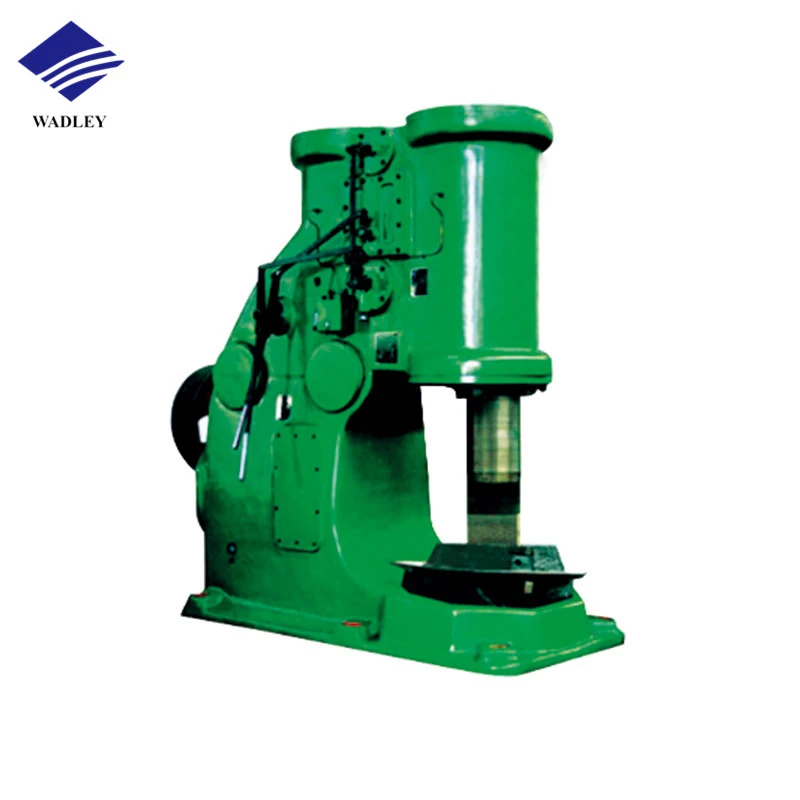

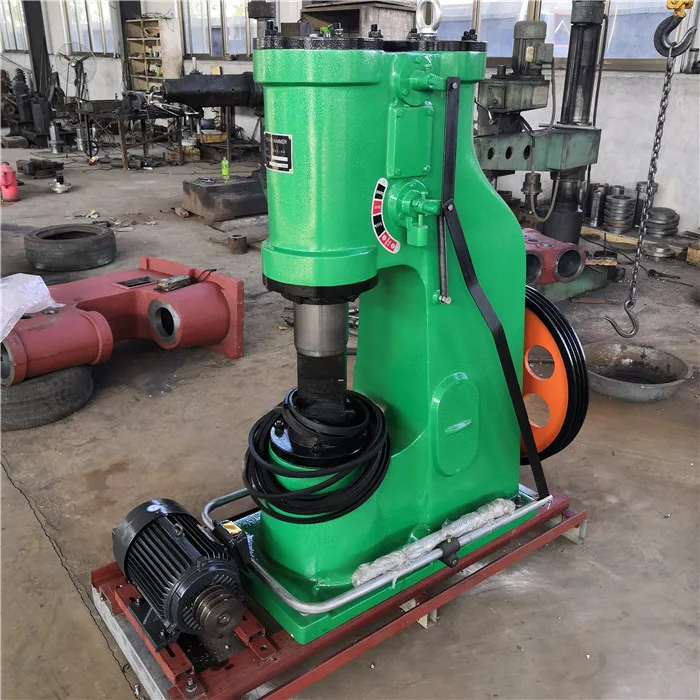

240Volt single phase motor blacksmith power forging hammer air hammer 16KG
Description for Air Power Forging Hammer description
Pneumatic Hammer, a kind of free forging machine. Air Hammer Forging Machine The compression cylinder compresses the air and sends
it into the working cylinder through the distribution valve, pushing the piston together with the hammer head to move up and down
for hammering. Flexible operation, widely used in the production of small and medium forgings. The air hammer is mainly composed
of a frame, a transmission mechanism, a compression cylinder and a working cylinder, a compression piston, a falling part, an air

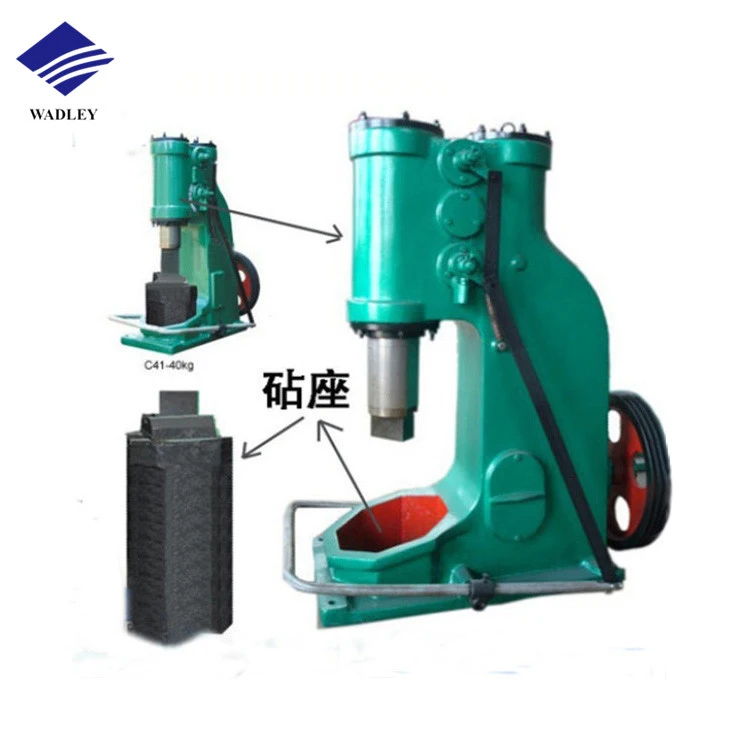

distribution mechanism and an anvil.
Features for Air Power Forging Hammer
1. The air hammer is used for forging and shaping work pieces
2. The air hammer is easy to operate through controlling the travel of top swage by a foot rest lever.
3. It's models range from 16KG to 75KG
4. It is widely used for general forging works, such as drawing out, upsetting, punching, chiseling, forging, welding, bending and
twisting
5. It is also used for forging in bolster dies.
Detailed Images
Size Information
C41-16KG | C41-20KG | C41-25KG | C41-40KG | C41-75KG | C41-150KG | C41-250KG | C41-400KG |
Strike capability | 180 | 220 | 270 | 530 | 900 | 2500 | 5600 |
9600 | Working height range (mm) | 180 | 200 | 240 | 245 | 300 | 370 |
420 | 530 | The number of strikes | 258 | 270 | 250 | 245 | 210 |
180 | 140 | 120 | Malleable square steel side (mm) | 20×20 | 30x30 | 40x40 | 52x52 |
65x65 | 130x130 | 145x145 | 220x220 | Malleable side bar(mm) | Φ20 | Φ35 | Φ45 |
Φ68 | Φ84 | Φ145 | Φ175 | Φ240 | Motor Power(KW) | 1.5 | 2.2 |
2.2 | 4.5 | 7.5 | 15 | 22 | 30 | Motor speed(r.p.m) | 1440 |
1440 | 1440 | 1440 | 1440 | 1470 | _ | _ | The weight of the anvil(KG) |
_ | 200 | 250 | 400 | 850 | 1800 | 2500 | 4800 |
Company Introduction
Henan Wadley CNC Machinery Co.,Ltd located in Zhengzhou.the central place of China. With long time exporting machines experience,we can not only supplying our customers stable quality products ,but also more excellent service.we supply all kinds of Machine tool to international market, like CNC Lathe Machine, VMC Machine,Metal Planer/Slotting Machine,Gear Hobbing Machine,Air Forging Hammer and Machine tool accessories. We have our own engineer who has more than years of working experience and is professionally trained. Our trained engineers can help customers on behalf of company not only inspect goods before shipping but also track all links of production process.
FAQ
.a:For air forging machine,we have different models.
A: C41-16KG 20KG 25KG 40KG 55KG 75KG 150KG 250KG and so on for choose.
b. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
c: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
d: What's the MOQ?
A: 1 set .
We want to know:
a.What's your Industrial Voltage?
b.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece
drawing, so that we can recommend you most suitable model!
c.If need CIF Price, please kindly tell us the port of destination.
A: C41-16KG 20KG 25KG 40KG 55KG 75KG 150KG 250KG and so on for choose.
b. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
c: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
d: What's the MOQ?
A: 1 set .
We want to know:
a.What's your Industrial Voltage?
b.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece
drawing, so that we can recommend you most suitable model!
c.If need CIF Price, please kindly tell us the port of destination.
