Product Description

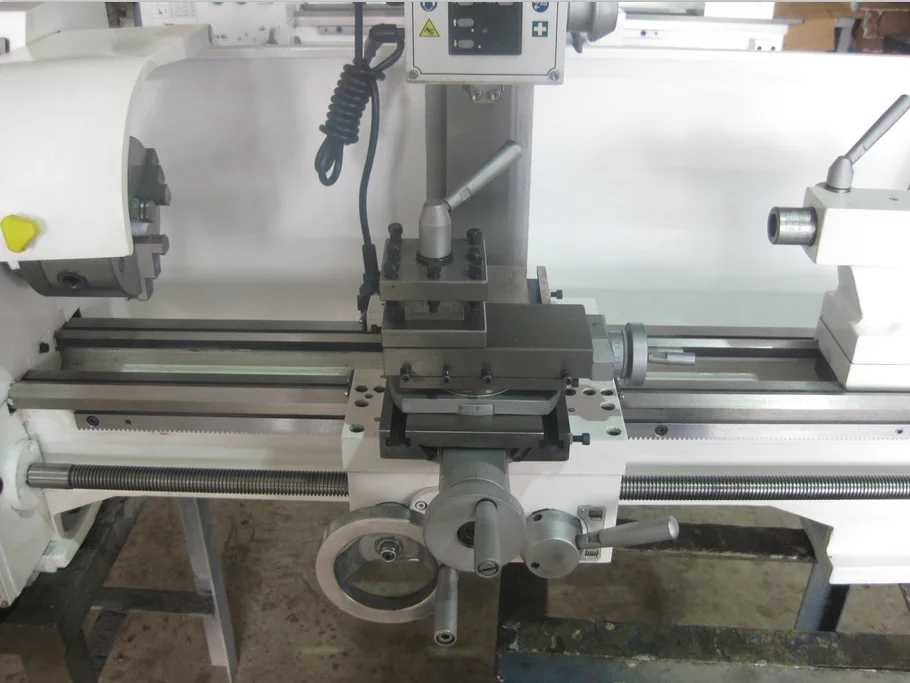

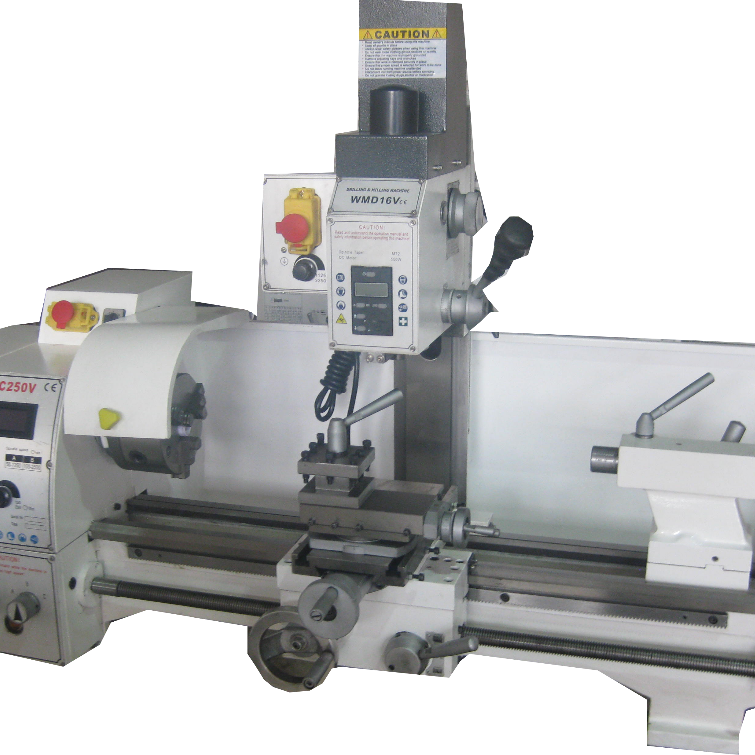

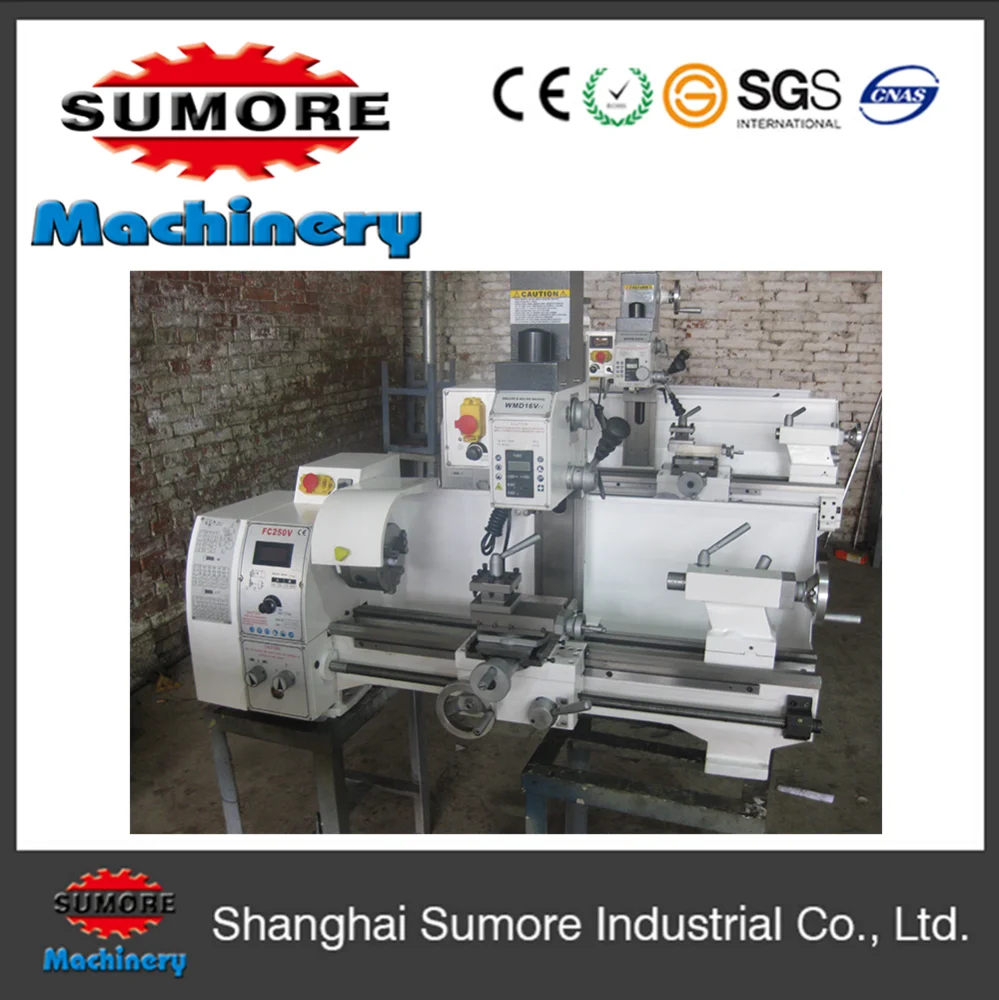

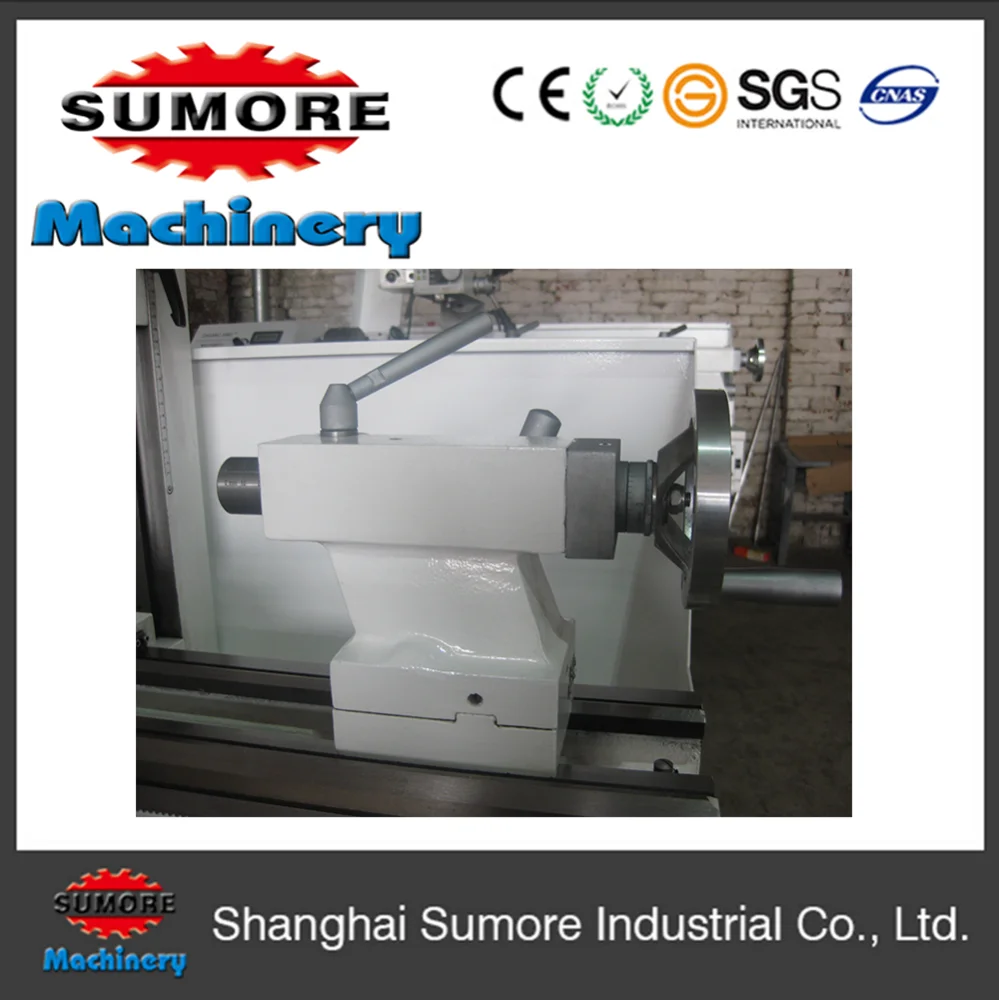

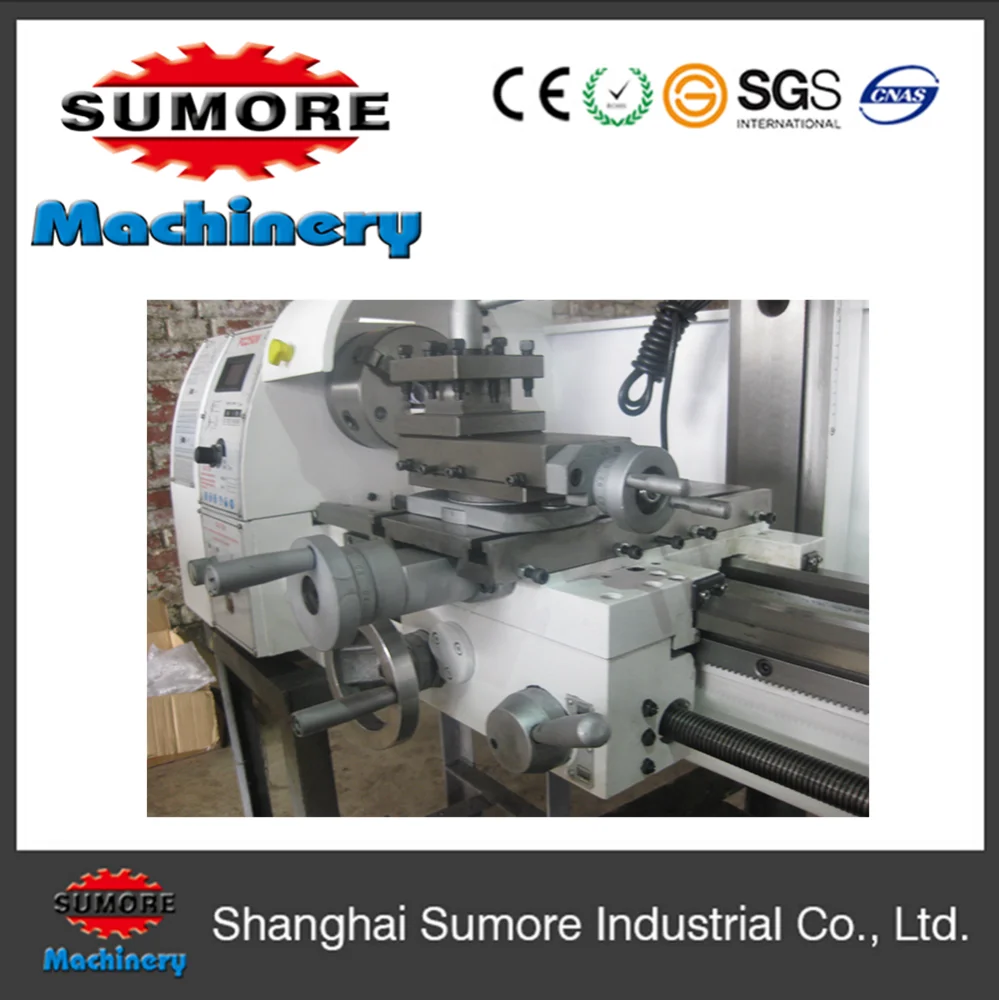

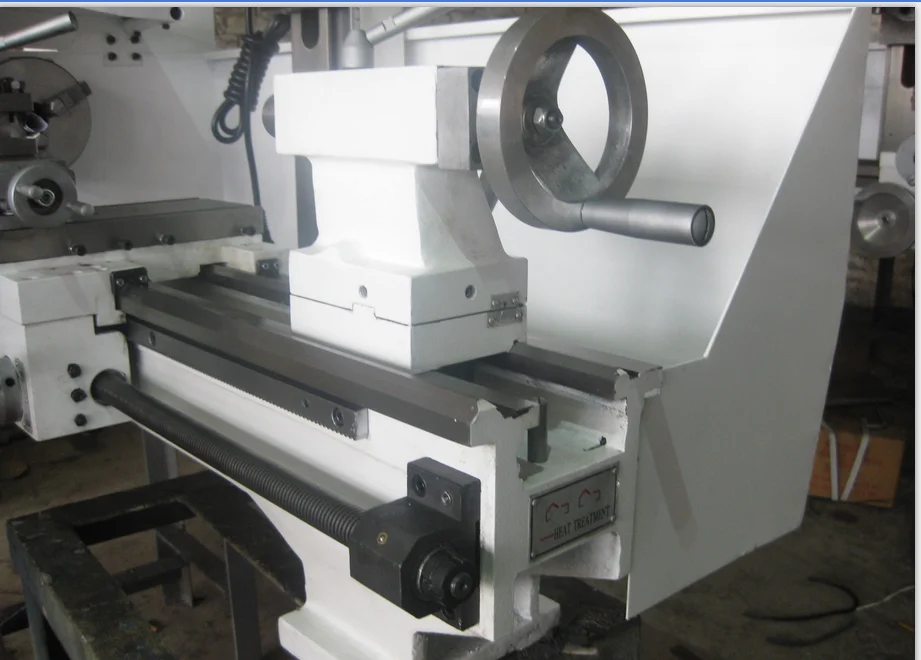

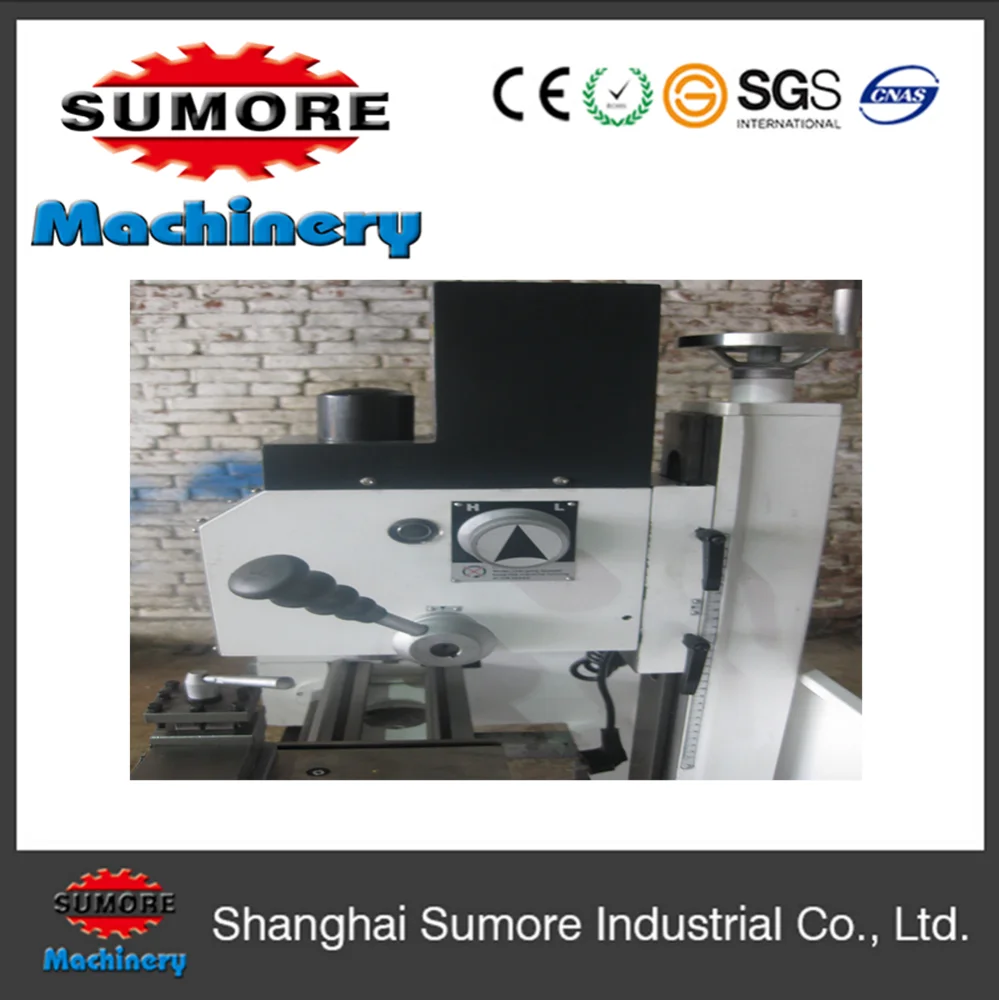

SP2124-IM SUMORE Lathe drilling and milling machine zx7016!!!

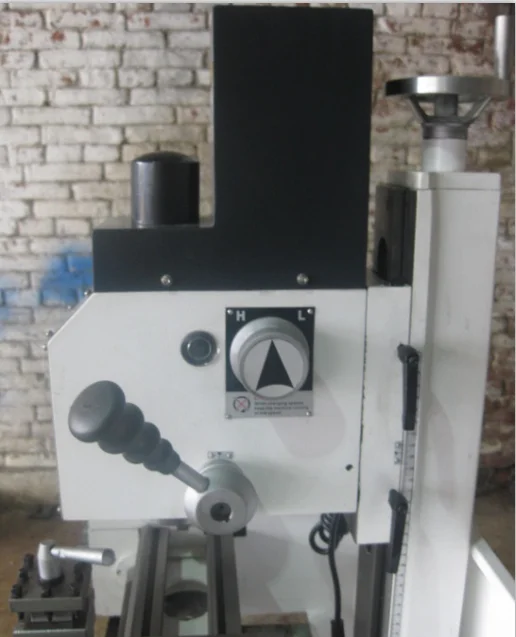

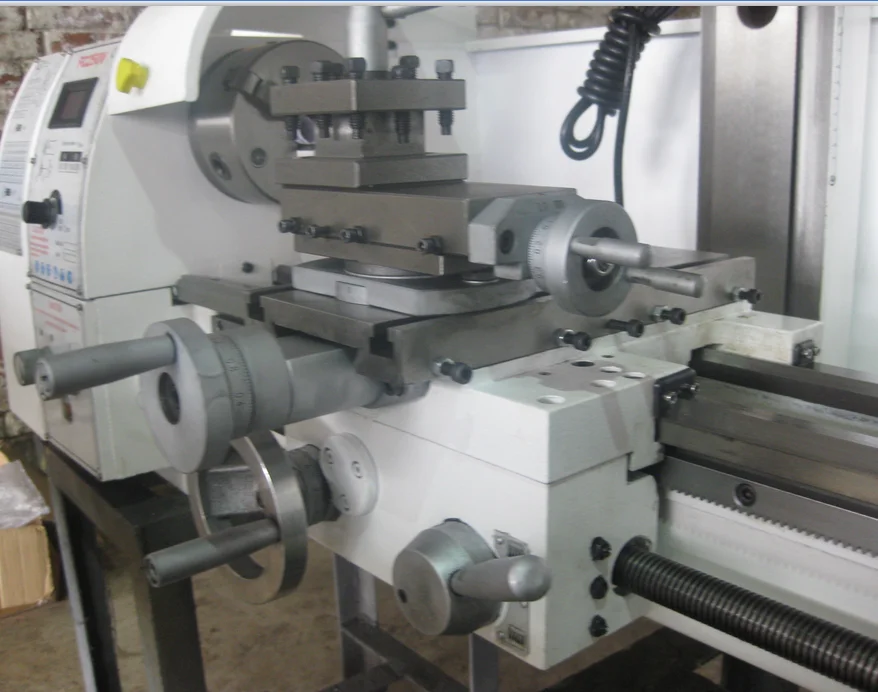

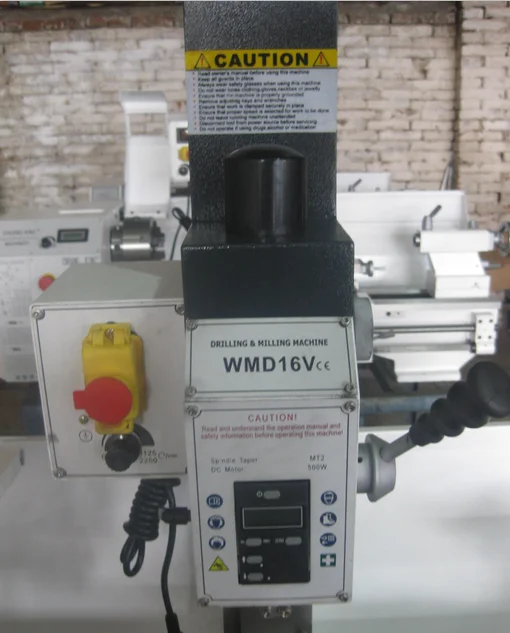

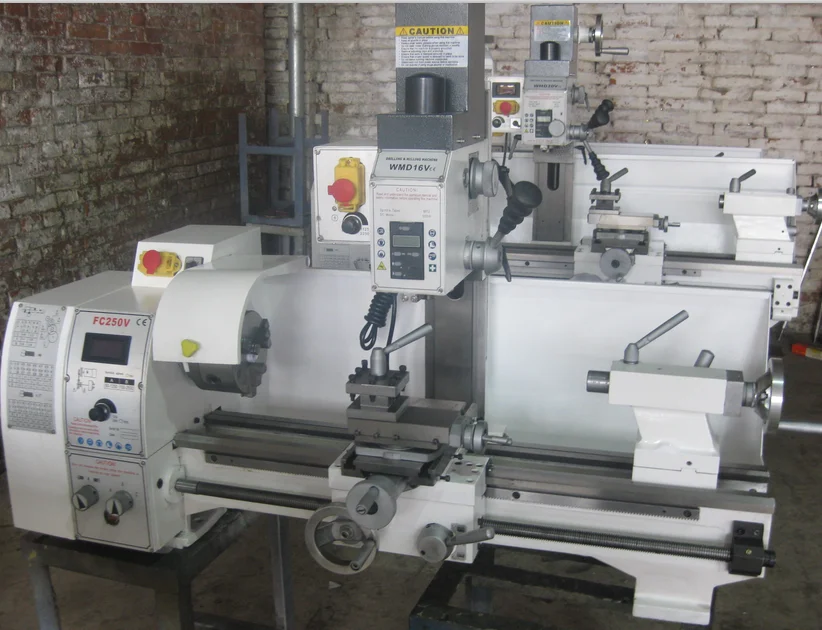

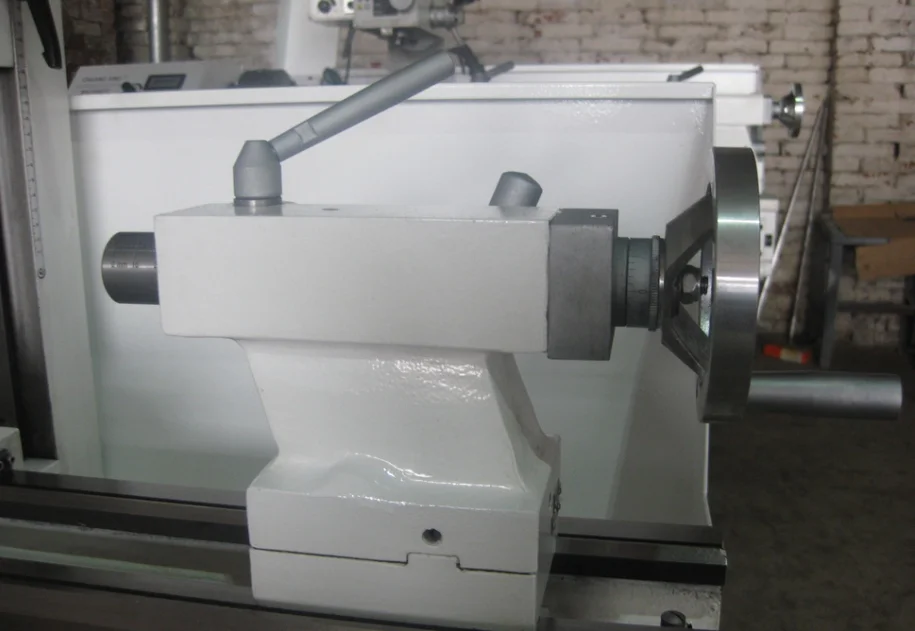

QQ20180105151549.pngQQ20180105151623.pngQQ20180105151640.pngQQ20180105151651.pngQQ20180105151703.pngQQ20180105151714.pngQQ20180105151726.png

Features



  • Exceptional SUMORE Quality

  • Individual Accuracy Test with Each Machine

  • Robust Construction & Stable Performance
  • Brushless Motor & Variable Spindle Speed
  • Fine & Smooth Feeding Movement on Every Directions
  • High Precision for Model Engineering
  • Changable Table Length for Different Workpieces
  • Optional Spindle Speed & Cutting Depth Digital Readout
  • Optional Automatic Longitudinal Feeder
Technical Data





Specification:
ModelSP2124-IM-550MM
Lathe
Swing over Bed250 mm
Swing over Cross Slide150 mm
Distance Between Centers550 mm
Width of Bed135 mm
Spindle Bore26 mm
Spindle TaperMT4
Range of Spindle Speeds50 - 2,500 rpm
Range of Longitudinal Feeds0.07 - 0.20 mm/rev
Compound Slide Travel60 mm
Cross Slide Travel130 mm
Tailstock Quill Travel60 mm
Tailstock Quill TaperMT2
Range of Inch Threads8 - 56 TPI
Range of Metric Threads0.2 - 3.5 mm
Motor Power750 w
Drilling & Milling
Drilling & Milling headBF16
Max. drilling capacityØ16mm
Milling cap of cutting head52mm
Milling cap of end mill cutter16mm
Spindle TaperMT2 / R8
Sleeve travel52mm
T-slot size10mm
Range of Spindle Speeds50 - 2250 rpm
Max. distance from spindle to table280mm
Working range175mm
Motor Power600W
Net Weight180 kg
Packing Size (LxWxH)1200 x 580 x 1060 mm



Accessories
Standard attachment:
Speed displayØ125mm 3-jaw chuck
Splash guard  Chip pan
Lathe chuck protectionTool holder protection
MT4 dead centerMT2 dead center
Change gearsDraw bar M10
Morse taper MT2/ B16Toolbox & tools
 Leadscrew guard Thread Chasing Dial
Optional attachment:
Steady restFollow rest
Face plate Ø200mmStand
Halogen lampTool post guard
Milling cutterMill collet set
Ø125mm 4-jaw chuck Keyless drill chuck 1-13mm
MT2 live center




Related products

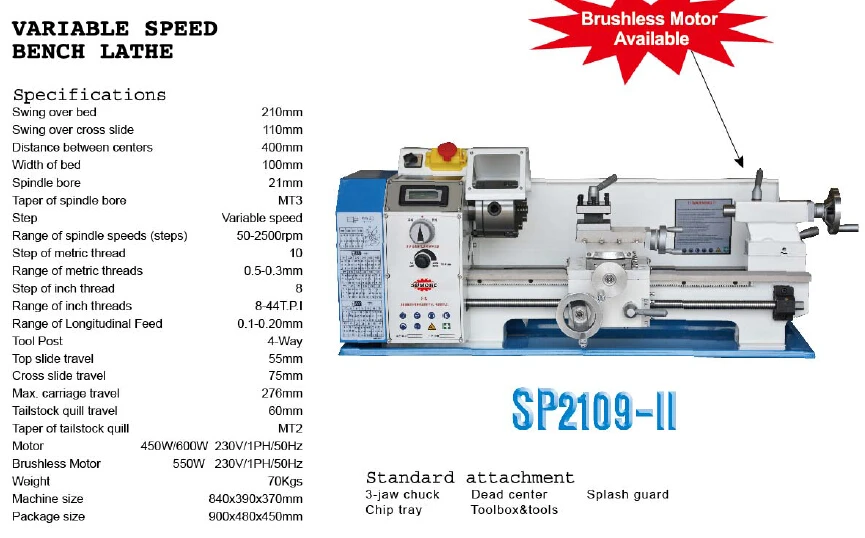

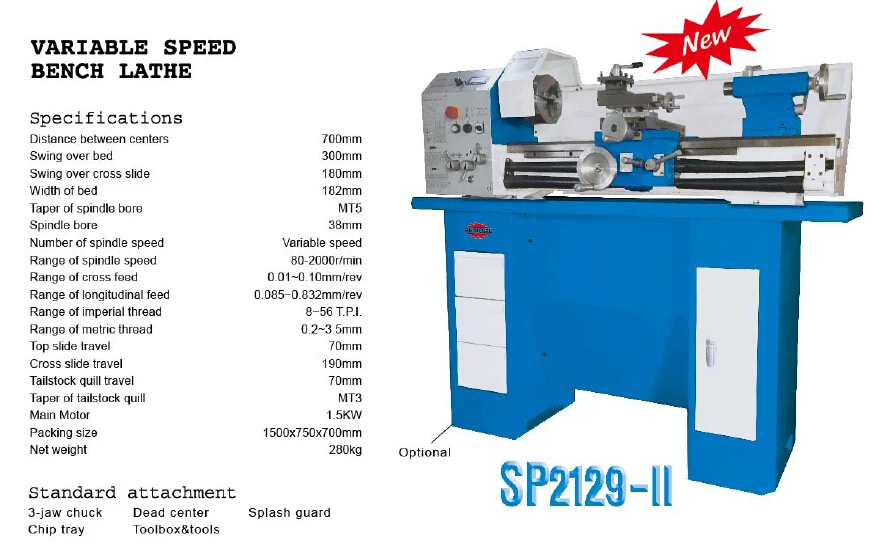

 sp2124-i page.jpgSP2129-II page.jpgSP2109-II page.jpg
