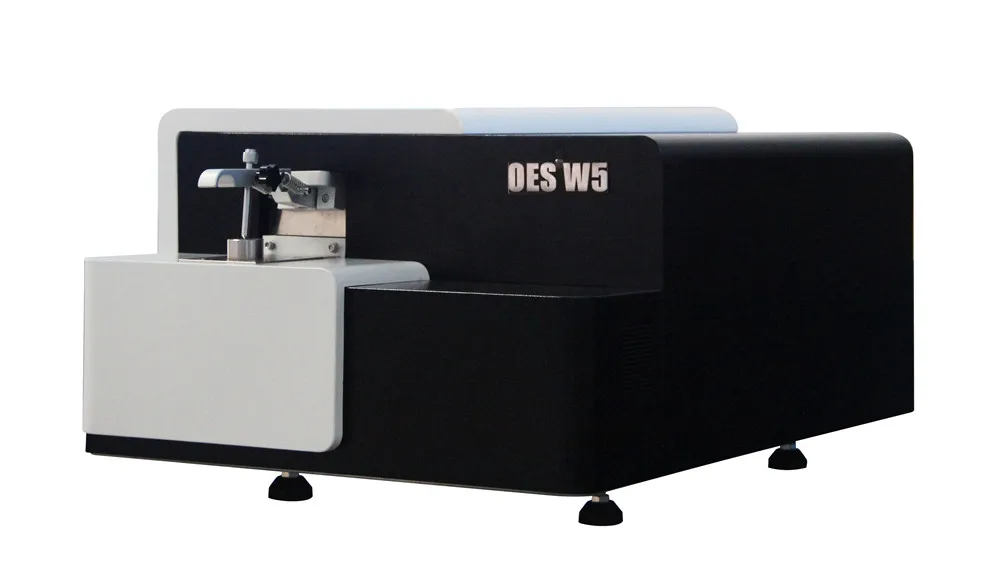

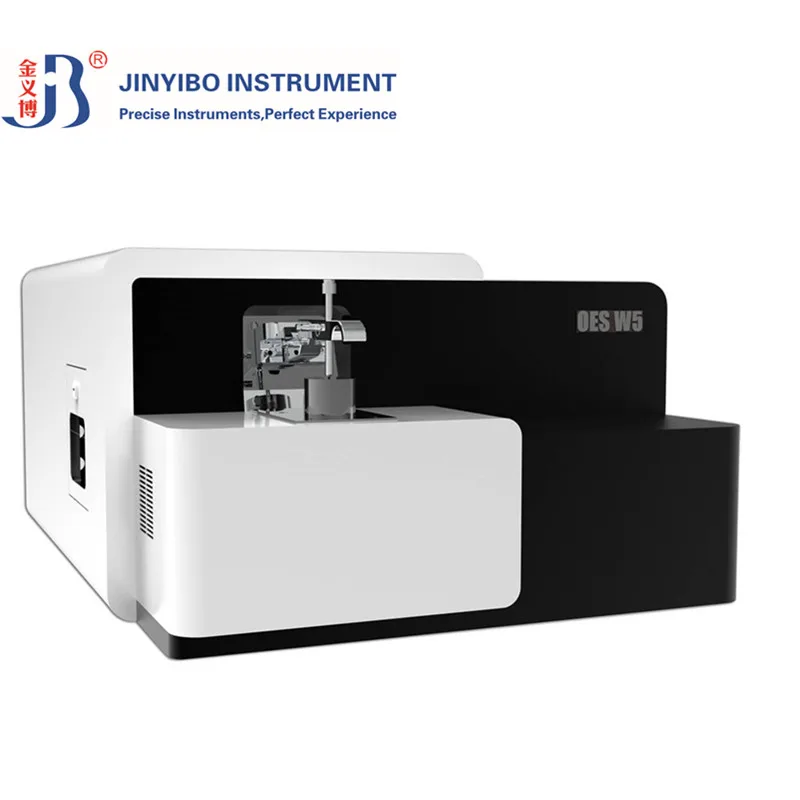

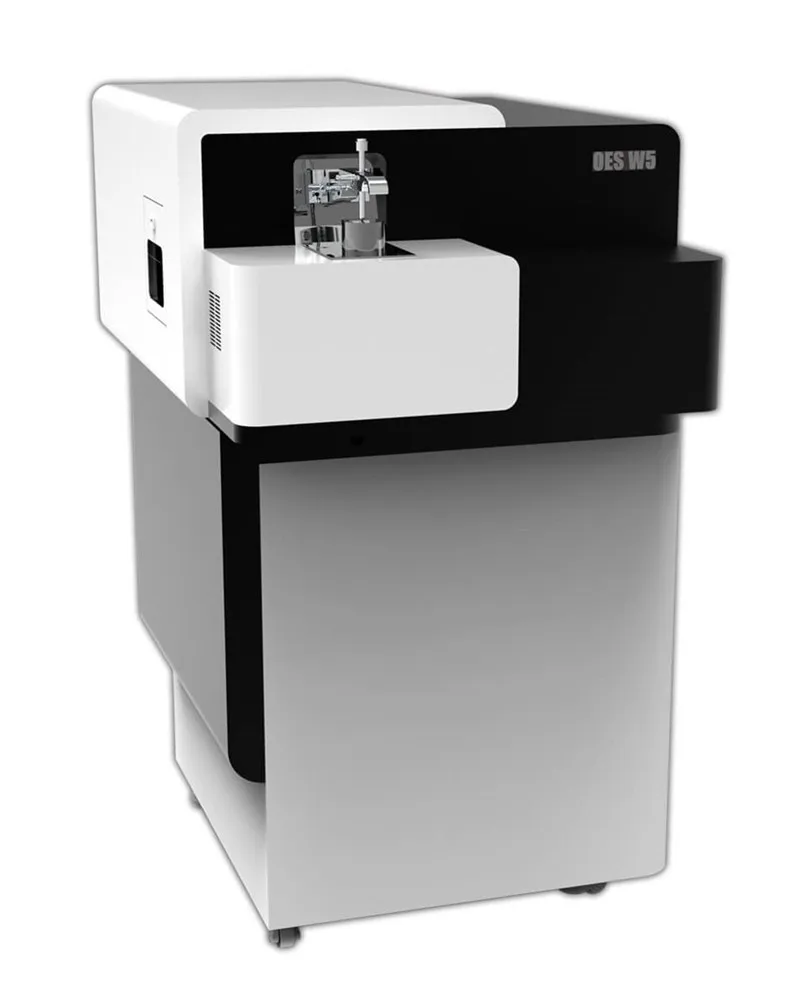

Metal Alloy Analyzer for Copper Alloy

 W5 Optical Emission Spectrometers (Arc/Spark-OES)

The 4^thGeneration High Performance Metal Analyzer

Specification

CMOS -based, spark discharge, metal detection

Ultra-low limits of detection

High integration, reliability, stability

Energy saving 50%, material saving

Lowing operating cost

Small size, light weight, easy to move and install

Multi-substrate upgrade easy, without changes to increase the hardware

Summary

W5 Optical Emission Spectrometer bring in the advanced technology from Europe. It is the 4^thgeneration Arc/Spark-OES with high performance lowing operating cost for metal analysis and this is the latest research and development of detection equipment. The overall optical design has been enhanced, and with improvements of CMOS technology used to further improve the performance of the W5 while retaining the major benefit of earlier units. The CMOS spectrometer is not only contain the full spectrum characteristics of CCD spectrometer but also the extremely low detection limit for non-metallic elements such as C, S, P, B, As, N etc. The operation is simple and easy to learn. The test result is stable and accuracy. It is a good choice of all common metals for incoming and outgoing product quality control.

Application

W5 Optical Emission Spectrometer(spark OES) is used for applications in metal elemental analysis, trace element analysis for science and industry like Metallurgy, Foundry, Mechanical Engineering, Scientific Research, Product Inspection, Automobile, Petrochemical Engineering, Shipbuilding, Electrics, Aerospace, Nuclear Power, Metallic and Nonferrous Metallic Smelting, Processing and Recycling. It is including full element analysis range, but at same time the element analysis amount can be bespoke.

Detection Matrices:

Iron(Fe) and its alloys (Steel alloy, Cast iron, Fe-Low alloy, Fe-Cr steel, Fe-Cast iron, Fe-Cr-cast, Fe-Mn steel, Fe-Tool steel etc.)
Aluminium(Al) and its alloys (Al-Si alloy, Al-Zn alloy, Al-Cu alloy, Al-Mg alloy, Pure-Al alloy etc)
Copper(Cu) and its alloys (Brass, Copper-Nickel-Zn, Aluminum Bronze, Tin-lead Bronze, Red Copper, Be-Bronze, Si-Bronze etc)
Nickel(Ni) and its alloys (Pure Ni, Monel metal, Hadtelloy Alloy, Incoloy, Inconel, Nimonic etc)
Cobalt(Co) and its alloys (Co-orientation, Low Co alloy, Stellite 6,25,31, Stellite 8,WI 52, Stellite 188, F)
Magnesium(Mg) and its alloys (Pure Mg, Mg/Al/Mn/Zn-alloys)
Titanium(Ti) and its alloys

Zinc(Zn) and its alloys

Lead(Pb) and its alloys

Tin(Sn) and its alloys

Argentum(Ag) and its alloys

Small sample, special size sample and wire detection
