Non CNC Busbar Processing Machine For Excellent Quality In Chinese Market

Product Description

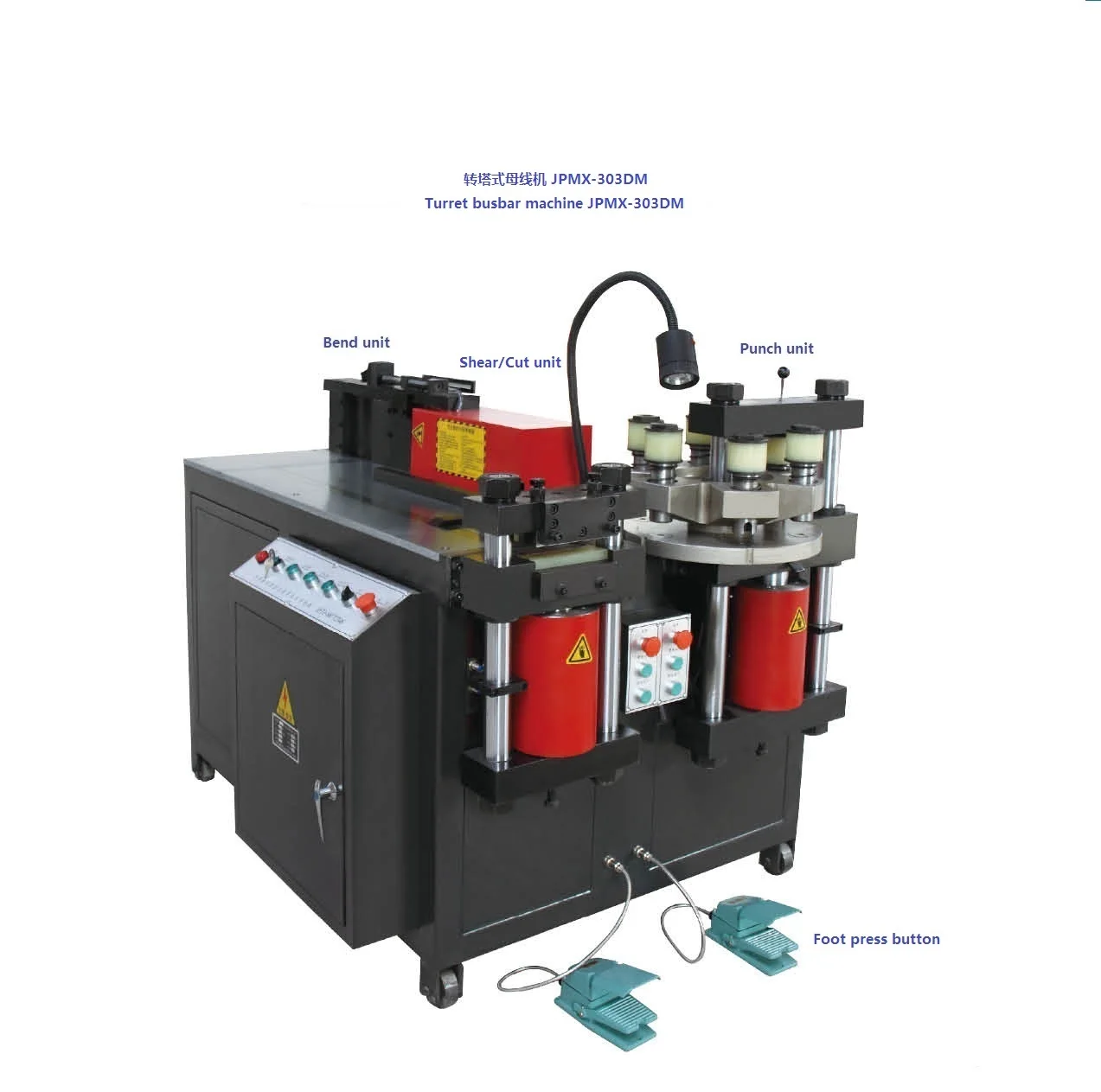

JPMX-303CM	JPMX-303DM

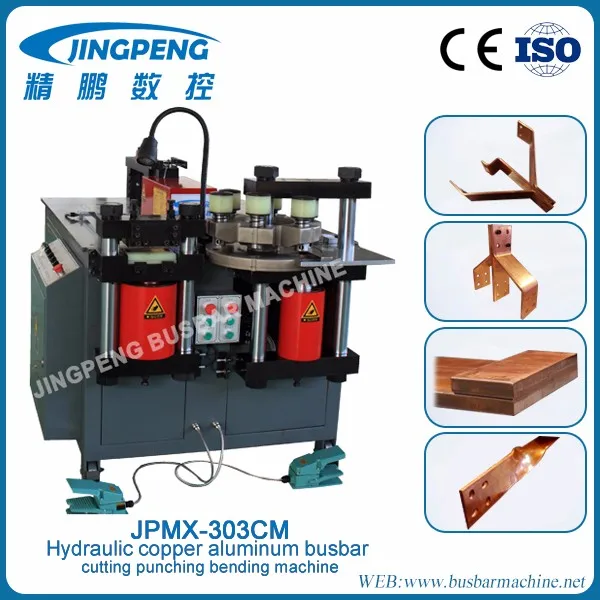

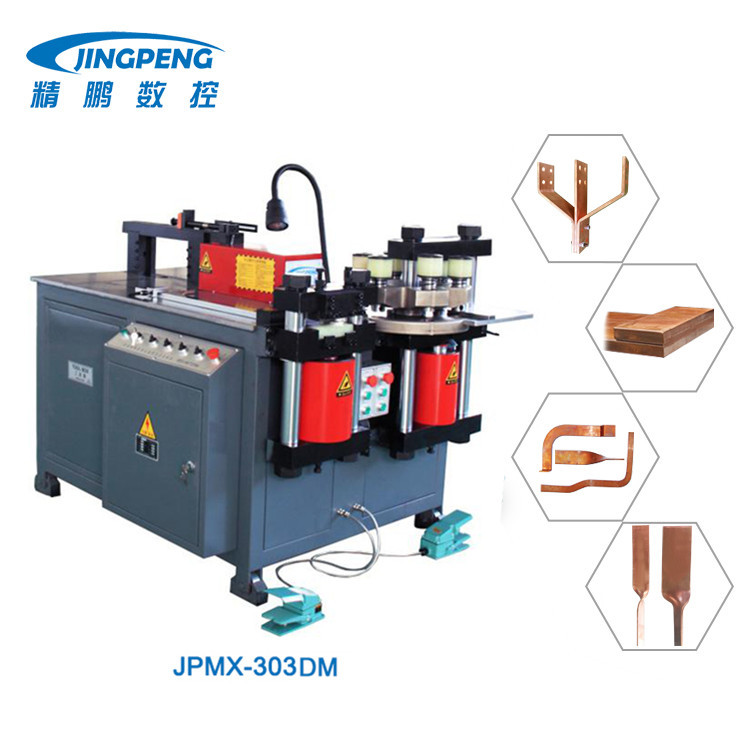

Applications of busbar processing machine:

This machine can be used to process copper or aluminium busbars in different specification which can be used in high-low voltage switchgear,electric transformer station ,voltage transformer,etc.This machine is combinede by three units,the three units can do their opertions at the same time without borthering the others.

Three units of busbar processing machie:

1.The shearing unit uses sharp shearing to make sure the incision interface is flat,no droop,no burrs,no waste,and the shape is beautiful.

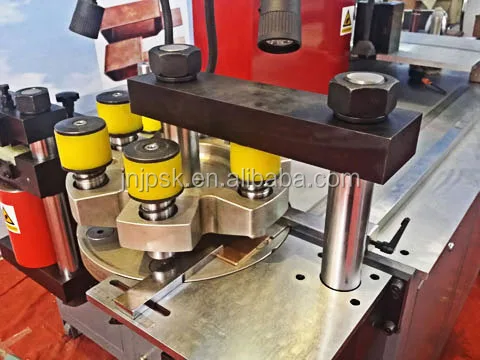

2.The punching unit uses a six-mode turnplate in tooth shape to make sure the good view and high strength.The upper mold and the lower mold are absolutely in the center.There is no need to frequently change the molds,so it is easy and quick to use,so the working efficiency is higher than a troditional one.

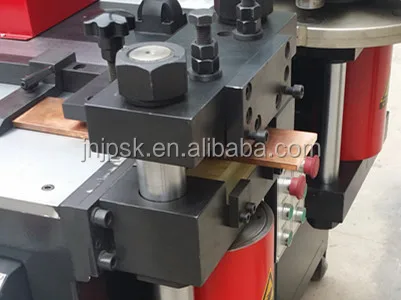

3.The bending unit uses a closed structure to make sure the flat bending and embossing more smooth,which highly improve the repeating precisiong during mass production and prolong the working time.

JPMX-503E detail

Detailed datameters of busbar processing machine:

Function	Item		Model
Function	Item		JPMX-303CM	JPMX-303DM	JPMX-503DM
Punching	Max,punching force	kn	300	300	500
	Punching diameter range	mm	4.3-25	4.3-25	4.3-34
	Max.thickness	mm	12	12	16
	Max.width	mm	150	150	200
Shearing	Max.shearing thickness	mm	12	12	16
Shearing	Max.shearing width	mm	150	150	200
Horizontal bending	Max.bending force	kn	300	300	500
	Max.width	mm	150	150	200
	Max.thickness	mm	12	12	16
Vertical bending	Max.width	mm	100	100	120
Vertical bending	Min.angle	°	90°	90°	90°
Out dimension	mm		*150013001200*	*150013001200*	*180015001300*
Power	kw		*14**	*34**	*35.5**
Weight	kg		1150	1250	1850

The accocessories of busbar processing machine:

8 sets of punching die(6 round dies,2 oblong dies) 1 set of shearing mold

2 sets of flat bending mold 2 sets of vertical bending mold

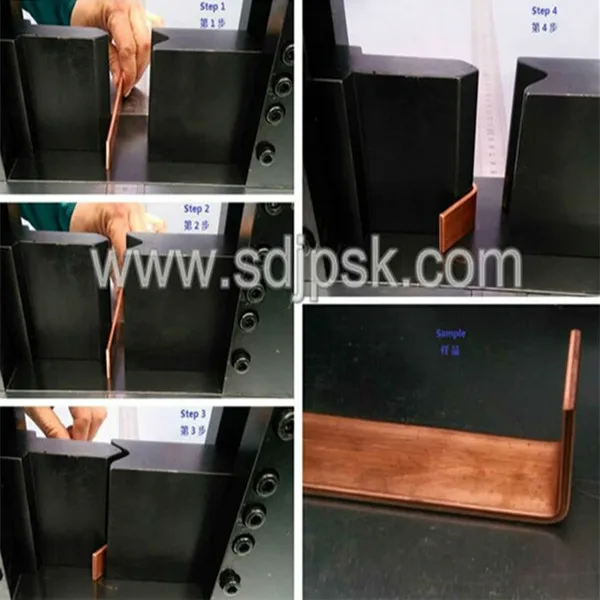

1 set of embossing mold 1 set of U bending mold

1 set of oil filler 1 set of inner hexagon spanner

3 sets of foot switches 1 set of hydraulic systerm sealing ring

1set of random tools 2 pieces of Limit Switch

1 piece of punching location needle

Machine parts 016

Attention for safety operation of busbar processing machine:

1.There must be a safety inviroment around the busbar machine befeore operation.

2.Do not wear a scarf or overcoat in case of your personal safety.

3.Train or instruct workers to work in the correct way so as to stop and get out of danger as soon as possible.

4.Power requirement:three phase four wire 380V ± 10%+N.

5.If the temperature is blow 5℃,you should operat the empty machine for at least 5 minutes.

6.You must read the instruction carefully and understand completely about the structure and performance of the busbar machine.

7.If the temperature of the oil is higher than 60℃,you had better to turn off the machine and give the machine a bit of a break.

8.We advice to change the hydraulic oil for once a year,if the working frequency is nou high,it can be changed once every two years.
