Weiss комбинированный сверлильный и фрезерный станок с китайской фабрики SP2208

Weiss комбинированный сверлильный и фрезерный станок с китайской фабрики SP2208

Категория товара: Milling Machines >>>
Поставщик (Оптовый магазин): Shanghai,Sumore,Industrial,Co.,Ltd.

Цена:

Стоимость в USD:Узнать цену

Количество:

Купить

В избранное

Описание и отзывы

Характеристики

Product Description

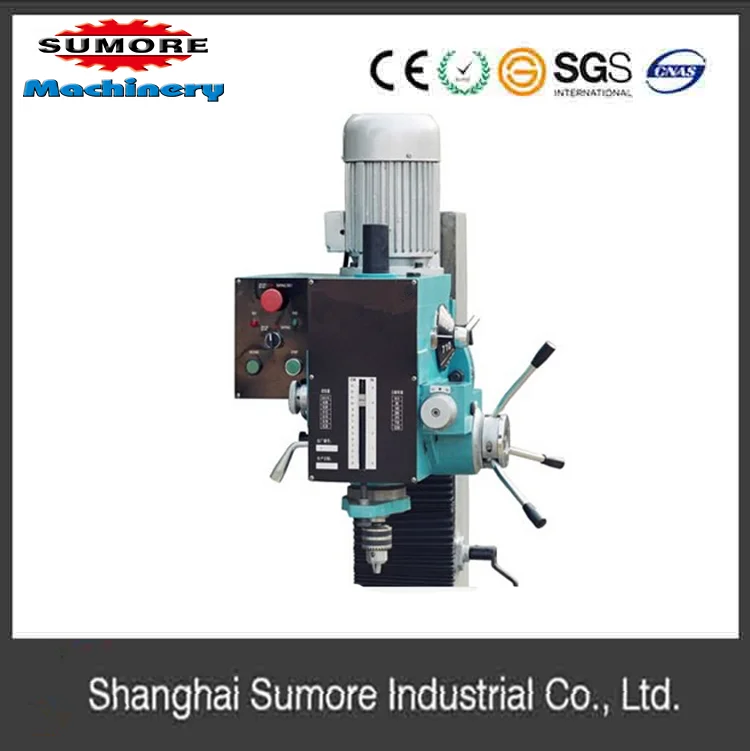

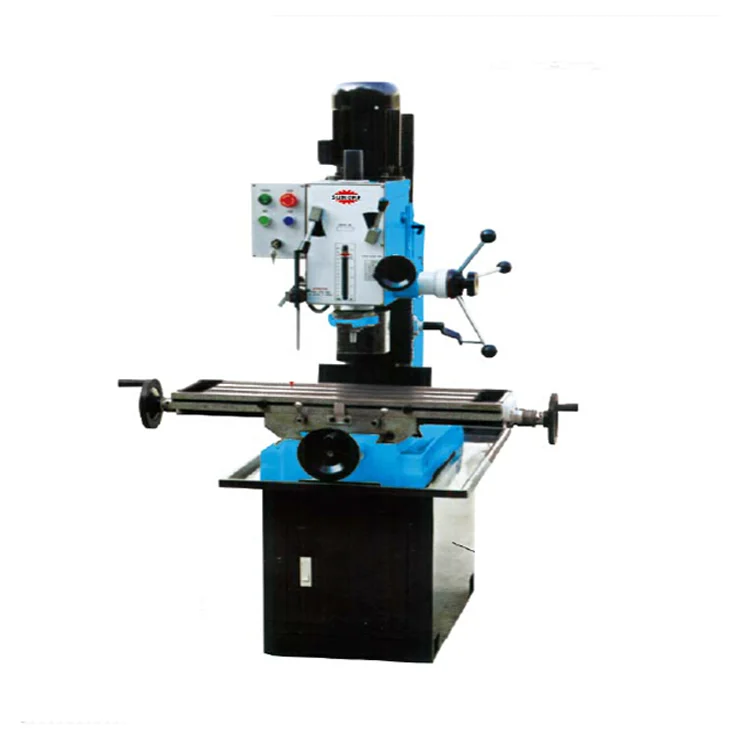

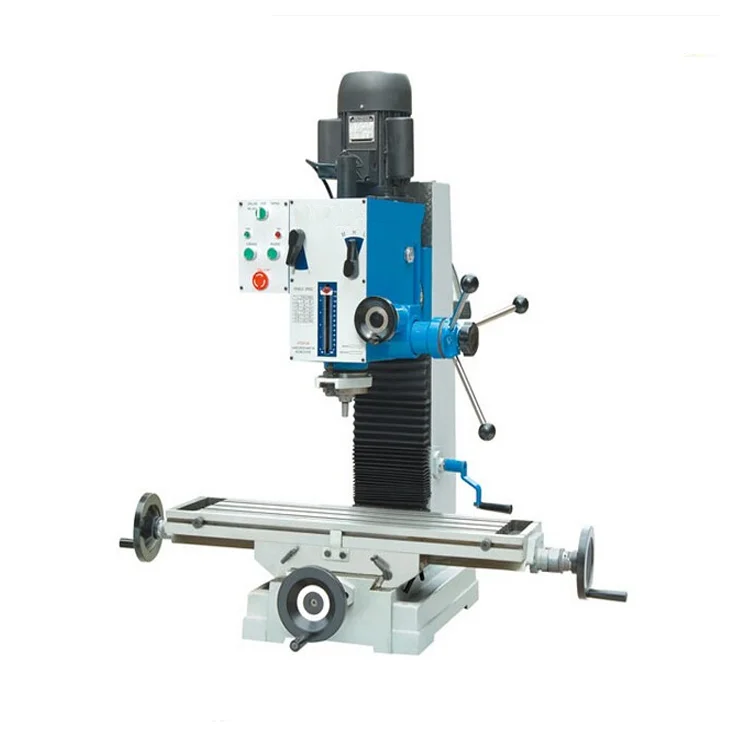

SP2208-I/II/II/IV Bench Type Vertical Drilling and Milling Machine belongs to one of our most economic Drilling and Milling Machine. It is new condition not used drilling and Milling Machine. And it is small in size and delicate in design. This metal drilling and Milling Machine is made in China according to quality standard of machines made in Taiwan. The main features are as below:

1.Cyclical spindle speed changing
2.Spindle auto-feed
3.Cylical spindle feed rate changing
4.Tapping function
5.Cast iron material

sp2208 3.jpg

Technical Data

Model	SP2208-II	SP2208-III	SP2208-IV
Drilling Capacity	32 mm	40 mm	45 mm
End Milling Capacity	20 mm	32 mm	32 mm
Face Milling Capacity	63 mm	80 mm	80 mm
Longitudinal Axis Travel (X)	500 mm	500 mm	500 mm
Cross Axis Travel (Y)	175 mm	175 mm	175 mm
Headstock Axis Travel (Z)	130 mm	130 mm	130 mm
Effective Table Size	800 / 900 x 240 mm	800 / 900 x 240 mm	800 / 900 x 240 mm
Spindle Taper	MT3 / R8	MT4 / R8	MT4 / R8
Spindle Speed Range	80-1,250 rpm	80-1,250 rpm	80-1,250 rpm
Distance Between Spindle to Table	450 mm	450 mm	450 mm
T-slot Amount	3	3	3
Vertical Head Tilt Angle (Left / Right)	90° / 90°	90° / 90°	90° / 90°
Motor Power	750 w	1,100 w	1,500 w
Voltage and Frequency	Customrized	Customrized	Customrized
Net Weight	320 kg	320 kg	323 kg
Packing Size (LxWxH)	770 x 880 x 1,160 mm	770 x 880 x 1,160 mm	770 x 880 x 1,160 mm
Gross Weight	370 kg	370 kg	373 kg

tip banner.jpg

Accessories

Standard Accessories	Optional Accessories
Drill Chuck	Automatic Worktable Feeder
Wrench Set	Spindle Speed Digital Readout
Toolbox and maintain tools	Cutting Depth Digital Readout
Oil Tray	Clamping Kit
Manual Instruction & Parts List	Mill Chuck

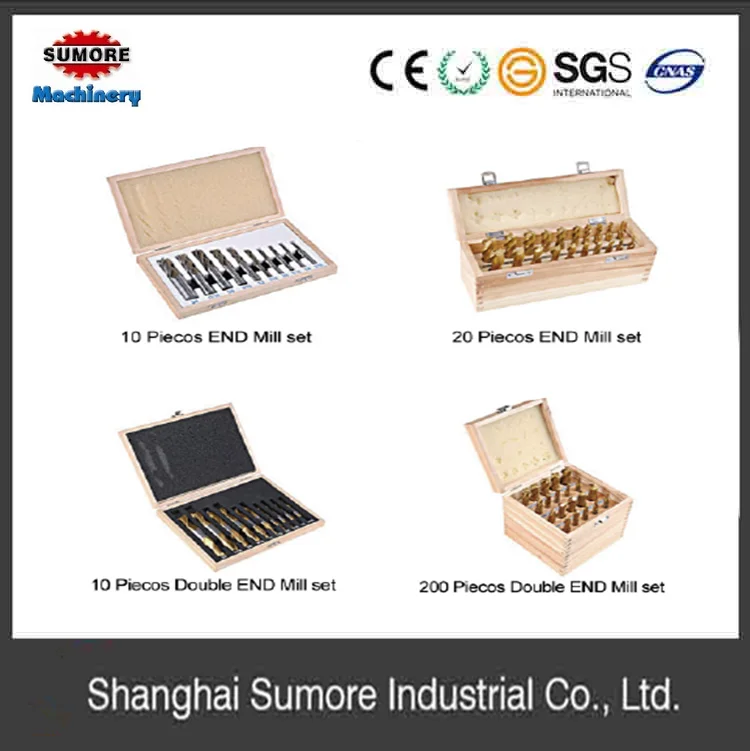

	Milling Set
	Tapping Set
	Boring Set
	Swivel Worktable
	Vice
	Stand
	Work Light

tips banner 2.jpg

Packaging & Shipping

Package	1 set/polywood case (aluminum strips strengthen)
Minimum Order Quantity (MOQ)	5 sets
Full Container Loading Quantity (FCL)	36 - 48 sets/20’GP (unitary; customerized packing available)
Delivery Time	25 calendar days after receiving of advance / full payment
