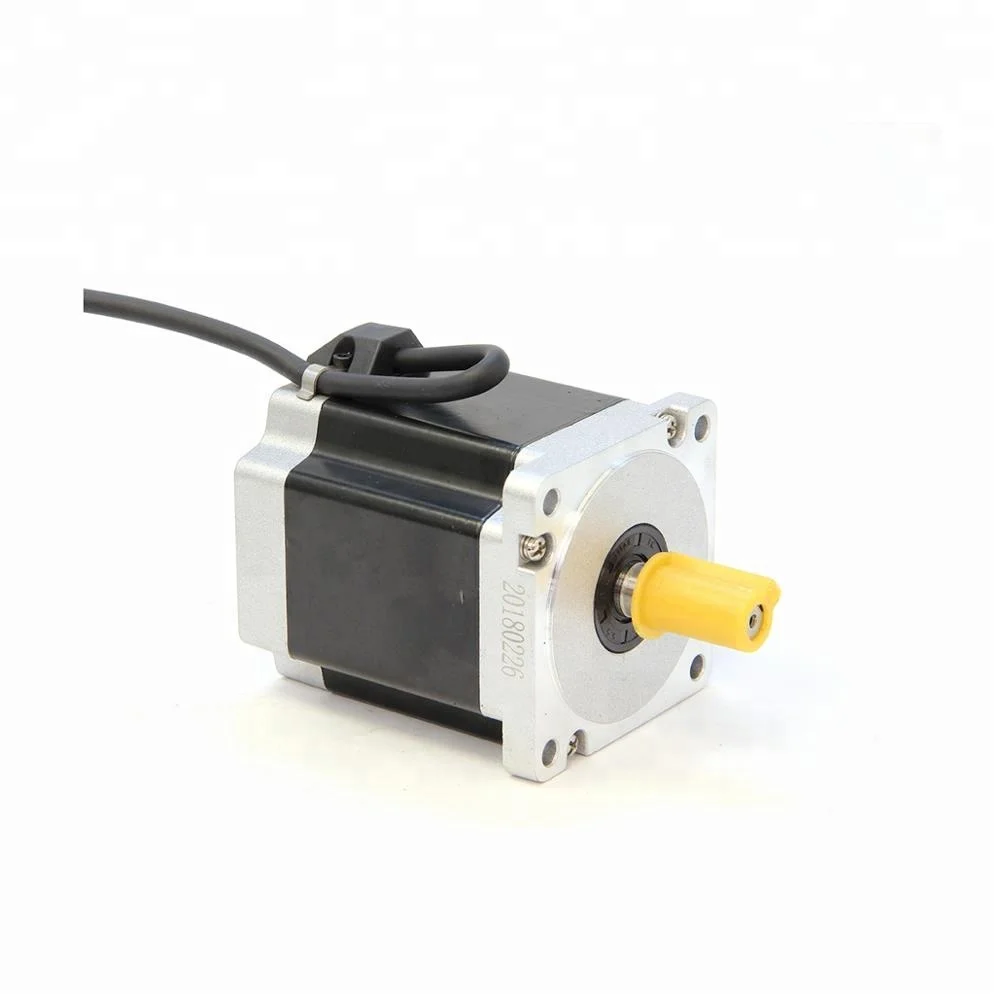

Nema 34  1.8 degree 7.5Nm Stepper Motor cnc kit

3-5days delivery time( most in stock)!!







Basic Parameters
Type	Mixed Stepper

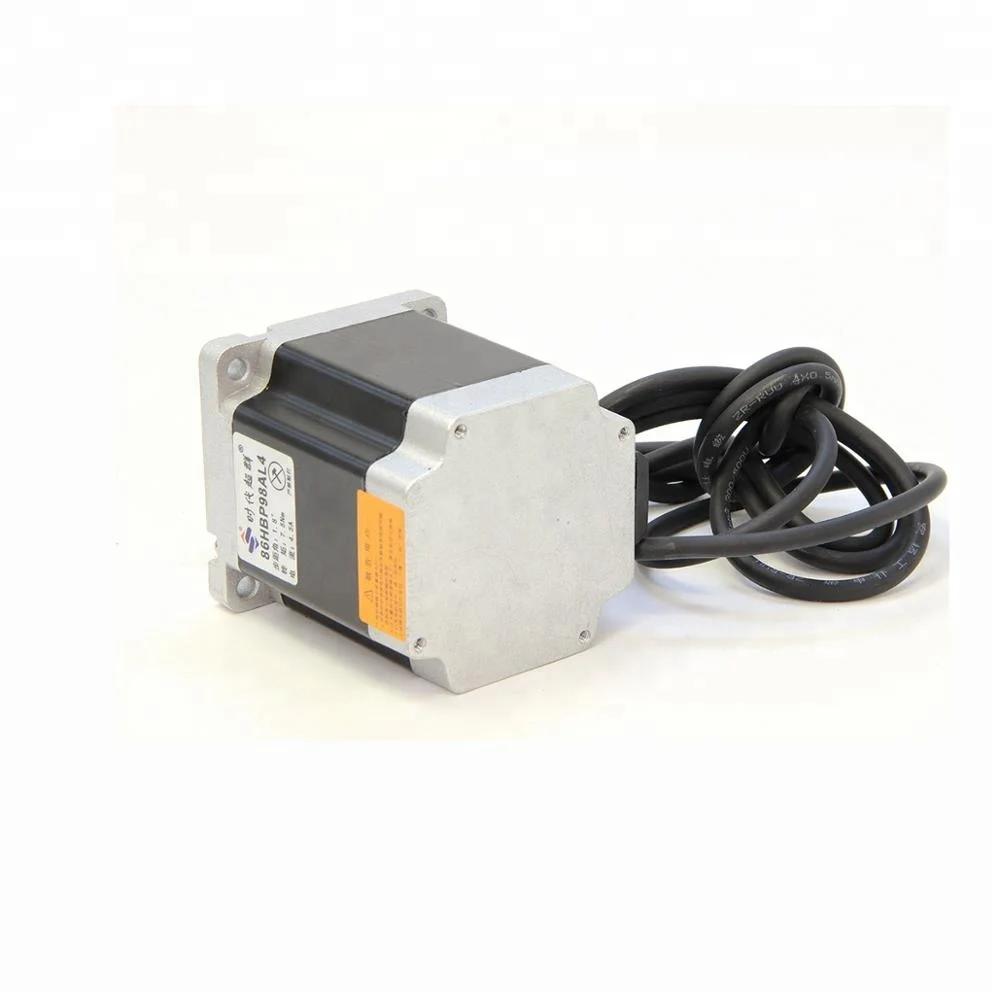

Motor Model	86HBP98AL4
Phase	2
The Temperature Rise	80K Max
Environment Temperature	-40 ℃ + 55 ℃
Insulation Grade	B Class
Insulation Resistance	100MΩ
Insulation Strength	1000VAC 50Hz 1mA/Min



Electrical Parameters
Step Angle	1.8°
Torque	7.5Nm
Current	4A
Power Supply Voltage	24V-80V
Resistance	0.5Ω
Inductance	7.4mH

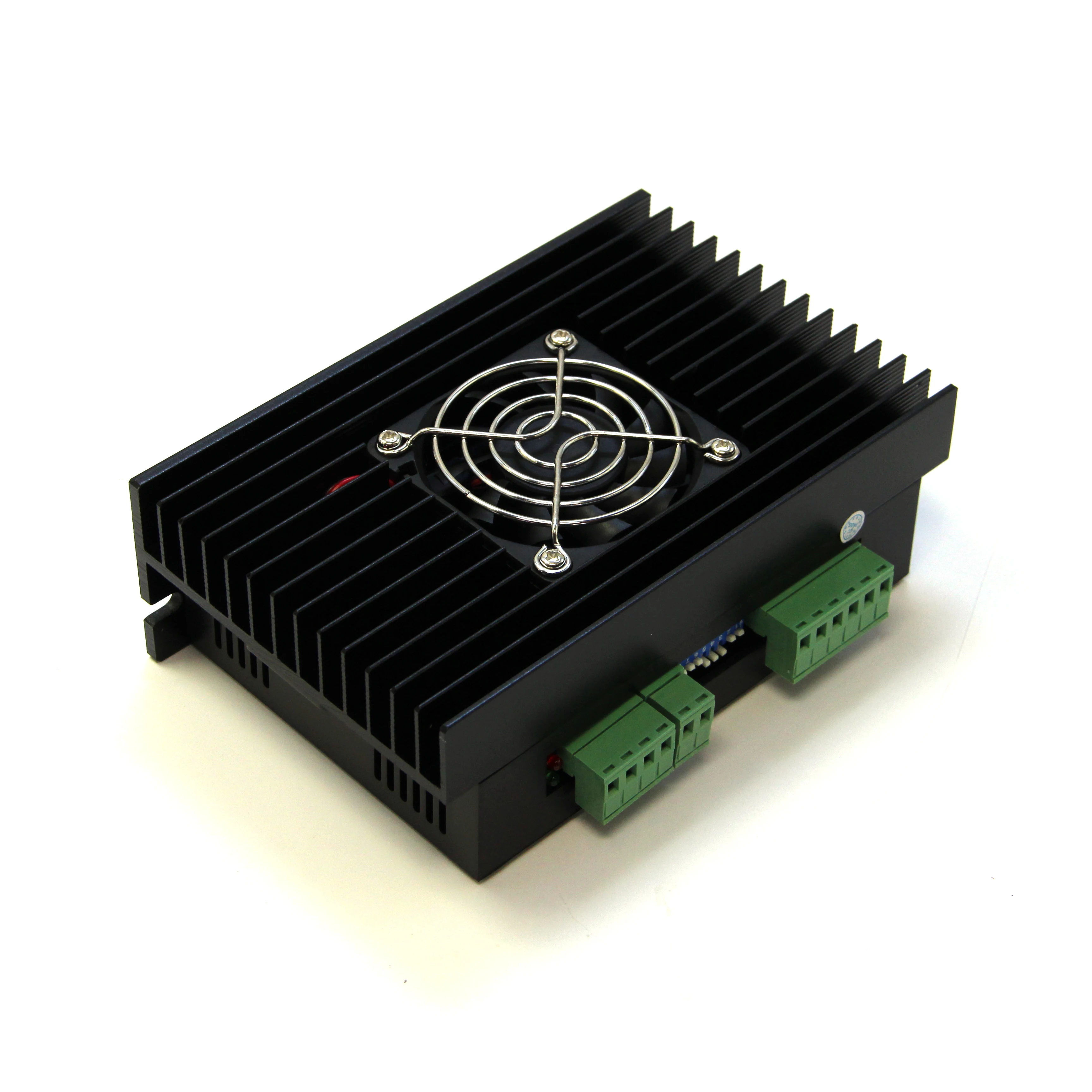

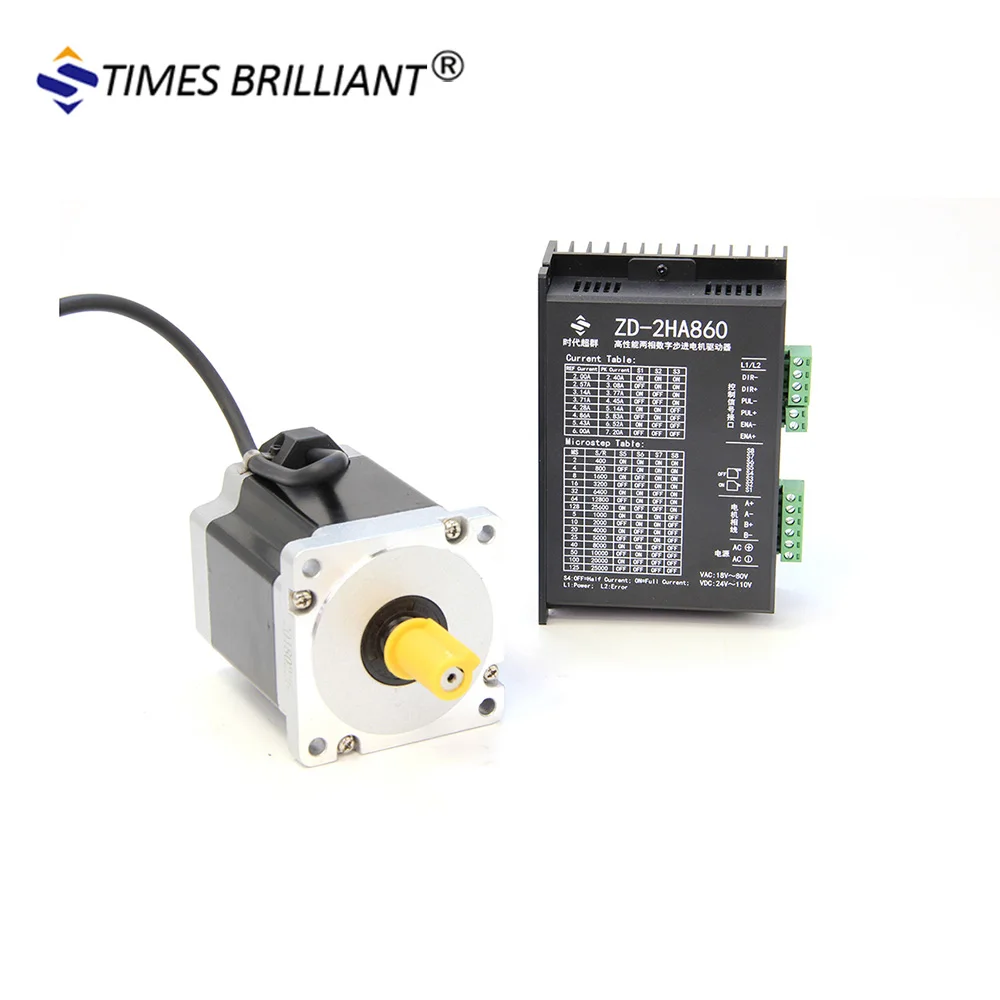

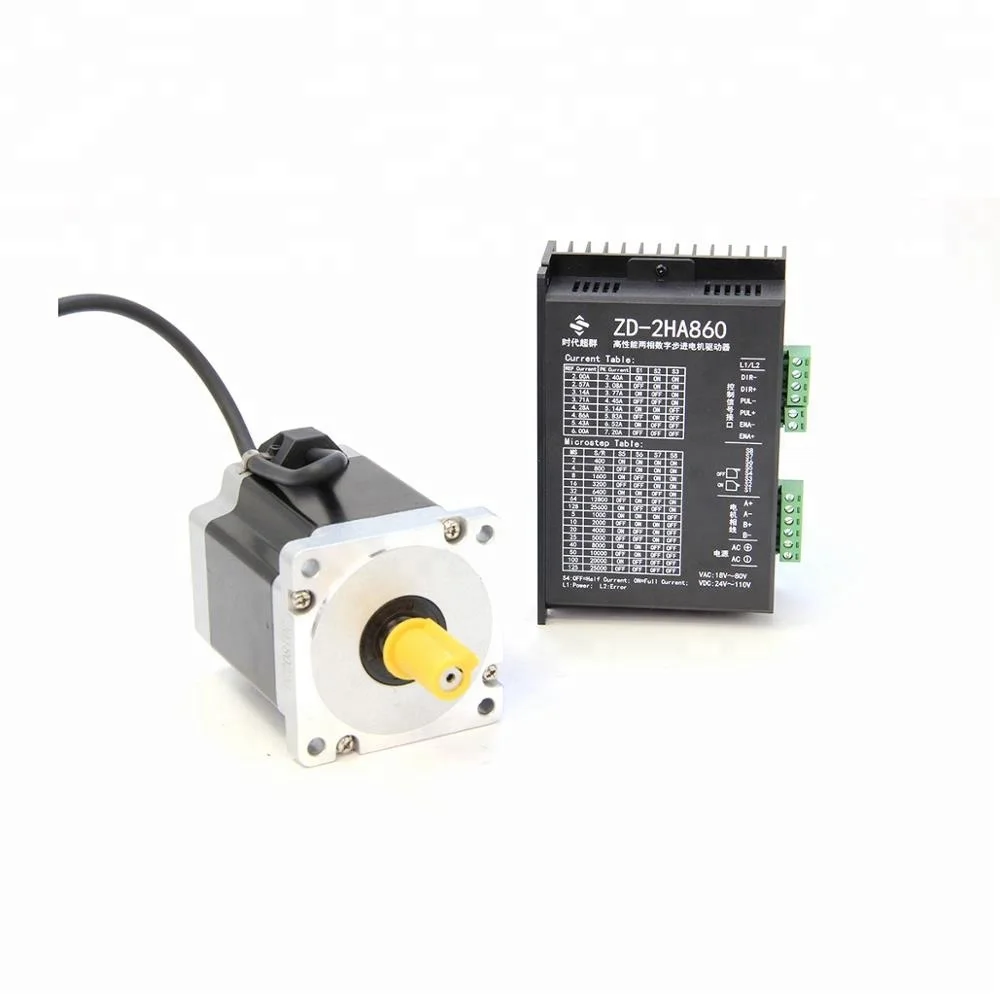

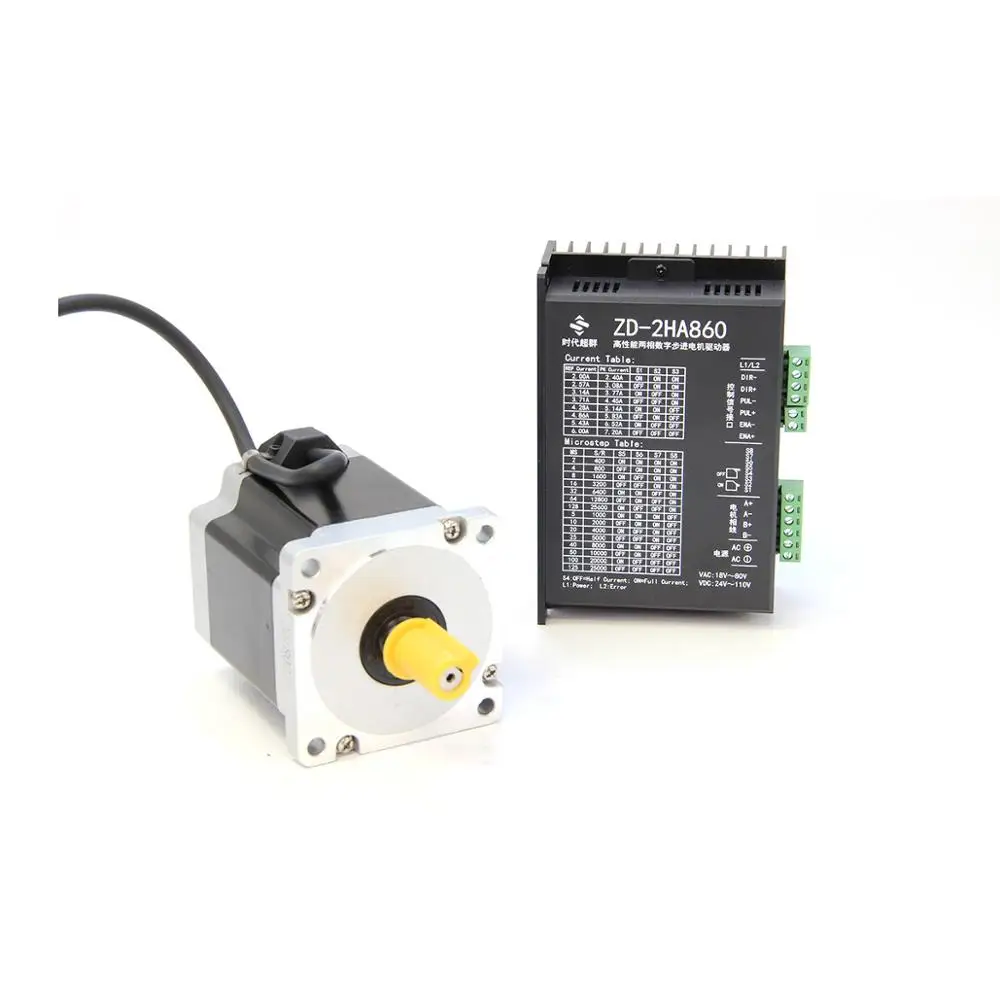

Adapter Driver	ZD-2HD542, ZD-2HA860
Defects Liability Period	2 years

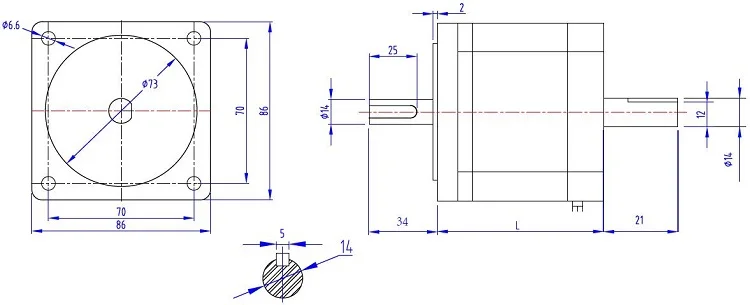

Mechanical Parameters
Length	98mm
Spigot	73mm
Hole Dist	70mm
Shaft L	34mm
Shaft D	14mm
Shaft	keyway 5/Shaft
Load Wire	Straight Line
Wire No.	4
Weight	3Kg



Type	Phase	Angle	Nm	Current	Voltage	Longth	Line	Kg
86HBP65AL4-TF0 + Driver Suit	2	1.8	3	3	24-80	65	4	1.7
86HBP80AL4-TF0 + Driver Suit	2	1.8	4	4	24-80	80	4	2.35
86HBP98AL4-TF0 + Driver Suit	2	1.8	7.5	4	24-80	98	4	3
86HBP113AL4-TF0 + Driver Suit	2	1.8	8.5	4	24-80	113	4	3.7
86HBP128AL4-TF0 + Driver Suit	2	1.8	10	4	24-80	128	4	4.1
86HBP148AL4-TF0 + Driver Suit	2	1.8	10	5	24-80	148	4	5
86HBP150AL4-TF0 + Driver Suit	2	1.8	12	4	24-80	150	4	5.2





                                                                                                                                                 L=98MM
