Штамповочный пресс 25 тонн
- Категория товара: Metal Forging Machinery >>>
- Поставщик (Оптовый магазин): Anyang,Forging,Press,Machinery,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

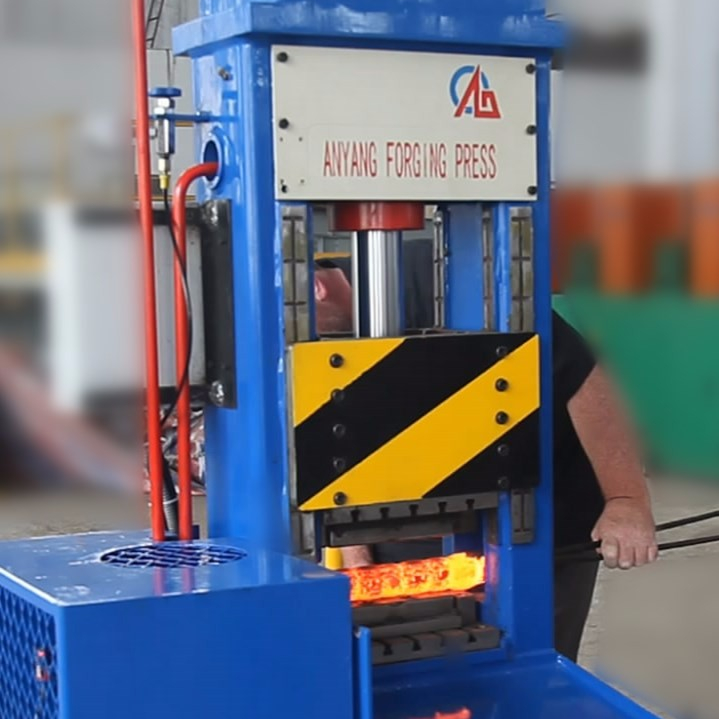

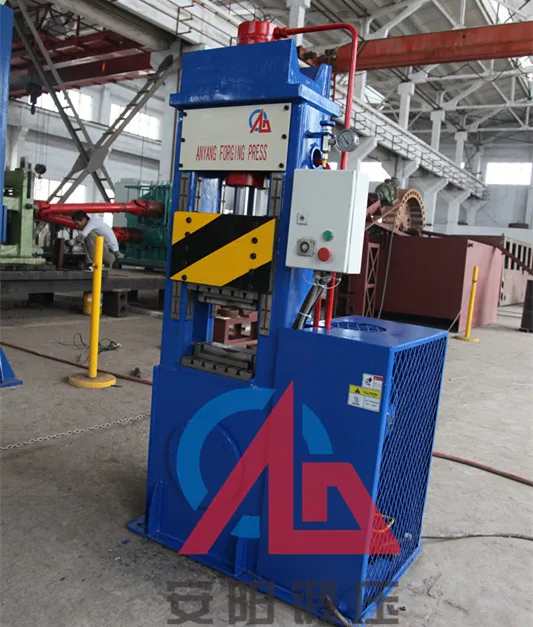

Blacksmith Forging Press 25 ton introduction
Anyang Forging Press has been making forging machine since 1956.The Forging Press sizes have ranged from 1000 Ton to 8000 Ton and are found in many automotive and industrial forging companies around the world.In 2017,we made the decision to utilize their knowledge of presses and machining capability to make a series of presses aimed at the blacksmith, bladesmith,and the small industrial sector.Sizes will range from 25 Ton (Metric) or 27.5 Ton (Imperial) to a 50, 75, and 100 Ton model.
Advantages of the Anyang hydraulic press:
* High Speed.
* Quiet operation.
* Enclosed hydraulics, steel hydraulic lines, no rubber hoses to break or catch fire. A safer press.
* Large “T” slotted upper and lower plattens. Easier to build specialized tooling.
* Timer to minimize up travel time for faster, efficient forging.
* Long 30mm stroke.
* Side access for pressing longer pieces.
* Engineering and machining the guides is important. The Anyang guide system is a scaled down version of their 1000+ Ton industrial presses. The 25T has 93 sq. inches of guide surface area. The 50T has 143 sq. inches of surface area. Large surface area, shimmable and replaceable wear strips make this press unique to the industry. The guides are precision machined on large milling machines. This hi-quality machining is not available on other presses on the market.
* Heavy duty H frame industrial design. No deflection found in many "C" frame presses. Extra large, filtered oil reservoir for
cooler and cleaner (long life) operation.
Main Technical Parameters | ||||||||
item | Y04-25 | Y04-50 | Y04-150 (CNC) | |||||
Normal force | 25 T | 50 T | 150 T | |||||
Working speed | ≤20mm/s | ≤20mm/s | ≤20mm/s | |||||
down | ≥40mm/s | ≥50mm/s | ≥150mm/s | |||||
up | ≥60mm/s | ≥55mm/s | ≥100mm/s | |||||
Maximum working area： | ||||||||
(L × H) | ||||||||
Dimension of worktable ： | ||||||||
(L × W) | ||||||||
worktable height | 900±20mm | 900±20mm | 700±20mm | |||||
Hydraulic Oil Volume | ||||||||
(Anti-wear hydraulic oil YB-N46) | ||||||||
Motor Power | 4KW | 7.5KW | 30KW | |||||
Outsize | 1200mm× | 1500mm× | 2850mm× | |||||
(L×W×H) | 765mm× | 1110mm× | 1600mm× | |||||
2080mm | 2140mm | 4080mm | ||||||
Weight | 860KG | 1855KG | 9000KG | |||||
Detailed Images
Machine Parts
Name: press Ram
Forging or cast: forging
Machined and forged: Anyang
The hydraulic press ram is forging, it forged and machined by us. it can make sure the quality 100% perfect.
Main Features
Material: 100% copper
The checking valve and needle valve is special externally, it can make sure the checking fuction is 100% reliable and control the oil flow is exactly.
Machine Parts
Name: frame casting
Mold material: resin
We use the resin mold to cast the hammer frame, make sure the frame quality and surface.
Main Features
Name: Painting
Color: anyang color as you like.
We can paint any color as you like, you only need to tell us the color No. on Ral Colours. we also can paint the color to be light or matte.
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* 7*24 service.
* Technical support.
After-Sales Service
*Full inventory of parts,dies and service.
* Engineers available to service machinery overseas.
* Have dealer in USA, Australia, UK, Germany etc 26 countries, local serive.
Packing & Delivery
Packaging | ||
Size | 25 ton | |
name | Blacksmith Forging Press 25 Ton | |
Packaging Details | The normal package is Plywood Case. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |

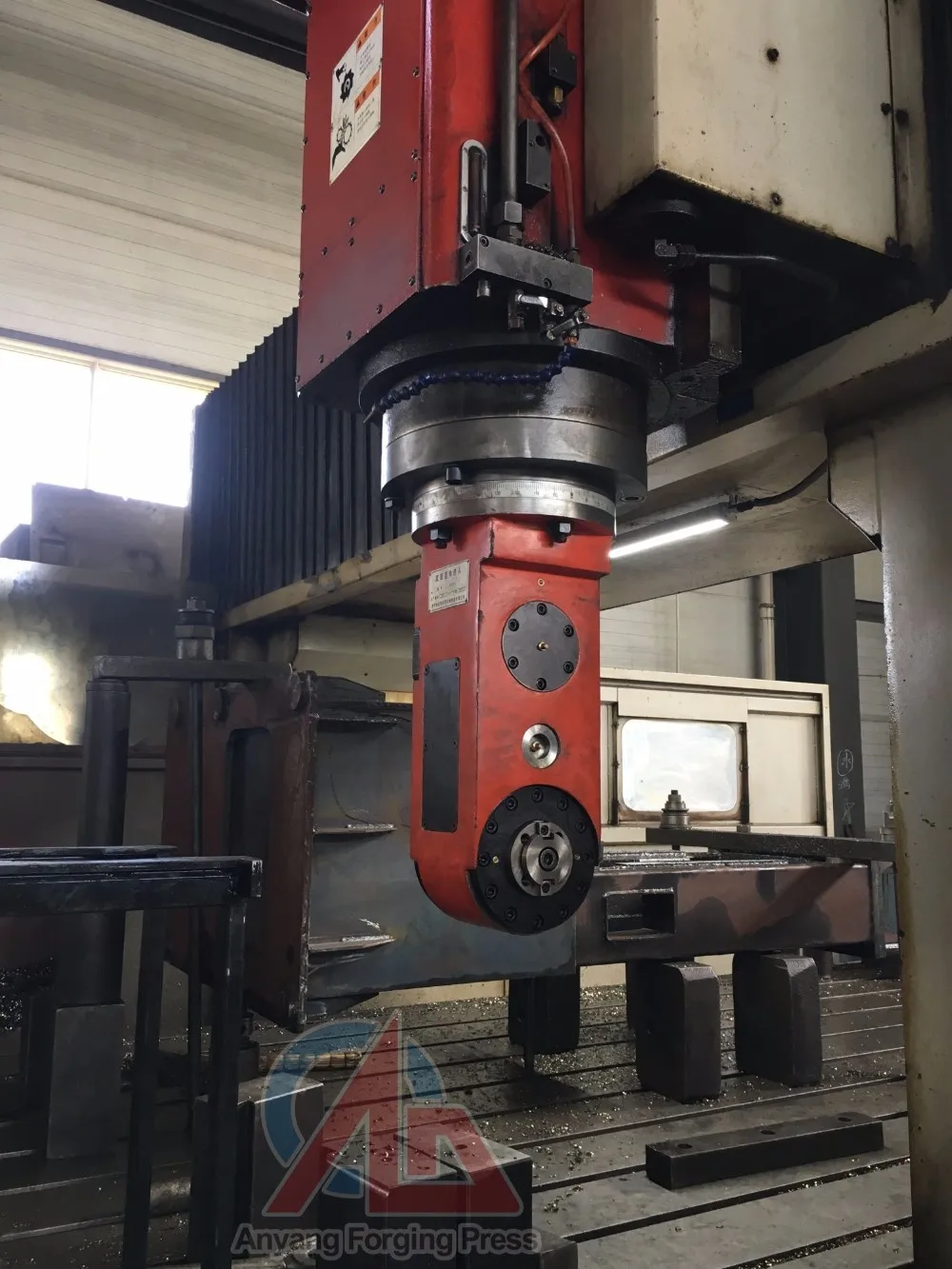

our workshop
