GS-MI/D средней интенсивности двойной цвет авиация непроходимость свет
US $450.00-$480.00

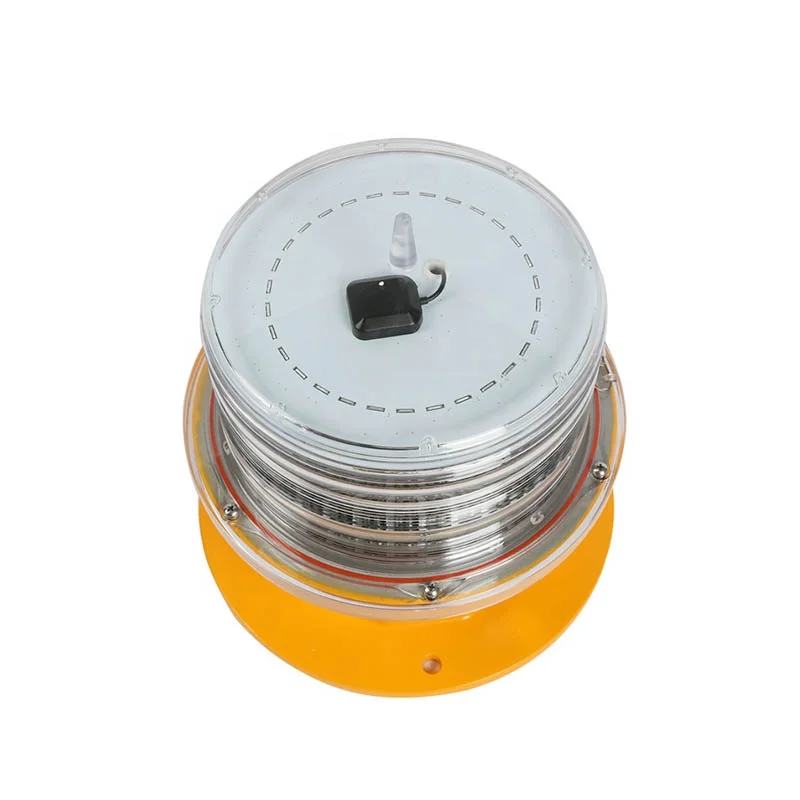

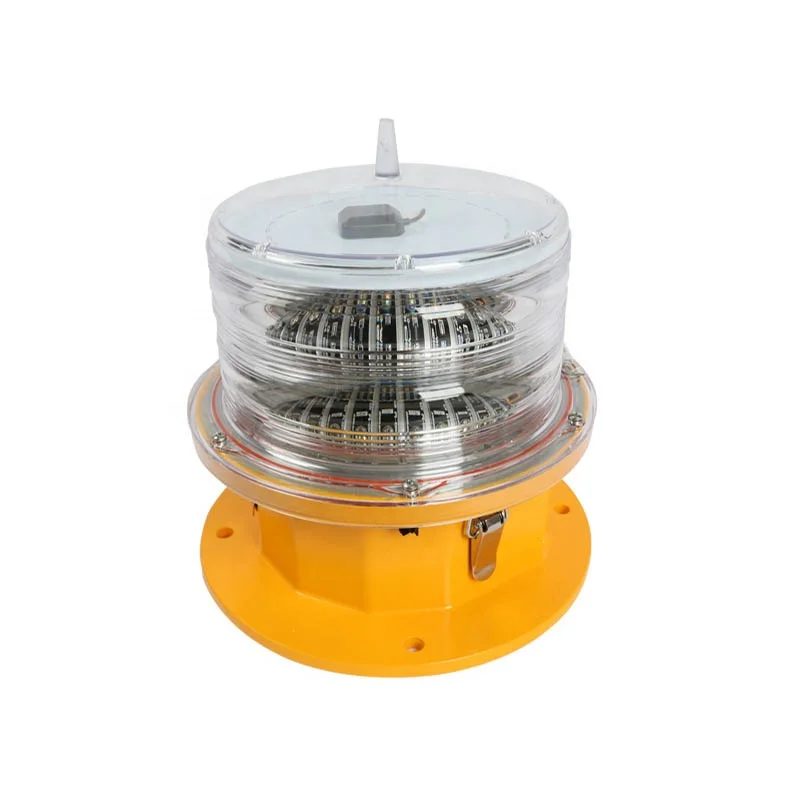

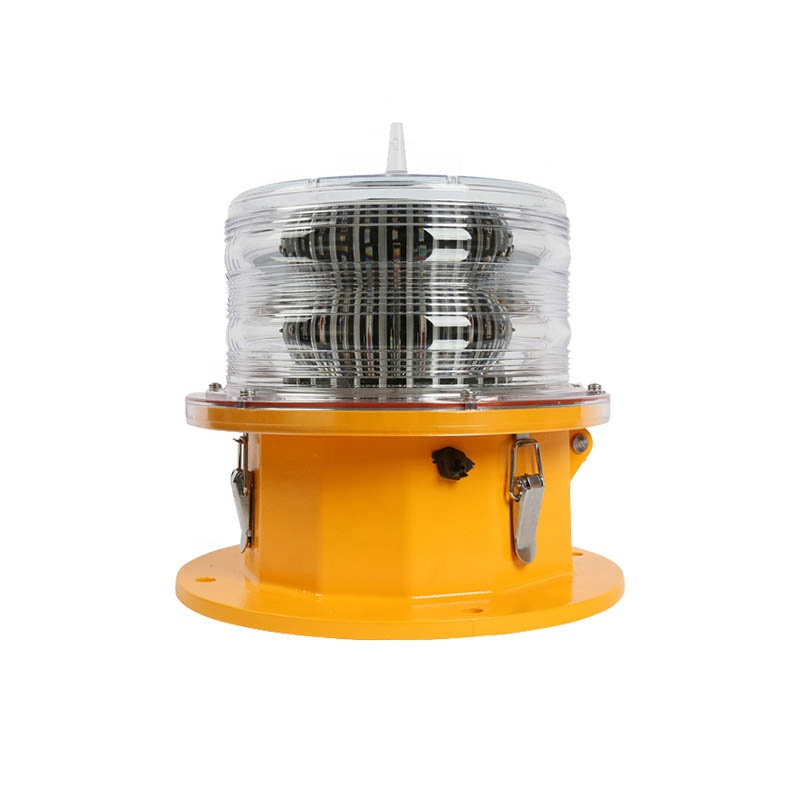

Световой барьер средней интенсивности LM100
- Категория товара: LED Aviation Obstruction Lights >>>
- Поставщик (Оптовый магазин): Shanghai,Nanhua,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
· ICAO medium intensity Type B obstacle lights
· FAA type L-864/L-885 Steady-burning red obstruction light & Flashing red obstruction light
· Application: Chimneys, Tall buildings, Large bridges, Port machineries and Wind turbines
· FAA type L-864/L-885 Steady-burning red obstruction light & Flashing red obstruction light
· Application: Chimneys, Tall buildings, Large bridges, Port machineries and Wind turbines

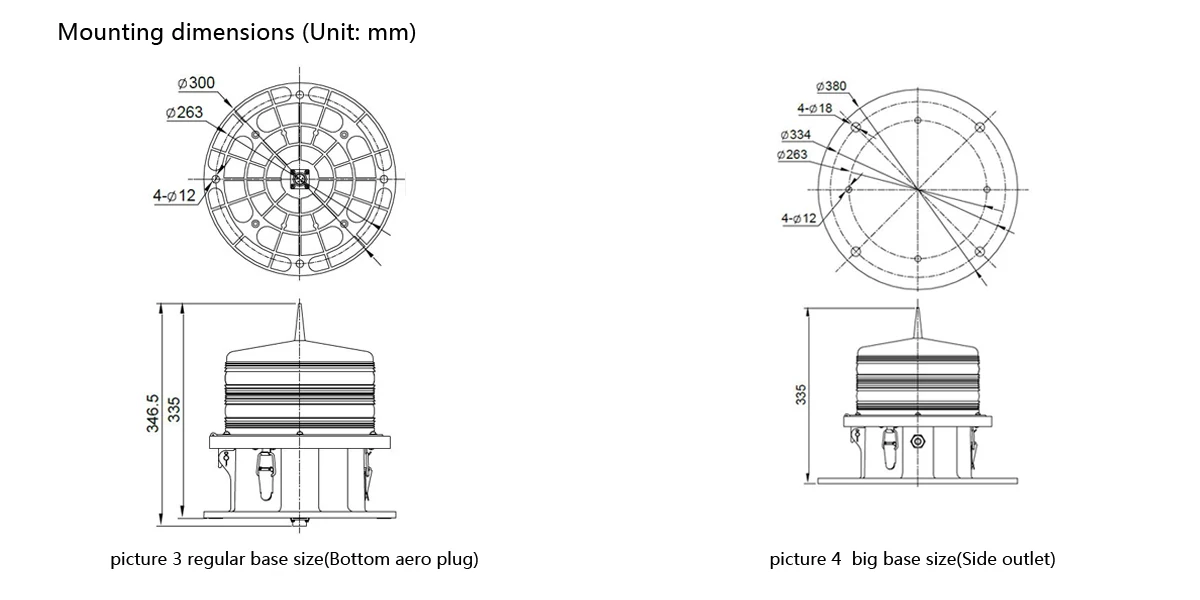

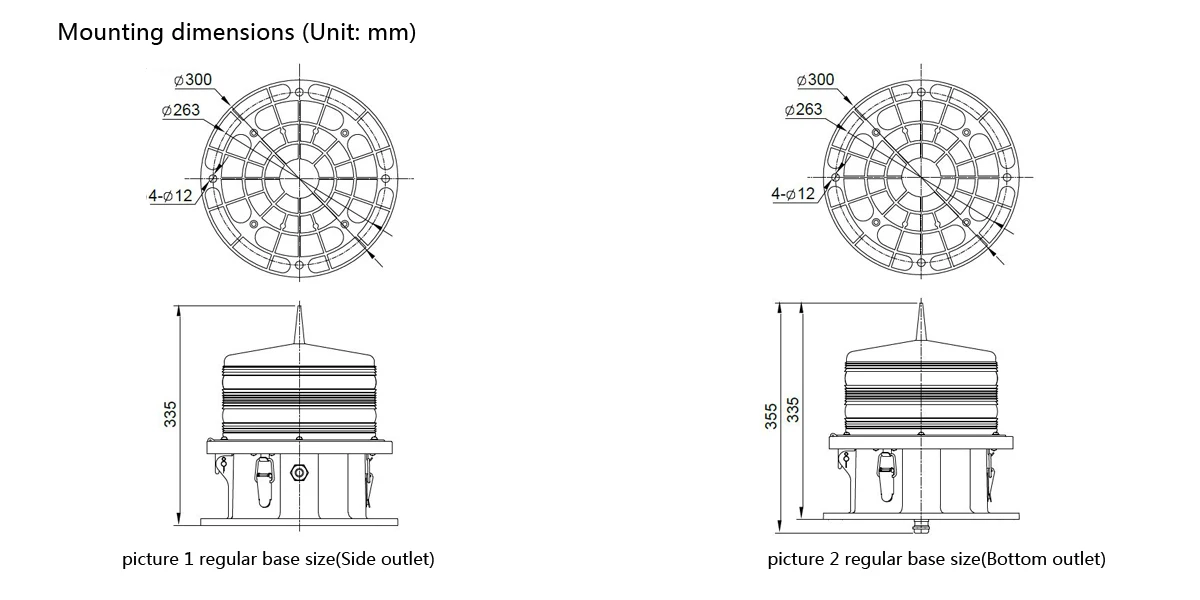

Product Size
Product Presentation
General Specifications
OPTICS | ||||||
Light source | LED | Vertical degree | ≥3° | |||
Light color | Red(white could be customized) | Intensity | red：night 2000±25% cd white：daytime 3000cd/night 1500cd | |||
Work mode | Steady burning or flashing (optional) | On/Off level | 50lux (without photocell, the setting mode is for night) | |||
Horizontal degree | 360° | Lifespan | ≥100,000h | |||
ELECTRIC | ||||||
Voltage input | AC100V~ AC240V /DC48V | |||||
Power consumption | <65W (steady burning) | |||||
Flashing rate | 20/30/40/60times/min ( 30times/min before shipment) | |||||
MECHANICA | ||||||
Ambient temperature | -40˚C ~ +70˚C | IP Rate | IP66 | |||
Humidity | 10% ~ 95% (no coagulation） | Weight | 6.5 kg | |||
International standard | ||||||
ICAO | ICAO(Annex 14)medium intensity aviation obstruction light standard and FAA-L864 | |||||
* Professional photometric lens design,valid keeping light beam in scope as required.
* Based on latest LED technology, extremely low power consumption and high efficiency.
* Outdoor use with water proof,wind (>240km/h) and corrosion resistance.
* No electromagnetic or audio interference.
* EMC compliance,use constant current driver to extend LED lifespan.
* Option function: Built-in photocell,Flash rate adjustable, GPS flash synchronization.
* Based on latest LED technology, extremely low power consumption and high efficiency.
* Outdoor use with water proof,wind (>240km/h) and corrosion resistance.
* No electromagnetic or audio interference.
* EMC compliance,use constant current driver to extend LED lifespan.
* Option function: Built-in photocell,Flash rate adjustable, GPS flash synchronization.
Certificate
NANHUA quality strategy
Build trust, pursue excellent quality, provide products and services that exceed customer's expectationsNANHUA is committed to develop high quality products, we are proud to provide highly reliable products for use in extreme environments.
Category | Model | CAAC | ICAO | FAA | CE | OTHER |
Low Intensity | LS710 | √ | √ | √ | ||
LS810 | √ | √ | √ | SABS | ||
Medium Intensity | LM101 | √ | √ | √ | ||
LM100 | √ | √ | √ | √ | SABA | |
LM40 | √ | √ | √ | SABS | ||
LM102 | √ | |||||
LM403 | √ | |||||
High Intensity | LH88 | √ | √ | √ | SABS |
