BQ BWL WLB Гальванизированный Алмазный сердечник для сверления мягких и твердых образований

BQ BWL WLB Гальванизированный Алмазный сердечник для сверления мягких и твердых образований

Категория товара: Mining Machine Parts >>>
Поставщик (Оптовый магазин): Forsun,Ultra-Hard,Material,Industry,Co.,Ltd.

Цена:

Стоимость в USD:Узнать цену

Количество:

Купить

В избранное

Описание и отзывы

Характеристики

Product Description

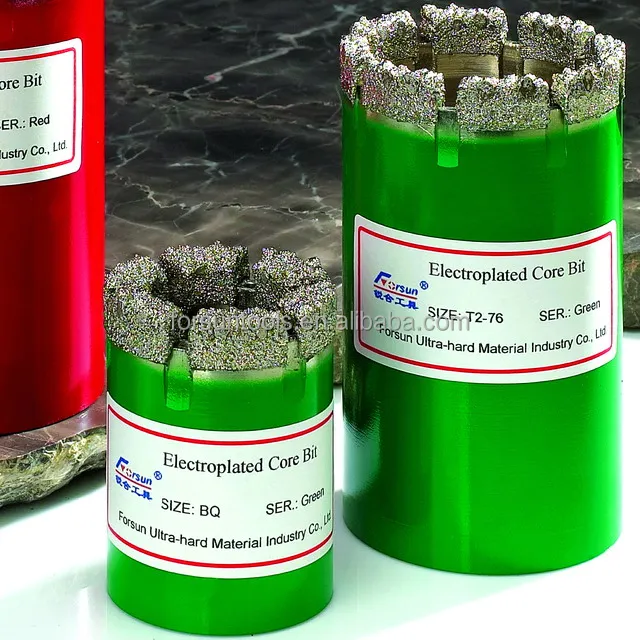

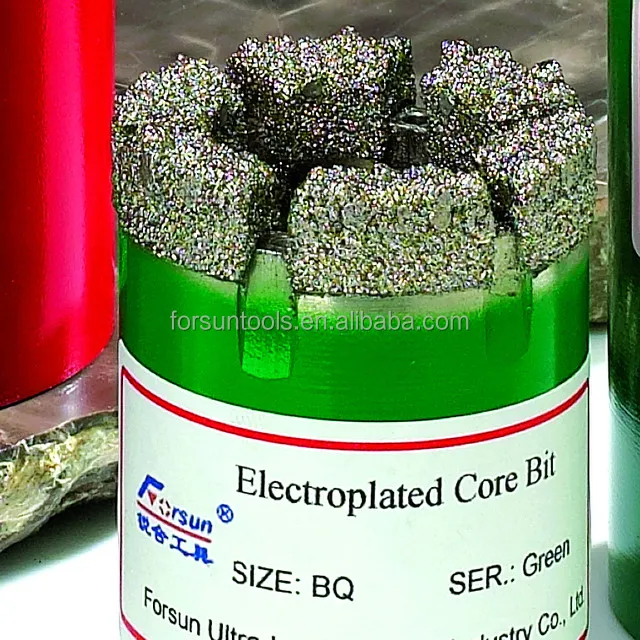

Electroplated (EP) Diamond Core Bit is the least expensive diamond tool. It is similar to Impregnated diamond Core Bit, its cutting media is synthetic diamond, but its manufacturing process is electroplating synthetic diamonds to the Core Bit Steel body in the electroplated liquid under certain strictly controlled conditions.

EP Core Bits are recommended for drilling soft to hard formations, for different hardness different bit matrices can be produced. Forsun EP Core Bits have fast drilling speed, longer overall bit life.

\t Sizes Available:
\t Wireline series:	\t Geobor S, WLA, WLB, WLN, WLH, WLP, WLB3, WLN3, WLH3, WLP3, WLN2, AQ, BQ, NQ, HQ, PQ, SQ, PQ3, HQ3, NQ3, BQ3, NQ2, WL-56, WL-66, WL-76
\t T2 / T series:	\t T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, T46, T56, T66, T76, T86
\t TT series:	\t TT 46, TT 56
\t T6 series:	\t T6 76, T6 86, T6 101, T6 116, T6 131, T6 146
\t T6S series:	\t T6S 76, T6S 86, T6S 101, T6S 116, T6S 131, T6S 146
\t B series:	\t B46, B56, B66, B76, B86, B101, B116, B131, B146
\t MLC series:	\t NMLC, HMLC, 3C, 4C, 6C, 8C
\t LTK series	\t LTK48, LTK60
\t WF series:	\t HWF, PWF, SWF, UWF, ZWF
\t WT series:	\t RWT, EWT, AWT, BWT, NWT, HWT(Single Tube, Double Tube)
\t WG series:	\t EWG, AWG, BWG, NWG, HWG(Single Tube, Double Tube)
\t WM series:	\t EWM, AWM, BWM, NWM, HWM
\t Other sizes:	\t AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F, BTW, TBW, NTW, HTW, T6H
\t Chinese standard:	\t 56mm, 59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm, 275mm
\t Russian standard:	\t 59mm, 76mm, 93mm, 112mm, 132mm, 152 mm

Certifications

Detailed Images

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

\t Packaging
\t Size	\t 45 (L) * 35 (W) * 23 (H) CM
\t Weight	\t 1 KG
\t Packaging Details	\t Carton packing is suggested for air delivery.

\t Packaging
\t Size	\t 60 (L) * 50 (W) * 50 (H) CM
\t Weight	\t 20 KGS
\t Packaging Details	\t Plywood case packing is suggested for air, sea and train delivery.
