Заводская Настройка 2021 автоматическая машина для резки и стрижки металлических стальных листов

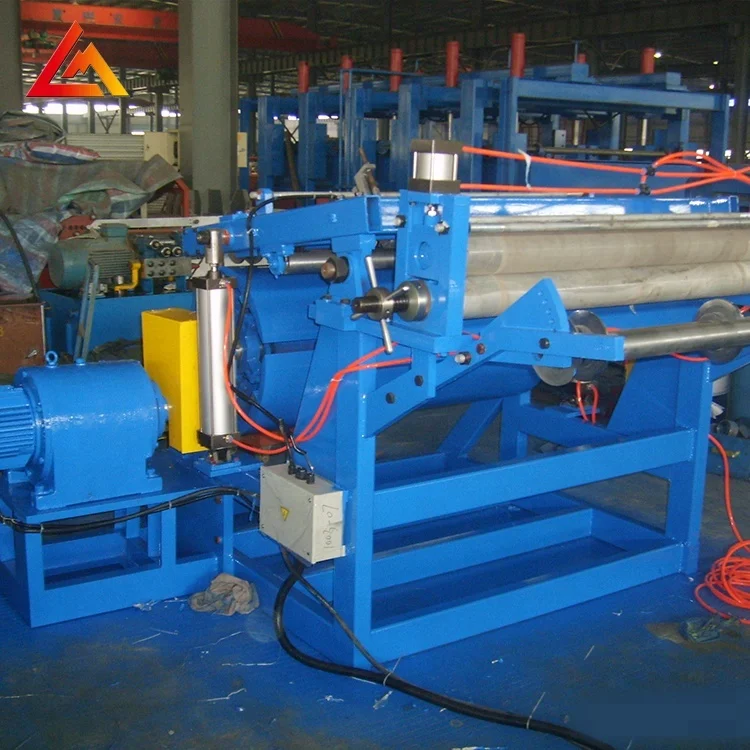

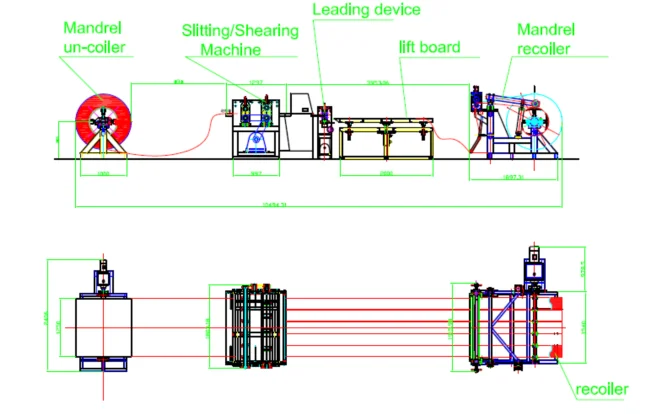

1. 5Ton*1250mm simple un-coiler

Description

Load capacity= MAX.5.0Ton

Manual control to expand coil inner hole

Coil inner–diameter=610mm

Coil outer-diameter Max. 1200mm

Power running, frequency speed control

manual speed control

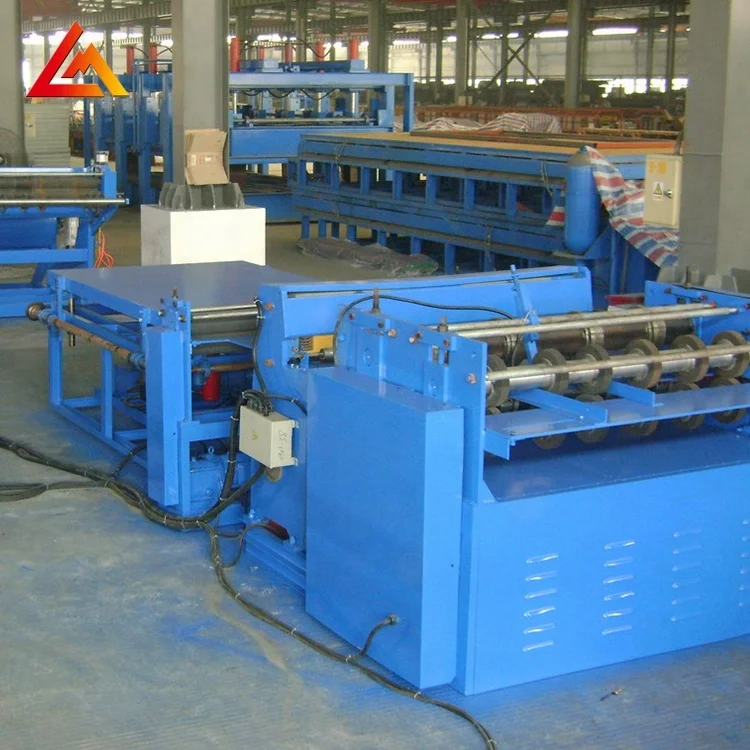

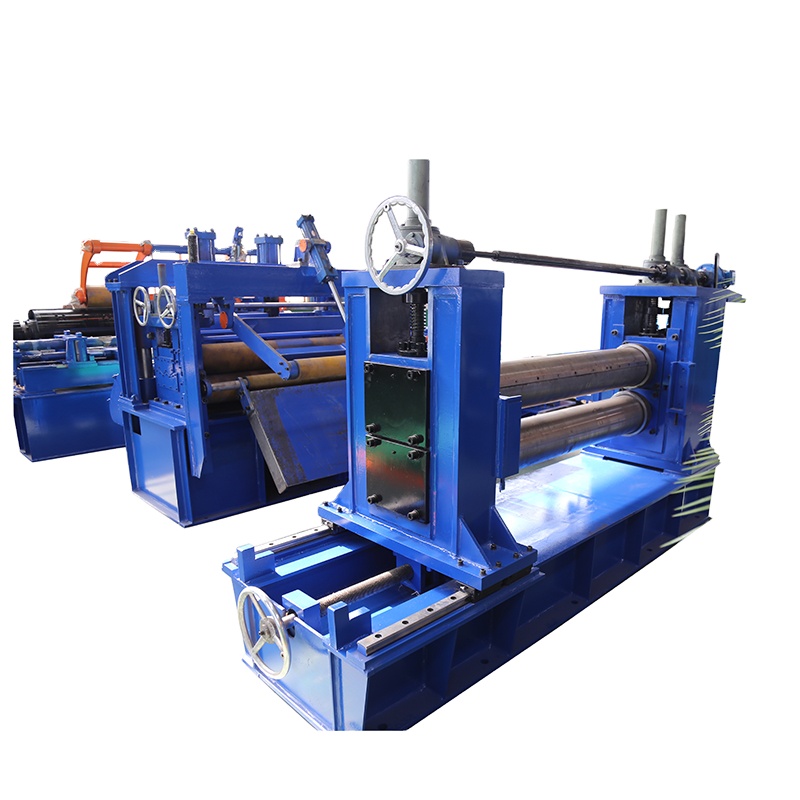

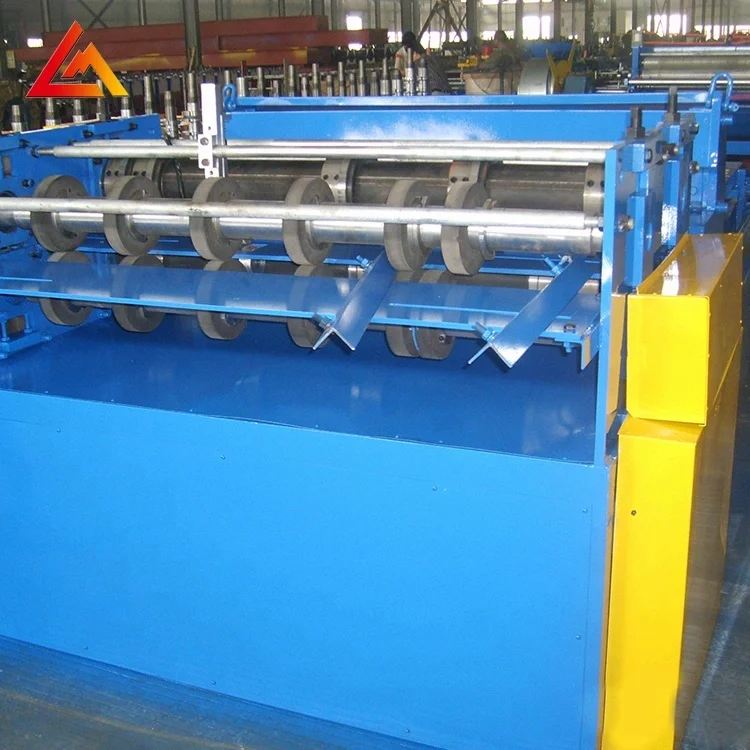

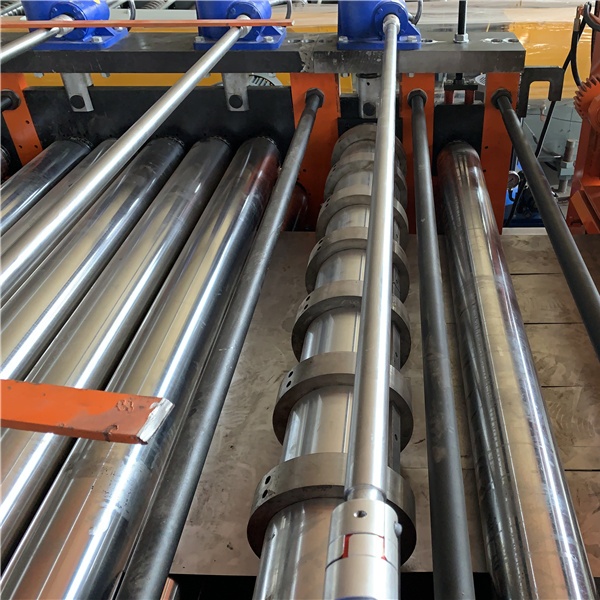

2. Straightening, slitting machine

Powered feed-in stations, driven motor: 5.5KW, Frequency speed control

Total four sets of slitting tools, Max. Five trips at one time

Working parameters:0.8mm≤δ≤2.0mm,S=1250mm

Line Speed: approx. 10m/min

Electric shearing machine, cut-to-length control

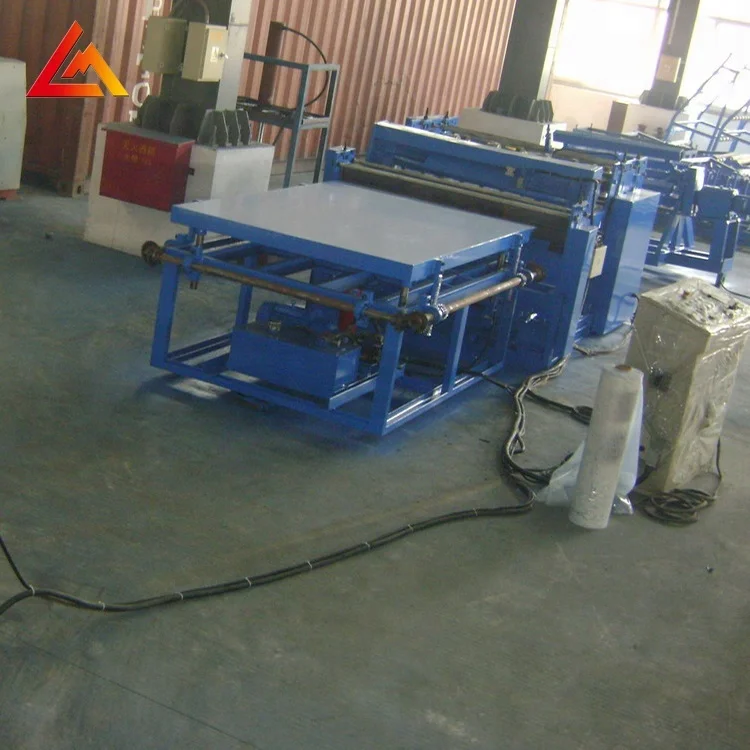

3. Lifter Table

2 meters long, weight of panels to be piled up≤1200kg

Stroke of the lifter table: 150-200mm

Driven by hydraulic cylinder, pump motor: 3KW

To be easy lift-away by travelling-crane when not in use

4. PLC control system

PLC

Siemens brand (ABB brand is available if required)

Touch Screen

Siemens brand (ABB brand is available if required)

Inverter

Schneider brand (ABB brand is available if required)

Encoder

Omron brand

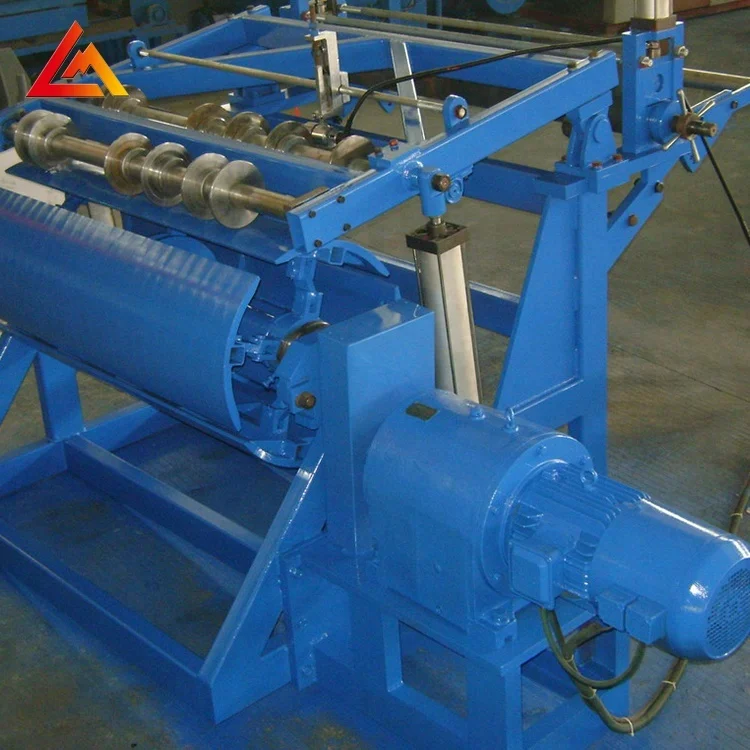

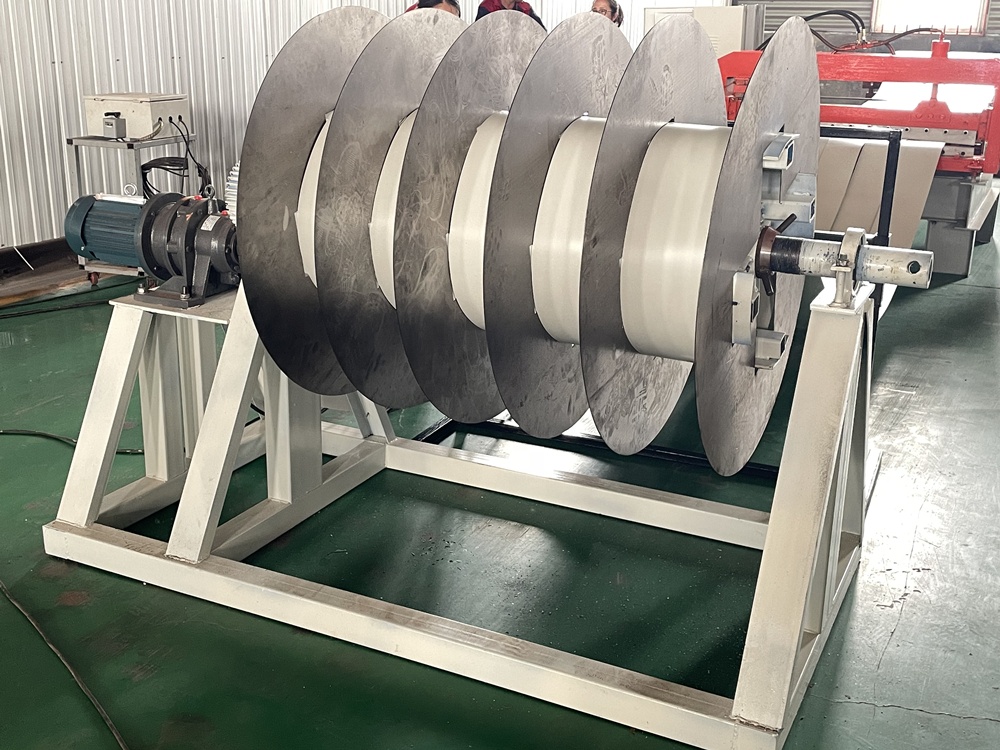

5. Simple re-coiler device

Pneumatic cylinder to press, with compartment wheel

Manual control to expand coil inner hole

Max load capacity: 5Ton

Power running, auto speed control

Coil inner–diameter=610mm; coil outer-diameter Max. 1200mm

6. Service after sell

In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.

Installation:

(1) If installation is needed, Liming (the seller) will dispatch technician to the buyer's factory abroad to assist regulating the machine with charge free. The buyer should assist Liming to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.

(2) If installation is needed, the buyer shall make the following preparation before arrival of technicians.

a) Position the machine in the buyer's factory.

b) Prepare necessary electric wiring.

c) Prepare material of trial running.

d) Provide labors for assistance and installation during installation.

e) If possible, One Chinese-speaking interpreter so that the communication between the buyer and seller's technician will go smoothly.
