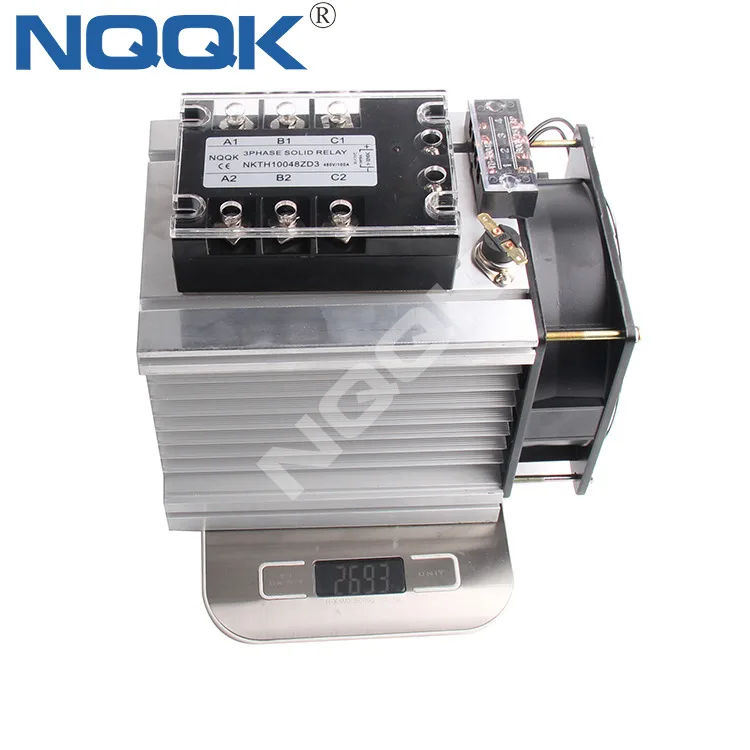

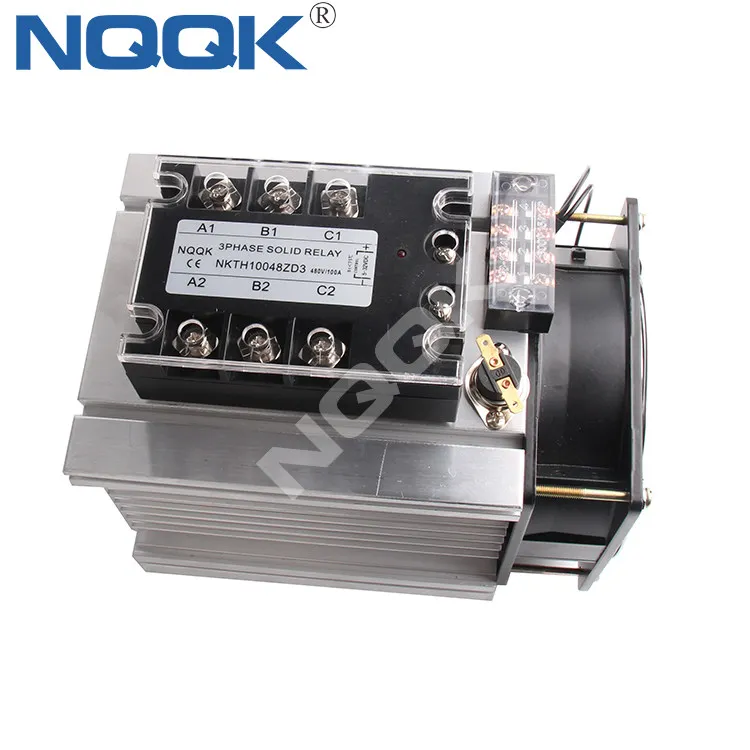

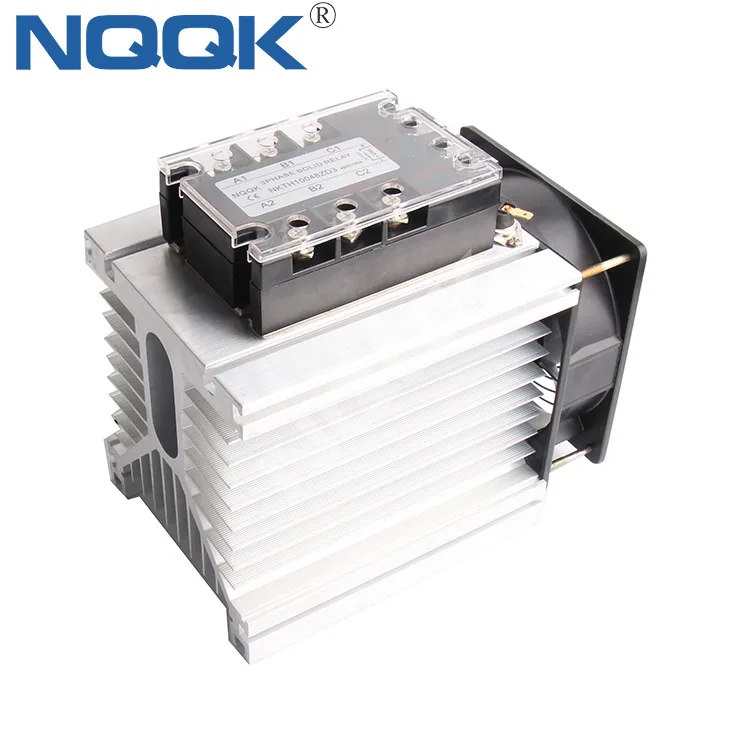

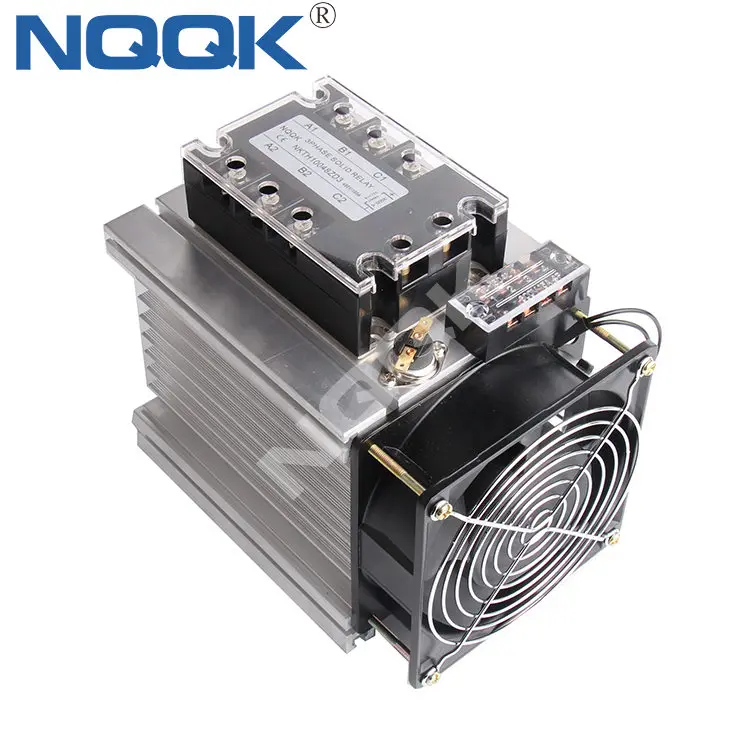

100A 32V DC до 480V AC трехфазное полупроводниковое реле твердотельное реле с теплоотводом

Introduction:

Solid state relay (SSR) is an electronic switching device that switches states when an external voltage is applied along its n-type and p-type junctions. SSR has a small control signal that controls a larger load current or voltage. It consists of a sensor which responds to an appropriate input (control signal), a solid-state electronic switching device which switches power to the load circuitry, and some coupling mechanism to enable the control signal to activate this switch without mechanical parts. The relay may be designed to switch either AC or DC to the load. It serves the same function as an electromechanical relay, but has no moving parts.

Features:
Adjustable output voltage
Analog control signals: 4-20mA, 0-10V DC, variable resistor 220-560kOm
There isn’t contact bounce and sparks during switching
Removable finger proof cover available
Low power consumption
Panel mount

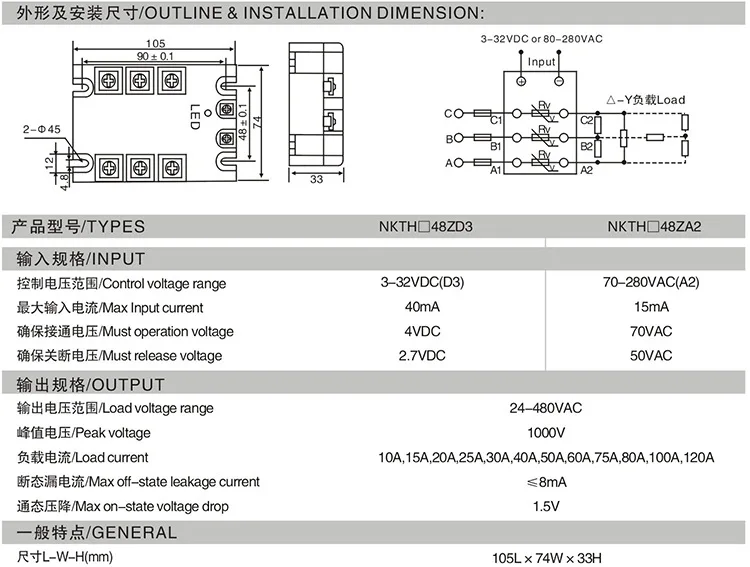

Models explanation:

NKDH.......40.........48........ZD3

    1            2           3           4

1.NK – Code
NKDH – single-phase solid state relay (10 – 120A)
NKDM – industrial class solid state relay (100 – 500A)
NKTH – three-phase solid state relay (10 – 120A)
NKTR – motor reversing solid state relay (10 – 40A)
2.40 – load current 40A (10 – 500A)
3.48 – load voltage 24-480V AC, 38 – 24-380V AC, 23 – 5-220V DC
4.ZD3 – control signal type(swithing mode)
VA – variable resistor 220-560 /2 (phase control)
LA– analog signal 4-20mA (phase control)
VD – analog signal 0-10V DC (phase control)
ZD – control voltage 10-30V DC (switching at zero crossing)
ZD3 – control voltage 3-32V DC (switching at zero crossing)
ZA2 – control voltagte 70-280V AC (switching at zero crossing)
DD3 – control voltage 3-32V DC (DC voltage switching)

380VAC 0 ~ 10VDC 100% 5V 12V 24V DC zero 380V 10A 40A three phase motor control module solid state relay5V 12V 24V DC zero 380V 10A 40A three phase motor control module solid state relay5V 12V 24V DC zero 380V 10A 40A three phase motor control module solid state relay5V 12V 24V DC zero 380V 10A 40A three phase motor control module solid state relay5V 12V 24V DC zero 380V 10A 40A three phase motor control module solid state relay
