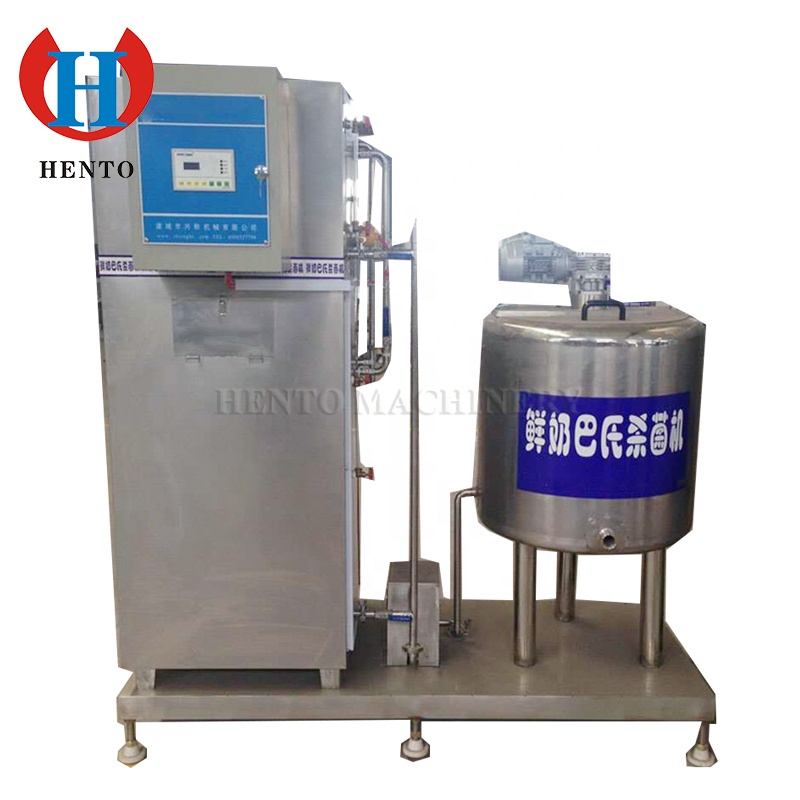

Пастеризатор Carpigiani для молочного сока
US $2800-$3700

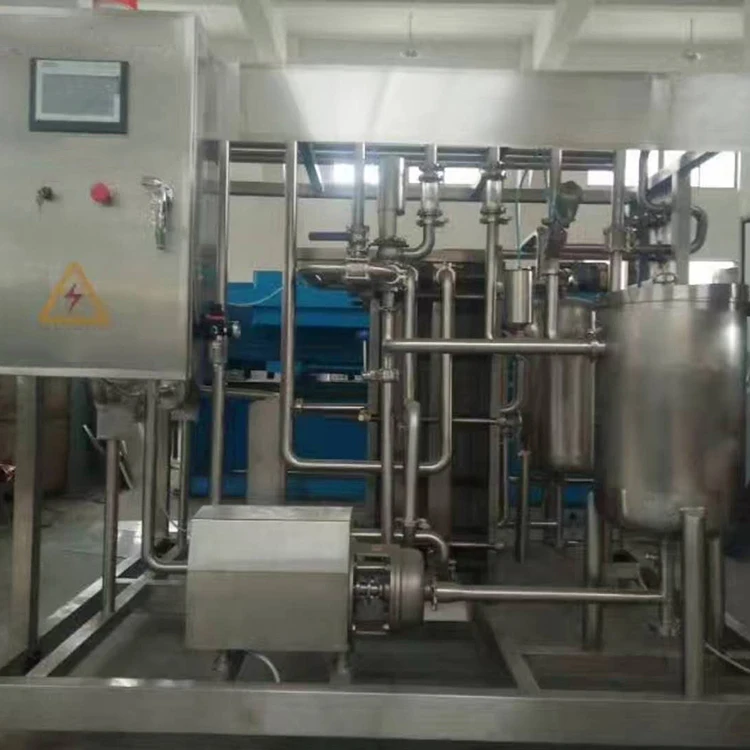

Полностью автоматический стерилизатор молока, высокотехнологичный новый дизайн, UHT Стерилизатор, пастеризатор
- Категория товара: >>>
- Поставщик (Оптовый магазин): Shanghai,Youcan,Beverage,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
The uht sterilizer is widely used in the processing of milk, juice, tea drink, dairy drink, tomato paste, flavoring, beer, ice cream, egg products, solid powder product etc.
Pasteurization Machine for milk, yogurt, ice cream, juice, tomato sauce, chili sauce,
Introduction of Pasteurization Machine:
The working procedure of Pasteurization machine: from 5 to 65 ℃(homogenizing), 85-65 ℃ (15 s) - 5 ℃.
The machine can be connected with separator, homogenizer, flash degassing equipment, etc.
Pasteurization machine is suitable for fresh milk, fruit juice beverage, wine and other heat-sensitive liquid heating, sterilization, heat preservation and cooling process.
The machine is usually used to pasteurize materials (including raw milk, milk beverage, fruit juice, tea, juice and other kinds of drinks, all kinds of wine and ice cream, etc.), can also be used as pre-sterilization for raw material when producing pasteurized milk.
This equipment owns high heat recovery, energy saving, compact structure, simple operation, easy maintenance and some other advantages.

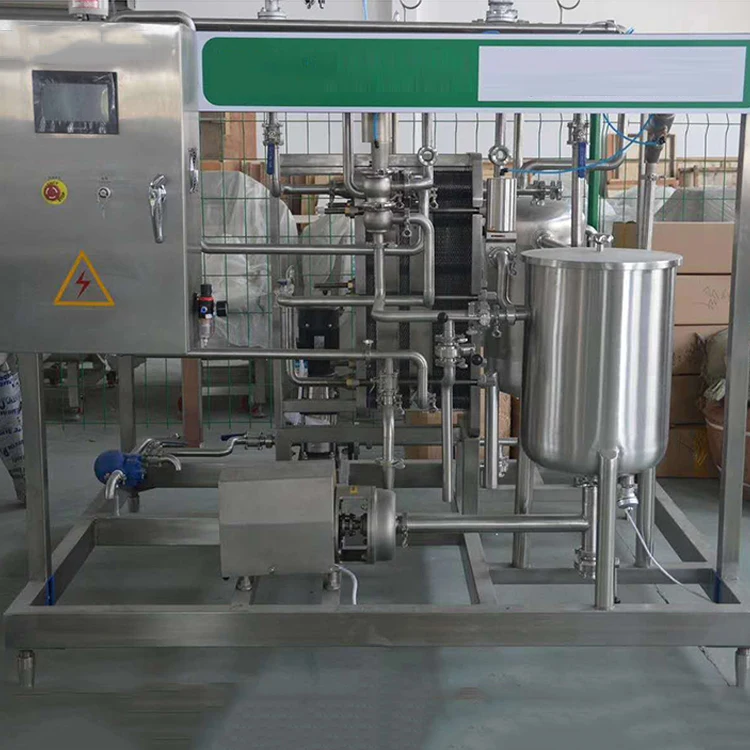

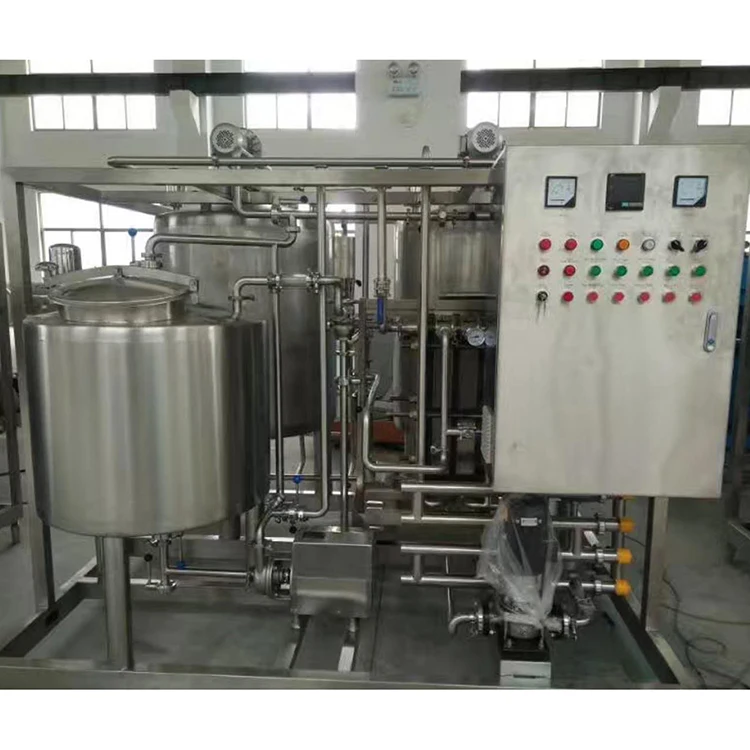

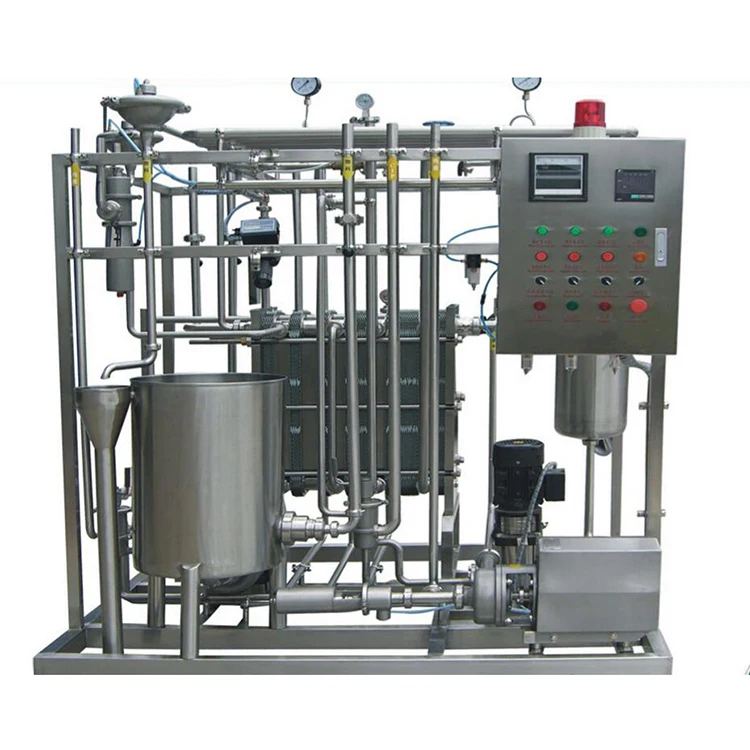

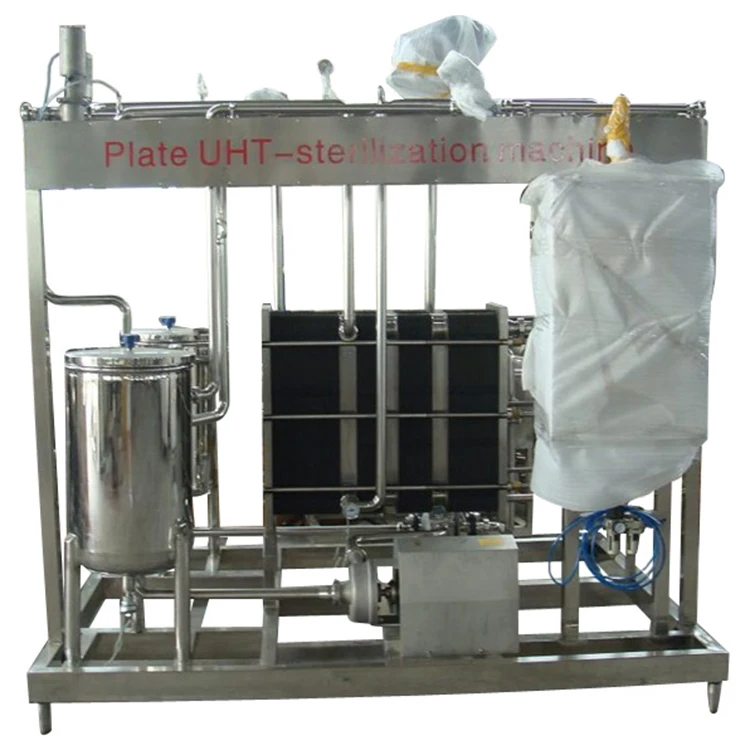

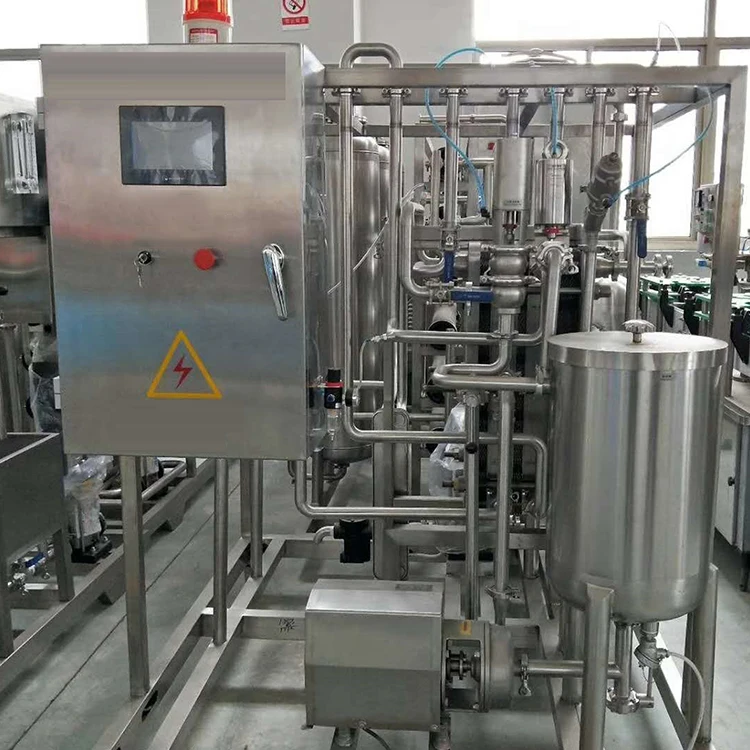

Milk Pasteurizer (plate/board type pasteurizer)
Main Technical Parameter for pasteurization machine( plate type):
Model | Capacity (T/H) | Heat Exchange Area (M2) | Gross Power(KW) | Steam Consumption (Kgs/hour) | Overall Dimension(mm) | Total Weight |
Ucan-PHE-0.5 | 0.5 | 5 | 5.2 | 52 | 1200×1200×1500 | 790kg |
Ucan-PHE -1 | 1 | 8 | 5.2 | 60 | 1500×1500×1800 | 880kg |
Ucan-PHE -2 | 2t/h | 13 | 6 | 104 | 1800×2000×1800 | 980kg |
Ucan-PHE -3 | 3t/h | 20 | 6 | 156 | 2000×2000×2200 | 1080kg |
Ucan-PHE -5 | 4-5t/h | 30-45 | 8 | 260 | 2250×2000×2200 | 1250kg |
Ucan-PHE -8 | 6-8t/h | 35-50 | 8 | 400 | 2250×2000×2200 | 1250kg |
Ucan-PHE-9 | 10t/h | 60- | 11 | 520 | 2800×2000×2200 | 1650kg |
Ucan-PHE-15 | 15t/h | 75 | 15 | 780 | 3000×2200×2200 | 2150kg |
Ucan-PHE-20 | 20t/h | 80 | 18 | 945 | 3300×2200×2200 | 2350kg |
1. Q: How do I pay for my purchase order?
A: T/T, L/C at sight, Escrow, Paypal.
2. Q: What's the MOQ?
A: Our MOQ is 1 set.
3. Q:What's the delivery time?
A: It will take about 30-45days to finish an order, but the exact time is according to actual situation.
4. Q: Can I have my own customized product?
A: Yes, your customized requirements for logo, design, mark, etc. are very welcome.
