1w 3W 4w 7W 8w 12W 15w 18W 20w 24W 25w 36W LED power supply driver
Product Description

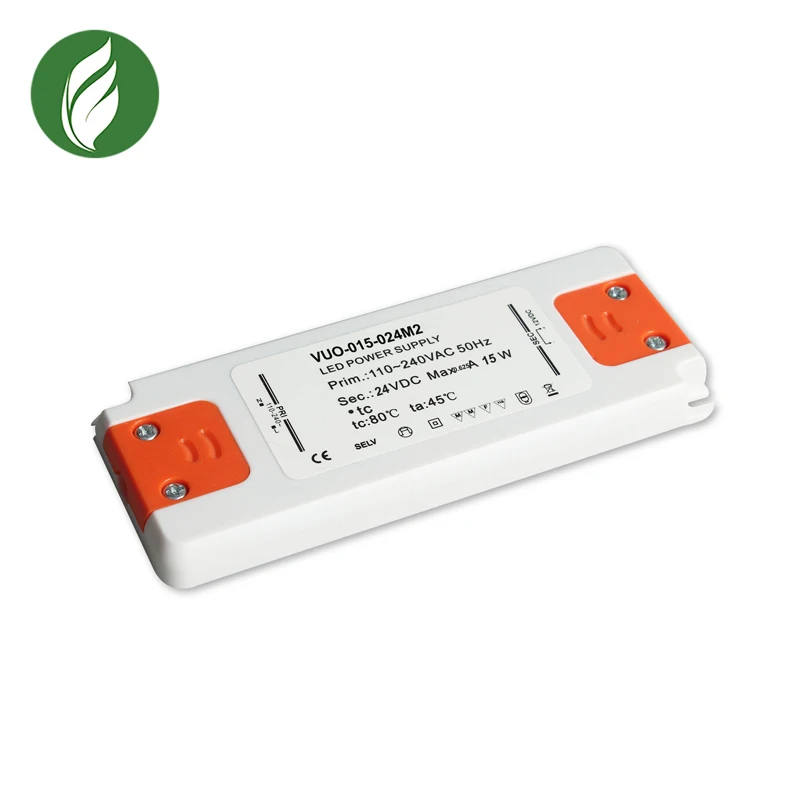

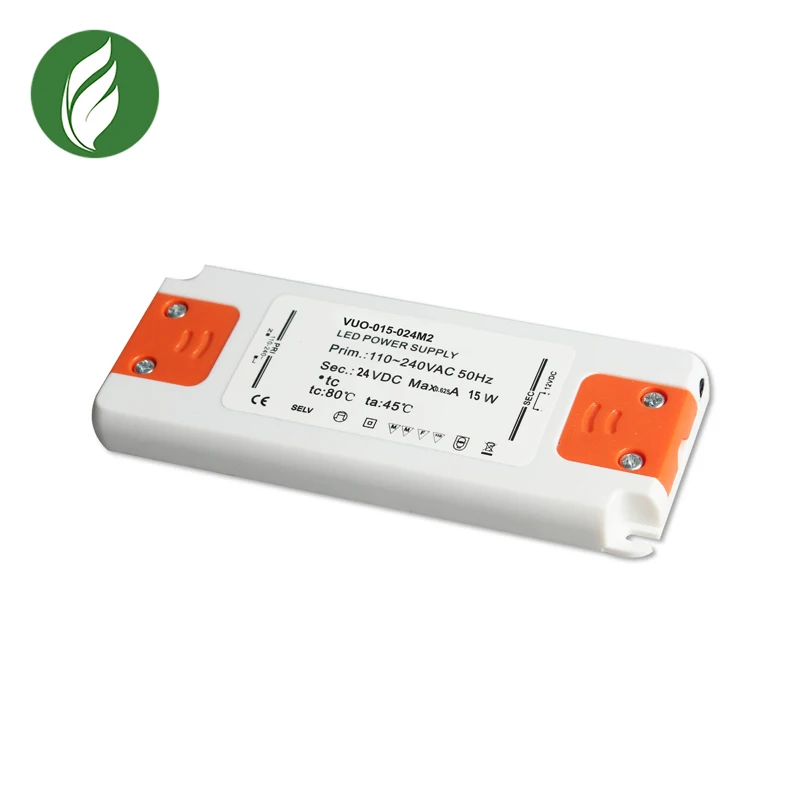

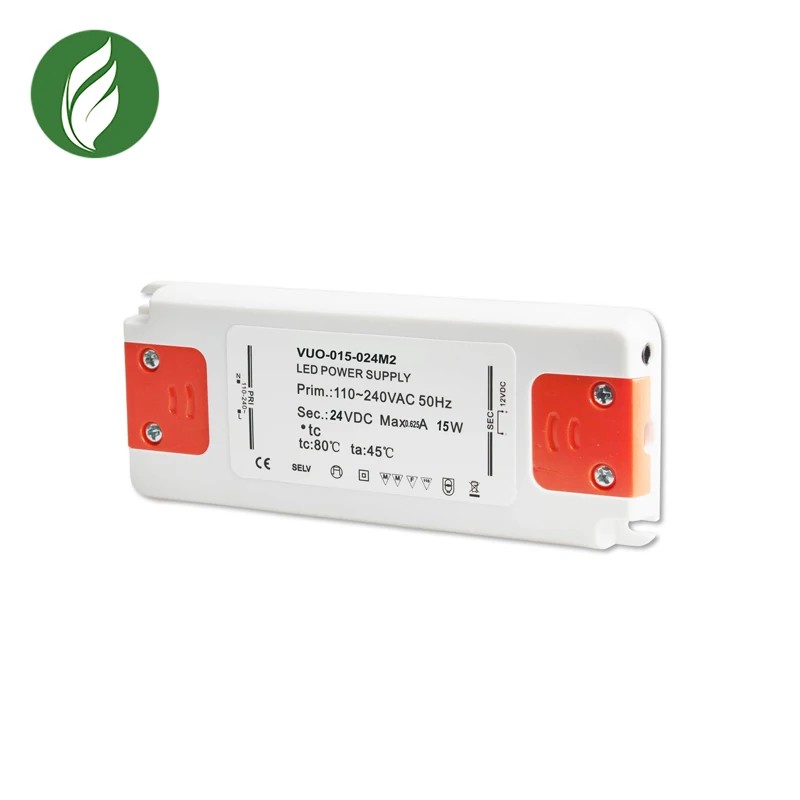

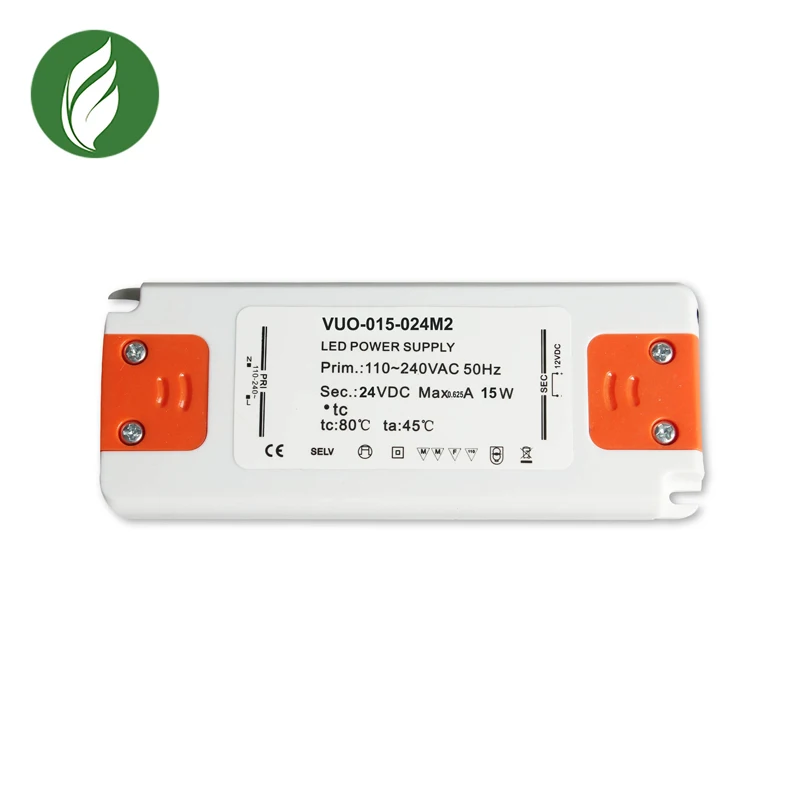

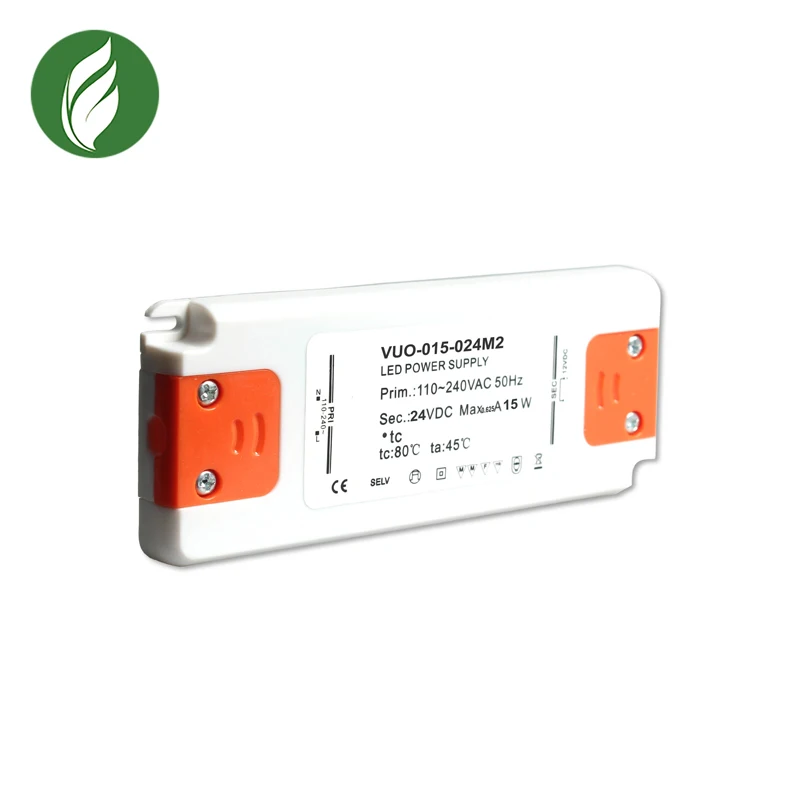

| Model | VUO-015-024M2 | |
| constant voltage switching power supply | ||
| Output | DC voltage | 24V |
| Rated current | 0.625A | |
| Current range | 0-0.625A | |
| rated power | 15W | |
| Ripple & Noise (peak to peak) | <300mV | |
| No-load voltage | ±0.5V | |
| Input | voltage range | 110~240VAC |
| Current | 47~63Hz | |
| Power factor | NO PFC | |
| effectiveness(Typ.) | 0.78 | |
| Alternating current(Typ.) | 0.18A/220VAC | |
| Protection | Short circuit | Protection mode: hiccup mode, abnormal conditions can be automatically restored after removal |
| overload | 100-160% | |
| environment | Operating temperature | -10~+40℃ (Please refer to the load reduction curve) |
| Storage temperature | -40~+80℃ | |
| Safety&EMC | Safety standards | Suitable for EN61347-1;EN61347-2-13;SELV;IP67 |
| Pressure | Input - Output: 3.75KVAC Input - Enclosure, Ground: 2KVAC Output - Enclosure, Ground: 0.5KVAC | |
| Tips | 1.If without specia explanation, all specifications are measured at an input of 220VAC, rated load, ambient temperature of 25 ° C . 2.Ripple & Noise Measurement Method: Use a 12 '' twisted pair, and the terminals are connected in parallel with 0.1uF and 47uF capacitors and tested at 20MHz bandwidth. | |
