Низкая цена, автоматическая система гидравлического домкрата PLC для оборудования для строительства резервуаров, есть в наличии

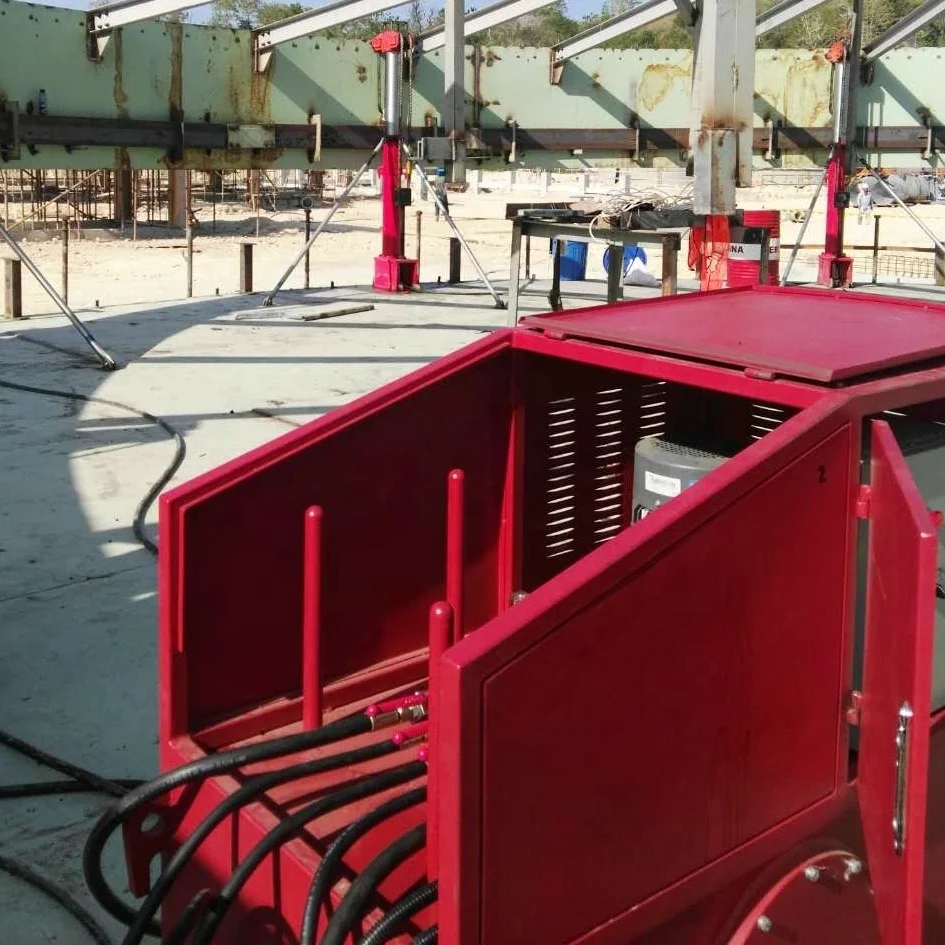

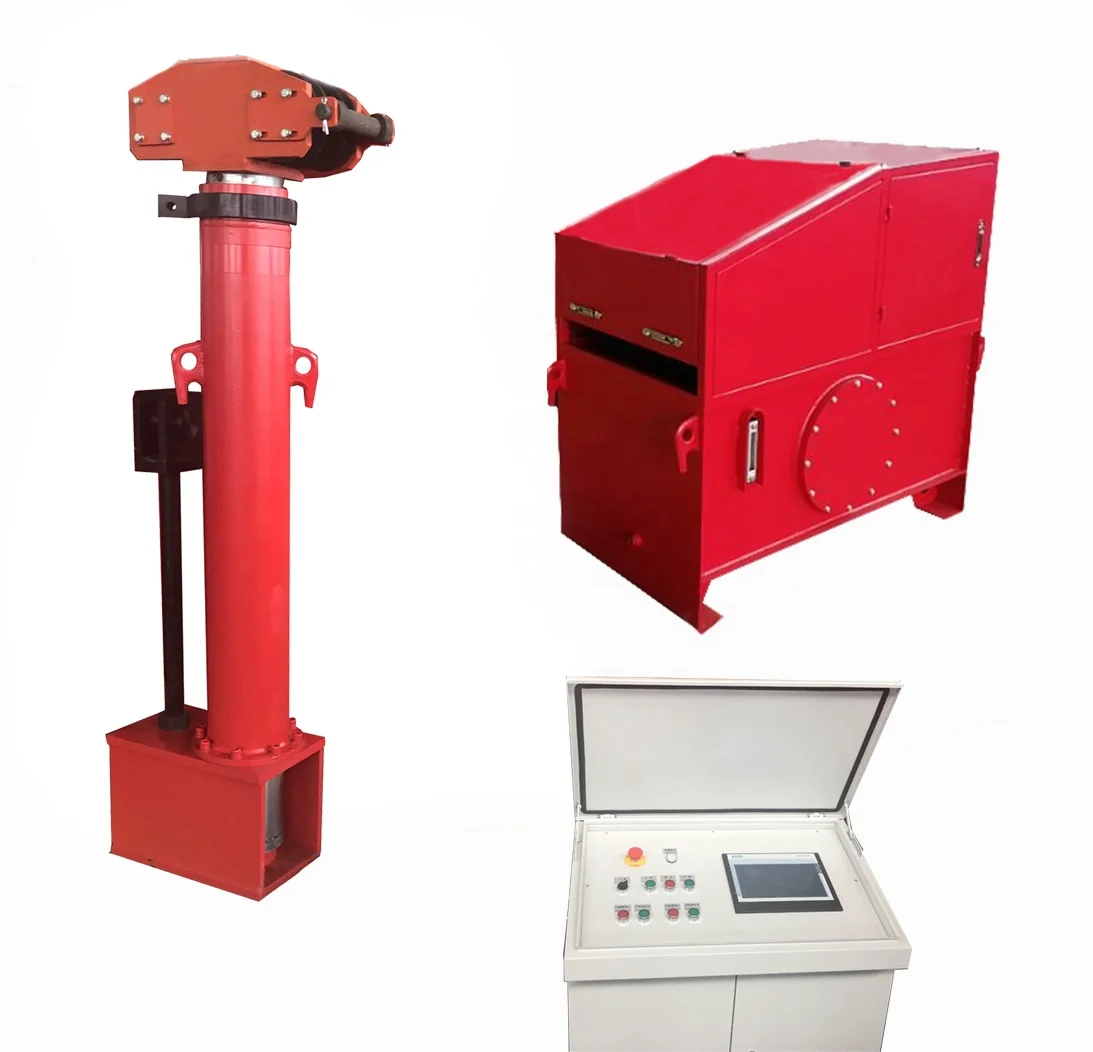

1, Pump station control box (rotating selection button) → Centralized control operation box (Figure 1-3) → hydraulic jacking pump station (solenoid of valve group) →PLC devices → centralized control operation box → hydraulic jacking pump station → integral or

2, Pump station control box (rotating selection button) → control handle → hydraulic cylinder (single or multiple) fine adjustment up and down.

2, The system utilizes PLC central control to handle lift. Each power pack is equipped with auxiliary balance device to guarantee the precision of simultaneously lifting;

3, Hydraulic lift pump station has subsidiary manual control and central control two operation models. The cylinder can be

adjusted to lift separately or to lift with several others as one group, and multi groups can also be integrated to lift reach better precision and better welding effect;

4, All the cylinders are with safety valve. It can be automatically locked to avoid cylinder/ tank dropping even under situation of power off, high-pressure hose broken, burst;

5, The cylinder is with one high pressure hose to avoid oil leaking that usually happen by the traditional multiple hoses.Cylinder will return to initial condition by itself weight;

6, Stroke of Hydraulic cylinder is various as per tank plate width, which can satisfy each annular shell plate one-step lift.Greatly reduce the time waste;

7, Hydraulic cylinder basic height is based on the tank shell width, which can match automatic girth welding machine to proceed internal girth seam welding;

8, Module configuration, the jacking system quantity can be adjusted as per different size of tank and weight;

9, High efficiency, each time lifting or falling down only needs around 15 minutes;

10, Can well cooperate with our tank welding machines, which can greatly reduce the manpower cost and reduce the construction time.

We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer

man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.Based client's facility/site space availability, we are able to study/design and present matched configurations on project schedule,quality, cost and productivity to guarantee production pace is accordance with project requirement.To support project execution,we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools,equipment/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
