3 м Мобильный cctv камера коробка мачты
- Категория товара: Telecommunication Towers & Accessories >>>
- Поставщик (Оптовый магазин): Tianjin,Talents,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

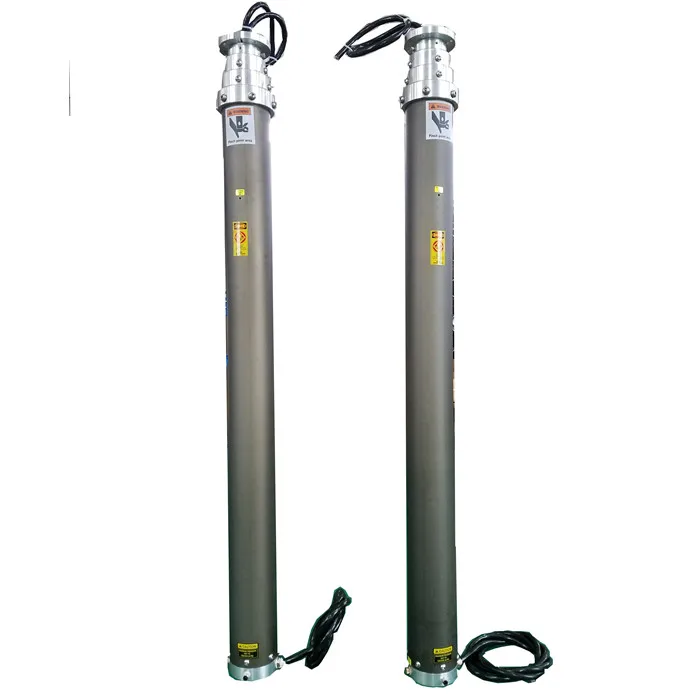

Telecommucation 4G mobile monitoring pneumatic telescopic mast
Product property
Our product has the advantages of large load, low noise, fast
lifting, strong buffering performance, stable performance
and the like.
The application and prospect

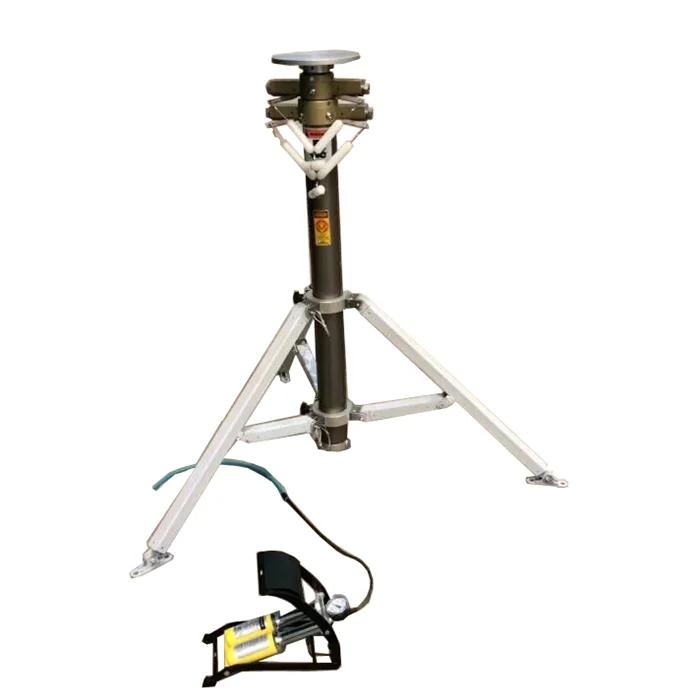

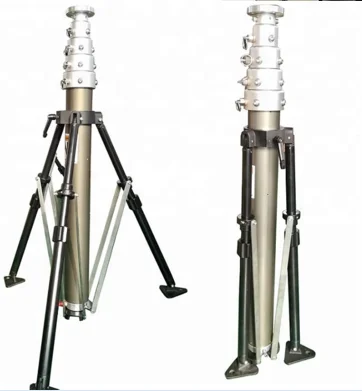

The telescopic mast with tripod plays an important role in natural disasters, emergency rescue at night, and lightning at the Golf course and large football field.
Specifications | |
Closed length | 1.5m |
Extended length | 5.0m |
Payload | 30kg |
Number of sections | 5 |
Max Working pressure | 0.20MPA |
Collar style | without locking collar |
Working Temperature | -40--+40C |
Max outer diameter | 118mm |
Diameter of bottom plate | 150m |
Diameter of top plate | 120mm |
Material | Main Pole: Aluminum magnesium alloy 6063B |
Color | Light brown |

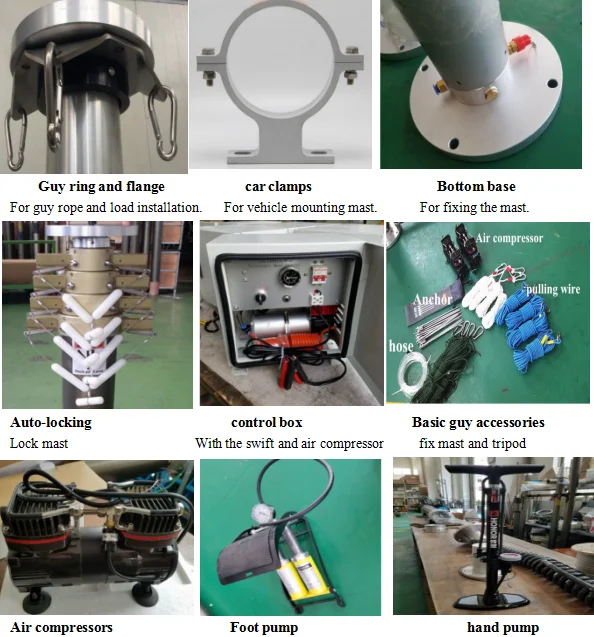

Detailed Images

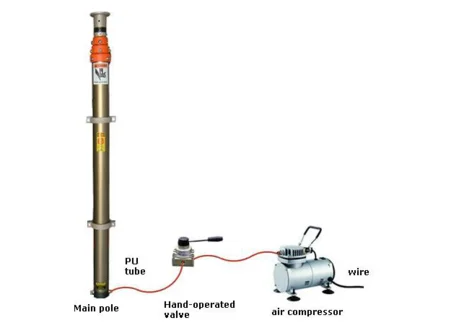

No | Items | Qty |
1 | Main pole | 1 pcs |
2 | Hand-operated valve | 1 pcs |
3 | air compressor | 1 pcs |
4 | PU tube | 2 pcs |
5 | Top/bottom platform | 1 pcs |
6 | Tripod | 1 pcs |
7 | Ground anchor | 3 pcs |
8 | Foot pump | 1 pcs |
Other Specification
Pneumatic telescopic mast | ||||||||||||
MODEL No. | Extended Height (m) | Retracted Height (m) | Bottom OD (mm) | TOP OD (mm) | Section NO. | Head-load (KG) | ||||||
TAL-2.0-1.3-150-AT8 | 2 | 1.3 | 118 | 98 | 2 | 150 | ||||||
TAL-3.0-1.5-50-AT8 | 3 | 1.5 | 98 | 66 | 3 | 50 | ||||||
TAL-4.0-1.3-20-AT8 | 4 | 1.3 | 87 | 43 | 4 | 20 | ||||||
TAL-4.5-1.65-50-AT9 | 4.5 | 1.65 | 118 | 66 | 4 | 50 | ||||||
TAL-5.0-1.7-40-AT8 | 5 | 1.7 | 98 | 51 | 4 | 40 | ||||||
TAL-5.0-1.75-30-AT9 | 5 | 1.75 | 98 | 51 | 4 | 30 | ||||||
TAL-6.0-1.7-30-AT8 | 6 | 1.7 | 118 | 51 | 5 | 30 | ||||||
TAL-6.0-1.75-12-AT8 | 6 | 1.75 | 87 | 28 | 5 | 12 | ||||||
TAL-6.0-2.0-50-AT9 | 6 | 2 | 118 | 66 | 4 | 50 | ||||||
TAL-6.0-1.95-30-AT8 | 6 | 1.95 | 87 | 43 | 4 | 30 | ||||||
TAL-6.0-1.5-25-AT9 | 6 | 1.5 | 118 | 51 | 5 | 25 | ||||||
TAL-7.0-1.95-40-AT8 | 7 | 1.95 | 118 | 51 | 5 | 40 | ||||||
TAL-8.0-1.8-50-AT9 | 8 | 1.8 | 160 | 51 | 7 | 50 | ||||||
TAL-8.0-2.2-60-AT7 | 8 | 2.2 | 140 | 66 | 5 | 60 | ||||||
TAL-8.0-2.0-25-AT8 | 8 | 2 | 118 | 36 | 6 | 25 | ||||||
TAL-9.0-2.15-30-AT8 | 9 | 2.15 | 140 | 51 | 6 | 30 | ||||||
TAL-10.0-2.4-30-AT7 | 10 | 2.4 | 140 | 51 | 6 | 30 | ||||||
TAL-12.0-2.7-250-AT8 | 12 | 2.7 | 279 | 140 | 7 | 250 | ||||||
TAL-15.0-3.5-150-AT9 | 15 | 3.5 | 229 | 98 | 6 | 150 | ||||||
TAL-16.0-3.0-30-AT8 | 16 | 3 | 180 | 51 | 8 | 30 | ||||||
TAL-18.0-3.0-100-AT8 | 18 | 3 | 279 | 66 | 10 | 100 | ||||||
TAL-20.0-3.3-55-AT8 | 20 | 3.3 | 229 | 66 | 9 | 55 | ||||||
TAL-30.0-4.0-30-AT8 | 30 | 4 | 316 | 51 | 13 | 30 | ||||||
NOTE:
above specification does not include all we can do.
Certifications
Company profile
Talents Enterprise Company Limited.
Talents Enterprise co. ltd., was founded in China. since 1995, we devote ourselves to the export supply of telescopic masts made of aluminum alloy, stainless steel, fiberglass and carbon fiber. We have a professional team for the solutions and designing for the OEM and ODM of the telescopic mast and for the after sale services. We have been a 15 years golden supplier on Alibaba, we have built up a complete quality control system and Multi-way fast delivery on service. We are supplying one year free after-sale warranty to the buyer. What you are asking for is our motive power of task, we wish our great business platform could well-meet what you demand.
