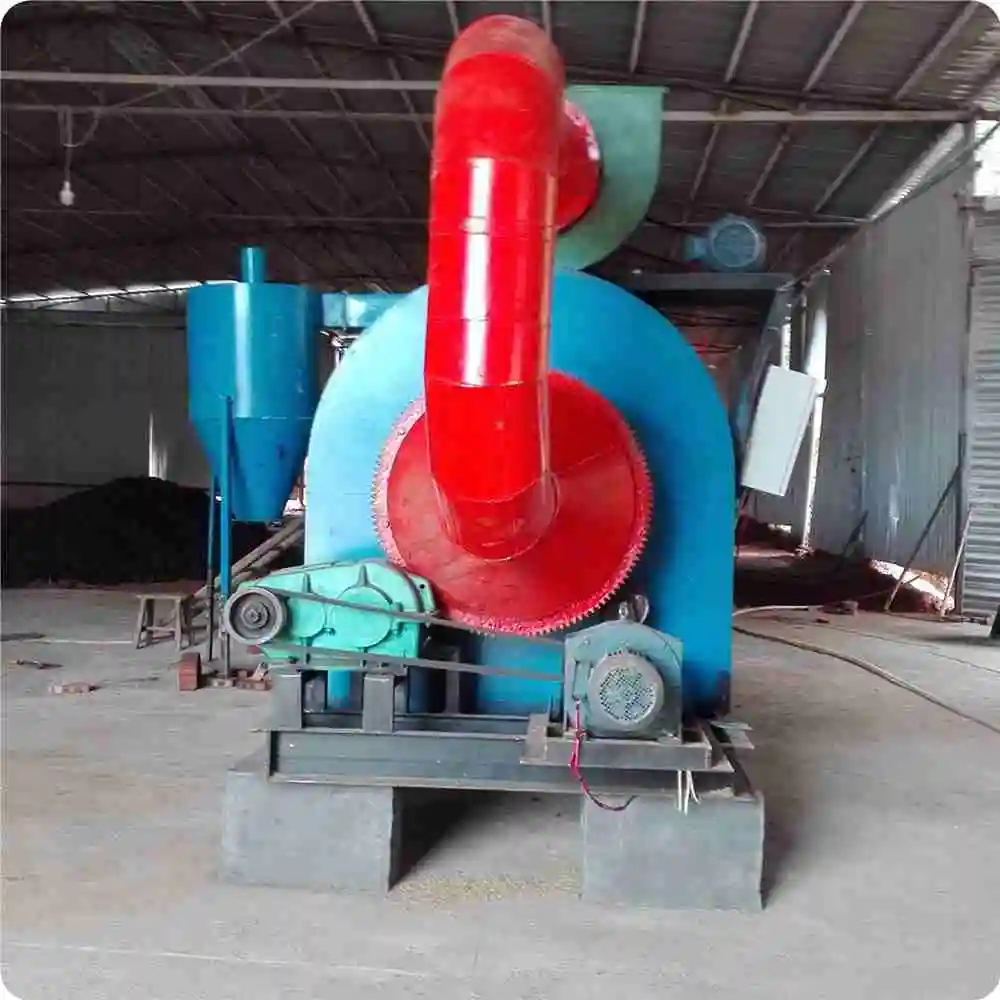

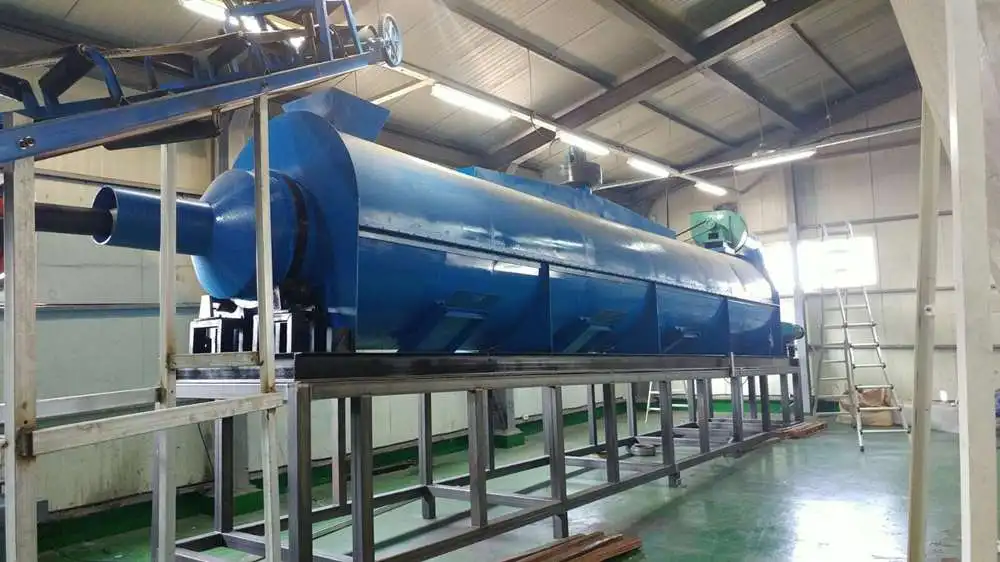

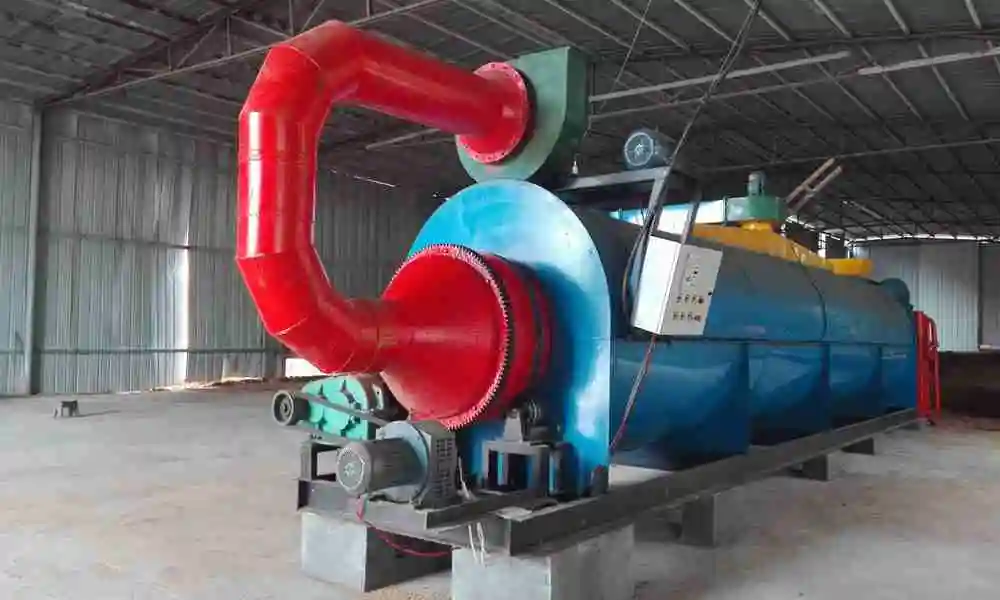

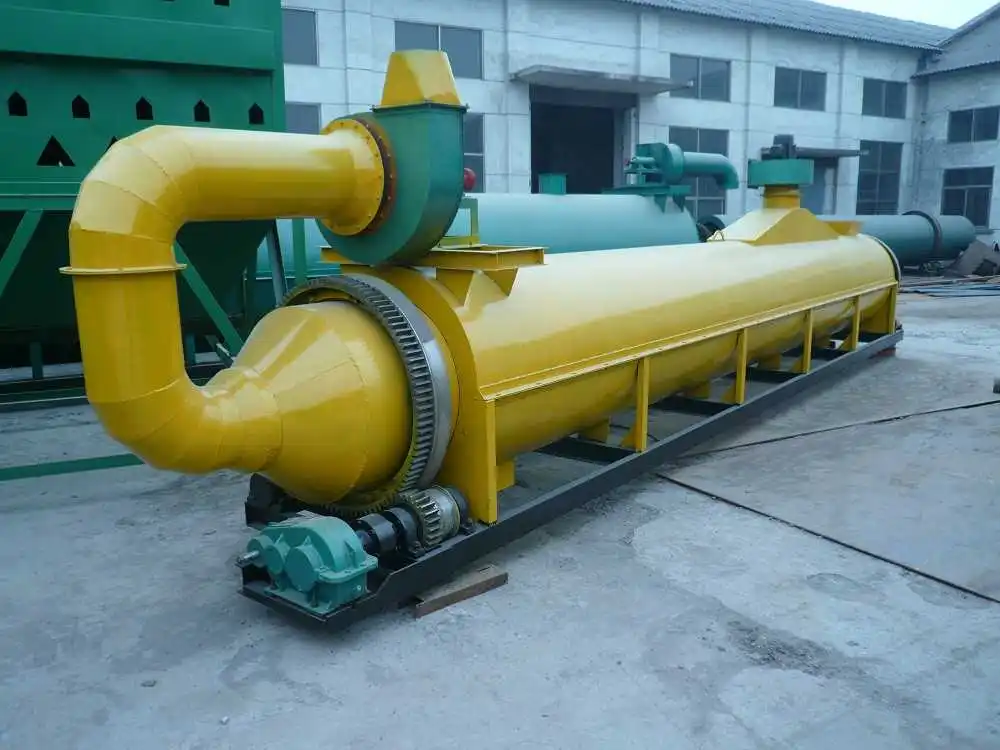

Wood Sawdust Flash Dryer/Husk Drum Drier Kiln/Coconut Chips Drying Machine
Brief Introduction
As a new type rotary drying machine, rotary drum dryer is an industrial welcome dryer machine employed to reduce or minimize the moisture content of sawdust or wood chips. Rotary drum dryer has wide application to various biomass materials like sawdust, wood shavings and agricultural straw. Reasonable structure, high efficiency, low energy consumption and convenient for transportation makes sawdust dryerstand out among wood material drying equipment. ( it is usually 250-350℃).
Application
Powder & particle: Sands, limestone, stones, clay, mineral filter cake, coal, iron sulphate, filter cakes, fly ash, gypsum etc.
Damp and sticky material: Coal slime, sewage sludge, bentonite, Kaolin etc.
Corrosive material: Distillers ‘grains, Fertilizer, animal dung, slag etc.
Biomass material: Sawdust, wood chips, spent grain, vinasse, wood shaving, dregs, etc.

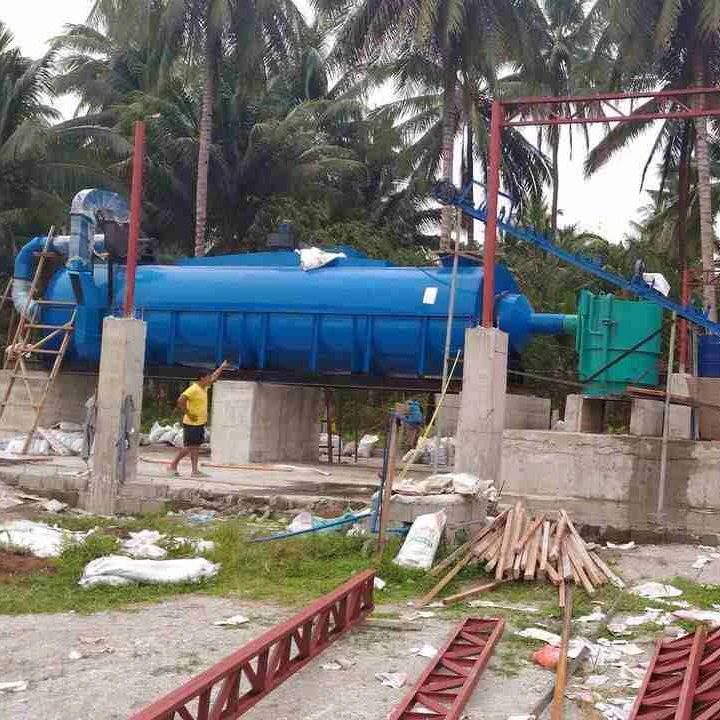

Philippines scene
Structures
Inside of the coconut chips dryer, there are many tubes. During drying process, the hot air will enter into tube-internal by draught fan, while the materials exist tube-external, so that the materials can be dried indirectly, there is no pollution and no color change, also a fire that caused by too high temperature will be avoided successfully.
Advantage
1. New technology of indirect-drying structure, the working process is very safe and health.
2. Sawdust rotary drier equipped with biofuels stove, has a high environmental protection effect.
3. High thermal efficiency, the thermal efficiency can reach 60%.
4. Fully automatic control, large drying capacity from 0.5-2.5ton per hour.
5. The material is dried evenly without clumping, loose after drying, easy for subsequent processing
6. Wood chips drier Machine moth-proofing, and it prevent mildew, has a long shelf life.
7. Wood sawdust drier Machine have a high degree of automation, easy to operate, save manpower.
Technical parameters
| Model(mm) | HKB-1060 | HKB-1290 | HKB-1590 | HKB-2090 | ||
Dimension(mm) | 9000×1500×2000 | 12000×1700×2200 | 12000×2000×2500 | 12000×2500×2800 | ||
| Output(t/h) | 0.5-1 | 2-5 | 5-10 | 10-20 | ||
| Power(kw) | 12 | 18.7 | 25 | 30 | ||
| Weight(t) | 6 | 10 | 14 | 20 | ||
| Pipe range(m) | 6 | 9 | 9 | 9 | ||
| Diameter of pipe(m) | 1 | 1.2 | 1.5 | 2 | ||
| Dust catcher | Diameter(m) | 1 | 1.2 | 1.5 | 1.5 | |
| Height(m) | 1.8 | 2.2 | 2.5 | 2.5 | ||
| Adjustable speed motor | 4P-4KW | 4P-4KW | 4P-5.5KW | 4P-7.5KW | ||
| Hot air furnace | Inside diameter (mm) | 1500 | 1800 | 2000 | ||
| Gas output(Nm³/h) | 1200-1600 | 1500-2100 | 1750-2500 | |||
| Main air blower | Y5-47-5C-5.5KW | Y5-47-5C-7.5KW | ||||
| Dust removing fan | 4-72-3.2A-2.2KW | 4-72-3.6A-3KW | ||||
| Speed(r/min) | 3-5 | |||||
| Reduction of moisture(%) | 40-50 | |||||
| Dryness of finished materials(%) | 5-10 | |||||
| Heating medium | Hot clean air | |||||
| Hot air temp(℃) | <120 | |||||
Packaging & Shipping
Ⅰ: By railway to mid asia, russia, belarus, and so on
Ⅱ: By sea to the rest countries
Ⅲ: Standard export packing, no damage to the machines and containers
Foreign successful case
Customers visiting
Company Information
1.rice husk drier Machine With Factory Price and perfect after-sales service.
2.Alibaba Assessed Gold Supplier.
3.Detail Design Thoughtful
4.100% QC inspection Before Shipping.
5.Cases in many countries.
6.Solve the problem within 72 hours
Henan Haokebang Machinery Equipment Co., Ltd. is a manufacturer which professionally researching and developing sand production line, stone production line, mechanism sand production line, quartz sand production line, mineral processing production line, magnetic separation production line, flotation production line, construction waste processing production line, preparation equipment and other products 15 years.
Our services:
1).One package service including the buyers’ process design, on-site construction guidance, equipment installation and debugging, training technical persons and operators.
2).One year warranty.
3).Long-term supply of components.
FAQ
Q. What is the heat source of your stove?
Coal, wood, rice husk, or diesel, or natural gas. And our company is developing the gas stove
Q. Quality control
All the coconut chips drier Machine offered by Henan Haokebang Machinery Equipment Co., Ltd. are produced by China national standard drawings, nonstandard equipment will be produced by the drawings confirmed by clients. Haokebang Machinery strictly follows ISO 9001: 2008 Quality management system. Most equipment will be test for at least 8 hours in the factory before delivery. There is record in computer for each equipment, spares can be easily confirmed when it is necessary.
Q. Way of payment
Welcome clients place the order by alibaba online one-touch! Haokebang also offers various ways of payment, T/T, against copy of B/L, L/C, D/A, D/P, West union, etc. All can be negotiated.
Q. Delivery time
Normal delivery time within 15 to 20 working days, complete production line or larger equipment may take longer. Exact delivery shall be confirmed when place the order.
Q. Trade terms
Typically EXW, FOB, CIF, CFR, DAF follows International Rules for the Interpretation of Trade Terms 2010(INCOTERMS 2010).
Q. Shipping lines
Priority rule based on clients' request, and freight cost, service, shipping date, date of arrival shall be considered.
Q. Installation
Haokebang has several experienced technicians with passports ready to go for installation, when installation service is needed, the client should pay for technicians’ round way air tickets, salary(shall be confirmed before leaving), food and lodging, most importantly to guarantee the technicians’ safety.
Q. Equipment warranty
rice husk drier Machine from Henan Haokebang Machinery Equipment Co., Ltd. with 12 months warranty, can be extended to 24 months as request.
