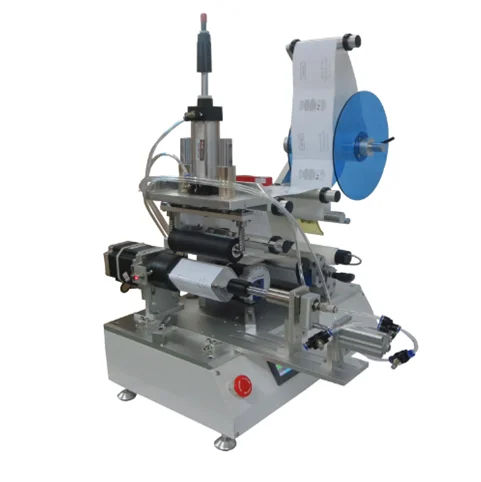

Настольный автоматический односторонний этикетировочный станок smie для плоских бутылок, овальных бутылок, легко использовать

Описание и отзывы

Характеристики

1 Introduction

This machine can complete the double-sided labeling of flat bottles, round bottles and taper bottles, and can automatically flip labeling. When labeling, the bottle has good stability and the labeling position is accurate; the microcomputer controls the entire process, no bottle is not signed, and the machine has strong anti-interference performance and stable and reliable performance.

2) The main technical parameters

Production capacity: 900--1200 bottles / hour

Applicable bottle: flat bottle plastic bottle

Labeling accuracy: ±0.5mm

Label specification: length 10~80mm width 10~80mm

Label roll specification: outside diameter 300mm inside diameter 76mm

Label gap: ≥3mm

Air source pressure: ≥0.4MPa

Source: 220V 50Hz

Power: 0.5Kw

Dimensions: 800×850×340mm

3) Main device component configuration

No.	Name	Supplier
1	PLC	Panasonic
2	touch screen	XIANKONG
3	bottle sensor	Panasonic
4	Test Sensors	DISI
5	standard stepper motor	Raytheon motors, Raytheon drives
6	Switching Power Supply	Taiwan Ming Wei
7	pressure cylinders	Star cylinder
8	rack mechanism	NANTONG BOLANG
9	Coupled fixtures	NANTONG BOLANG

4) Material of main parts

Bottle contact parts: 304# stainless steel or nylon 1010
