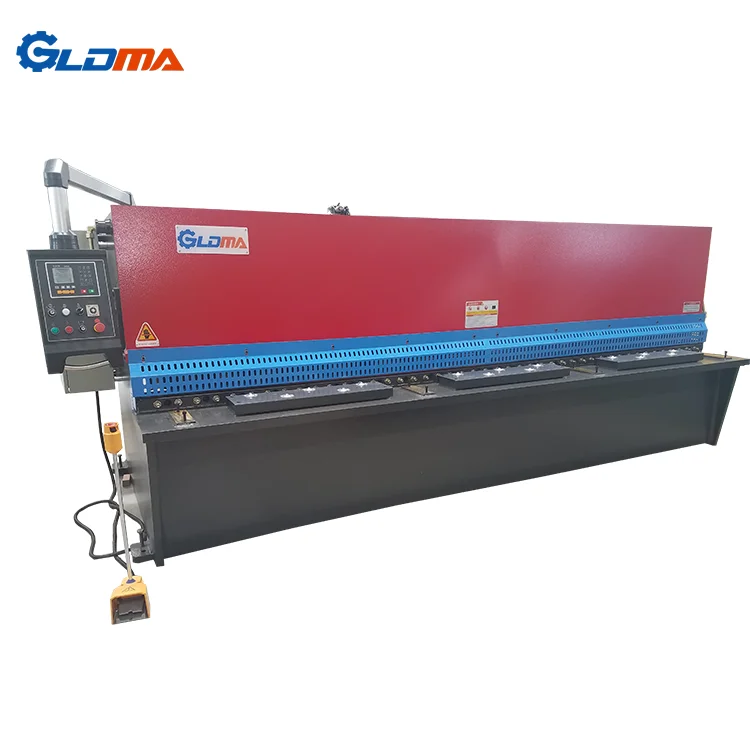

CNC plate mini hydraulic swing beam shearing machine

QC12K-NC hydraulic swing beam shearing machine-ESTUN E21S system

swing beam plate shearing machine,

System:e21s China

DELTA frequency converter

Main motor:Siemens Germany

Valve:Bosch Rexroth Germany

Electrics:Schneider France

Oil pump:Sunny America.

Product description:

1. The design meets EU international standards. Welding parts uses tempering, vibration and other processing methods to eliminate stress ensuring the structural strength and rigidity of each component;All machines are designed using SOLID WORKS 3D programming and made with enhanced ST44-1 quality steel with the latest technology.

2. Backgauge is adjusted by HIWIN high-precision ball screw and linear guide driven by E21S controller.

3. Ball screw and Linear guide structure, using  frequency converter positions X axis to ensure accuracy, unique designed timing transmission mechanism, stable and reliable.Rigid upper beam runs on 8-point bearings with bending precision of +/-0.01 mm

4. Front safeguard rail adopts opening door cut off power,ensuring the operational safety.

5. Rapid adjustment mechanism for rearranging blade clearance, simple operation by hand and adjusting steplessly.

Standard Equipment:

1. ESTUN E21S NC controller system.

2. Linear guide rail and ball screw accuracy of 0.01mm(HIWIN,TAIWAN).

3. Steel mono-block construction.

4. DELTA frequency converter

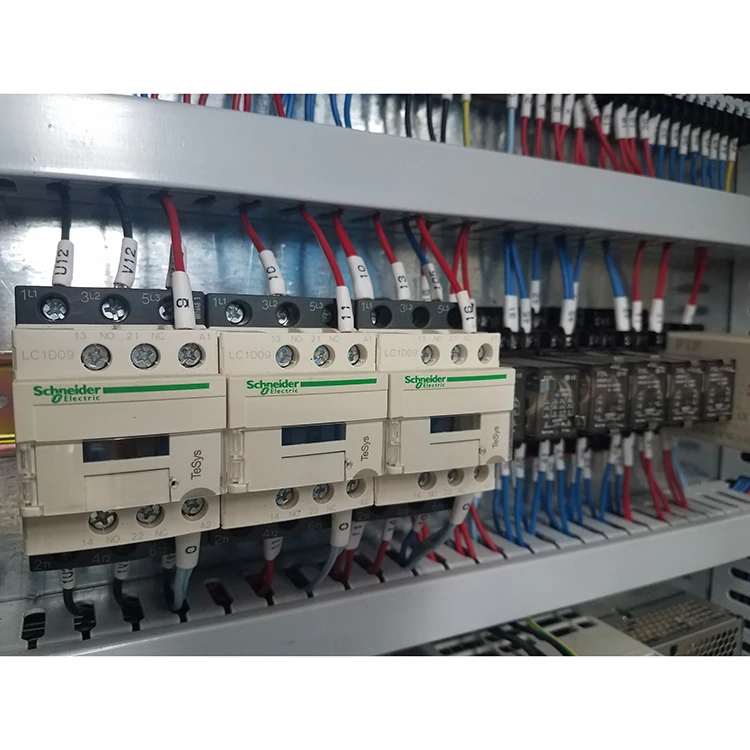

5. Standard electrics from Schneider,France.

6. Standard oil tube connectors from EMB Germany.

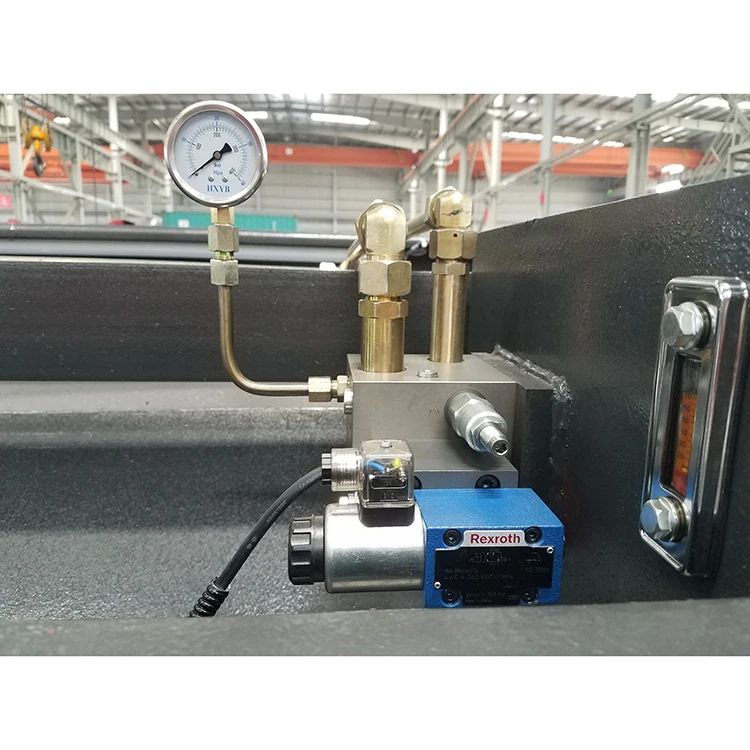

7. Standard valves and oil pump from Bosch Rexroth Germany.

8. Standard main motro from Siemens Germany

9. Hydraulic and electrical overload protection

10. Light guards ensure the safety of operators during operation(optional)

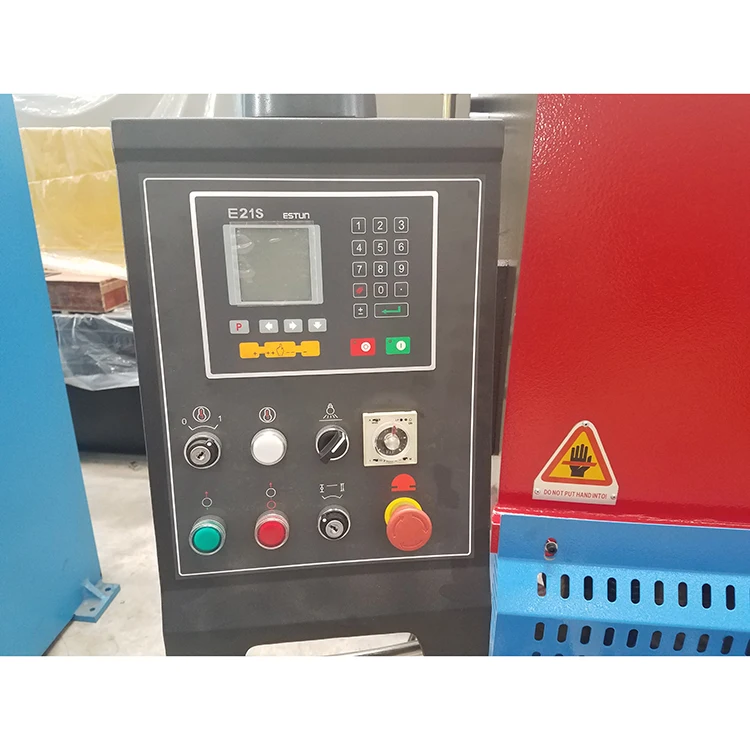

ESTUN E21S Controller:

Backgauge control

Control for general AC motors,frequency inverter

X-axis intelligent positioning

Doubel programmable digital output

Stock counter

Program memory fo up to 40 steps,up to 25 steps per program

One side positioning

Retract function

One key backup/restore of parameters

Units:Mm/inch

Language:Chinese/English

components:

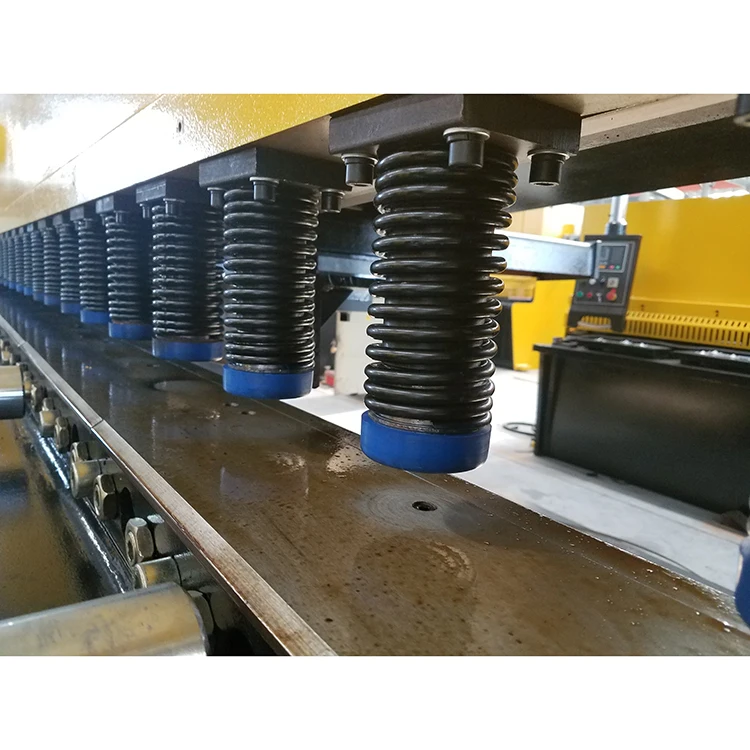

Detailed Pictures:
