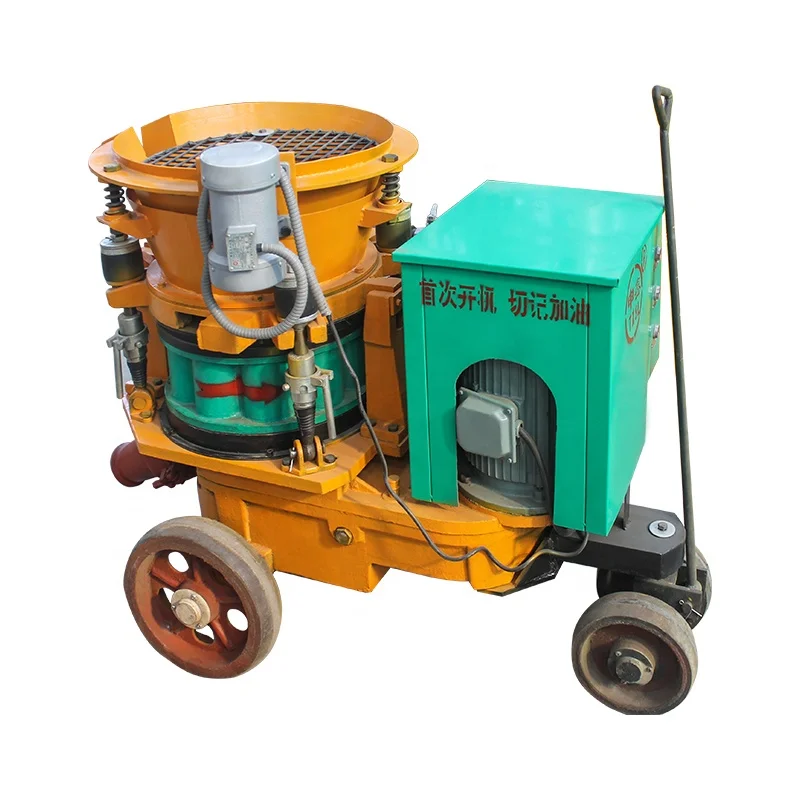

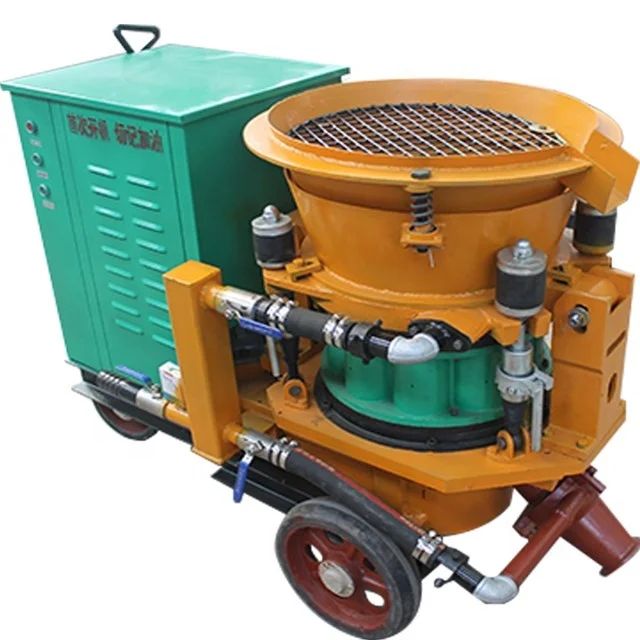

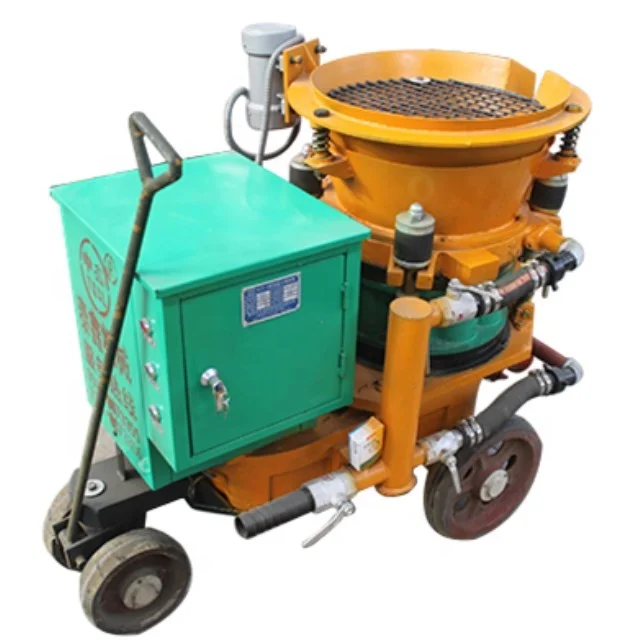

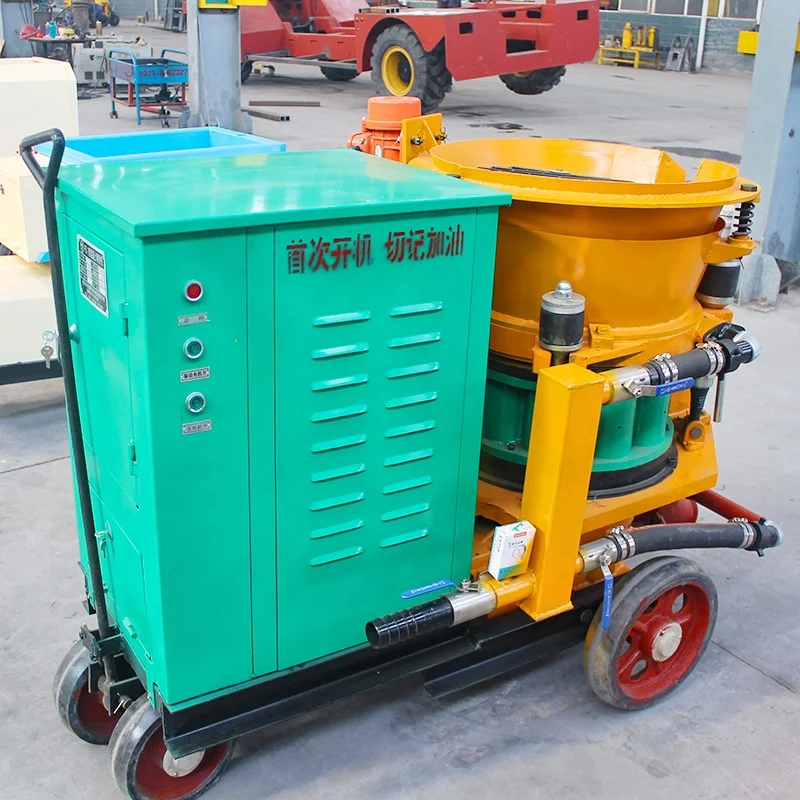

Portable dry mix shotcrete machine for sale quality guaranteed


spray machine for paint



Product Features


dry-mix shotcreteing



Main Features of Portable dry mix shotcrete machine for sale quality guaranteed




1, Enlarged feeding inlet facilitates the continuity of concrete output. Air flow can be set at a certain rate, also can be adjusted timely to ensure the continuity of the concrete and accelerator.
2, New straight-through rotor, macromolecule elastic chamber, combined and soft discharge elbow and rubb-er liner prevent concrete sticking and blocking in the machine.
3, Wear parts are made of the materials with unique structures. Elastic and automatic clamping device improves tightness of the machine and reduces the wear of parts.


small spray paint machine






Product Parameters




spray machine for paintMain Features of Portable dry mix shotcrete machine for sale quality guaranteed:


LZ series shotcrete machine is available in following versions:
Basic: electric drive can be combined with tyre chassis
Extended (optional): air motor or diesel drive combined skid or rail-wheel





































































































Model


PZ-3


PZ-5


PZ-7


PZ-9


Working Capacity (m³ / h)


3


5


7


9


Max. Convey Distance (m)

30 vertical, 200 horizontal
30 vertical, 200 horizontal


30 vertical, 200 horizontal



30 vertical,

200 horizontal



Recommended Water-cement Ratio

≤0.4
≤0.4


≤0.4


≤0.4


Accelerator Dosage (%)

2-10
2-10


2-10


2-10


Max. Grain Size (mm)


10


15


20


20


Spraying Hose Diameter (mm)


38/50


Φ51


Φ57


Φ64


Working Air Pressure (MPa)


0.2-0.4


0.2-0.4


0.4-0.6


0.4-0.6


Air Consumption (m³ /min)


5-6


8-9


10-12


10-12


Feeding Height (mm)


900


1100


1300


1300


Main Motor + Vibration Motor (kw)


4


5.5+0.15


7.5+0.25


11+0.25


Weight (kg)


430


750


850


900


Dimensions (mm)


1130×540×1020


1350×750×1200


1500×800×1300


1650×900×1250




dry-mix shotcreteing


Why choose us?


Are you concerned about high price of overseas purchasing?


Are you concerned about machine quality?


Are you concerned about after-sales service?


Are you concerned about quick-wear parts?


small spray paint machine








Product Application


small spray paint machine


This series are divided into PZ-5, PZ-7, PZ-9.


PZ-5 gunite machine is medium-sized shotcrete machine,to spray the dry or damp concrete mixture.


PZ-7 dry mix shotcrete machine is a universal medium-sized shotcrete machine.





PZ-9 is a large concrete spraying machine used to spray dry or wet concrete mixture.





PZ5/7/9 are mainly used for dry-mix concrete spraying in tunnelling, culvert, subway, slope stabilization, swimming pools, mining and underground engineering; The explosion-proof type is suitable for coal mining, chemical mine and other places with high combustible gas.


Can be equipped with electric, pneumatic or diesel engine drive.
