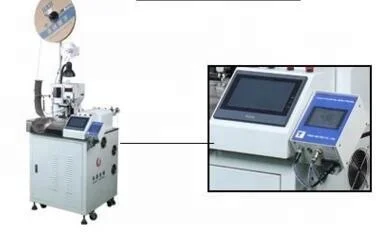

Заводская поставка, полностью автоматическое обжимное оборудование
- Категория товара: Other Hardware >>>
- Поставщик (Оптовый магазин): Shanxi,Shengzeying,International,Trade,Co.,Ltd.Shanxi,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

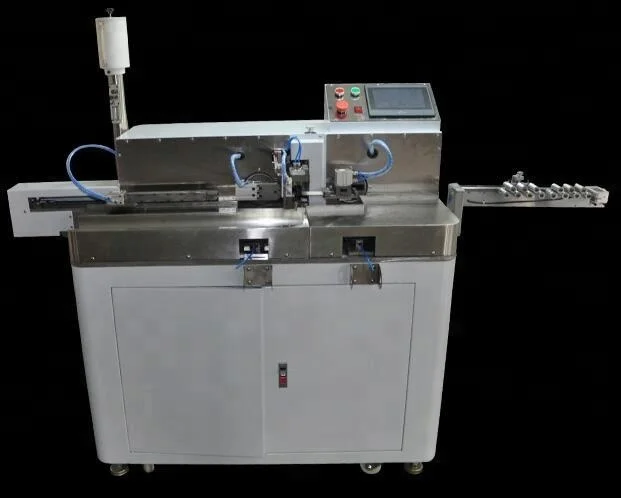

Model | SZY-10+T |
Outer dimensions | L600mm*W708mm*H1050mm |
Weight | 165kg |
Power supply | AC220V/50HZ |

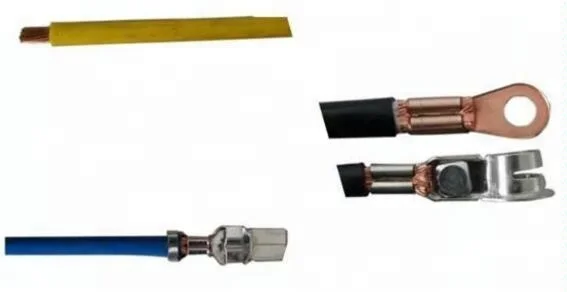

Function | Wire cutting ,end stripping and twisting, the other end crimping |
Display | English / Chinese interface |
Cutting length | 40mm--99999.99mm |
Cutting tolerances | ±( 0.002×L )mm L : indicates a cutting length. |
Stripping length | 0.1mm--10mm |
Applicable wires | Size: 0.03 - 2.5mm2 AWG32-AWG13 |
Crimping capacity | 1.5Ton |
Detector | Wire existence,wire overload, strip error,terminal existence, crimp error. |
Compressed Air | 6--6.5kg use clean dry air |
Productivity(pcs/h) | 4000pcs/h |
Packaging & Shipping
Standard Export Packing or as customer Requirements

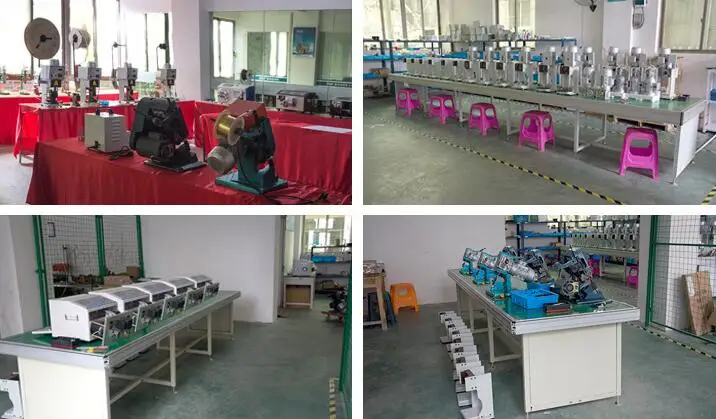

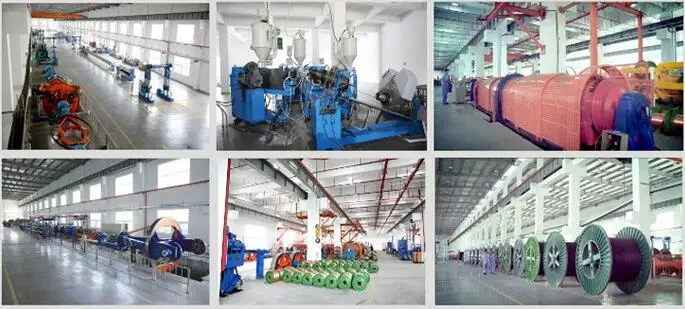

Company Information
automatic terminal crimping machinery
The machine will yield crimp waveform detected when pressure as a reference waveform memory, And every time when the pressure of pressure waveforms and benchmark waveform comparison,
Through the device's own tolerance to determine a good product and defective products
It can detect the following adverse pressure:
- Core wire disconnection
- Core wire tilt and up warped
- rubber bite (crimp too deep )
- Wire recede
- Crimp height anomalies
- Terminal crimping is abnormal
