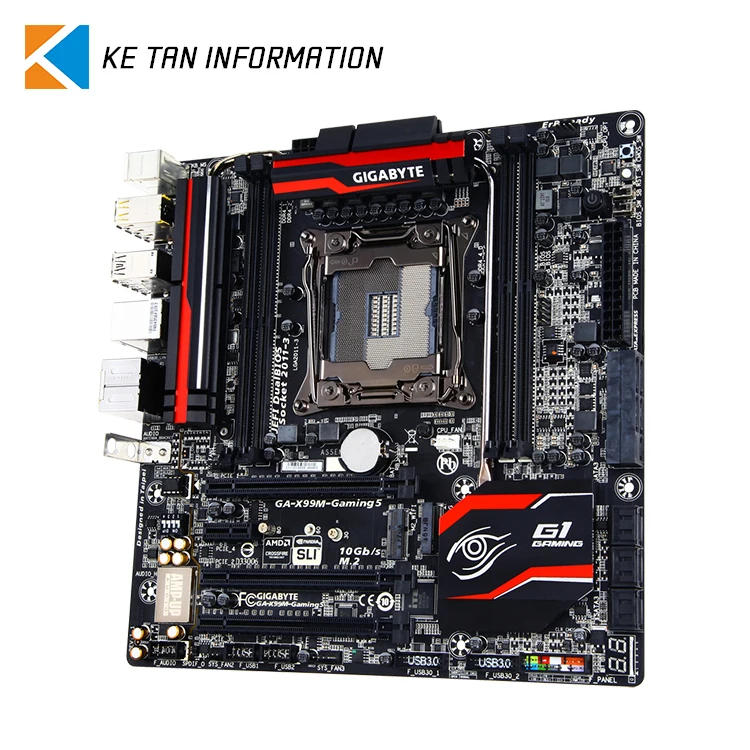

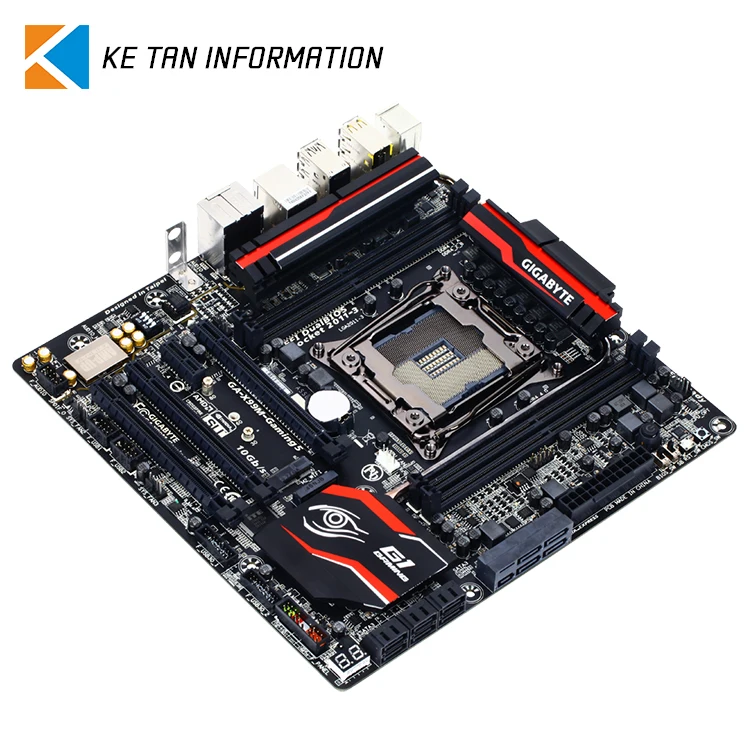

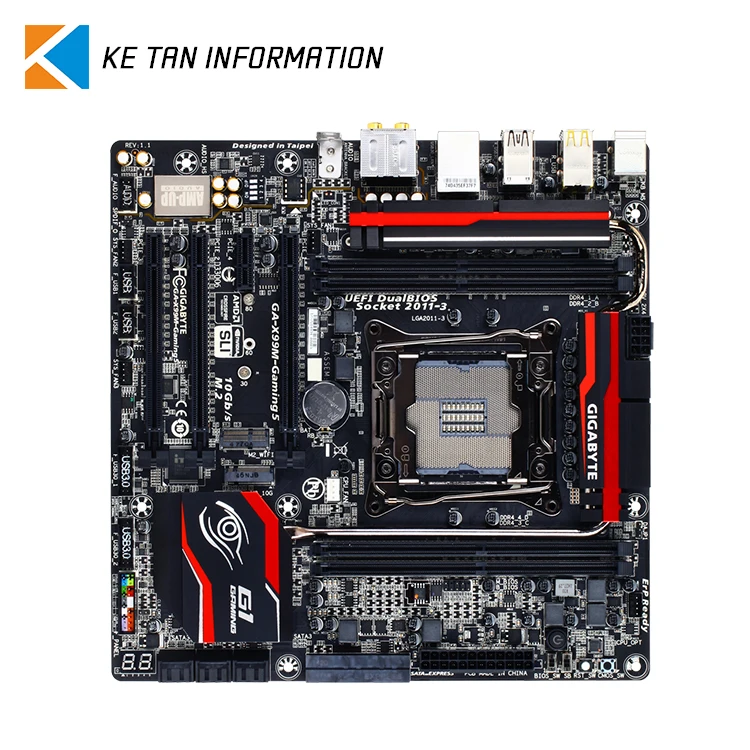

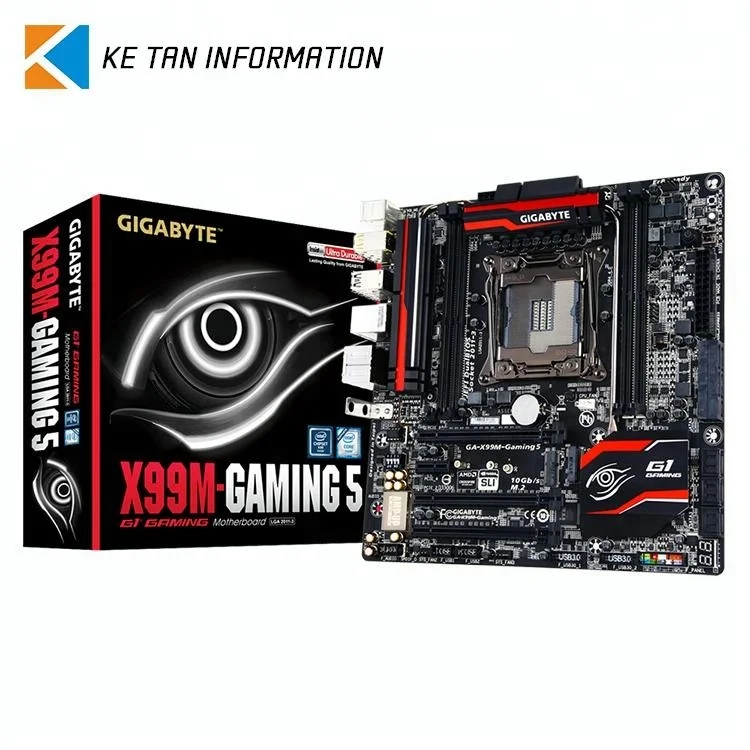

Десктопная игровая Материнская плата GIGABYTE Intel GA-X99M-Gaming 5 64G DDR4 LGA

Описание и отзывы

Характеристики

Att:Page Price is Only for Reference, Actual Price is Subject to Our Confirmation.

Supports Intel® Core™ i7 6950X Processor Extreme Edition

Support Intel® Turbo Boost Max Technology 3.0

Supports New Intel® Core™ i7 Processor Extreme Edition

4 Channel DDR4, 4 DIMMs

Genuine All Digital Power Design with IR Digital PWM & IR PowIRstage® ICs

2-Way Graphics with Premium PCIe Lane

Dual M.2 Technology for SSD Drive and WIFI card

6x(30µ) Gold Plating for CPU socket, Memory DIMMs and PCIe slots

AMP-UP Audio technology with exclusive Upgradable OP-AMP

Independent Right and Left Audio Channel PCB Layers

LED lighting for the audio guard light path

Quad DAC-UP USB ports

Gold plated audio ports

High end Nichicon audio capacitors

Killer™ E2400 gaming networking

SATA Express support for 10 Gb/s data transfer

Long lifespan Durable Black™ Solid caps

APP Center including EasyTune™ and Cloud Station™ utilities

CPU

Support for Intel® Core™ i7 processors in the LGA2011-3 package

Support for Intel® Xeon® E5-1600 / E5-2600 / E5-4600 v3 / v4 processors in the LGA2011-3 package

L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Memory

4 x DDR4 DIMM sockets supporting up to 64 GB of system memory

* Support for up to 256 GB of system memory when using Registered DIMMs.

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

4 channel memory architecture

Support for DDR4 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules

Support for non-ECC memory modules

Support for Extreme Memory Profile (XMP) memory modules

Support for RDIMM 1Rx8 memory modules (operate in non-ECC mode)

(Please refer "Memory Support List" for more information.)

USB

Chipset:

4 x USB 3.0/2.0 ports (available through the internal USB headers)

10 x USB 2.0/1.1 ports (6 ports on the back panel, 4 ports available through the internal USB headers)

Chipset + Renesas® USB 3.0 Hub:

4 x USB 3.0/2.0 ports on the back panel

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x M.2 Socket 3 connector

1 x SATA Express connector

10 x SATA 6Gb/s connectors

1 x CPU fan header

1 x water cooling fan header (CPU_OPT)

3 x system fan headers

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

2 x USB 3.0/2.0 headers

2 x USB 2.0/1.1 headers

1 x Clear CMOS jumper

1 x power button

1 x reset button

1 x Clear CMOS button

1 x audio gain control switch

2 x BIOS switches

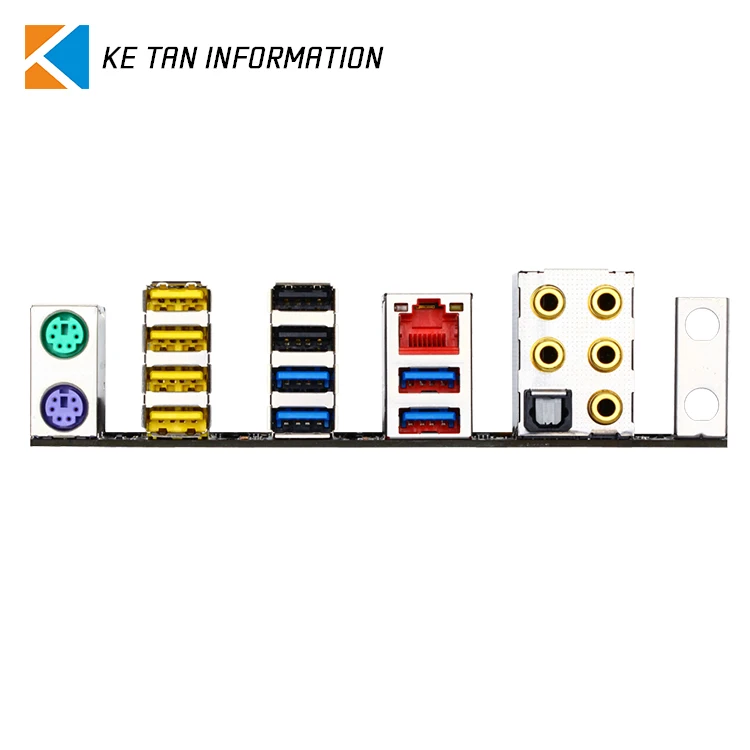

Back Panel Connectors

1 x PS/2 keyboard port

1 x PS/2 mouse port

4 x USB 3.0/2.0 ports

6 x USB 2.0/1.1 ports

1 x RJ-45 port

1 x optical S/PDIF Out connector

5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

2 x Wi-Fi antenna connector holes
