Medical laboratory equipment HHO manual ampoule glass sealing machine

Описание и отзывы

Характеристики

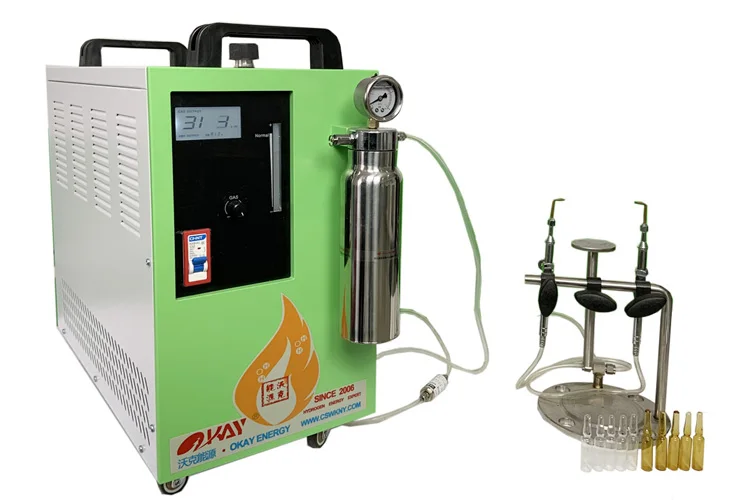

medical laboratory equipment HHO manual ampoule filling machine

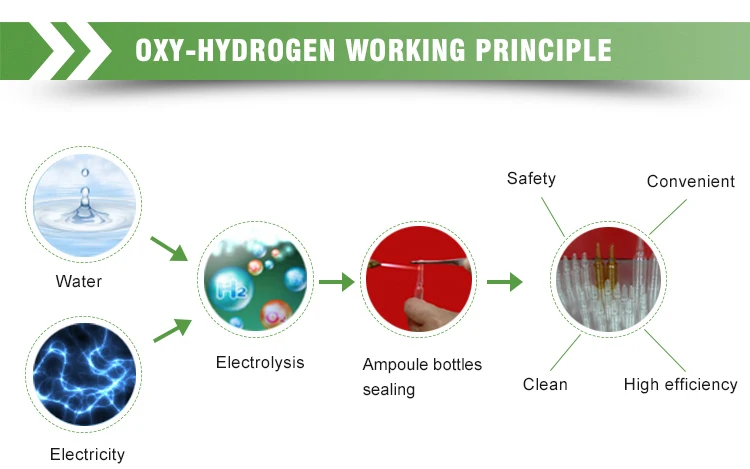

Oxyhydrogen Flame Ampoule Sealer Machine /Glass Ampoule Sealing Machine technology uses water as medium to electrolyze water into H2 and O2, fire them to formed Oxyhydrogen Flame. The temperature of Oxyhydrogen flame is as high as 2800 degrees so that it can seal the Ampoules very fast. The quality and speed of Oxyhydrogen Flame sealing method is higher than Liquid gas's.

Technical Paremeters

What is the advantages?

Traditional ampoules sealing machine adopts liquid gas as fuel and air as combustion-supporting gas.The producted flame contains carbon dioxide, carbon monoxide and nitrogen compounds,these substances will impact on the quality of pharmaceuticals and bring security hidden danger to work environment. According to the request of scientific research personnel, Our Okay Energy Equipment Co.,Ltd adopts Oxy-hydrogen generetor to seal the ampoules.

1. Safety

Oxy-hydrogen Flame Ampoules Sealing Machine just uses water and electricity, no gas bottle, no hydrogen gas storage, no leakage and explosive danger.

2. Convenience

it can work just with water and electricity, every litre water can be used 7~8 hours. But Liquid gas bottle need to be changed by manual moving, it is very inconvenient.

3. Cleanliness

Oxy-hydrogen combustion just produces little water vapour, there is no harm to the pharmaceuticals. But Liquid gas combustion produces carbon dioxide, carbon monoxide and nitrogen compounds which will impact on the quality of pharmaceuticals.

4. High Efficiency

The speed of Oxy-hydrogen Flame sealing method is higher than Liquid gas's.

How to Operate?

1. Install the Oxyhydrogen Flame Ampoule Filling and Sealing Machine according to the Operating Instruction, then connect the pipe, adjust position up and down.

2. Open the Power Supply switch of Oxyhydrogen Flame Ampoule Filling and Sealing Machine, start to produce gas, when the air pressure rises to 0.1Mpa, you can open the torch valve.

3. Firing to formed Oxyhydrogen Flame, can adjust flame size further through valve adjustment.

(Remark: When firing, pls don't let any part of the body be in front of the torch nozzle.When firing, you should be in the side of the torch to avoid firing your hands.)

4. Using the tweezer attached with machine to nip ampoule, the tautness of nipping should guarantee the ampoule not only won't come off, but also can rotate it with hand.

5. To put the ampoule in Oxyhydrogen Flame to heat and rotat it at the same time. When heating is finished, pull up the tweezer, the process of sealing is accomplished.

Machine Accessories For free

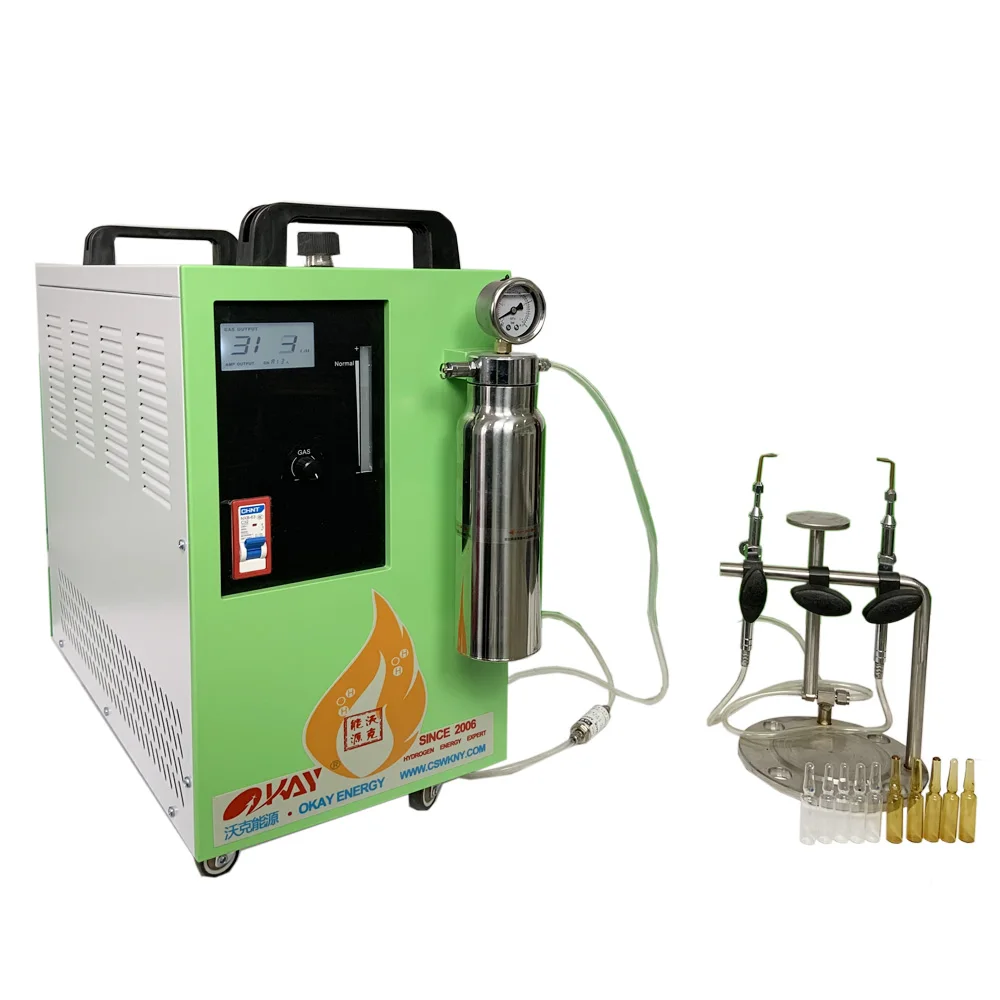

Oxyhydrogen Flame  Ampoule Filling and Sealing Machine : 1 set

Holder:1 piece

Okay Energy Equipment Co., Ltd which is the biggest supplier of oxyhydrogen generator in China,we have researched and produced hho generator for more than 15years.

During these years,it has been perfected continuously and has been mature now.

We have authorized CE, ISO certificate and many of own patents successfully.

1.How to install and operate the oxyhydrogen generator for the newer?

-we will provide you operation manual and video when you buy the machine.

2. Does the Oxyhydrogen water flame welding machine make big noises?

 -Not really , only the fan sound.

3. How about the operation safety of the oxyhydrogen machine ?which aspect should pay attention to ?

-There are multiple tempering inside to protect the machine from back-fire. Besides,the flame arrestor and the nozzle also have the back-fire function .

Notice: Be quick when you turn off the heat and replace the wearing parts (nozzle) half a year, so as to avoid back-fire .

4. Is the temperature same among the different machine models?

-Yeah,the temperature is same but the gas outs are different.

5.Is there any influences using different machine models?

-You’d better to communicate with our professionals first to choose the right machine models.

The gas output has a direct influence for use.
