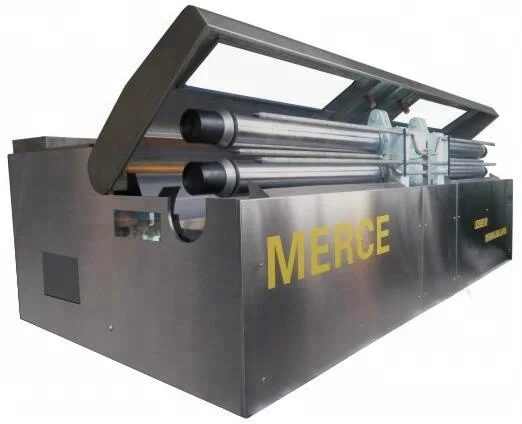

MERCE-10SPC Автоматическая мерсеризационная машина для пряжи

Поделиться:


Цена:
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики


Product Description


    The new Hanks Mercerizing machine MERCE-10SPC is born with the main purpose to furnish an instrument able to obtain a high quality mercerized yarn/thread for the market of high valuable cotton yarn.
    All tests effected on the different kind of yarns have shown that to obtain a good mercerized yarn it is not sufficient to know the "right" recipe/process, but it is most important keep under control all the process parameters and especially to guarantee the repeatability between a cycle and the next one.(means make colour very even.)
    This is the advantage point of MERCE-10SPC, this machine has been projected with an essential electronic control system to permit the setting out of work's cycles (recipes) in flexible and fast way controlling in real time all the process parameters. It is equipped with simple but strong mechanics able to carry the heavy tensioner stress (up to 80 Tons) and the heavy pressing stress (up to 30 kg/cm) of the hanks under process.
    MERCE-10SPC includes all advantages of three company's (Nishinakajima, Jaeggli, Rite) products, and try to avoid complicated maintenance. in a word: High quality end products, Easy operation, Easy Maintenance.

\t
Electrical installed power
\t
12 kw 400vac
\t
Rotation speed of the hanks
\t
12~25 m/min(to be set by inverter)
\t
Water Consumption
\t
about 300 I/cycle (1/3 room temperature. 2/3 hot 60~80℃)
\t
Caustic soda consumption
\t
1000~1300 g/kg of yarn of NaOH at 28
\t
Normal reeling size
\t
1.370 mm (54") or 1500mm(59")
\t
Range of yarn counts
\t
Up to 120S/2
\t
Hank's weight
\t
0.20-1 kg
\t
Maximum stretching size
\t
1.520 mm
\t
Stretching rollers diameter
\t
210 mm
\t
Useful stretching roller width
\t
1.500 mm*2
\t
Maximum loading capacity/cycle
\t
12 kg
\t
Maximum production/Hour
\t
120 kg/h
\t
Average time of one cycle
\t
300-360 seconds
\t
Stretching force
\t
75 tons,Normal use 60 tons
\t
Squeezing pressure
\t
10-30 kg/cm(adjustable)
\t
Weight
\t
12600 kg
\t
System control
\t
By mitsubishi touch-Panel,PLC
