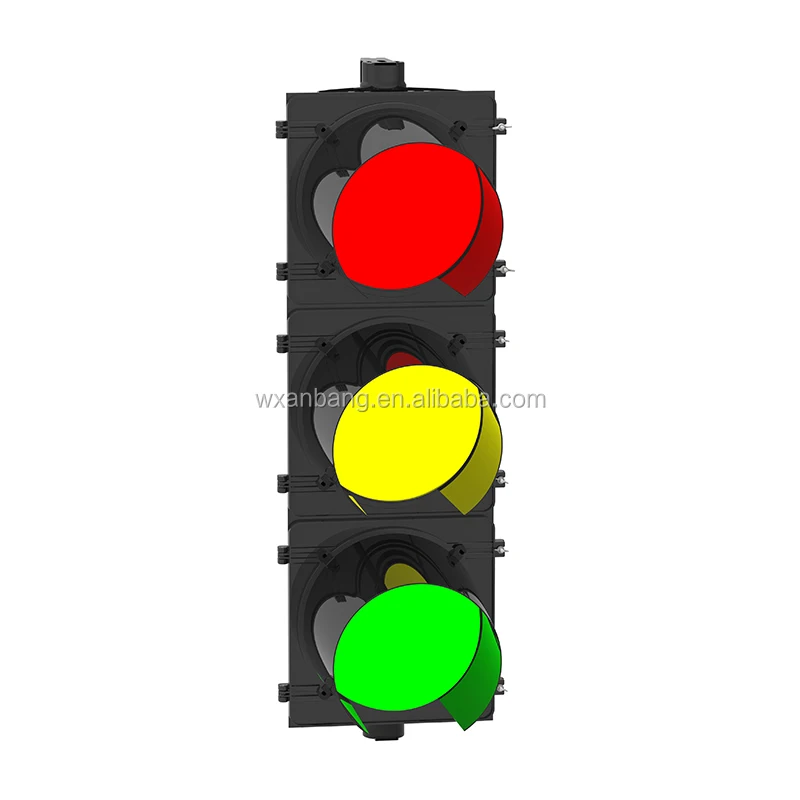

High Brightness Red Green Yellow 12V 24V 110V 220V Voltage Led Lane Traffic Signals Light

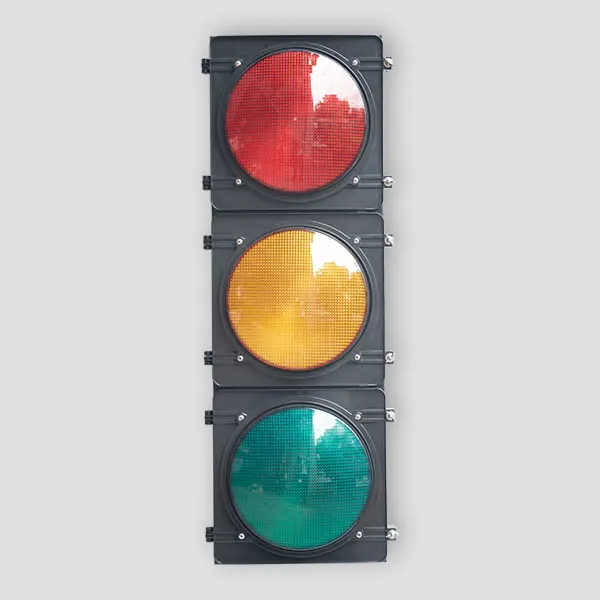

LED Traffic Lamp/Led traffic signal light/Led traffic head
1. Features:
The housing is made of PC material, which can be open and be maintained without other special tools. It is characterized with high impact strength, dimension stability, electricity insulation, corrosion resistance and abrasive resistance.
Ø Low power consumption
Ø Operating at the temperature of -40℃ to +74℃
Ø Wide viewing angles
Ø Even brightness & standard chromatogram
Ø Compatibility with most traffic controllers
2 Product parameters: High Brightness Red Green Yellow 12V 24V 110V 220V Voltage Led Lane Traffic Signals Light
Product name | Product model | Product drawing No. | Product size | Housing material | Housing color |
300mm traffic head | JD300-3-3* | JD300-3-*.00.00 | 1044X342x363mm | Polycarbonate housing | Black or yellow |
Color | Emitting surface size | Lens features | Characteristics of LED | Number of LED | Luminous intensity | Light distribution characteristics | Voltage | Rated power | Meet standard |
Red | Φ300mm | Fresnel lens | Hi-flux LEDs | 3pcs | >400cd | Incandescent look | 220vac Or 120vac | ≤12W | EN12368 |
yellow | Φ300mm | Fresnel lens | Hi-flux LEDs | 3pcs | >400cd | Incandescent look | ≤11W | ||
green | Φ300mm | Fresnel lens | Hi-flux LEDs | 3pcs | >400cd | Incandescent look | ≤13W |
Color | Power factor | Total harmonic distortion | Phantom class | Operation temperature | Chromaticity | IP (LED Modules) | IP (Traffic head) |
Red | >0.90 | ≤20% | 4 | -40°C~+80°C | 625nm±5nm | IP65 | IP55 |
yellow | >0.90 | ≤20% | 4 | -40°C~+80°C | 590nm±5nm | IP65 | IP55 |
green | >0.90 | ≤15% | 4 | -40°C~+80°C | 505nm±4nm | IP65 | IP55 |
3 Dimension:High Brightness Red Green Yellow 12V 24V 110V 220V Voltage Led Lane Traffic Signals Light
4 Package and shipment
| Package Size (Carton) | Net Weight(kgs) | Gross Weight(kgs | Quantity(pcs) | Accessory |
42*40*106 cm
| 20 | 21 | 2 in 1 carton | Visor and bracket |
We arrange the shipment according to our product quantity and weight
For samples, shipped by Express, DHL,UPS,EMS,Fedex available
For more quantity, we can shipped by air/sea to yours nearest port.
5 This High Brightness Red Green Yellow 12V 24V 110V 220V Voltage Led Lane Traffic Signals Light applied to parking lot or traffic junction
6 Company information
Wuxi Anbang Electric Co.,Ltd created 1998, is a high-tech enterprise specializing in researchi& develop led traffic light, include led traffic signal light(100mm/200mm/300mm), traffic signal light modules, pedestrian traffic signal light, traffic countdown, arrow traffic light, fullball solar traffic light, led street light of different Specifications.
All our traffic lights comply with ITE, EN12368, CE, RoHS, ISO9001: 2008 standards.
