Suntask новый солнечный коллектор с CPC отражателями

Описание и отзывы

Характеристики

Suntask New Solar Keymark Fast Assembly CPC heat pipe solar collector SHC model

Model No: SHC8  SHC10  SHC12  SHC15  SHC18  SHC20  SHC24

Speficaitions:

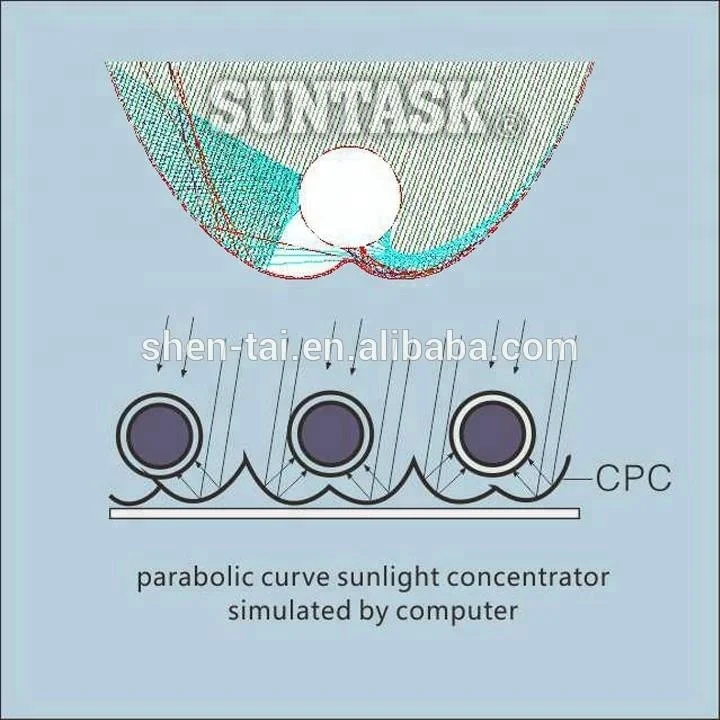

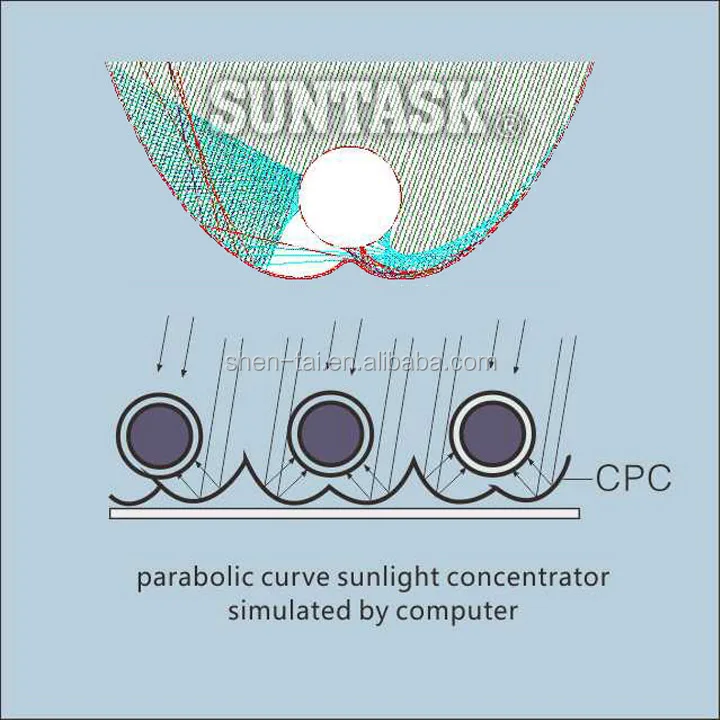

1.Sunlight concentrators make the efficiency doubly increased;

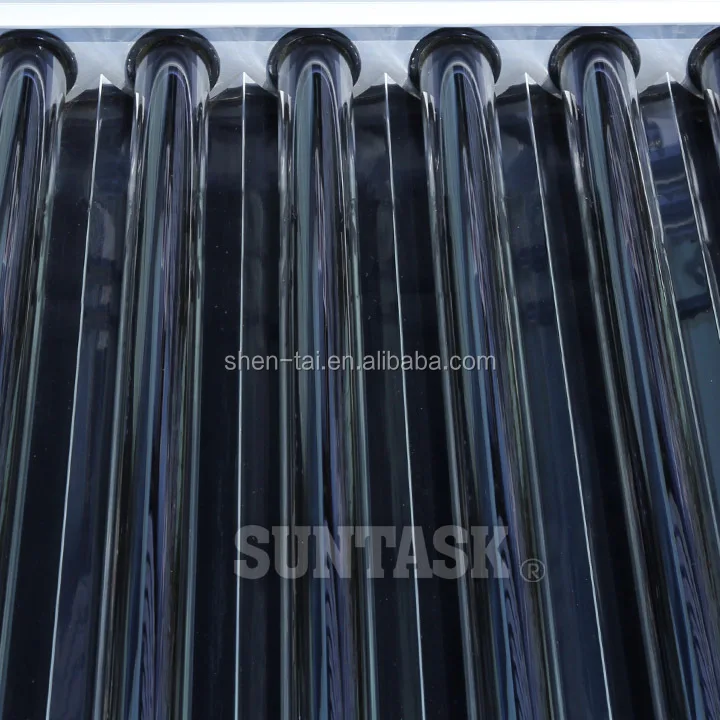

2. Fast assembly CPC concertrators more easy installation and transportation;

3. 360 sunlight absorber, hot water in cloudy;

4. Overheating protection just disassembly the CPC in summer;

5. Temperature startup more faster than the normal solar thermal collectors;

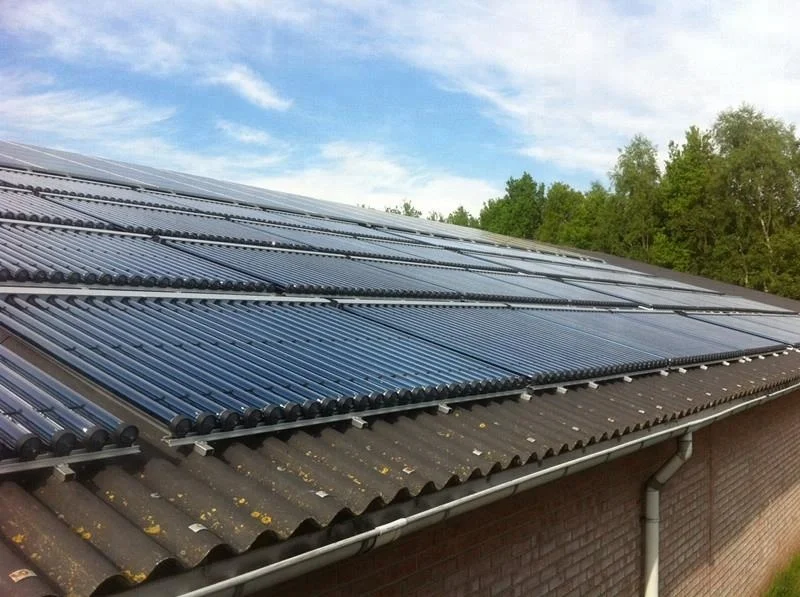

6. Applicable for the industry heating;

7. More thermal power based on the same aperature area;

8. With EN12975, Solar Keymark

CORE TECHNOLOGY:

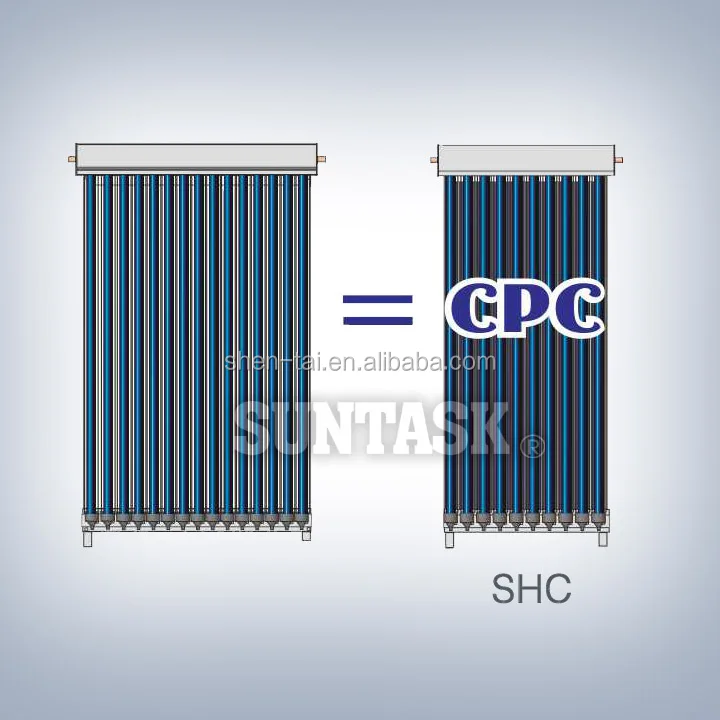

1. Heat pipe solar collector with CPC can get the highest power output and with largest aperture area;

2. fast assembly: more convenient for installation and for transportation;

3. high perfomance heat pipe, cold resistance -45°C, highest stagnation temperature 280°C.

4. The power output higher 50% compare to the normal solar collectors. Smaller installation area but equal to the same power output.

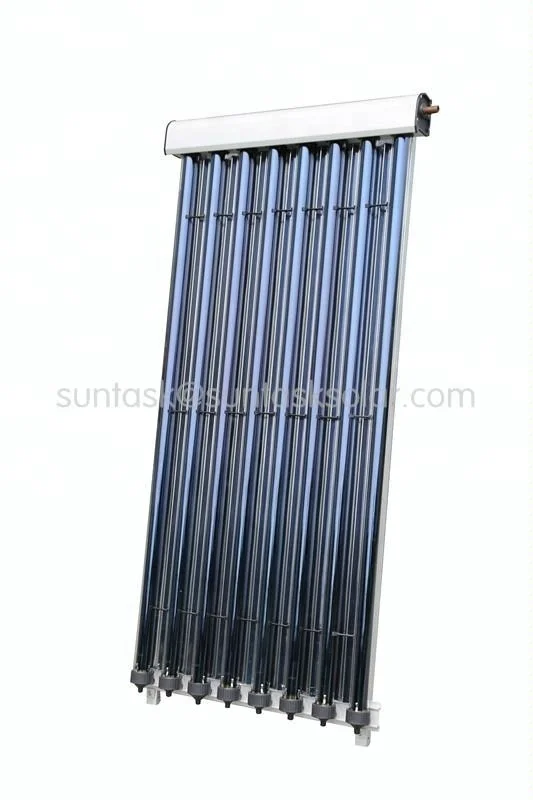

Vacuum solar collector specification
1. Manifold (interior): 0.8mm thickness Red copper
2. Manifold (exterior): 2.0 mm thickness Aluminum alloy
3. Glass tube dimensions: 58mm x 1.800mm

4. Insulation layer: 45mm thickness glass firber /polyurethane layer
5. Heat preservation: 72-96hrs
6. Hail resistance: 25mm
7. Max pressure: 6 bar
8. Coating of vacuum tube: Ss-c/cu
9. Frame: 2.0mm thickness Aluminum Alloy
