ZB4132G Europe Type Bench Press Drill Type Small Drill Press machine
Product Description:
1)Automatic spindle feed:stepless speed adjustable function,
2)Big in spindle travel and wide in processing range;
3) With tapping function,with U-shaped Protection Cover
4) Belt cover can be opened with power off function;
5) Worktable can be raised up and down, can be rotated 360 degrees, Easy in operation.
6) The spindle box, Work table, column and base are made of high-quality cast iron, treated with heat treatment, stable and durable
7) Spindles, splined sleeves, and gear shafts are heat-treated and have high strengthand.
Specification of small drill press machine:
| Max. Drilling capacity | 31.75mm |
| Max.tapping capacity | M24 |
| Max.feed rate | 113mm/min |
| Max. Distance spindle nose to base | 745mm |
| Max.distance spindle nose to tabile | 390mm |
| Distance spindle axis to column generating line | 265mm |
| Diameter of column | 100mm |
| Spindle speeds range | 280-1875r/min |
| Spindle travel | 150mm |
| spindle taper | / |
| Dimension of worktabie surface | 380X400 |
| Motor | 1.5KW |
| Net weight | 238KGS |
| Packing dimension | 1040x640x1510 |
Guarantee:
Within one year after receiving our drill press machine,In the right operation of machine,if there are any damaged parts or accessories ,We will supply standard parts&accessories ,We will replace them by express mail or air-mail Immediately
FREE OF CHARGE. BESIDES,we will supply standard parts&accessories with drill press machine when shipment.
Export HIstory :
We are one of biggest manufacturer of producing small press drill machines in China.
Our mini drill press machines are widely exported to more than 70 countries®ions ,including France ,Australia,Turkey,Spain,Italy and so on,especially Europe &American
markrt. Our press drill machines are so popular with customers by its good quality and competitive prices.

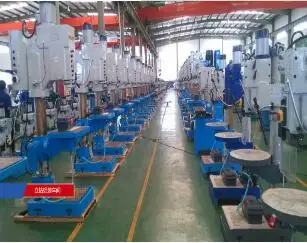

Factory Information:
