40m3/h diesel concrete mixer and pump

Welcome to inquiry /visit us . mobile/wechat/whatsapp 86-15866001919

Choose MINLE as partner,let us make every effort to support your custruction works!

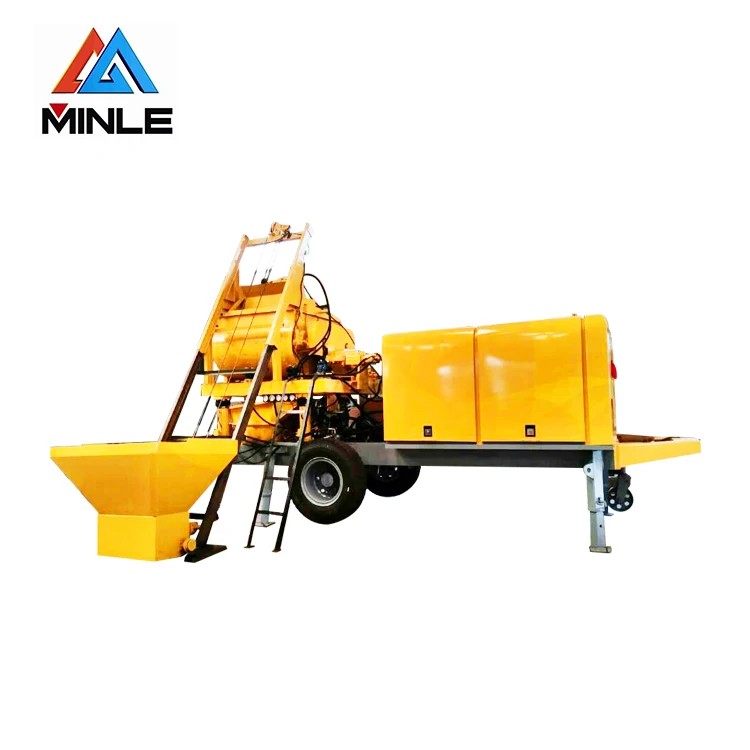

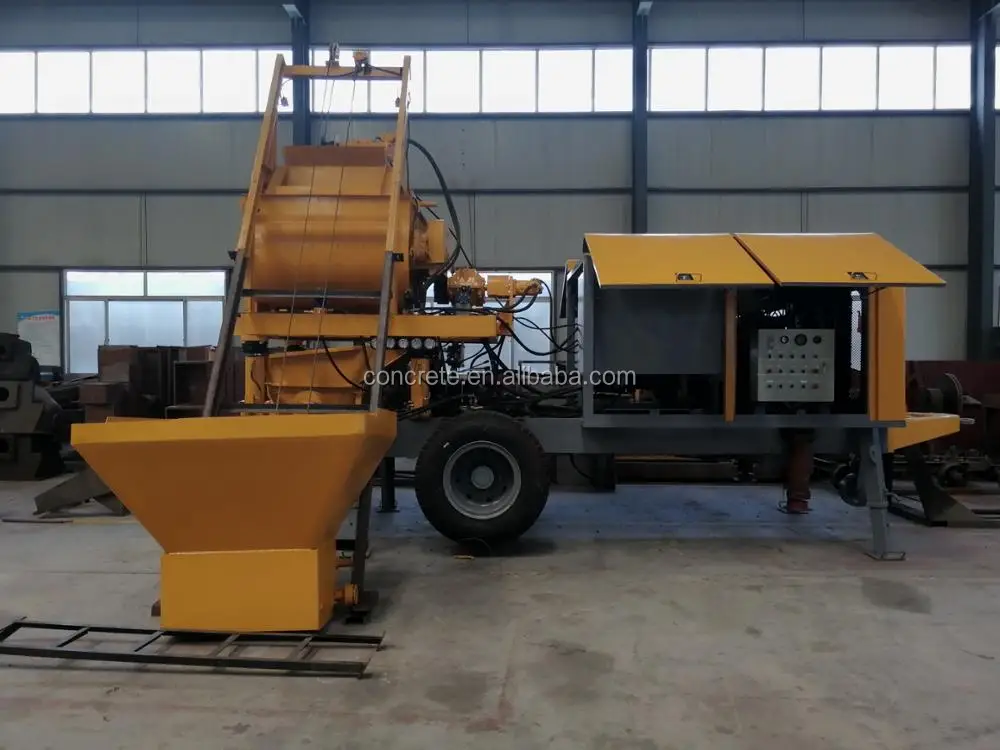

concrete mixer pump .jpg

Products Description of concrete mixer and pump :

Concrete mixer and pump integrates concrete feeding, mixing and conveying functions seamlessly in one concrete pump machine, the concrete mixer pump can be driven by diesel engine or electric motor as your choice. It is widely used for continuously concrete mixing and conveying through high hydraulic pressure along the pipeline in such applications as housing building, bridge or tunnel construction. MINLE brand concrete mixer pump is made with high wear and strong corrosion resistant chrome alloy steel to greatly improve the product performance, and is optimized by the electric proportional control buffering, pressure difference sensing and reversing technology to decrease high pressure oil pump reversing time. Our concrete mixer pump is intelligently controlled to achieve the perfect and high efficient concrete mixing and conveying, it features compact structure, stable concrete pumping, energy saving, high efficiency, flexible movement and easy operation, etc.

Features of Concrete Mixer and Pump

Perfect combining concrete mixing with conveying in one machine.

Diesel concrete mixer pump and electrical concrete mixer pump are available.

Concrete pump is engineered with latest differential pressure induction control technology.

Hydraulic double-cylinder piston system, more stable concrete flowing and pumping.

Simplified working procedure, improved working efficiency.

Mortar stop pressure relief valve, pumping cleaning ball washing, more secure and faster cleaning operation.

Advanced hydraulic system.

Adaptive gear adjustment technology, smart matching of operating conditions.

Automatic and intensive lubrication system ensures effective lubrication during the operation.

Improved Hopper, high effectivity.

Powerful mixing ability.

High reliability and wear resistance components, imported brand main hydraulic components.

SYMC intelligent controller, high-speed and reliable operation.

More reliable redundant control design.

Compact structure, flexible to operate.

Longer serve life.

Competitive factory price.

Specifications of Concrete Mixer and Pump

item	unit	QJHBT40-13-120R
Theoretical Max output	m3/h	40
Max. Pressure on Concrete	MPa	13
concrete slump	mm	100-200
Aggregates size	mm	30
The type of distribution valve		S Tube valve
concrete cylinder	mm	Φ200*1050
generator set(Perkins)	KW	100
delivery pipe diameter	mm	Φ125
Hydraulic Oil tank capacity	L	300
Pumping hydraulic system working pressure	Mpa	30
Hopper mixing hydraulic system working pressure	Mpa	14
Maximum theoretical delivery Horizontal distance	M	400
(Db)		less than 116
Maximum theoretical delivery Vertical distance	M	150
mixing motor	KW	15
improving motor	kw	4.5
pump motor(Siemens)	KW	45
water pump motor	kw	0.7
Cleaning Mode	High pressure washing
