House wrap membrane * moisture permeable * widely sell around the world



breathable nonwoven


Brand kedebon breathable waterproof non woven rolls





Product Description:


   Kedebon breathable membranes have excellent performance at water resistance, meanwhile with particular function of high vapor permeability, which mainly use used in construction as underlay on pitched roofs or walls.

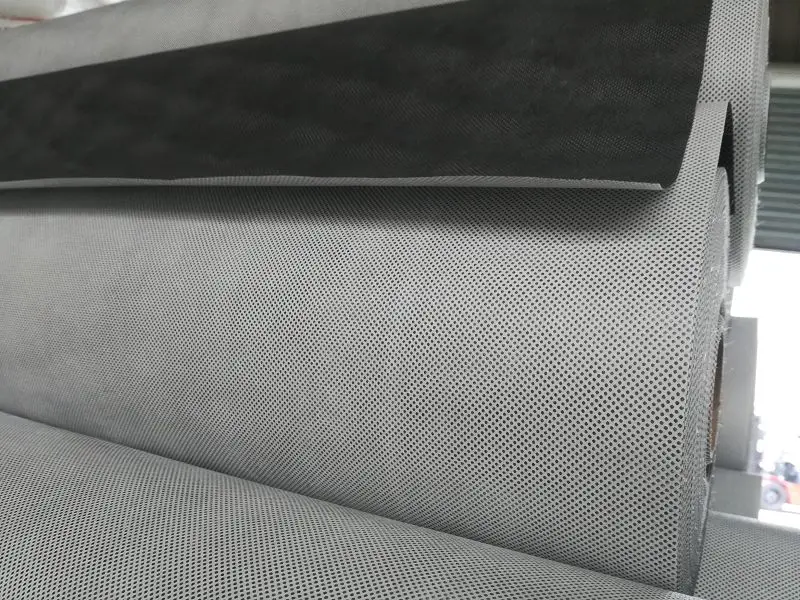

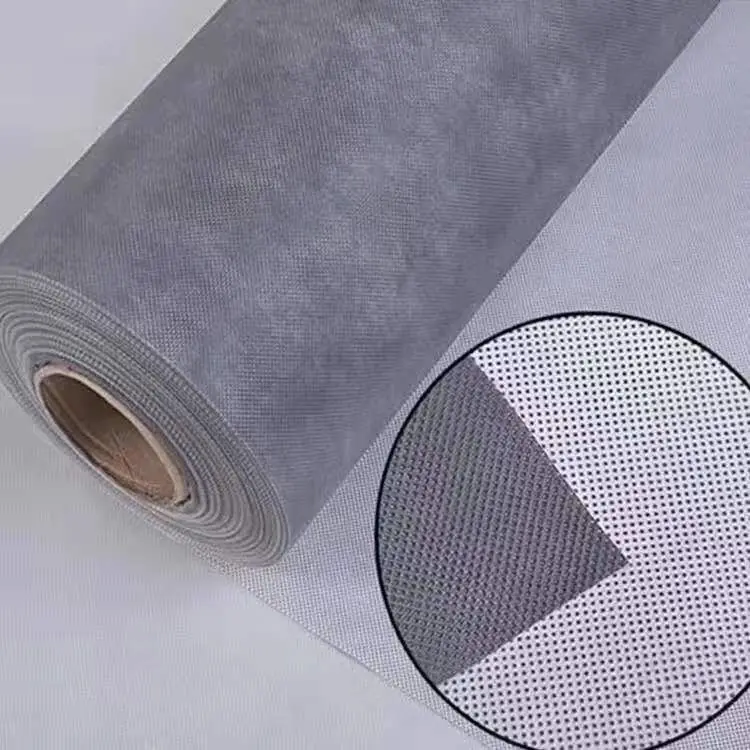

_20190929105323IMG_1859IMG_20180316_154932

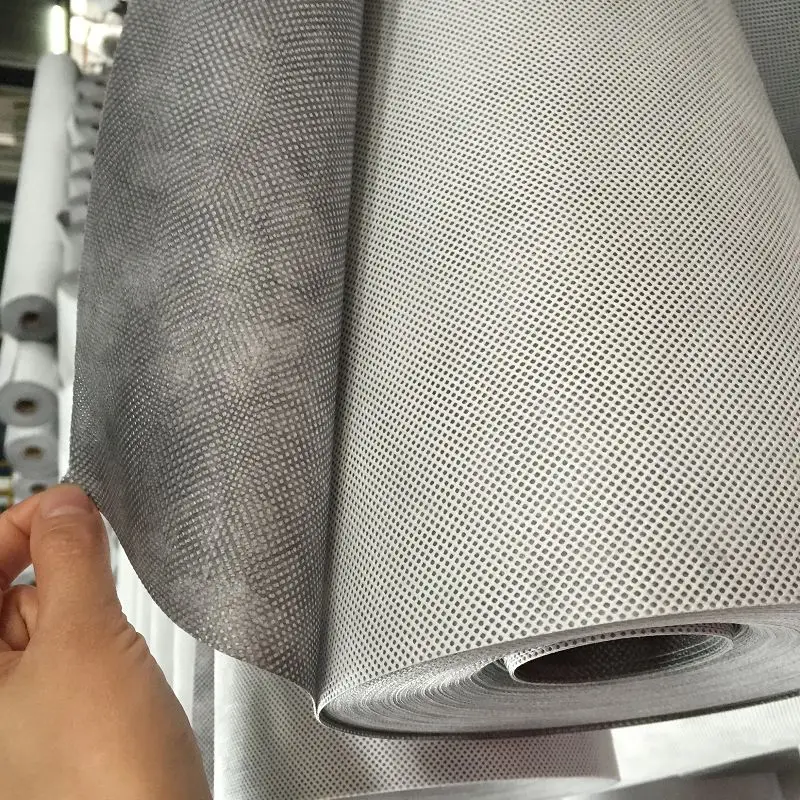

Kedebon high breathable waterproof membrane

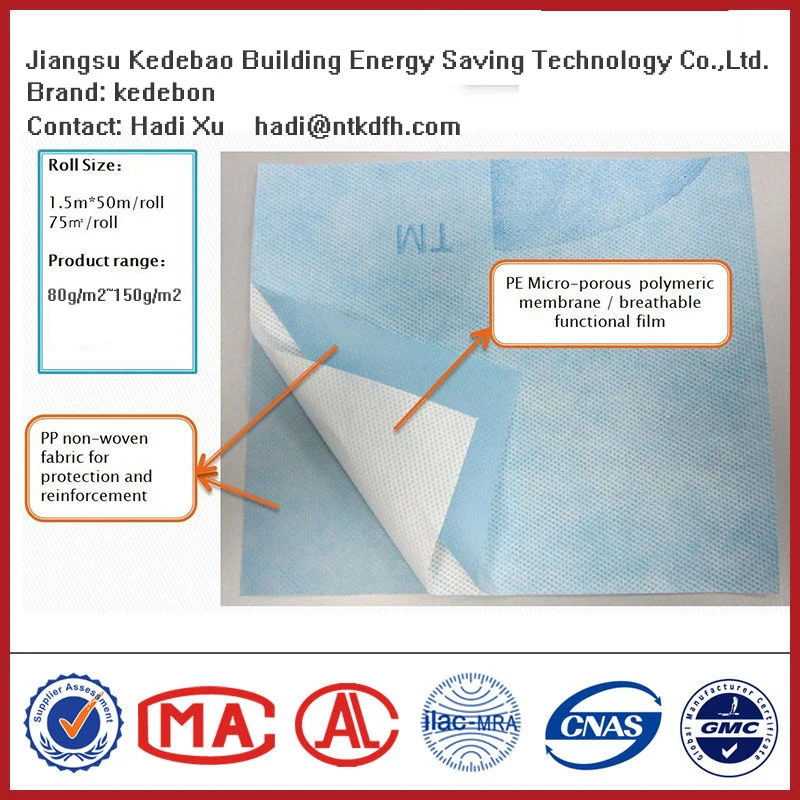

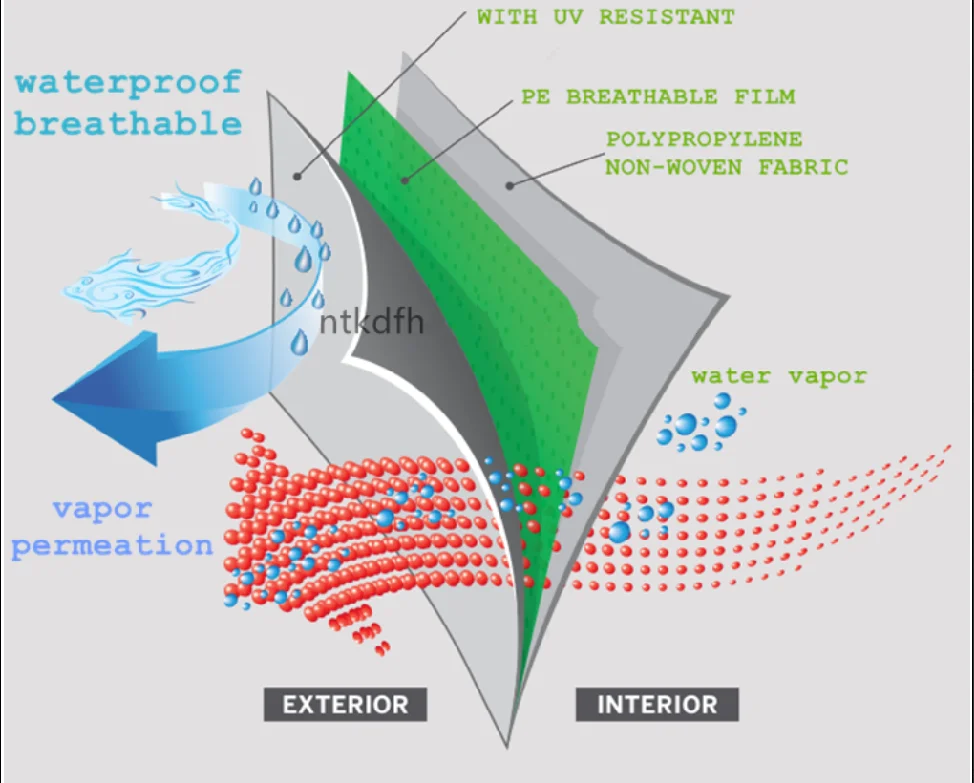

Kedebon breathable membranes are 3 layers thermo-bonded: PP non-woven fabric of top and bottom layer for protection and reinforcement; Micro-porous PE film, between the two layers, is to form breathable membrane. They are polyolefin products that can easily be recycled and can even be categorized as a normal household waste.

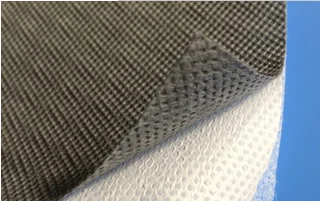

18HTB


Kedebon high breathable waterproofing non-woven rolls


Our Advantages:


1) Breathable membrane with excellent waterproofing properties.


2) High water vapor permeability.


3) Stable anti-UV & anti-aging performance.


4) 3-layers thermal laminated: PP+PE+PP.


5) Light weigth so easy handled.


6) Excellent tensile and tearing strength.


7) Good low temperature flexibility.


8) For both roof and wall application.


9) High quality with very competitively price.


Kedebon high breathable membrane *waterproofing&water vapour permeable



















































































Physical Property



Result



Test Method



Size



1.5M*50M







Colour



Orange







Thickness



0.55mm







Weight



145g/m2







Water vapour transmission



>600g/m2/24h



BS 3117(25/75%RH)



Hydrostatic Pressure of Water



1500mm,2h


No Leaking



BS EN 20811



Water Resistance



Pass



BBA T1/15(2)



Nail Tear Resistance



50N(MD,CD)



MOAT 27:5.4.1



Tensile Strength



150N/5cm(MD),90N/5cm(CD)



EN ISO 527-3(Test Speed 100mm/min)



Bending at low temperature



-30 No Cracking







UV Resistance



3~4 month







Aging Test under Hot Air(80℃,168h)



Visual Inspection



No powder,No layered



Retention rate of Tensile Strength



>80%(MD,CD)



Hydrostatic Pressure of Water



1000mm,2h


No Leaking



Water vapour transmission



>1000g/m2/24h

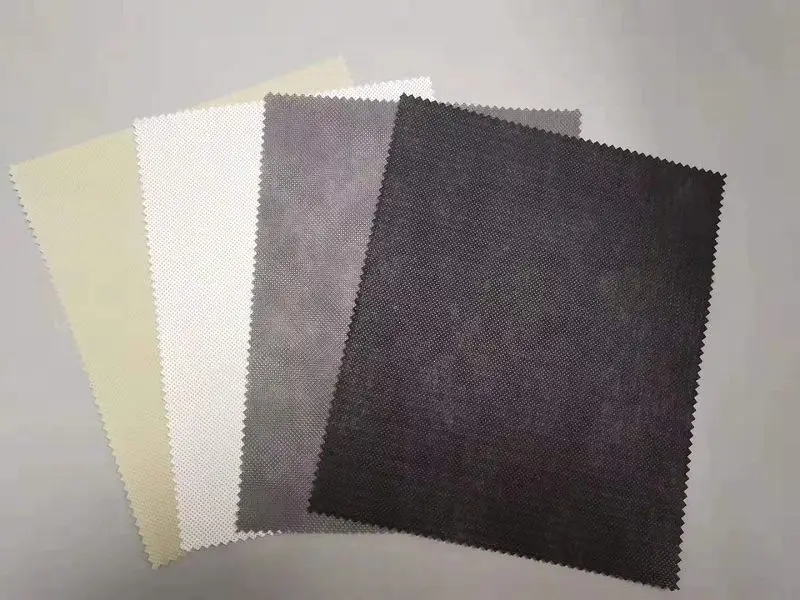

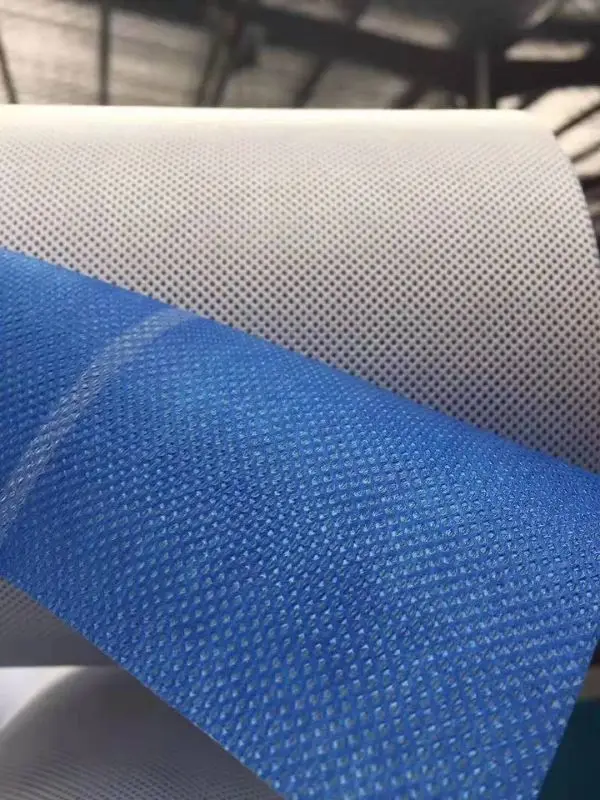

_20190929105533_20190929105621

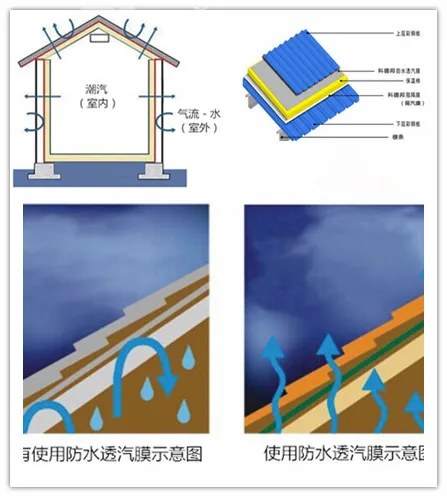

Wall Application


  Waterproof and breathable membrane is widely used as house wrap in buildings.It looks like the comfortable clothes of the house,keep the rain and condensate water away from the wall insulation,the most important is moisture may pass throgh the membrane,that is why we call it breathable membrane.

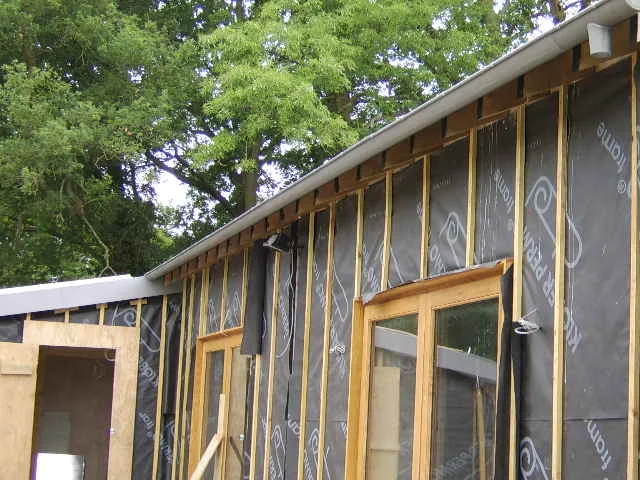

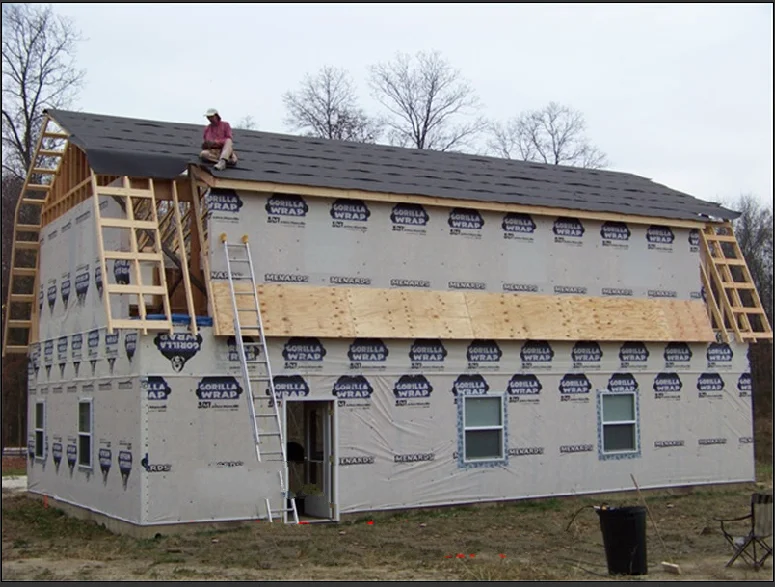

For wooden house:


00951472165956

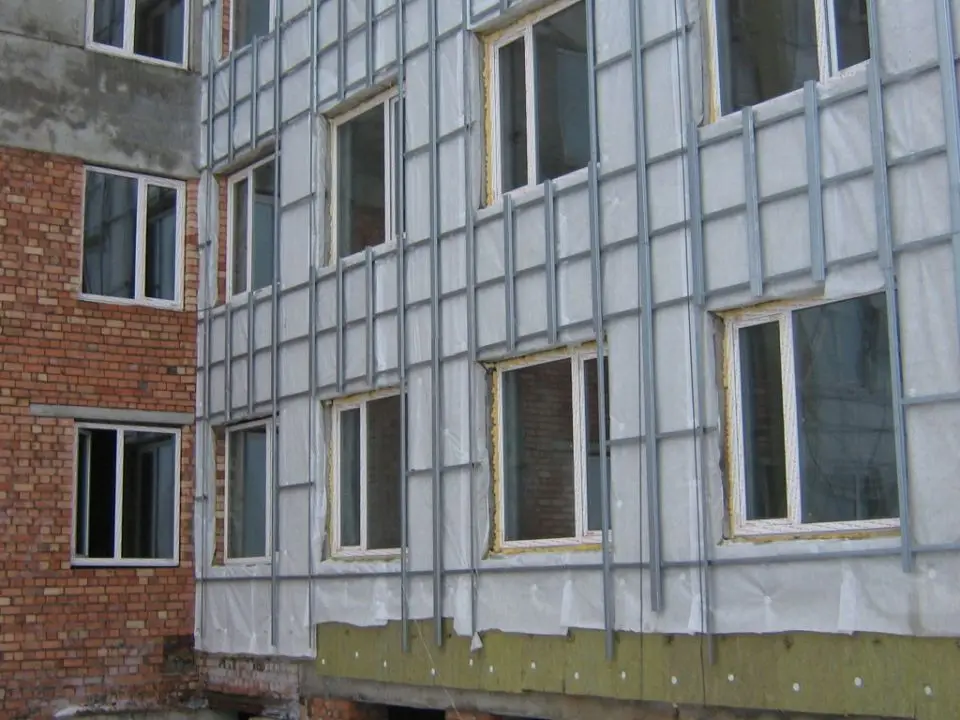

For metal structure building:


02


For Modular integrated house:


070950166841b





Roof Application


Kedebon breathable membrane is widely used for many roofs,including wooden pitched roof,metal roof and so on.Breathable membrane is placed under the exterior roof and its primary function is to work as a shield that protects the thermal insulation material and the building structure from the destruction of the weather.

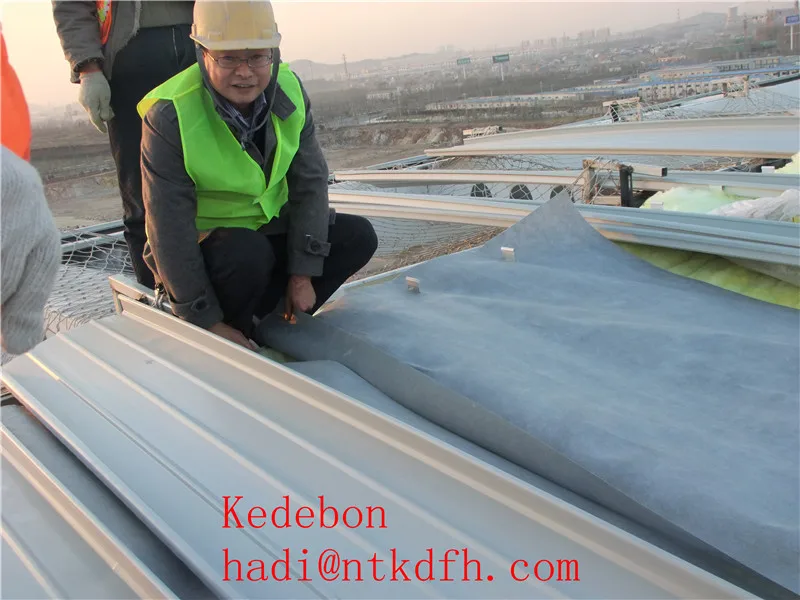

For metal roof(widely uesed in China's market):

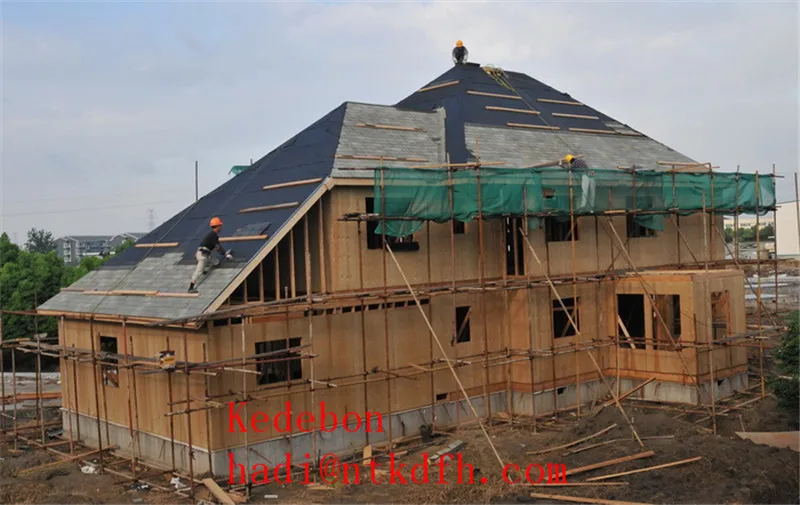

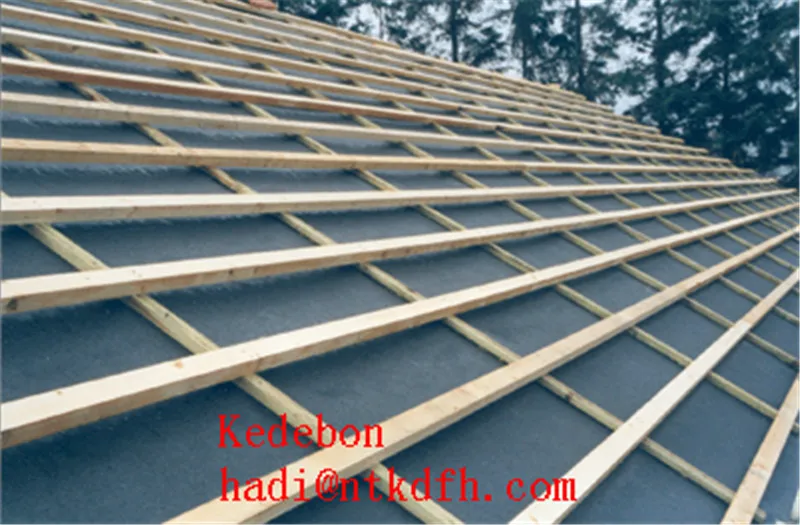

For Pitched roof:


12

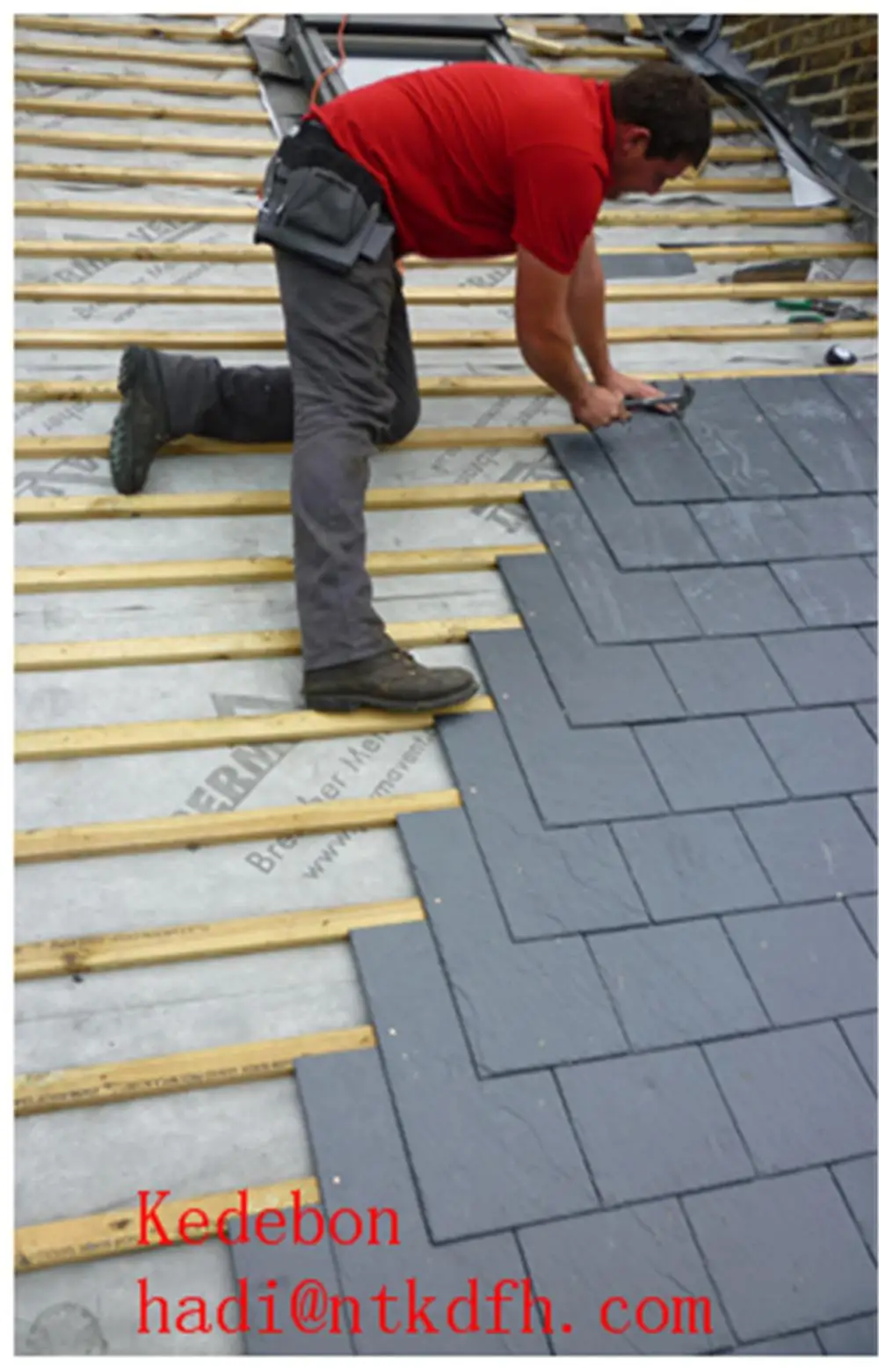

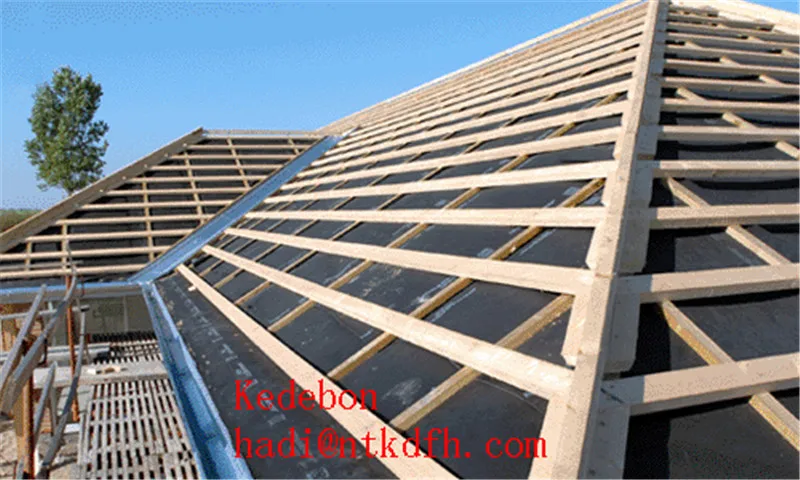

For wooden roof:


201312121386832173578





Product Advantages


Why choose this membrane:


1) Breathable membrane with excellent waterproofing properties.


2) High water vapor permeability.


3) Stable anti-UV & anti-aging performance.


4) 3-layers thermal laminated: PP+PE+PP.


5) Light weigth so easy handled.


6) Excellent tensile and tearing strength.


7) Good low temperature flexibility.


8) For both roof and wall application.


9) High quality with very competitively price.

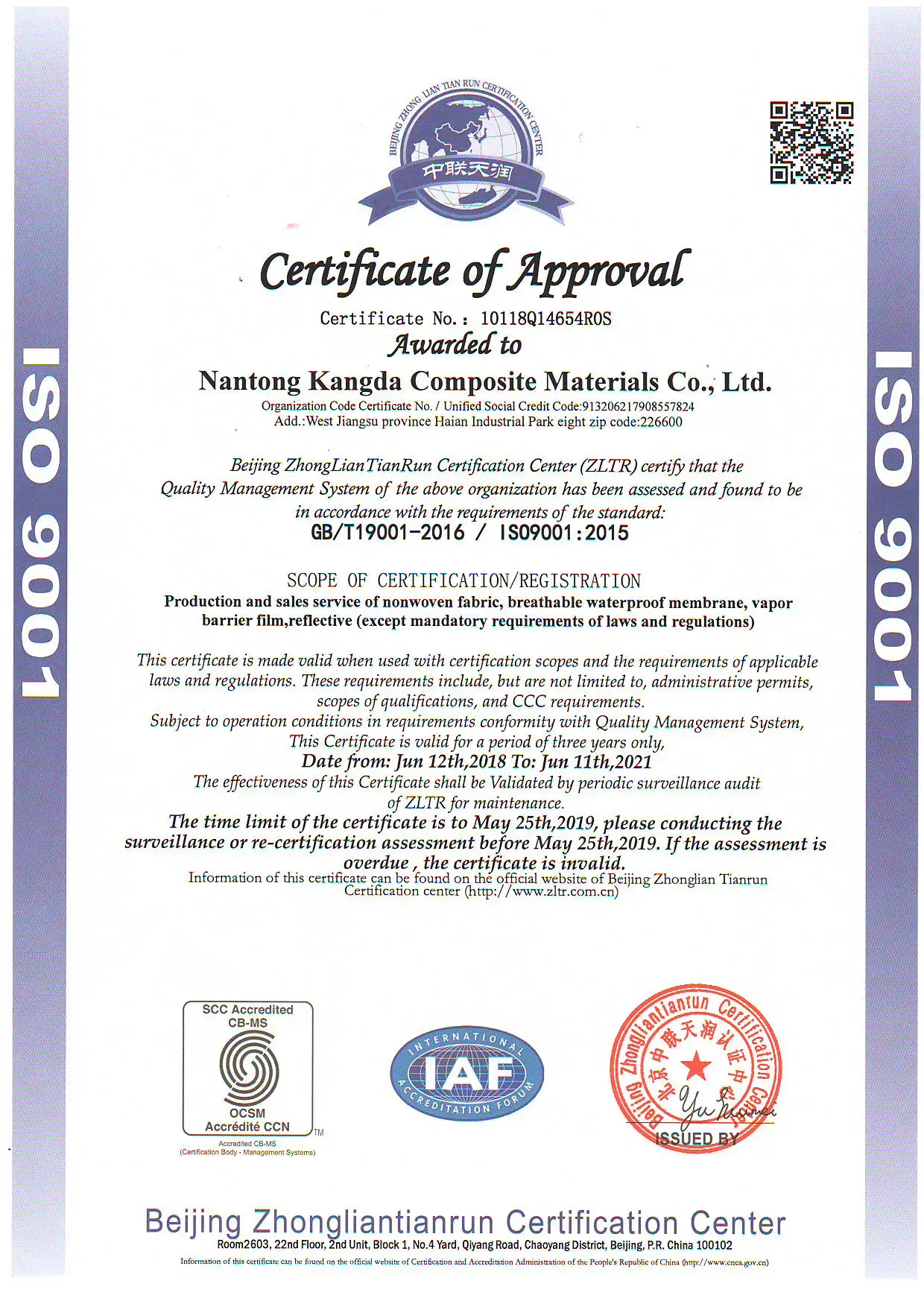

ISO (1).JPG2019.jpg
