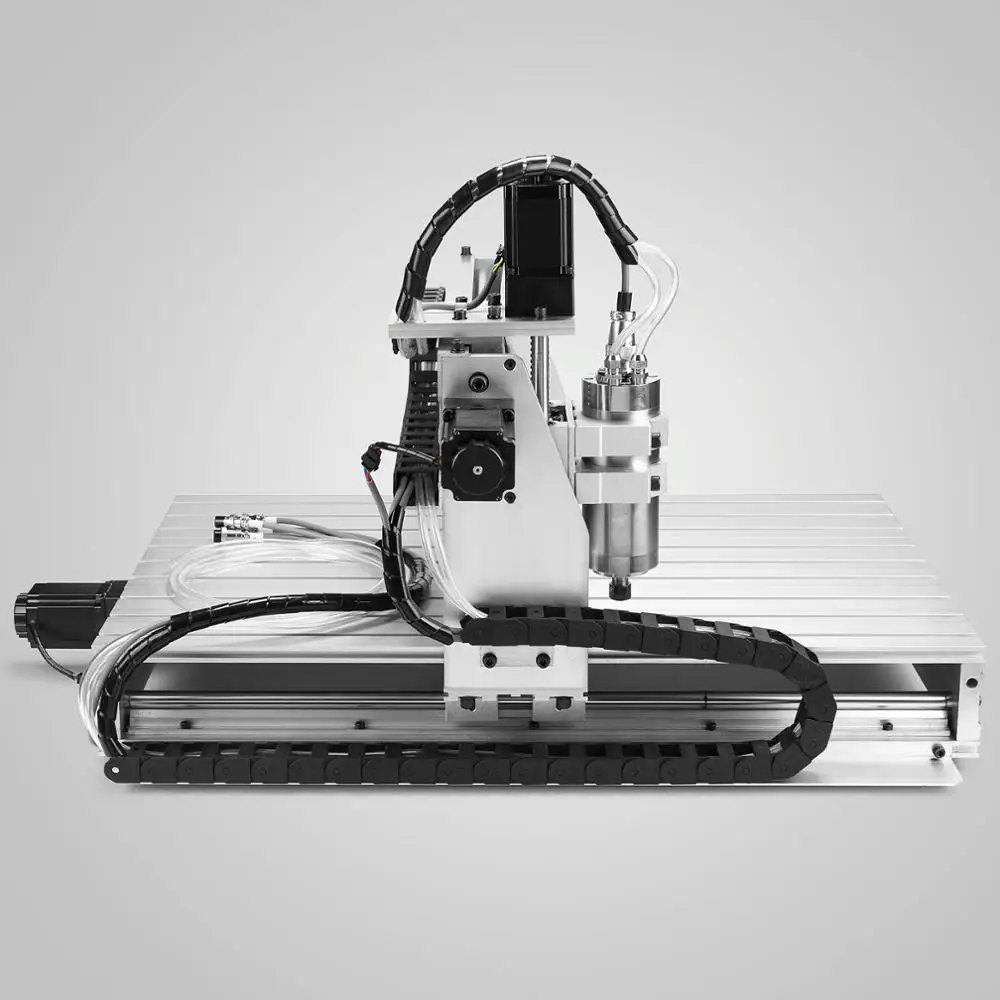

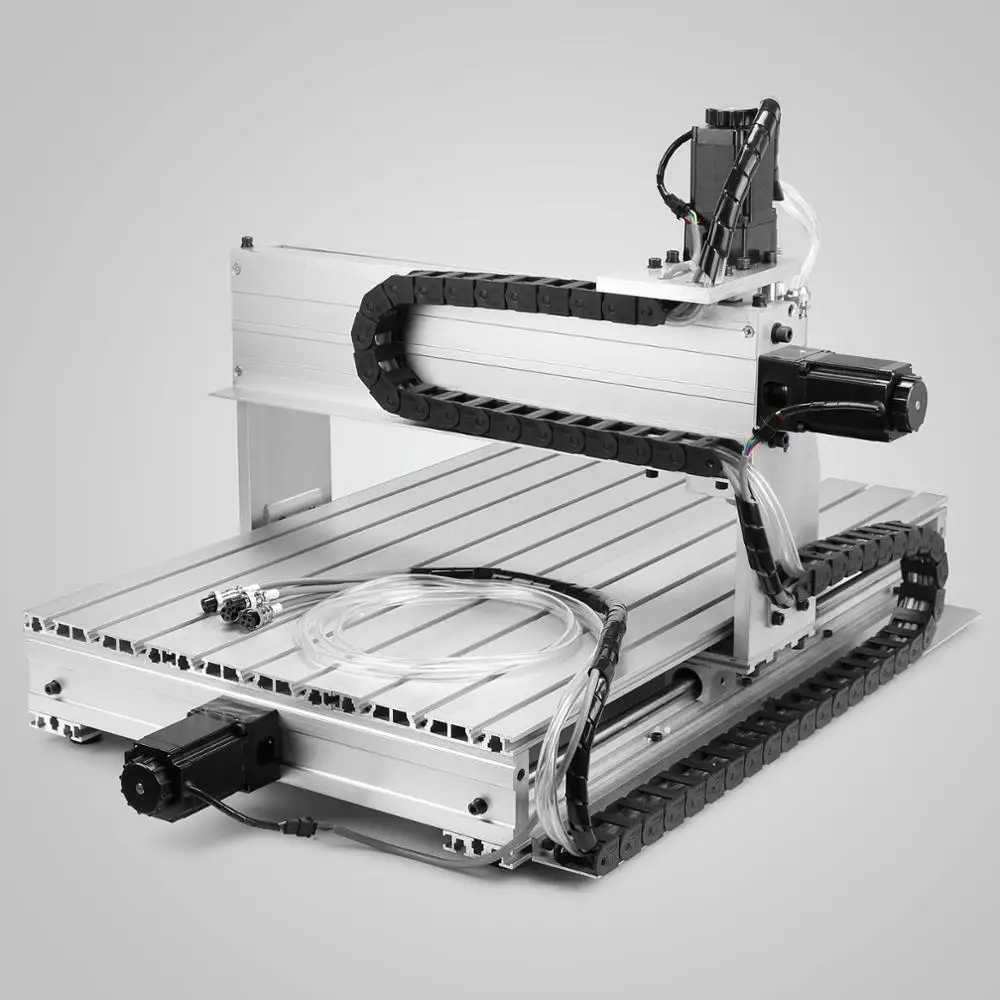

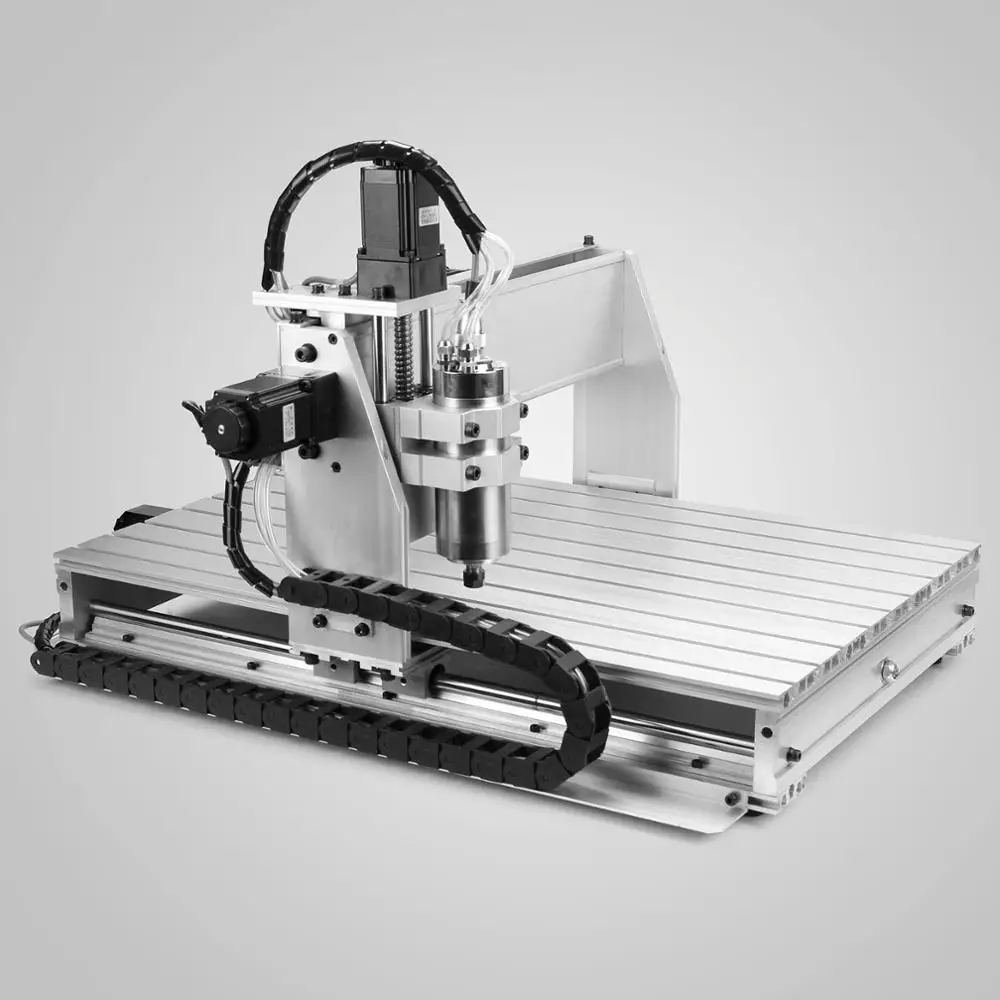

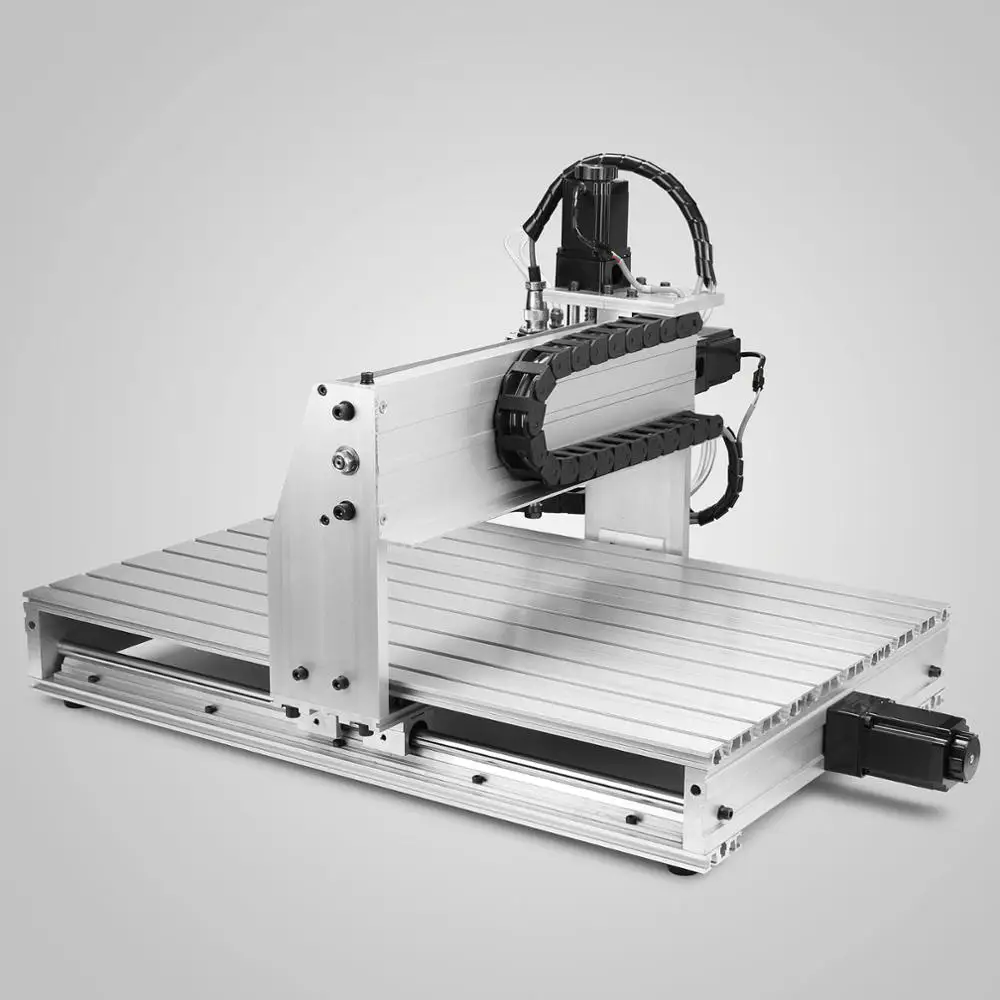

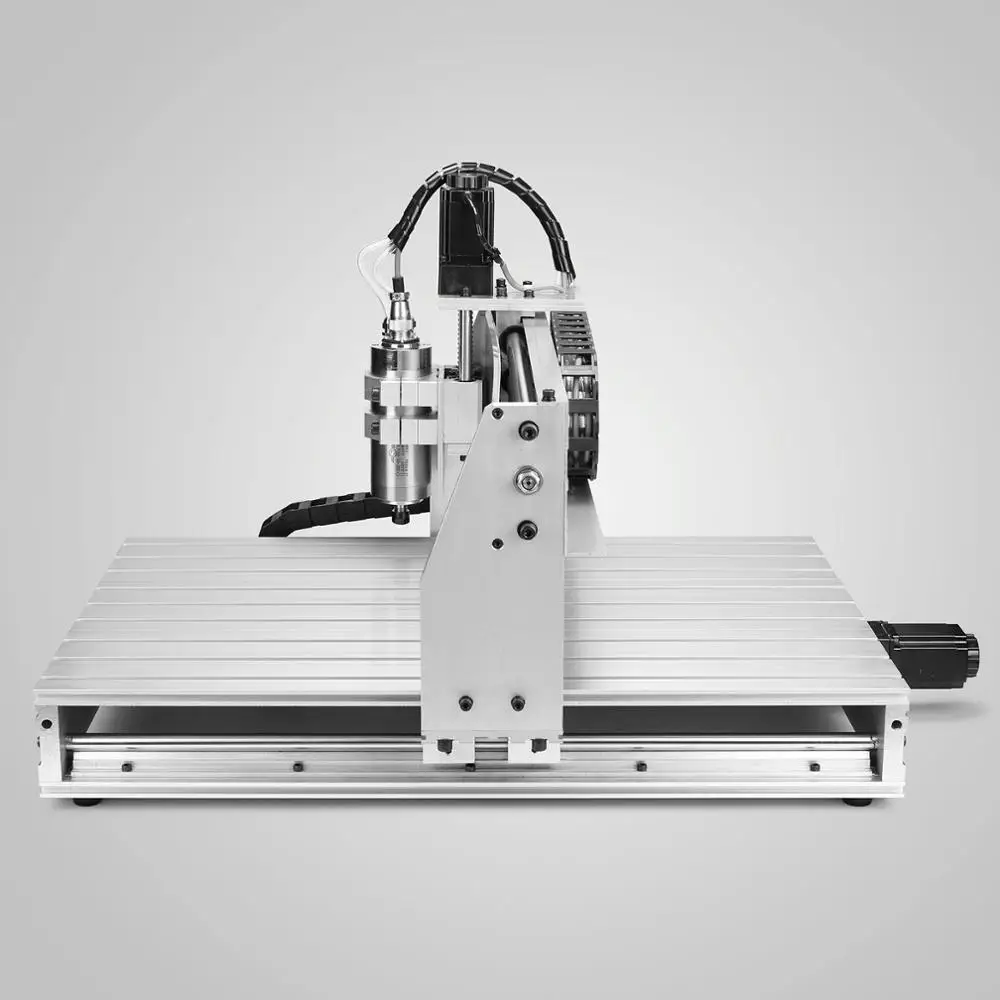

6040 CNC Router Machine with 800W/1500W/2200W Spindle with four axis cnc router metal cutting machine
- Категория товара: >>>
- Поставщик (Оптовый магазин): Shanghai,Sihao,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specification
item | value |
Condition | New |
Range of Spindle Speed(r.p.m) | 0rpm - 24000rpm |
Positioning Accuracy (mm) | 0.05mm |
No. of Spindles | Other |
Working Table Size(mm) | 750mm*480mm*20mm |
Machine Type | CNC Router |
Travel (X Axis)(mm) | 580mm |
Travel (Y Axis)(mm) | 400mm |
Repeatability (X/Y/Z) (mm) | 0.05mm |
Spindle Motor Power(kW) | 800W/1500/2200W |
CNC or Not | CNC |
Mach3, DSP | |
Place of Origin | China |
Shanghai | |
Brand Name | Vevor |
Voltage | 220V |
Dimension(L*W*H) | 88*67*52cm |
Certification | CE ISO |
Weight (KG) | 55 |
Warranty | 2 Years |
Key Selling Points | High-accuracy |
Local Service Location | None |
After Warranty Service | Video technical support, Online support |
Showroom Location | None |
Applicable Industries | Building Material Shops, Machinery Repair Shops, Home Use, Printing Shops, Construction works , Energy & Mining, Other, Advertising Company |
Marketing Type | New Product 2021 |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 2 years |
Core Components | Other |
After-sales Service Provided | Engineers available to service machinery overseas |
Spindle speed | 24000rpm/min |
Empty line speed | 0-4000mm/min |
Resetting accuracy | 0.05mm |
Max.workpiece dimension | 750mm*450mm |
Engraving accuracy: | better than 0.04mm |
Spindle precision | radial runout≤0.03mm |
Carving speed: | 0-2500mm/min |
Weight | 55KG |
Power | 1.5KW |
Company Profile
Customer Payments
Product packaging
Package and delivery the fiber laser cutting machine
1.Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool .
2.Fumigation wooden box:Our wooden box is fumigated, do not need to check the wood, saving the transport time.
3.Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to
ensure that the soft material is covered intact, also avoiding water and rust.
The outermost is a wooden box with a fixed template.
3.Wooden box at the bottom of a solid iron socket for easy handling.
1.Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool .
2.Fumigation wooden box:Our wooden box is fumigated, do not need to check the wood, saving the transport time.
3.Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to
ensure that the soft material is covered intact, also avoiding water and rust.
The outermost is a wooden box with a fixed template.
3.Wooden box at the bottom of a solid iron socket for easy handling.
Hot Selling Product
60W Laser Engraving Cutting Machine
80W Laser Engraving Cutting Machine
Certifications
FAQ
✦How to operate the machine ?
We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
✦How can I get the sample to check you quality ?
If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us,
free mark samples can be provided.
✦Does the machine can be customized according to my requirements ?
Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
✦Can you arrange the shipment for me ?
We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
✦How can I get the sample to check you quality ?
If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us,
free mark samples can be provided.
✦Does the machine can be customized according to my requirements ?
Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
✦Can you arrange the shipment for me ?
We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
