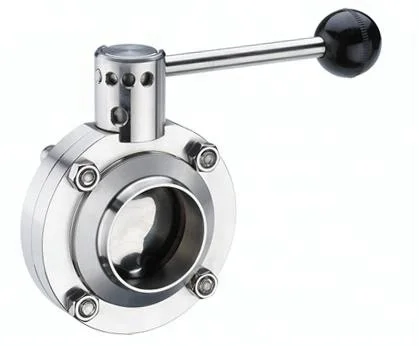

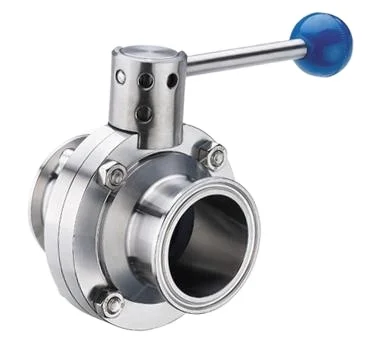

Санитарный клапан-бабочка из нержавеющей стали с наружным зажимом и резьбой
- Категория товара: Дроссельные клапаны >>>
- Поставщик (Оптовый магазин): Wenzhou,Kinding,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
We could be offered with Weld end, Screw end, and Clamp end. The butterfly valves can be installing with different type handles like 4 position pull handle, 12 position gripper handle and 10 more other types or installing with actuator for automatically control for your widely using.
Valve Body Material | AISI304/AISI316L | Provided with material inspection report | |
Seal material | EPDM/VMQ/FPM/PTFE | ||
Size | 1/2"~6",DN10~DN150 | ||
Working pressure | ≤10bar(145psi) | ||
Working temperature | PDM: 14~248ºF(-10~120ºC) | ||
VMQ:- 58~356ºF(-50~180ºC) | |||
FPM: -22~446ºF(-30~230ºC) | |||
PTFE: -4~482ºF(-20~250ºC) | |||
Other materials are avaible upon request | |||
Outside surface treatment | Ra16~32 (0.4~0.8um) | ||
Inside surface treatment | Ra32~64 (0.8~1.6um) | ||
Connetion ends | butt-weld, clamped ends, screw ends, flange ends | ||
More Butterfly valve

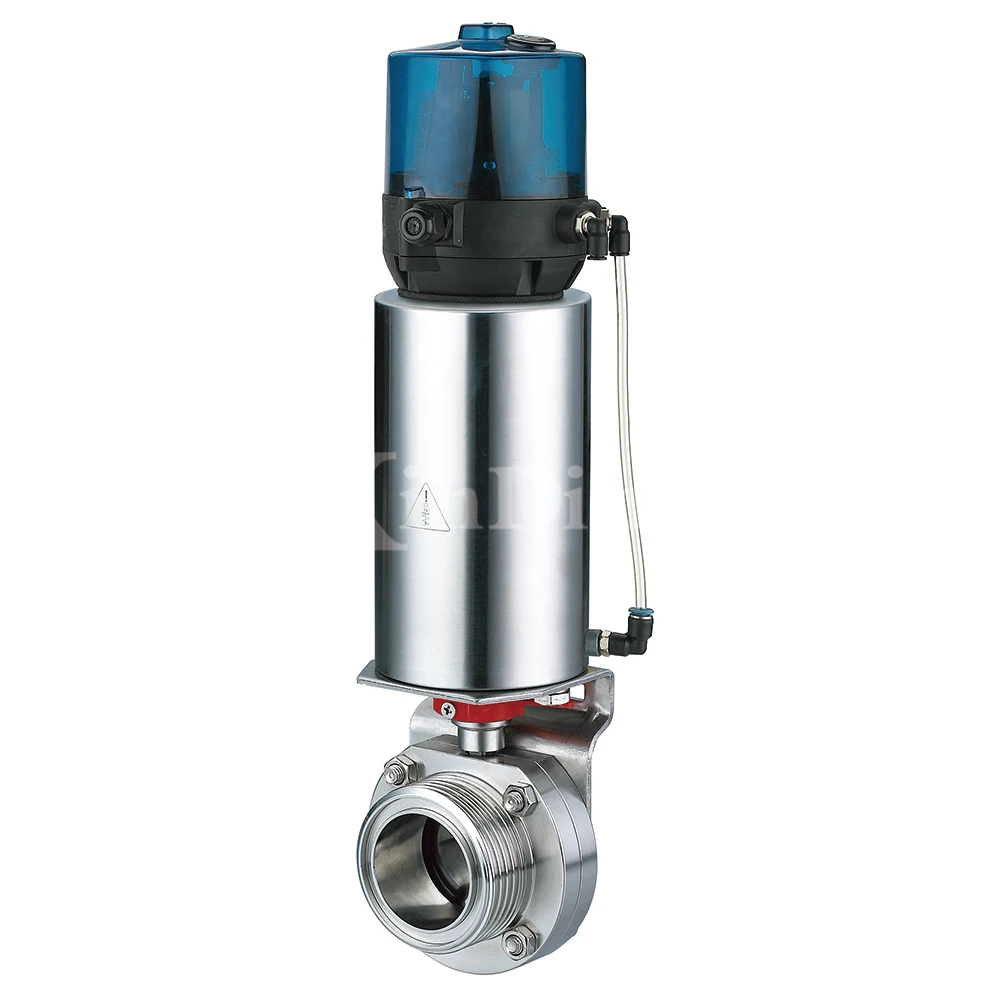

Intelligent Butterfly Valve
Welded Butterfly Vale
Welded Butterfly Valve with Duckbill Handle
Double Flange Butterfly Valve
Flange and Screw Butterfly Valve
Three-piece Butterfly Valve
Aluminium Alloy Pneumatic Welded and Clamp Butterfly Valve

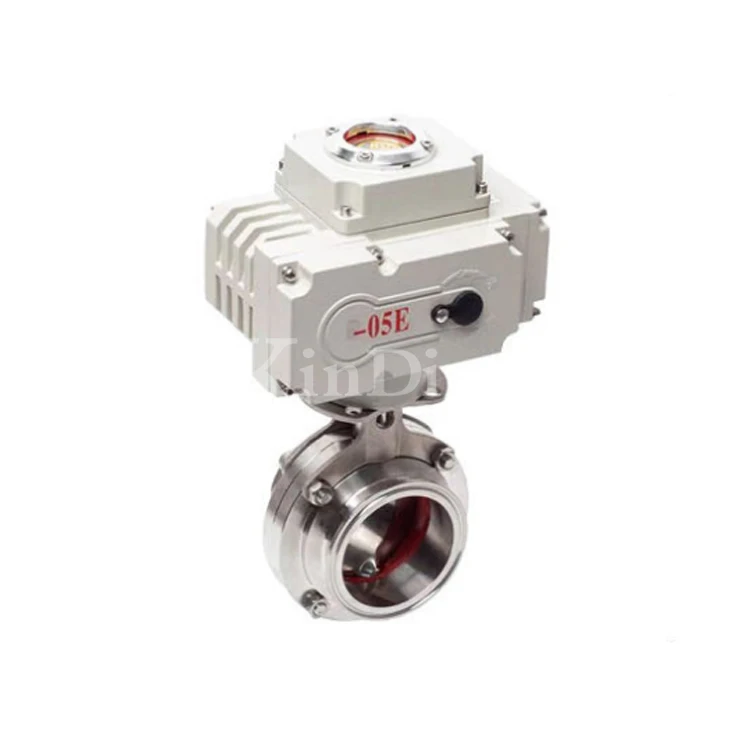

Electric Butterfly Valve
Double Screw Butterfly Valve

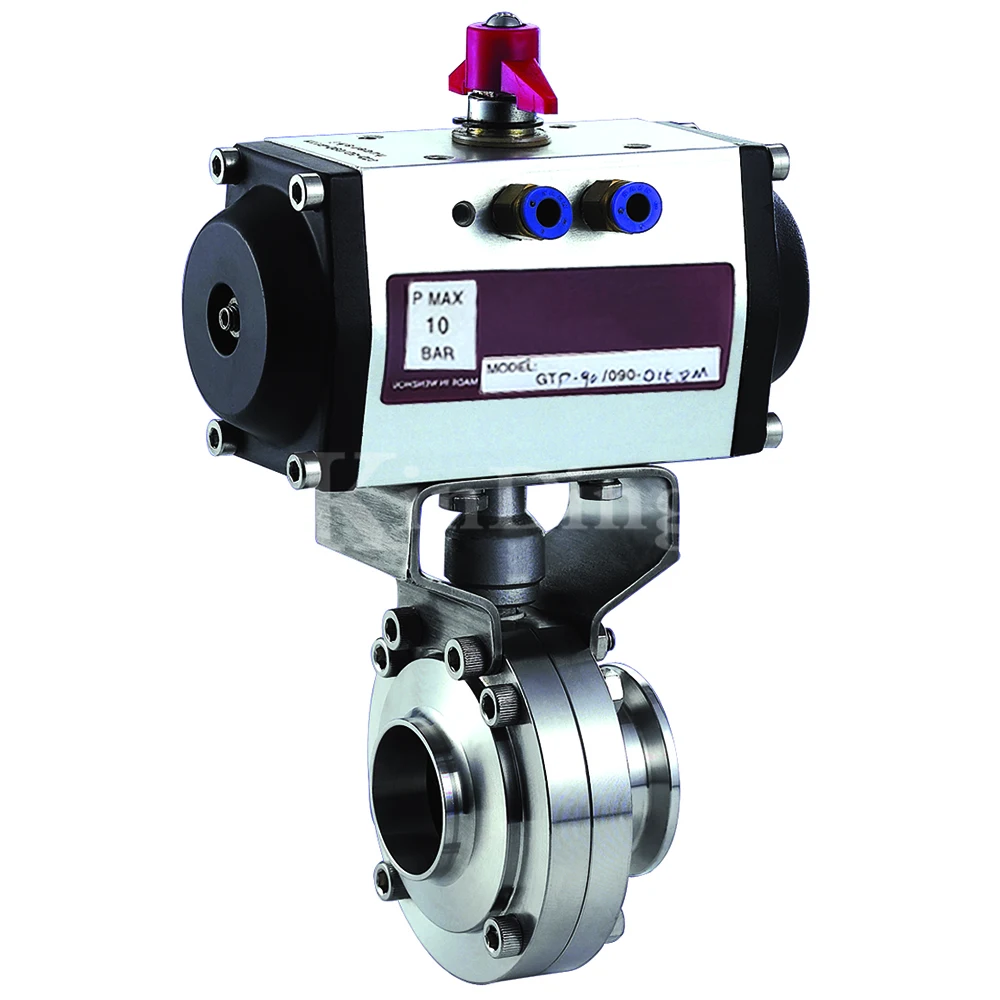

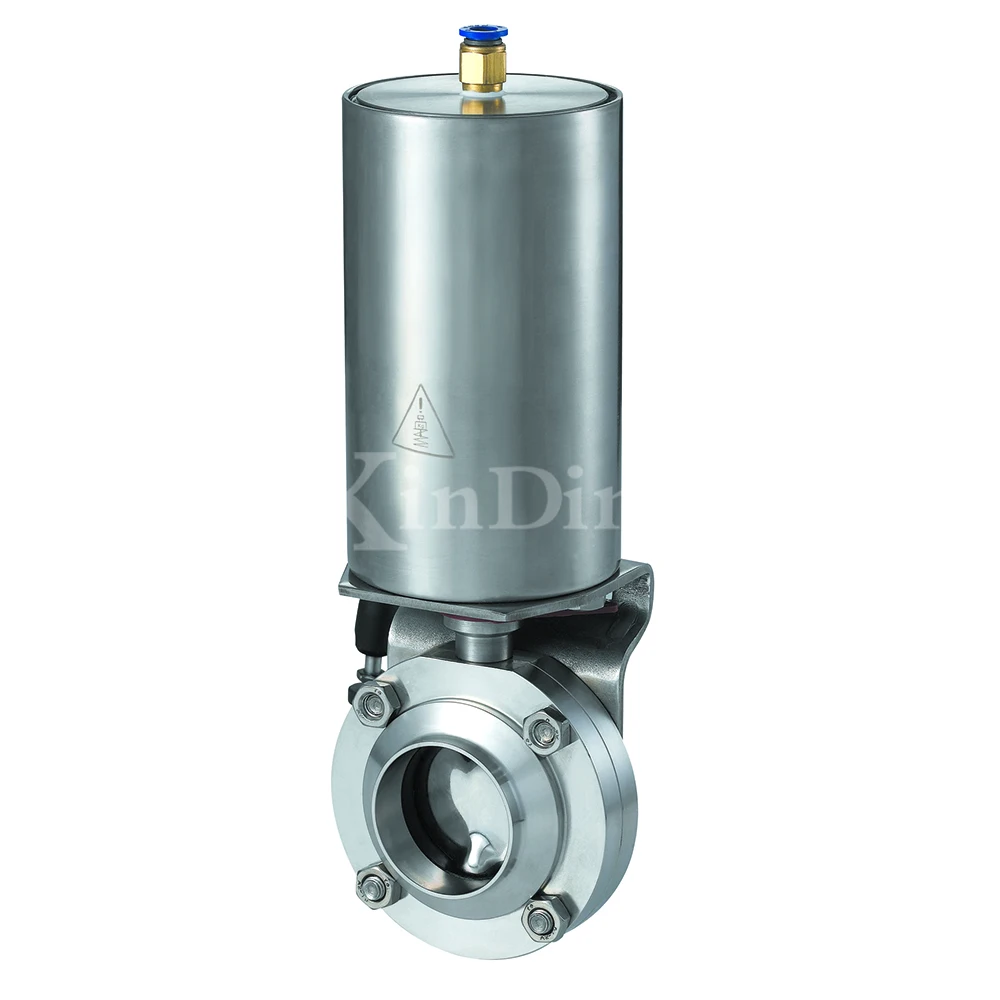

Stainless Steel Pneumatic Welded Butterfly Valve
Powder Butterfly Valve
Three-way Butterfly Valve
Our Company
Wenzhou Kinding Machinery co.,Ltd is located at a beautiful and traffic-convenient Longwan district of Wenzhou city, ,mainly engaged in developing,manufacturing,installation and techanical service in food, beverage, biology, pharmacy, chemical industry fields. We have advantage in producing high quality stainless steel equipment, such as fruit pulping machine, sanitary centrifugal pump, rotary lobe pump, high shear pump, etc. The enterprise has passed ISO9001:2008, our products are made of SUS304, SUS316 and SUS316L, conforming to sanitary standard stated in GMP specification.
Our Certifications
Best stainless
Design material according to customer ' s requirement, test all the raw material to confirm SS304, SS304L, SS316, SS316L.
FAQ
A: We are factory.
Q2: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q3: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight for the fittings.
Q4: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Mobile/Whatsapp: +86 15058983705 . Skype: hyq5871 . QQ: 1783023369.
