RG топливное масло Высокоточный фильтр взрывозащищенный колючение и разделение используемое оборудование для очистки дизельного топлива
- Категория товара: Machine Oil Purifier >>>
- Поставщик (Оптовый магазин): Chongqing,Lushun,Scientific,&,Technological,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product details
Application:

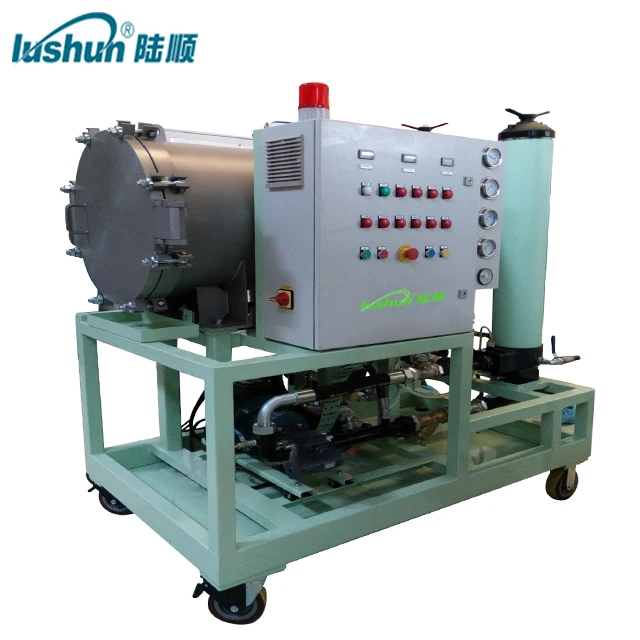

RG oil purifier is consisted of rough filter, second filter, fine filter, coalescence filter & separation filter, oil pump and electronic control system. It has 3 functions: 1) filtration and dehydration function to remove emulsified water, free water and impurities. 2) It can be used as oil filling machine only to remove impurities from oil. Its work theory: oil goes through specially made filter from outside to inside, by this direction, the hole of filter layer is smaller and smaller, different layer can prevent different size of impurities. This design improved lifetime and efficiency of filter. 3) There is inner circulation so that operator can replace coalescence and separation filter.
It is applicable for the filtration and dehydration system of turbine oil. It has two functions of good filtration and dehydration, which can effectively remove impurities, emulsified water and free water from oil. It can improve oil quality, reduce cost of reprocessing and pollution, and reduce cost of maintenance and operation.
Technical Parameter List:
| Item | Model | Unit | RG-30 | RG-50 | RG-100 | RG-200 | RG-300 | |
Technical Parameter | Flow | L/H | 1800 | 3000 | 6000 | 12000 | 18000 | |
| Working Pressure | MPa | ≤0.5 | ||||||
| Temperature Range | ℃ | ≤80 | ||||||
| Working Power Supply | V | 380V/50Hz(or at user’s option) | ||||||
| Total Power | kW | 1.5 | 1.5 | 1.5 | 3 | 4 | ||
| Pipeline Diameter | mm | 25 | 32 | 40 | 50 | 65 | ||
| Net Weight | Kg | 350 | 400 | 500 | 800 | 1200 | ||
| Overall Dimensions(LxWxH) | cm | 145x90x115 | 167x100x115 | 165x105x130 | 190x115x150 | 210x125x160 | ||
Index for Oil Treatment | Water Content | mg/L | ≤100(GB/T7600) | |||||
| Filtration Precision | μm | ≤10 | ||||||
***Dimension and weight will be changed with the changing of the technical specification.
