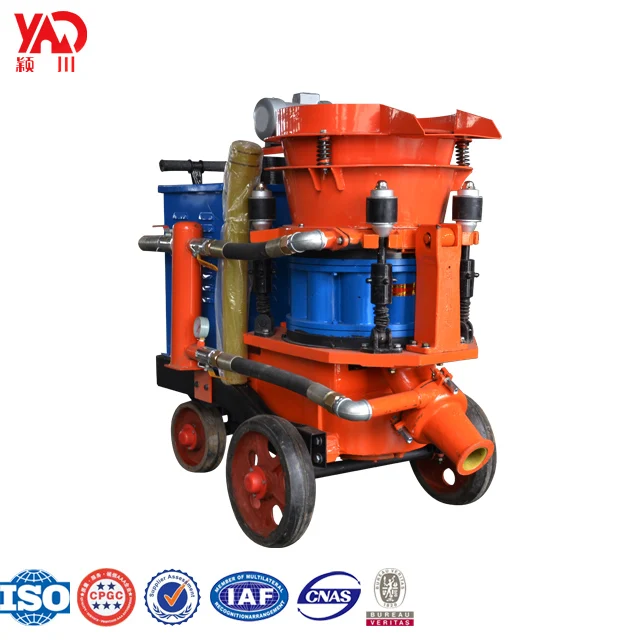

PZ5 refractory concrete shotcrete gunite machine equipment/dry mix shotcrete machine for sale/small shotcrete machine price cost





















Product Description







Technical Parameters of PZ5 refractory concrete shotcrete gunite machine equipment/dry mix shotcrete machine for sale/small shotcrete machine price cost :




















































































Model



PZ-3



PZ-5



PZ-7



Output



3m3/h



5m3/h



7m3/h



Max. Convey Distance



Horizontal:200m Vertical: 20m



Water Cement Ratio



≤0.4



≤0.4



≤0.4



Max. Aggregate Size



Ø 20mm



Ø 20mm



Ø 20mm



Hose Inner Diameter



Ø 38mm



Ø 51mm



Ø 64mm



Rotor Diameter



Ø 350mm



Ø 438mm



Ø 480mm



Operating Air Pressure



0.4~0.6MPa



0.4~0.6MPa



0.4~0.6MPa



Air Consumption



3-4m3/min



7-8m3/min



8-10m3/min



Motor Power



3kw



5.5kw



7.5kw



Voltage



380V or as your request(can be customized)



Dimension (mm)



1040x550x940



1450x800x1280



1500x700x1280



Net Weight



260 Kg



600 Kg



700 Kg



Wheel



Nylon Wheel / Rubber Wheel / Skid Wheel / Rail Wheel






What can we do for you?


1. We can change the color according to your actual requirements.
2. Customize the voltage motor based on your country standard.
3. Choose different wheels according to your needs.





Our advantage:


Professional production team, production line, experienced technical experts who engaged in this industry for more than 10 years.

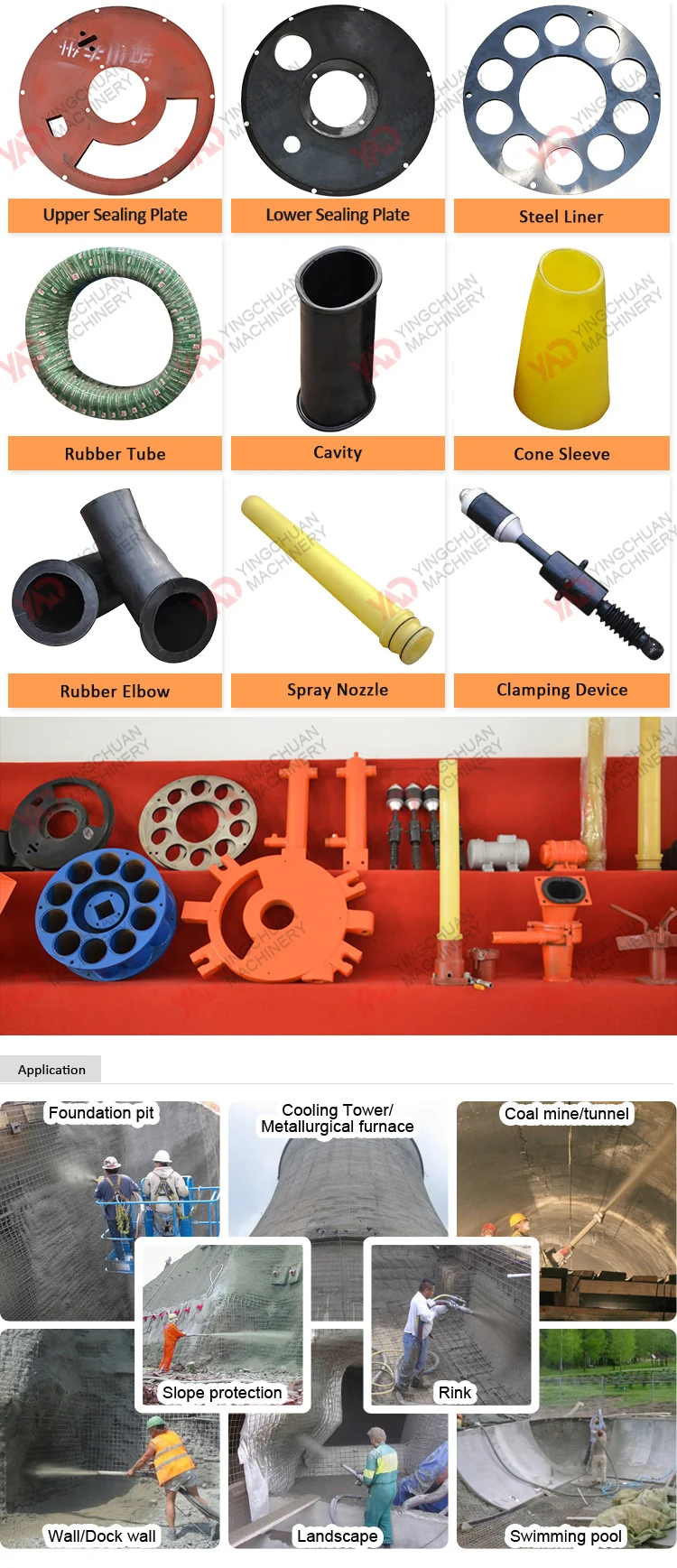

We have the professional production line for the main wearing parts about shotcrete machine:


1.Delivery Rubber Hose: More durable than normal kind rubber pipe, weaved by the quality steel wire, high resist compression ability, high wear resistance.


2.Rubber Sealing Plate: Adopt nature rubber, working time can meet 400m3.For the normal kind  can only meet 130m3.


3.Rotor Disk: Casting by quality carbide tools, The working time is 3-5 times than normal kinds, and can meet 600-800m3,it's prefect for the rotor type shotcrete machine.





Shotcrete Machine Application:

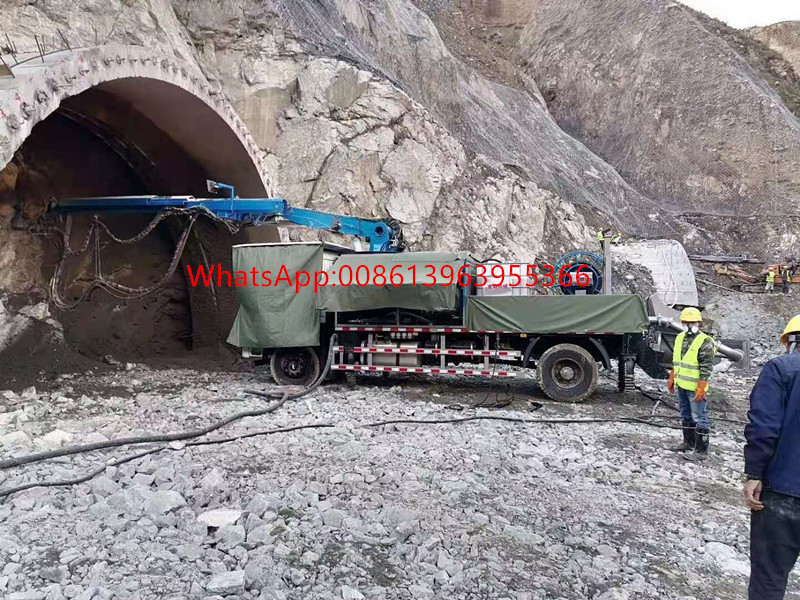

Shotcrete machine are mainly used for railway and highway, subterranean basement walls, Seismic reinforcing/ retrofitting of buildings, channels, shear Walls, retaining Walls, bridge retrofits, architectural concrete, mining, tunnel, culvert, subway, hydropower engineering(such as tunnels,dams and pools) and underground excavation engineering etc.


It has many obvious advantages such as simple structure, easy to operate and convenient after sales service and very long service life etc.

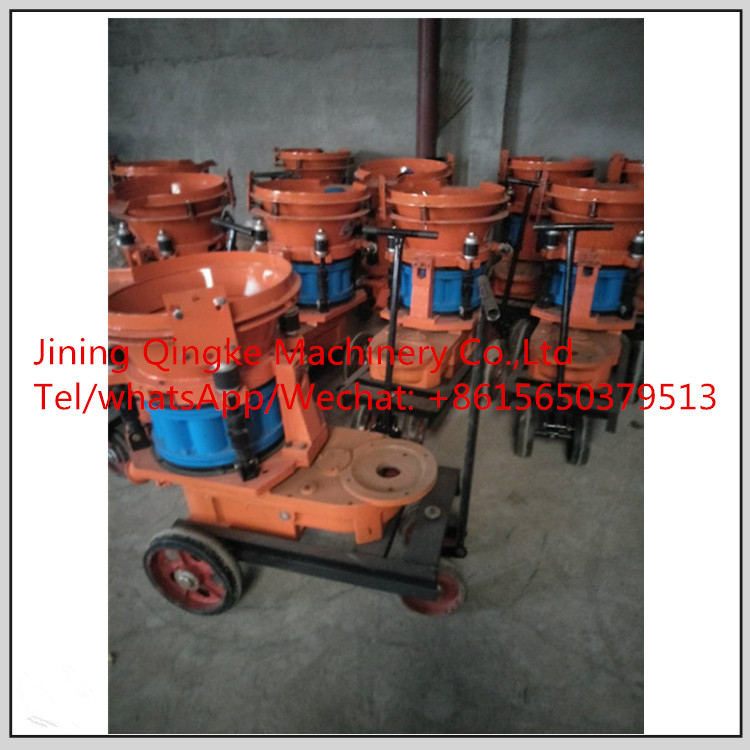

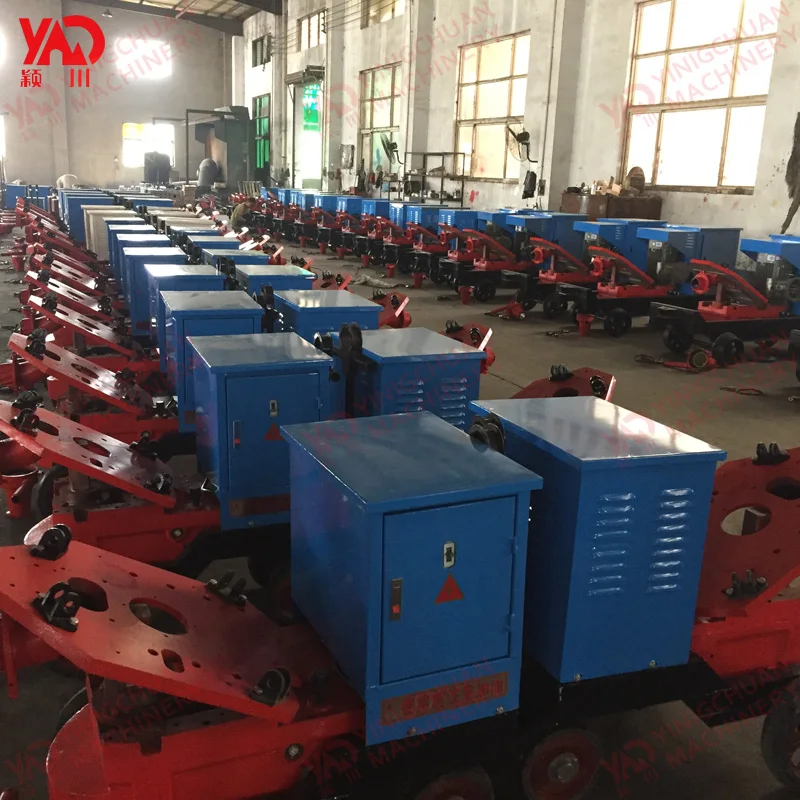

Product Photo










Feedback







PZ5 dry used shotcrete robot/shotcrete machine for sale/small shotcrete machine price

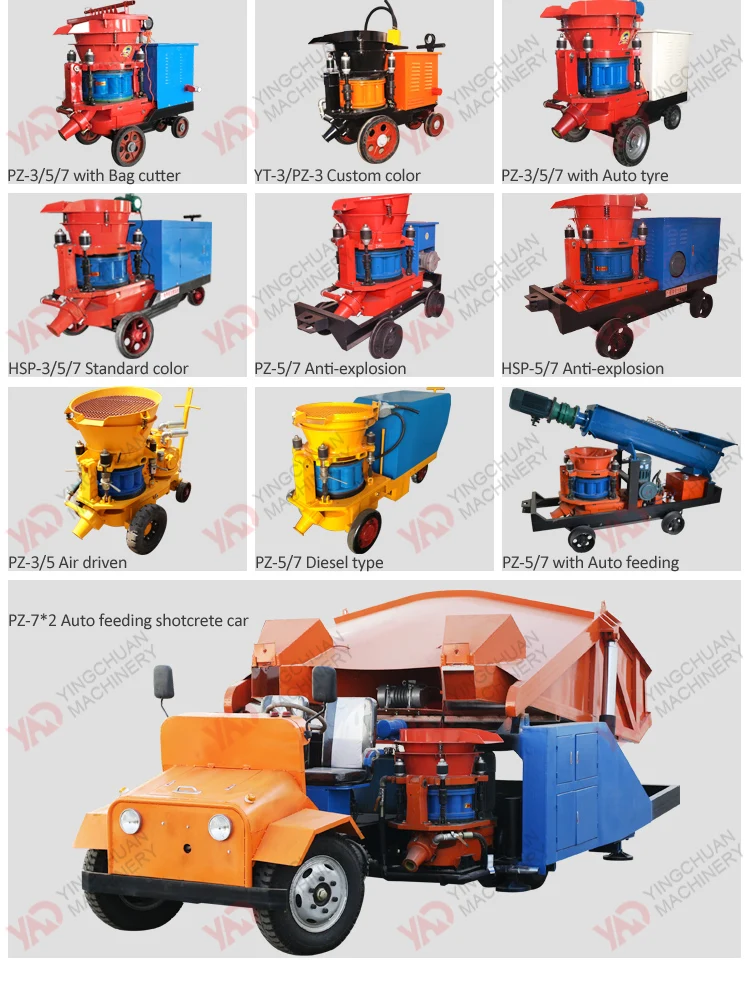

Optional Model







PZ5 dry used shotcrete robot/shotcrete machine for sale/small shotcrete machine price



Advantage







PZ5 dry used shotcrete robot/shotcrete machine for sale/small shotcrete machine pricePZ5 dry used shotcrete robot/shotcrete machine for sale/small shotcrete machine price

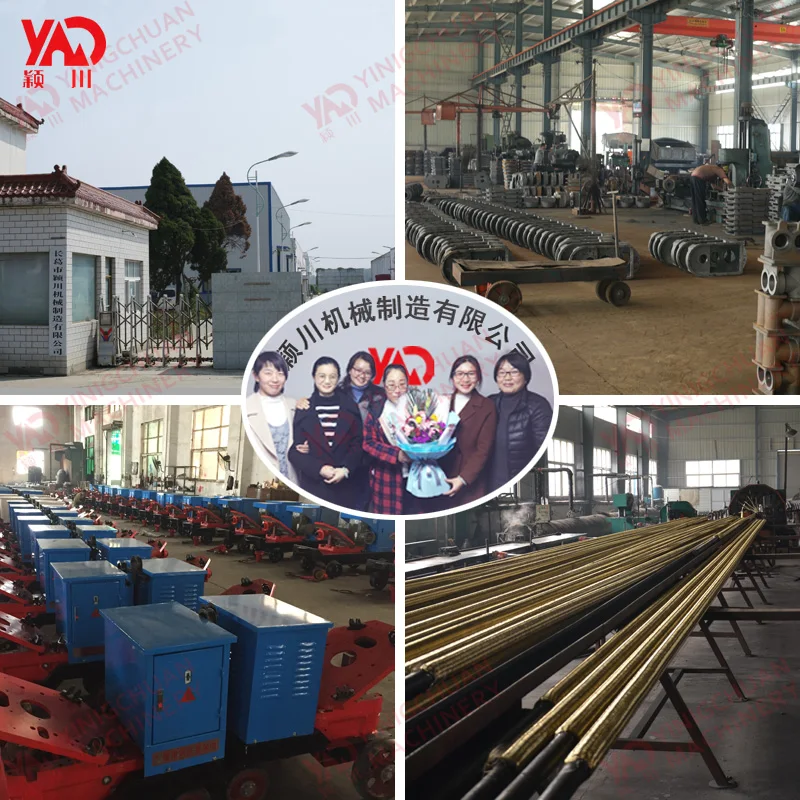

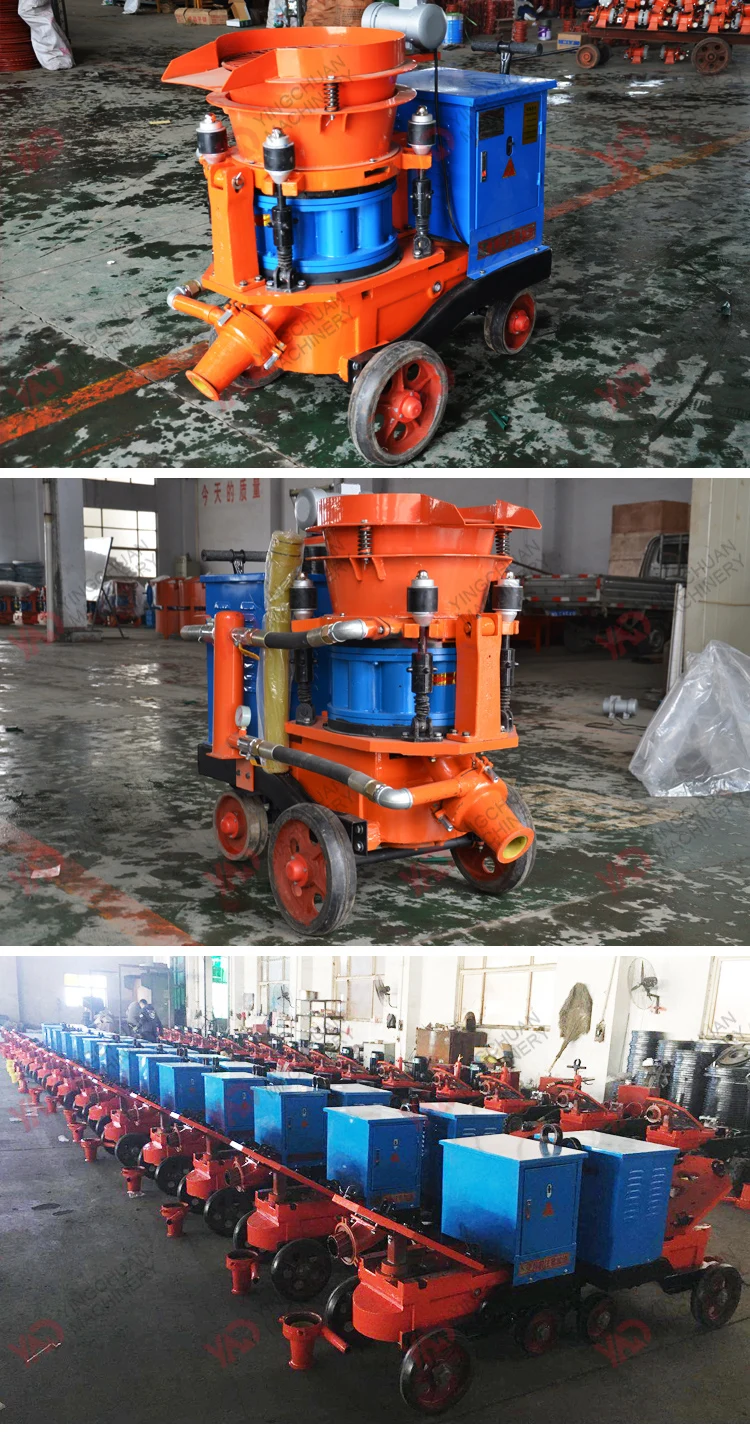

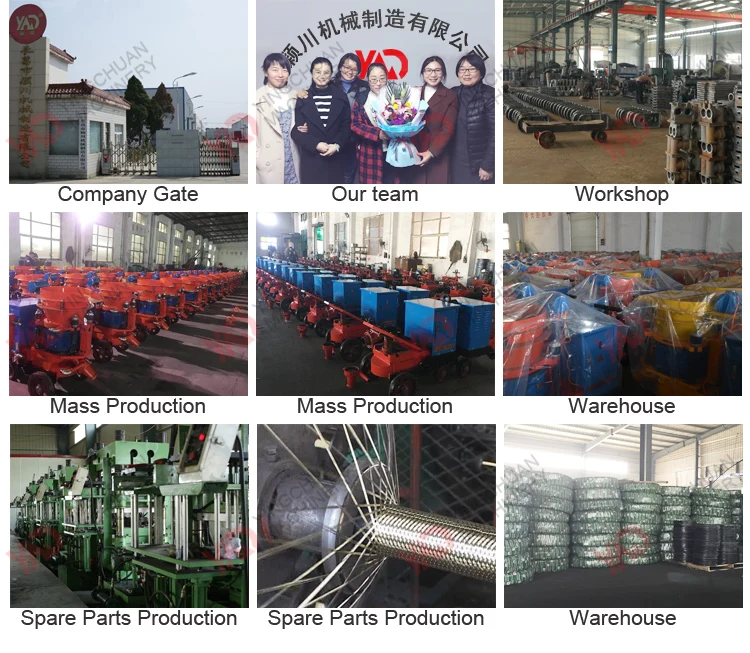

Factory show
