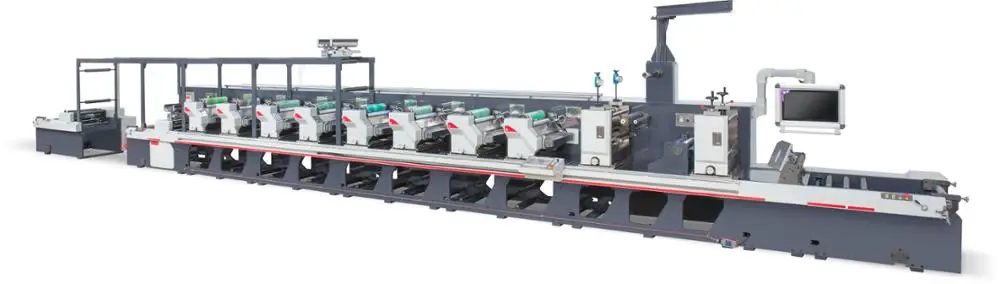

KSG-340-P8 модель высокая скорость рукав ярлык стикера флексографическая печатная машина

Описание и отзывы

Характеристики

KSG-340-P8

High Speed Sleeve Sticker Label Flexo Printing Machine

Main Technical Parameter

1. Unwinding part 1 set

♦  Maximum diameter of unwinding 1050mm, pneumatic feeding method

♦  3 "air core shaft

♦  Servo tension control system

♦  Paper cutting platform for pneumatic clamping paper

♦  BST automatic deviation correction device

♦  Pneumatic components adopted by Airtac

♦  Corona device effectively increases the amount of ink on film

♦  Removing static electricity from material surface with electrostatic device

♦  Dust removal from the surface of raw material with dust removal device

2. Second tension part 1 set

♦  2 sets of traction units, servo drive

♦  French merobel tension testing

♦  Pneumatic clutch of high precision clip roller

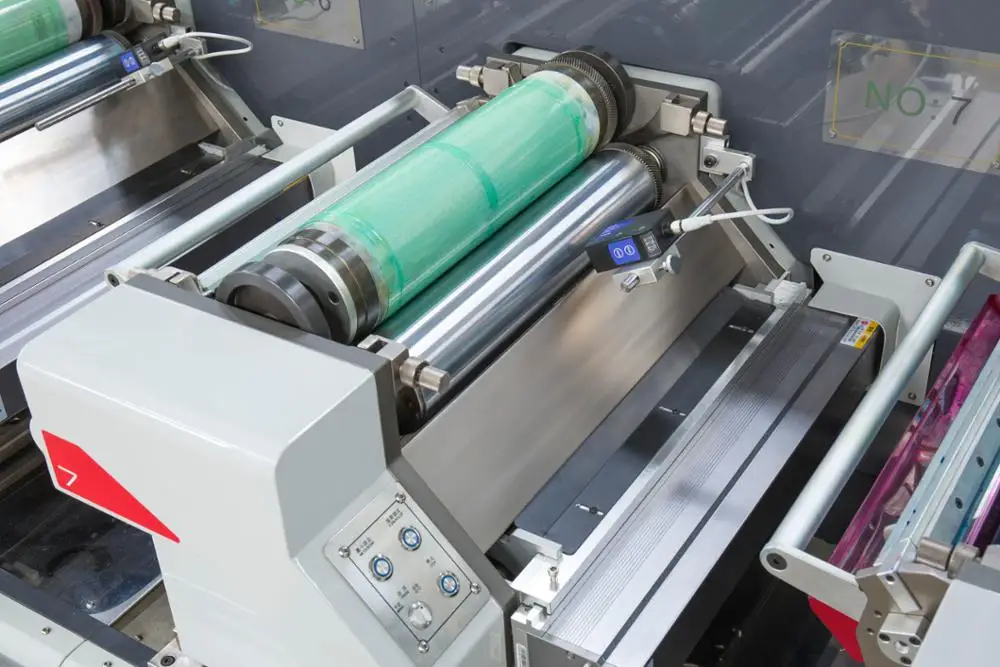

3. 8 sets of printing unit

♦  Servo drive imprint roller

♦  Replaceable platform

♦  Surface hard aluminum guide roll

♦  Reserved hot air UV, cold water roll work place

♦  Automatic clutch pressure function of plate roller

♦  Lateral position adjustment device

♦  High precision imprint bottom roll

♦  Quick replacement scraper

♦  Automatic registration function

4. Led UV drying system

♦ 30% Using the performance of frequency conversion power supply, the same output power can save 30% more energy than ordinary lighting device

♦ The power has two kinds of choice, manual and automatic, which can control power step by step when manual, and follow automatically with the speed of printing machine, and can fine adjust the power of each color group separately

♦ Small size, convenient installation

♦ Use drawer structure, convenient to wear paper, maintenance

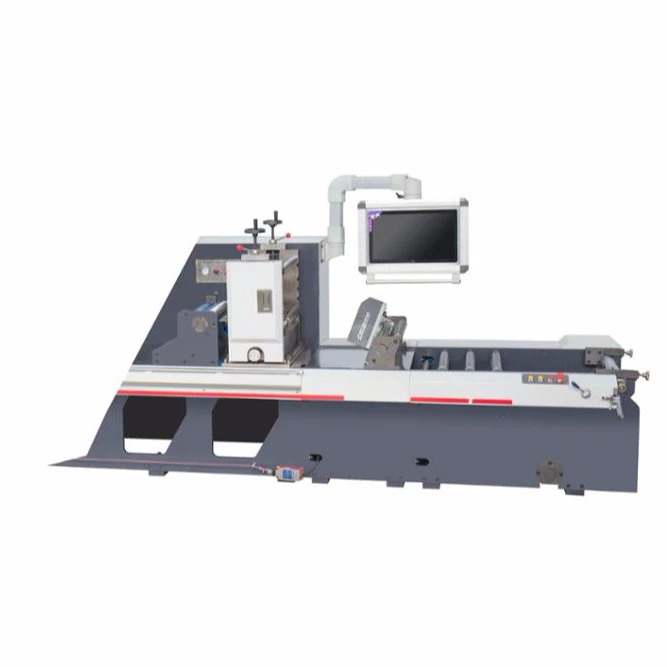

5. Rotary die cutting station

♦ 1 set die cutting station

♦ Lateral position adjustment device

♦ The wallboard made by the quenched and tempered steel ensures the rigidity of the unit

♦ High hardness alloy bottom roll

♦ Die cutting pressure regulating device

♦ Servo fine tuning is more convenient

♦ The upper part of the die cutting seat is equipped with the crane to replace the risk of manual handling. The upper part of the die cutting seat is equipped with the crane and the risk of replacing the manual handling is replaced by the top part of the die cutting seat.

6. Waste coil unit

♦ Full Servo pid Self-operation, automatically increasing Power with Winding diameter

♦ 3 inch shaft, with rotary gas supply joint

♦ 900mm Maximum waste diameter 900mm

♦ Gas expansion shaft electric control charging / deflation device

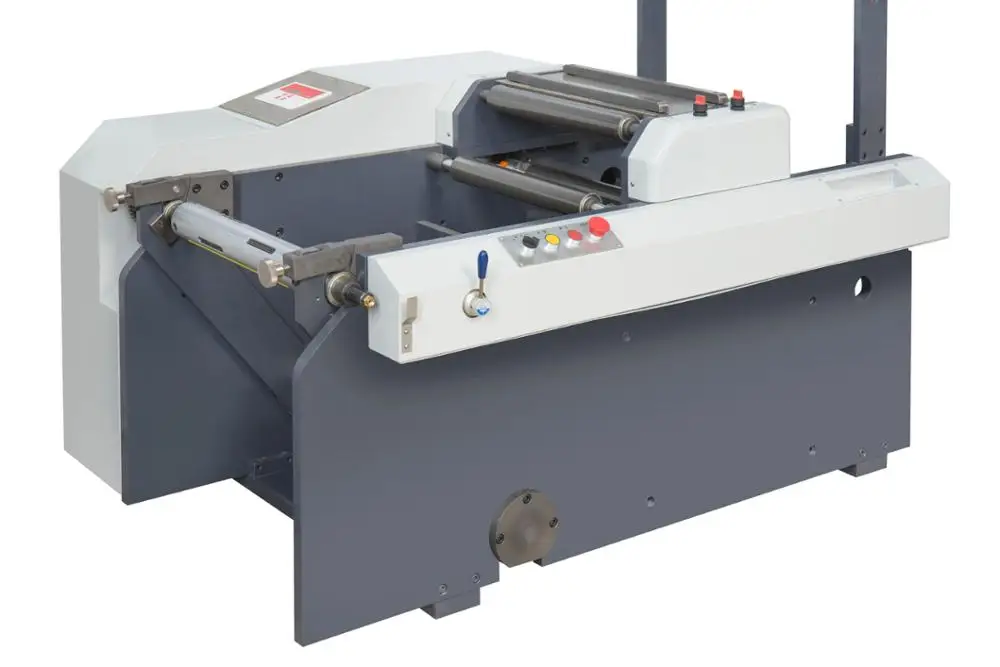

7. Rewinder device

♦  Maximum diameter 1050mm

♦  Pneumatic feeding mode

♦  3inch shaft

♦  The output torque of frequency conversion motor can be adjusted according to the winding diameter at that time to ensure the stability of winding tension

8. BST monitor

♦ AOC 22screen

♦ Easy to adjust focal length, magnification, imaging contrast, etc

♦ A variety of monitoring mode selection, tracking registration, monitoring printing efficiency, etc

9.
