General Introduction:

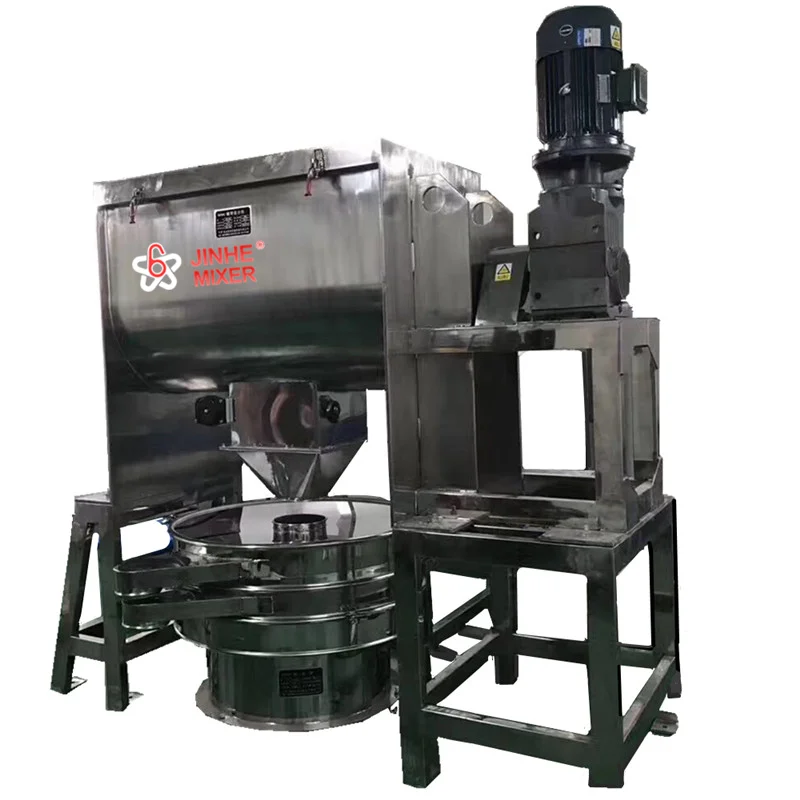

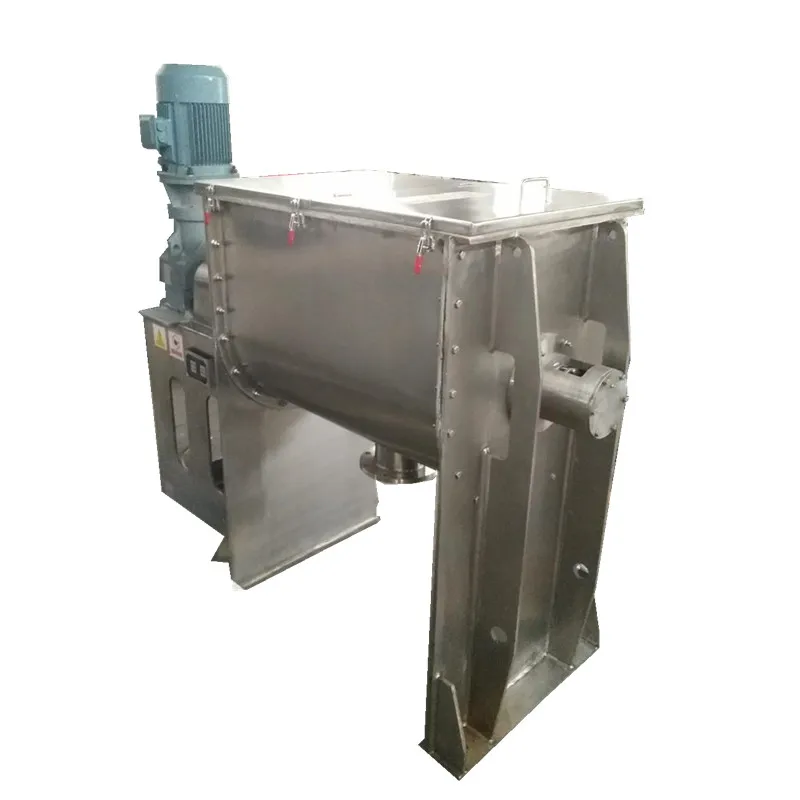

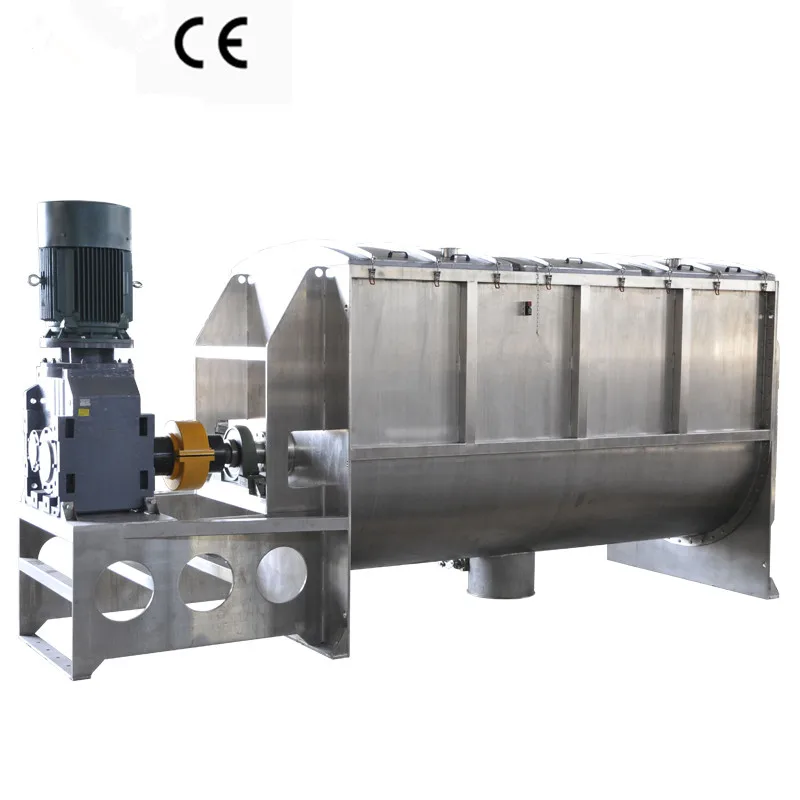

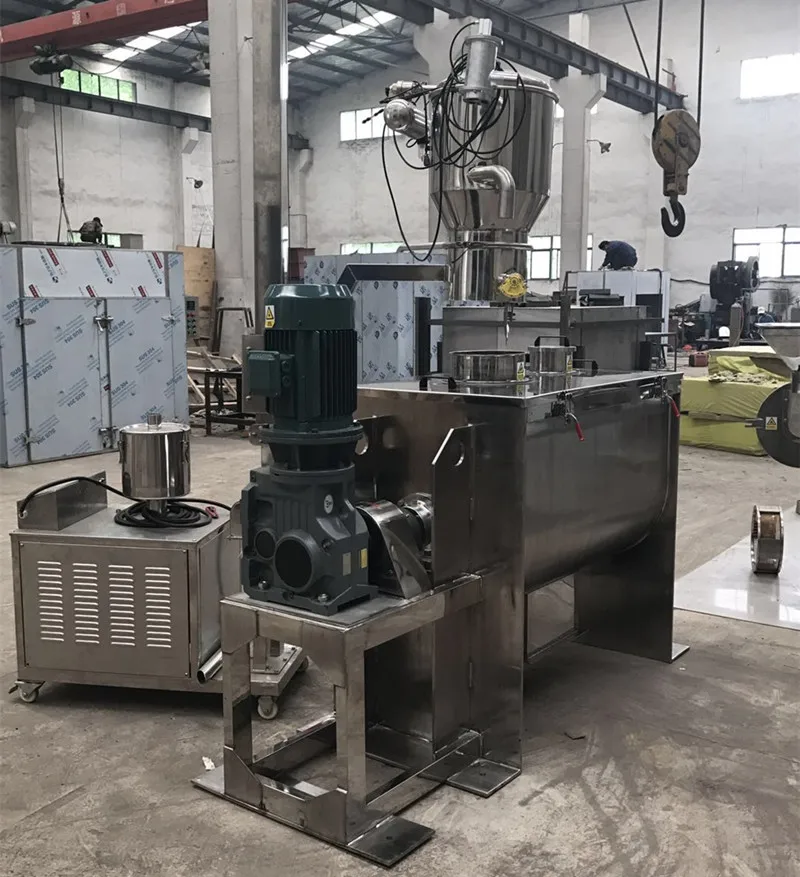

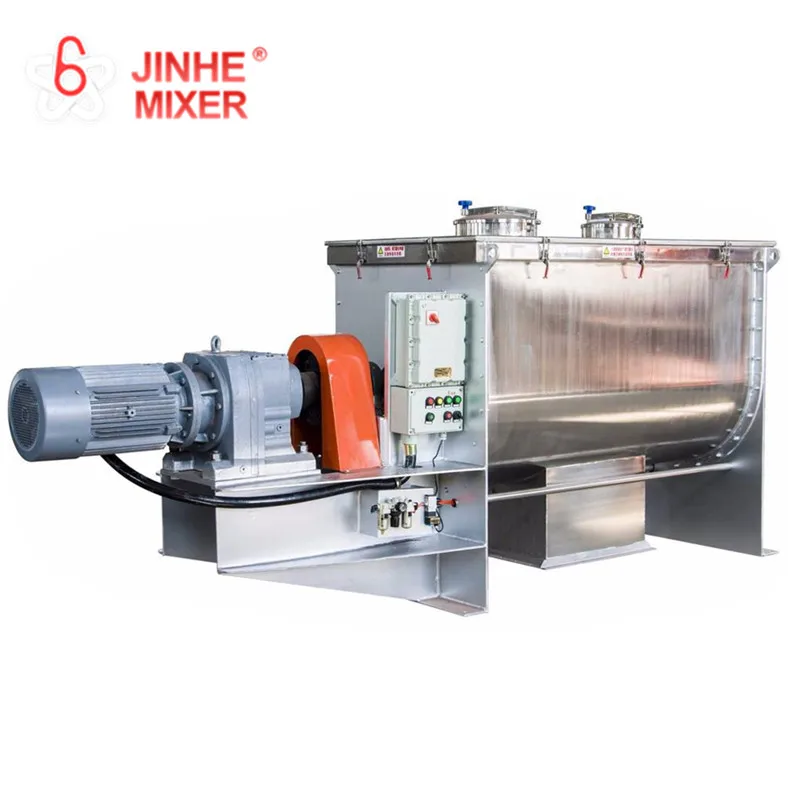

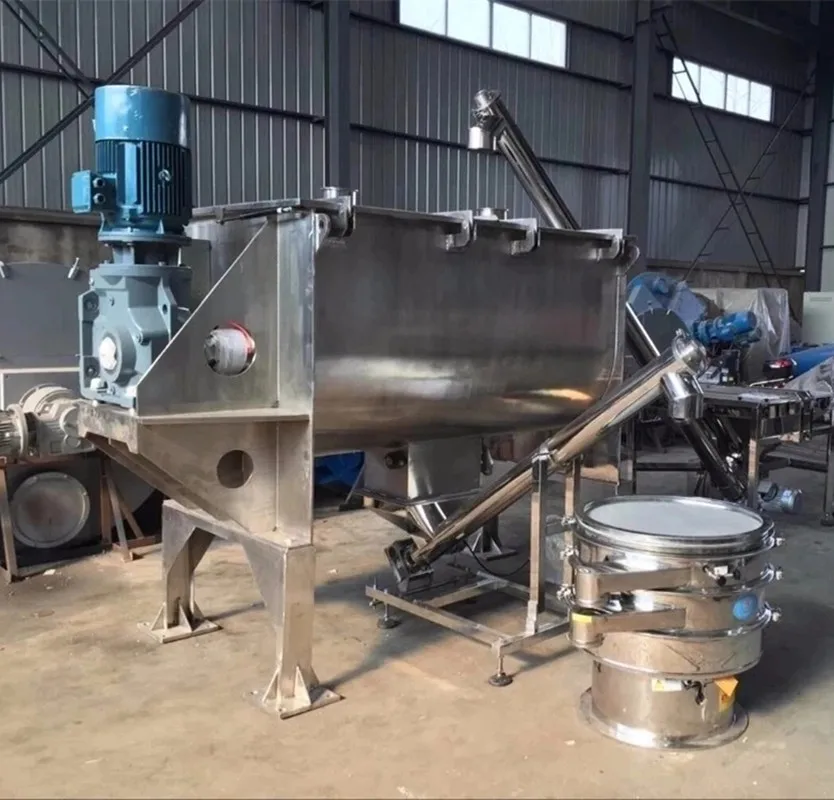

JHRB horizontal ribbon blender is widely used in chemical, pharmaceuticals, food, and construction line.
It can be used to mix powder with powder, powder with liquid, and powder with granule. especially for the powder and granular which with stick or cohesion character, or add a little liquid and paste material into powder and granular material.

Working principle:
The Horizontal Ribbon Mixer consist of U-Shape tank, spiral and drive parts,The outer ribbon push the material from the two ends to the centre, inner ribbon push the material from center to the two ends.Thus to achieve material convention to get a high effective convective mixing.

The discharging port is set in the bottom centre, with the help of the outer ribbon,the material can be discharged completely, and no dead zone.

Specification:

Details:
1.Flexible material selection
Material can be carbon steel, manganese steel, ss304, 316L and 321; besides, different
material can also be used in combination. Surface treatment for stainless steel include sandblasting, wiredrawing, polishing, mirror polishing, all can be used in different parts of a mixer

2.The driven unit

Options for motor: general motors, explosion-proof motors, variable frequency motor, high efficiency and energy saving motor. Commonly used reducers: R-series, K-series, and F-series gear box; cycloidal reducer, universal gear reducer, planetary gear reducer.

Commonly motor-gearbox connection: direct connection, pulley connection, hydraulic coupler connection.

3.High efficiency mixing unit
Different main shaft agitators can be equipped according to the properties of raw materials.
 The main shaft agitator could be: inner and outer ribbon, paddle and ribbon, disconnected ribbon, and shaver-shaped agitator.

4.Excellent discharging unit

The drive types of valve are Manual, pneumatic, and electric.
Valves for consideration: powder spherical valve, cylinder valve, plum-blossom dislocation valve, butterfly valve, rotary valve etc.

5.Various inlets
Various inlets on the top cover of the barrel can be designed according to different situations.
They can be used as man hole, cleaning door, feeding hole, vent, and dust colleting hole.

The top cover can be designed as fully-opened lid for easy cleaning.

6.Powerful auxiliary components
Mixer is frequently equipped with many auxiliary components, like steam coil jacket, honeycomb pressure jacket, medium circulation jacket

sampling valve, high speed chopper, temperature sensor, weighing system, dust removal system and so on.
Different heat medium requires different jacket, it can be used for heating and cooling, while, the temperature should be within 250 Celsius degree.

Any questions?Click here for more information>>

The ribbon blender will be packaged by Wooden box or plastic film, also can be packaged according to your requirement.

 Horizontal paddle mixer

Zhengzhou JinHe Machinery Manufacture Co., Ltd. is a professional manufacturer for mixing machine. We are an ambitious company with personality and strong ability in R&D. The double movement mixing principle that we proposed has greatly improved efficiency and save more energy. At present 3 series mixing machines that we have created all have independent intellectual property rights and national patent rights. Our innovative mixing principle is considered at the forefront of mixing technology!

Here is our official websit :http://www.asiamixer.com/, can check to get more importance information in there. Horizontal paddle mixer

  An experienced and well mannered sales and marketing team is committed to bringing you 100% customer satisfaction. In order to succeed in the rapidly changing podwer mixer market, our company has instituted a development policy that emphasizes "Serving the customer, improving products, providing best service,sureness and steadiness, devotion and dedication".Please feel free to contact us at any time.

Read it before leaving this page for it is helpful for you to make the right choice

1. Q: Do you have a small capacity mixer/blender of 3 liter?
A:Yes, we have small capacity mixer from 3L to 110L for lab use.

2. Q: Is it easy to clean so that we can mix/blend different powder one batch after another?
A: Yes, our lab series mixer's inside blades and barrel are all dismountable. You can clean it thoroughly by yourself.

3.Q: Is it possible to mix/blend 3 liters or 15 liters with one machine only?
A:Yes, There is 6 size barrel for 1 mixer from 3L to 18L. You can choose what you need.

4. Q: If I want to mix different powders particle size in 200mesh(74um), how long would be ok?
A:10 minutes or less upon the fluxility of the powder

5. Q: If I want to mix powder size smaller than 800 mesh(19um), would it also capable?
A:Yes

6. Q: If I want to mix light powder and heavy powder, like Mgnesita powder and Cromo powder, the light powder is easily floating on the surface of heavy powder, then the light powder can not well- dispersed. Does your mixer can slove this problem?
A:Yes, absolutely. Our double movement series mixer have unique structure over the world. The barrel rotating while the inside 8 full size helical blades rotating also. The barrel rotating like a 3D mixer. The inside helical blades can do cutting, dividing,pressing job. If our machine used to mix normal powders like milk powder,detergent powder,protein powder, etc.....it will need less time than other mixer.

7. Q: I am in food industrial, what kind of mixer/blender is better for me?
A: All parts connect to food mixture need better quality stainless steel 304/316 to prevent contaminate.
